ASUS - DUAL NVIDIA GeForce RTX 5060 Ti OC Edition 16GB GDDR7 PCI Express 5.0 Graphics Card - Black
Key Accessories:
- NZXT - Kraken Elite 240mm 2024 Radiator Liquid Cooler (2 x 120mm F Fans) with 2.72" IPS Display - Black$129.99The price was $239.99
More Buying Options from Best Buy
Related Item
Specifications
- GPU Base Clock Frequency2.602 gigahertzGPU Boost Clock Frequency2.632 gigahertzDisplayPort Ports3 x DisplayPort 2.1HDMI Ports1 x HDMI 2.1Maximum Resolution8K (4320p)Maximum Number of Displays Supported4
- Key Specs
- GPU Base Clock Frequency: 2.602 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.632 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)

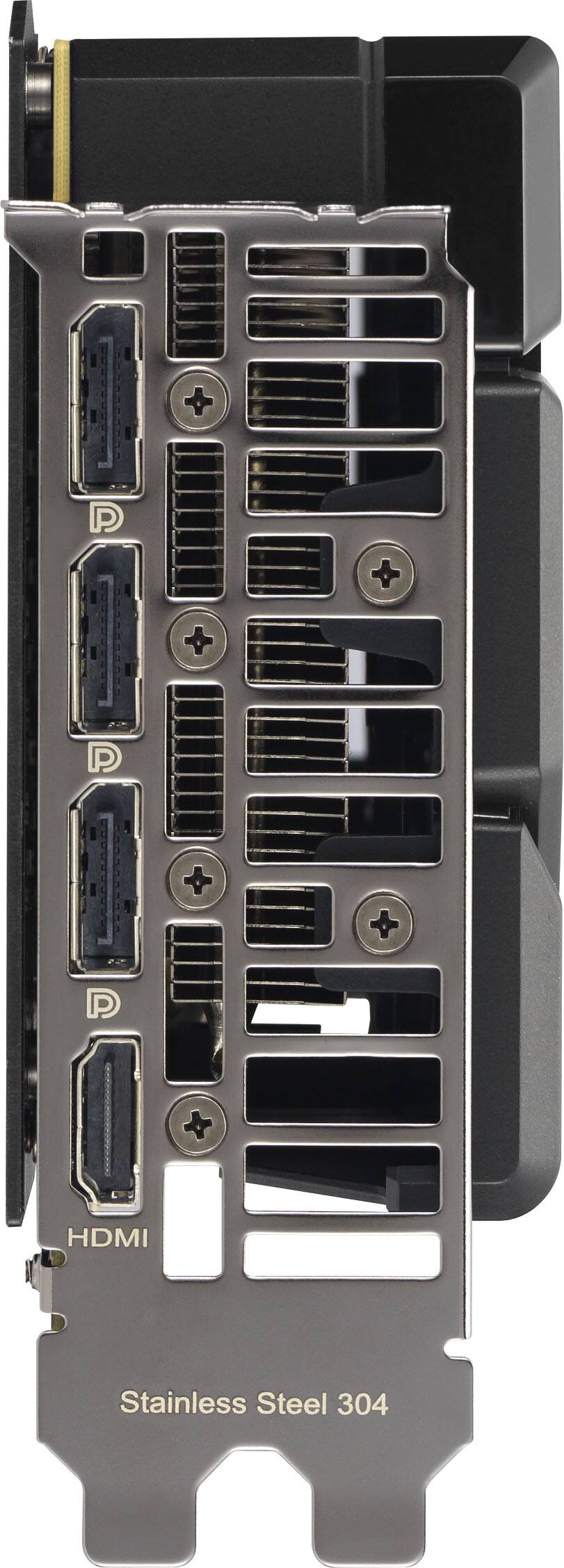

- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 4 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR7 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 2.5-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 5.0
- Product Height: 50 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 120 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 229 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5060 Ti (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: ASUS
- Model Number: DUAL-RTX5060TI-O16G
- Product Name: DUAL NVIDIA GeForce RTX 5060 Ti OC Edition 16GB GDDR7 PCI Express 5.0 Graphics Card
- Color: Black
- GPU Chipset Manufacturer: NVIDIA
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5060 Ti (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2025
- Performance
- GPU Base Clock Frequency: 2.602 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.632 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Power Connector: 1 x 8-pin (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 4 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR7 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 14 gigahertz
- Compatibility
- Slot Size: 2.5-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 5.0
- Operating System Compatibility: Windows, Linux
- Features
- Multi-GPU Support: None
- Power
- Total Graphics Power: 250 watts
- Recommended Power Supply: 550 watts
- Dimensions
- Product Height: 50 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 120 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 229 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 1.98 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 199291014794

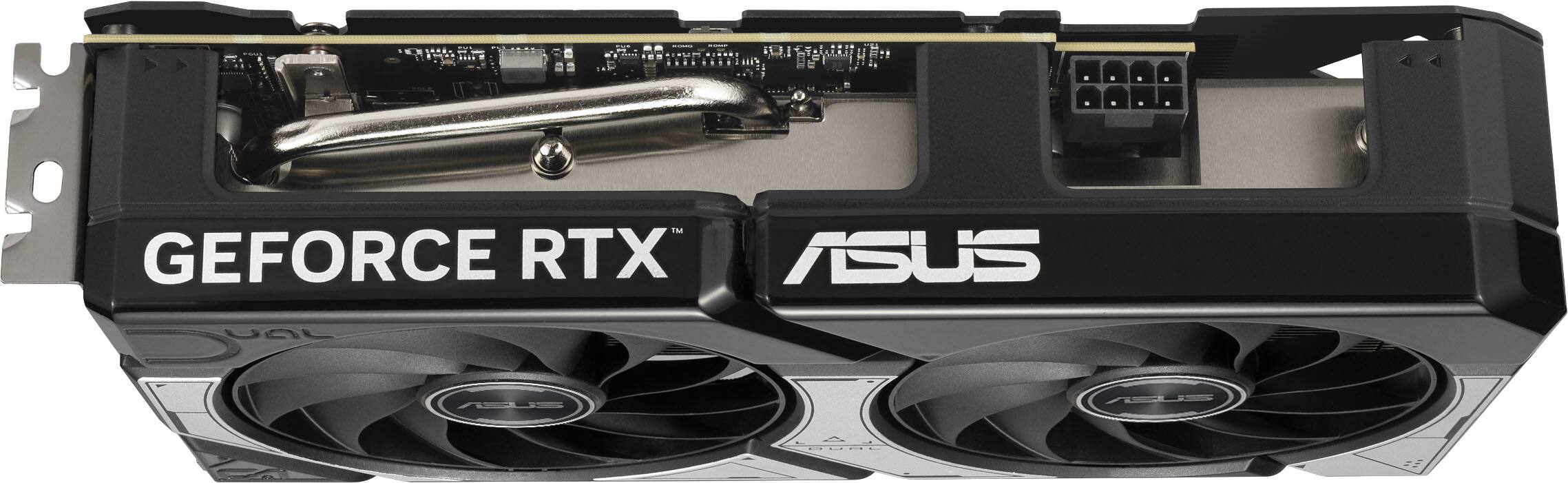

ASUS DUAL GeForce RTX™ 5060 Ti OC Edition combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. ASUS DUAL is a perfect choice for gamers who want heavyweight graphics performance in a compact build.
- AI Performance:: 767 AI TOPS
- OC mode: 2632 MHz (OC mode)/ 2602 MHz (Default mode)
- Powered By: The NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready: Enthusiast GeForce Card

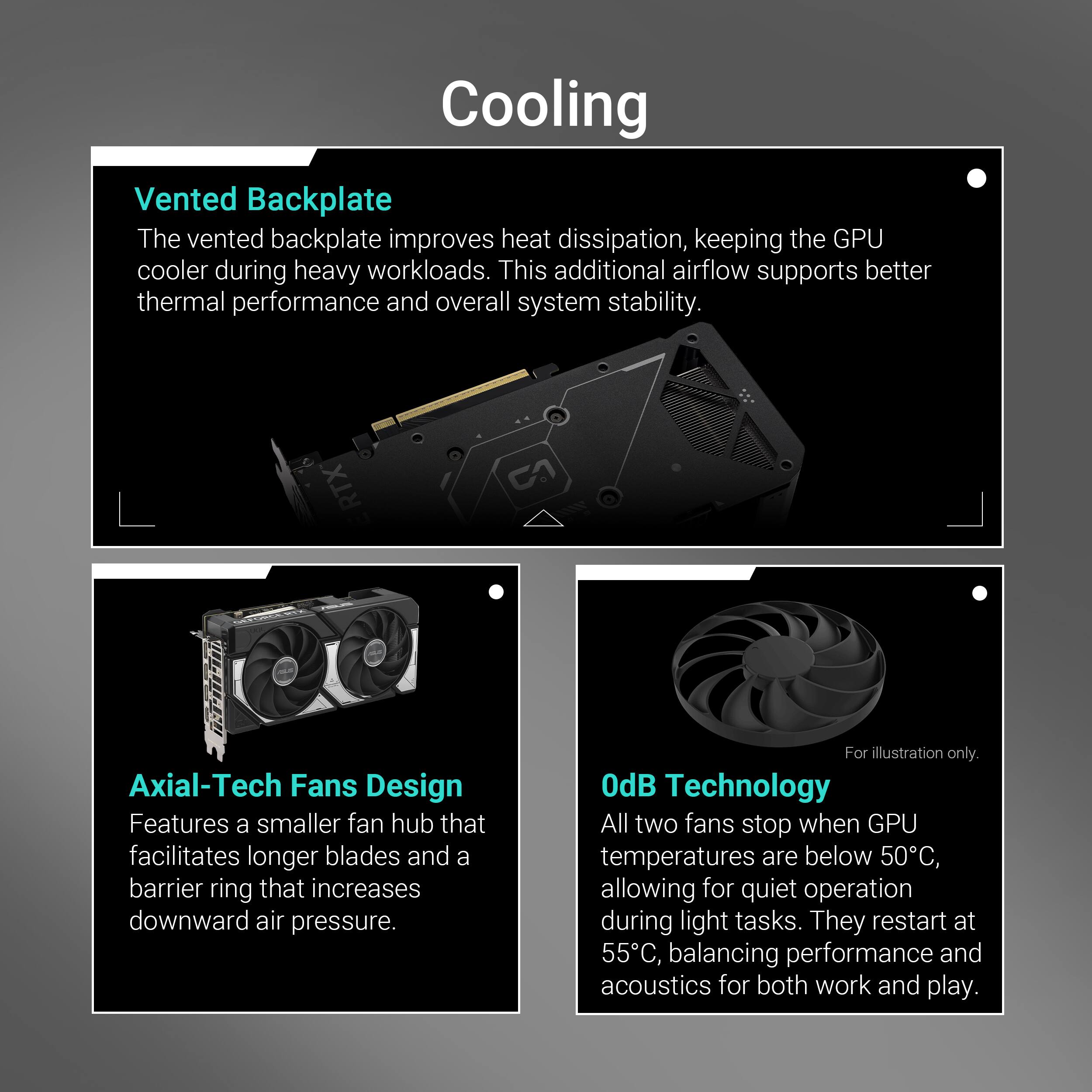

- Axial-Tech Fan Design: Features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
- 2.5-Slot Design: Maximizes compatibility and cooling efficiency for superior performance in small chassis
- 0dB Technology: Lets you enjoy light gaming in relative silence

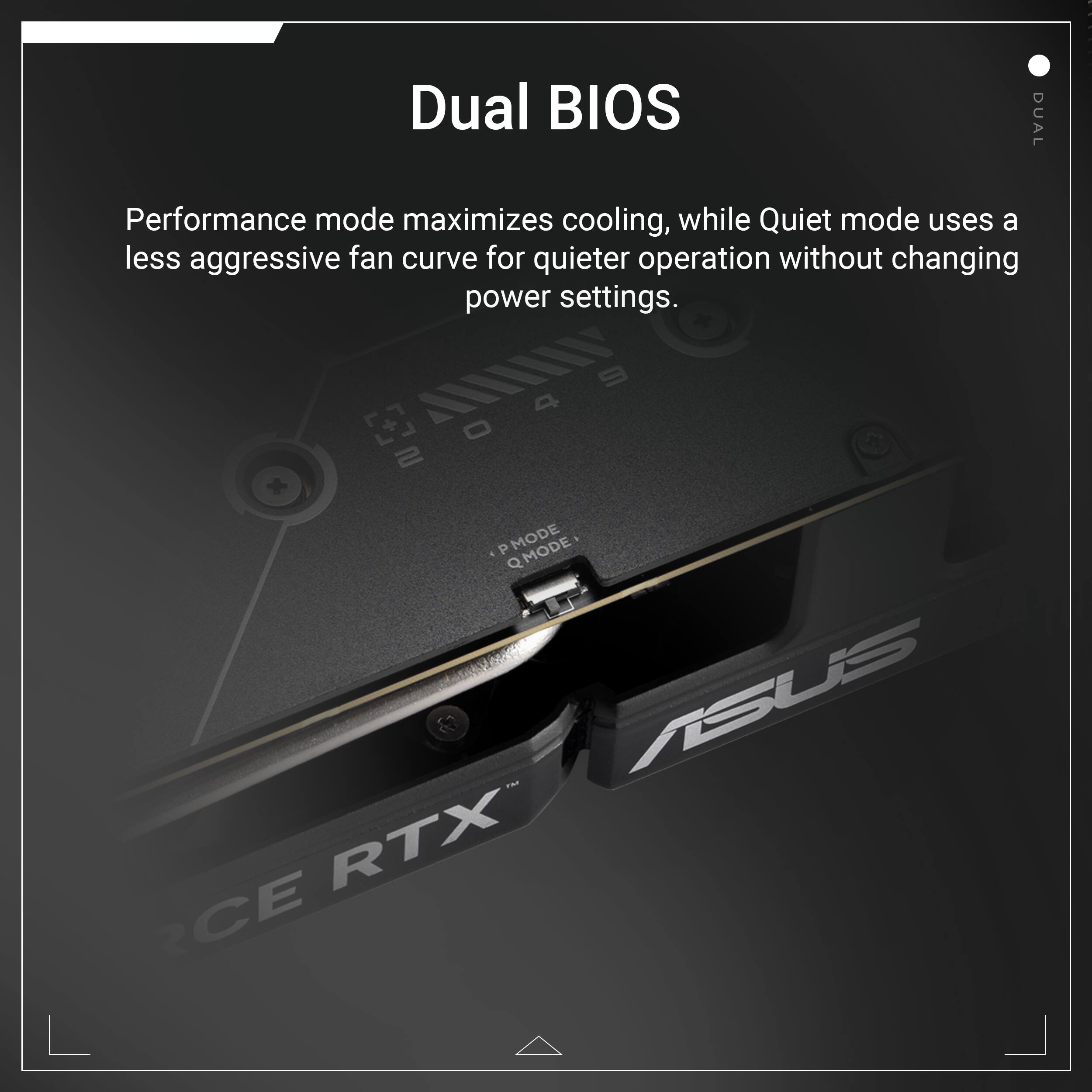

- Dual BIOS: Lets you toggle between Quiet and Performance BIOS profiles
- Dual Ball Fan Bearings: Last up to twice as long as sleeve bearing designs
Whats Included
- DUAL-RTX5060TI-O16G Graphics Card
- Warranty Card
- Quick Start Guide
Q: What kind of cooling system does this graphics card have?
A: This graphics card has a fan cooling system.
Q: What version of PCI Express does this graphics card use?
A: This graphics card uses PCI Express version 5.0.
Q: How many displays can this graphics card support?
A: This graphics card can support a maximum of four displays.
Q: What is the video memory type for this graphics card?
A: The video memory type for this graphics card is GDDR7.
Q: Does this graphics card require a power supply?
A: Yes, the recommended power supply for this graphics card is 550 watts.
Q: What is the total graphics power of this graphics card?
A: The total graphics power of this graphics card is 250 watts.
Q: Does this graphics card have dual BIOS?
A: Yes, this graphics card has dual BIOS profiles.
Q: Why isn’t this card being sold at the release MSRP?
A: To get an accurate answer its best to contact Best Buy directly.
Compare similar products
ASUS DUAL GeForce RTX™ 5060 Ti OC Edition combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. ASUS DUAL is a perfect choice for gamers who want heavyweight graphics performance in a compact build.
The most advanced GPU for gamers is here - the GIGABYTE Radeon RX 9060 XT GAMING OC 16G Graphics Cards. Experience unprecedented performance, visuals, and power efficiency at 4K and beyond with AMD Radeon RX 7000 Series graphics cards, the world's first gaming GPUs powered by AMD RDNA 3 technology.
Experience Primal performance with the Prime GeForce RTX 5060 Ti, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.
Get game-changing performance with the GeForce RTX 5060 Ti 16GB, powered by NVIDIA Blackwell. Game at high frame rates with DLSS 4, supercharge your creativity with NVIDIA Studio, and enable new experiences with the power of AI
| Pros for ASUS - DUAL NVIDIA GeForce RTX 5060 Ti OC Edition 16GB GDDR7 PCI Express 5.0 Graphics Card - Black | |||
|---|---|---|---|
| Overall Performance | Performance | There were no pros for this product— | Performance, VRAM, Heat Dissipation, Noise Level, Installation |
Specs
Reviews
Rating 5 out of 5 stars with 31 reviews
- Overall Performance (11)

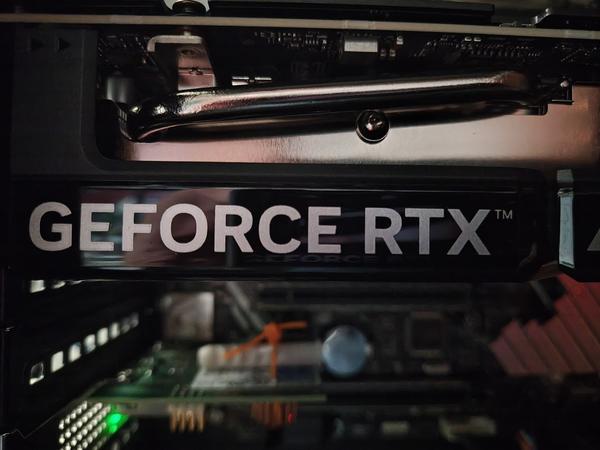

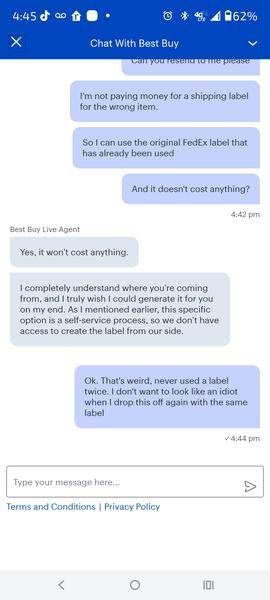

Customer Images
