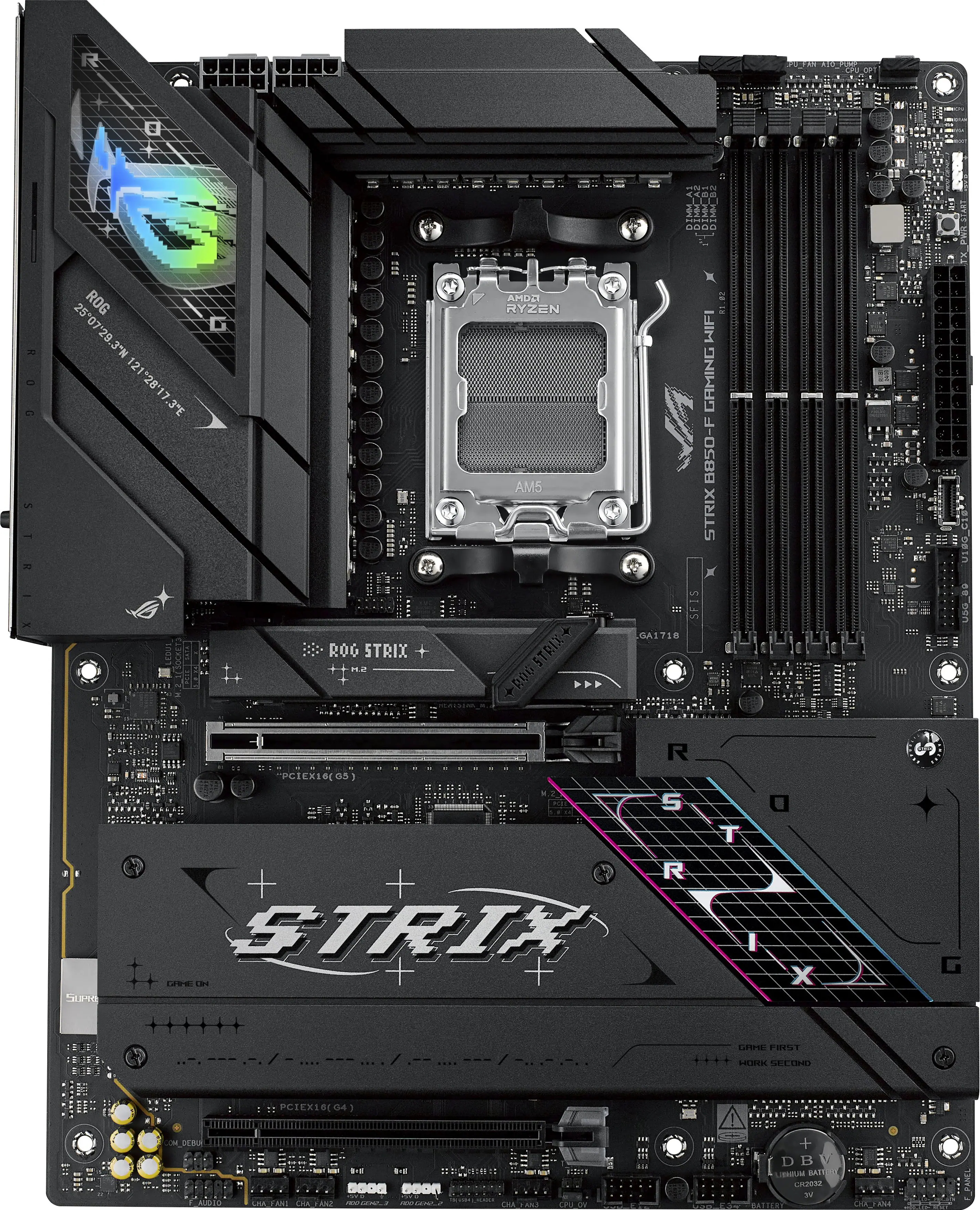

ASUS - ROG Strix B850-F GAMING WIFI (Socket AM5) AMD B850 ATX DDR5 Wi-Fi 7 Motherboard - Black
CORSAIR - XTM60 High Performance Thermal Paste - Gray$9.99$14.99
More Buying Options
Specifications
- ChipsetAMD B850Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Number of PCI-E Slots2Wireless Networking StandardWi-Fi 7Number Of Memory Slots4
- Key Specs
- Chipset: AMD B850
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 2 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASUS
- Model Number: ROG STRIX B850-F GAMING WIFI
- Product Name: ROG Strix B850-F GAMING WIFI (Socket AM5) AMD B850 ATX DDR5 Wi-Fi 7 Motherboard
- Color: Black
- Year of Release: 2025
- Compatibility
- Chipset: AMD B850
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 9000 Series, AMD Ryzen 7 9000 Series, AMD Ryzen 5 9000 Series, AMD Ryzen 9 7000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 7 5000 Series, AMD Ryzen 5 9000 Series, AMD Ryzen 5 7000 Series, AMD Ryzen 5 5000 Series
- Operating System Compatibility: Windows 11 Home, Windows 11 Pro
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 2 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 2
- Number Of Memory Slots: 4
- Connectivity
- SATA Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: BE (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports

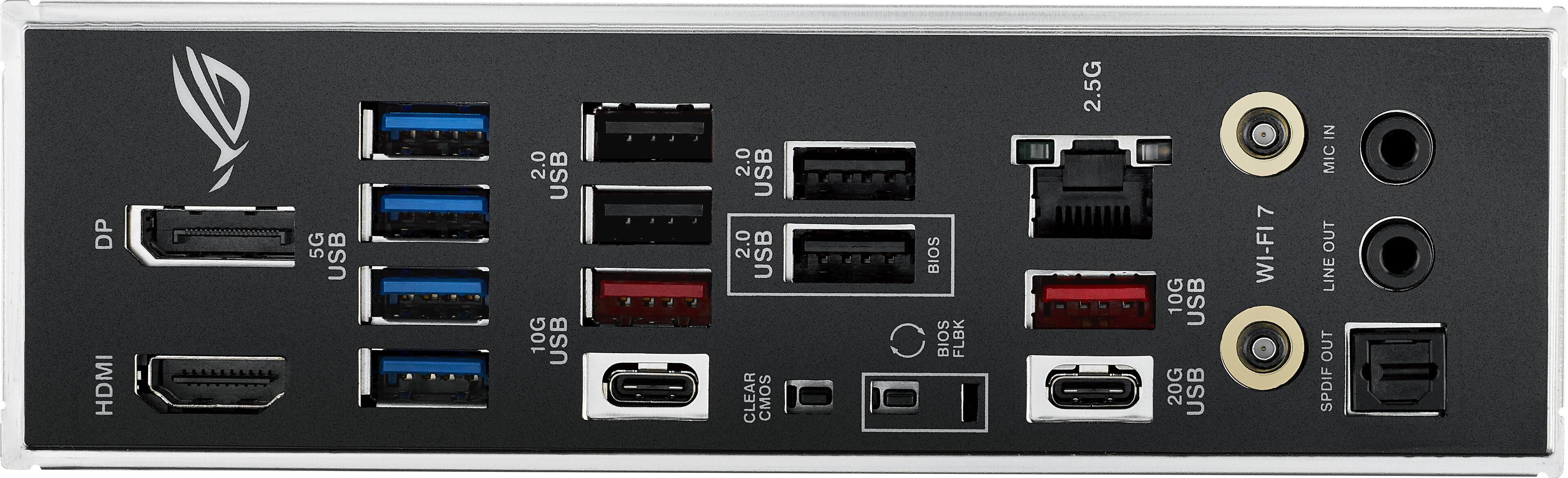

- USB Ports: 8 x USB-A 3.2, 1 x USB-C 3.2, 8 x USB-A 2.0 (The number and type of USB ports the product has.)
- Audio Ports: 7
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 305 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 36.32 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: up to 8000+MT/s(OC) (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- Multi-GPU Support: None
- RAID Support: RAID 0, RAID 01 (RAID 0+1), RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 197105771017
This mean machine powers your next hot rod. The ASUS ROG Strix B850-F GAMING WIFI features PCIe 5.0, DDR5 AEMP, WiFi 7 with Q-Antenna, robust 16+2+2 power stages, four M.2, total support of 19 USB ports including USB Type-C, AI Advisor, advanced cooling, and Aura Sync—perfect for Ryzen processors.
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors
- Intelligent Control: ASUS-exclusive AI Advisor, AI Networking II and AEMP to simplify setup and improve performance
- Robust Power Solution: 16+2+2 power solution rated for 80A per stage with dual ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Massive heatsinks with integrated I/O cover, and high-conductivity thermal pad
- Latest M.2 Support: Two onboard PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots, all with substantial cooling solutions
- Abundant Connectivity: One USB 20Gbps Type-C front-panel connector, four USB 10Gbps port, PCIe 5.0 x16 SafeSlots, HDMI port
- High-Performance Networking: On-board WiFi 7 (802.11be) with Intel 2.5 Gb Ethernet
- DIY Friendly Design: PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack button, Clear CMOS button, and pre-mounted I/O shield
- Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with Dolby Atmos
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including three addressable Gen 2 headers
- Renowned Software: ASUS DriverHub, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors
- Intelligent Control: ASUS-exclusive AI Advisor, AI Networking II and AEMP to simplify setup and improve performance
- Robust Power Solution: 16+2+2 power solution rated for 80A per stage with dual ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Massive heatsinks with integrated I/O cover, and high-conductivity thermal pad
- Latest M.2 Support: Two onboard PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots, all with substantial cooling solutions
- Abundant Connectivity: One USB 20Gbps Type-C front-panel connector, four USB 10Gbps port, PCIe 5.0 x16 SafeSlots, HDMI port
- High-Performance Networking: On-board WiFi 7 (802.11be) with Intel 2.5 Gb Ethernet
- DIY Friendly Design: PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack button, Clear CMOS button, and pre-mounted I/O shield
- Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier, along with Dolby Atmos
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including three addressable Gen 2 headers
- Renowned Software: ASUS DriverHub, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard
Q: What is the warranty period for the motherboard?
A: The manufacturer's warranty for both parts and labor is 3 years.
Q: Does the motherboard have any USB Type-C ports?
A: This motherboard offers support for a total of 19 USB ports, including USB Type-C ports.
Q: How many M.2 slots does the motherboard have?
A: The motherboard has four M.2 slots.
Q: What is the maximum memory supported by the motherboard?
A: The maximum memory supported by the motherboard is 192 gigabytes.
Q: Does the motherboard support RAID 0?
A: This motherboard supports RAID 0.
Q: What ddr5 ram will this motherboard be compatible with.
A: Basically any DDR5 will work, this motherboard can utilize both Intel XMP and AMD EXPO in BIOS, so both RAM types are compatible. It works best with speeds up to 6400mts, but the sweet spot for the best combination seems to be 6000mts CL30 CAS
Q: Will any aio work with this motherboard? Or does it have to be a specific aio?
A: No, not any AIO will work with this motherboard model, you need an AIO that supports the CPU socket type and the correct mounting kit compatible with this motherboard.
Q: Are the M.2 slots on the B850-F NVMe or SATA slots?
A: Yes, this motherboard model has four NVMe M.2 slots and two SATA slots.
Compare similar products
This mean machine powers your next hot rod. The ASUS ROG Strix B850-F GAMING WIFI features PCIe 5.0, DDR5 AEMP, WiFi 7 with Q-Antenna, robust 16+2+2 power stages, four M.2, total support of 19 USB ports including USB Type-C, AI Advisor, advanced cooling, and Aura Sync—perfect for Ryzen processors.
The ASUS ROG STRIX X870E-H GAMING WIFI7 delivers a robust power solution with 16+2+1 power stages, DDR5 support with AEMP, Dynamic OC Switcher, Core Flex, Wi-Fi 7 with ASUS Q-Antenna, four M.2 slots with Q-Release, PCIe 5.0 x16 SafeSlots, dual USB4 ports, and a USB-C 10Gbps port with up to 30W fast charging.
MAG B850 TOMAHAWK MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds.

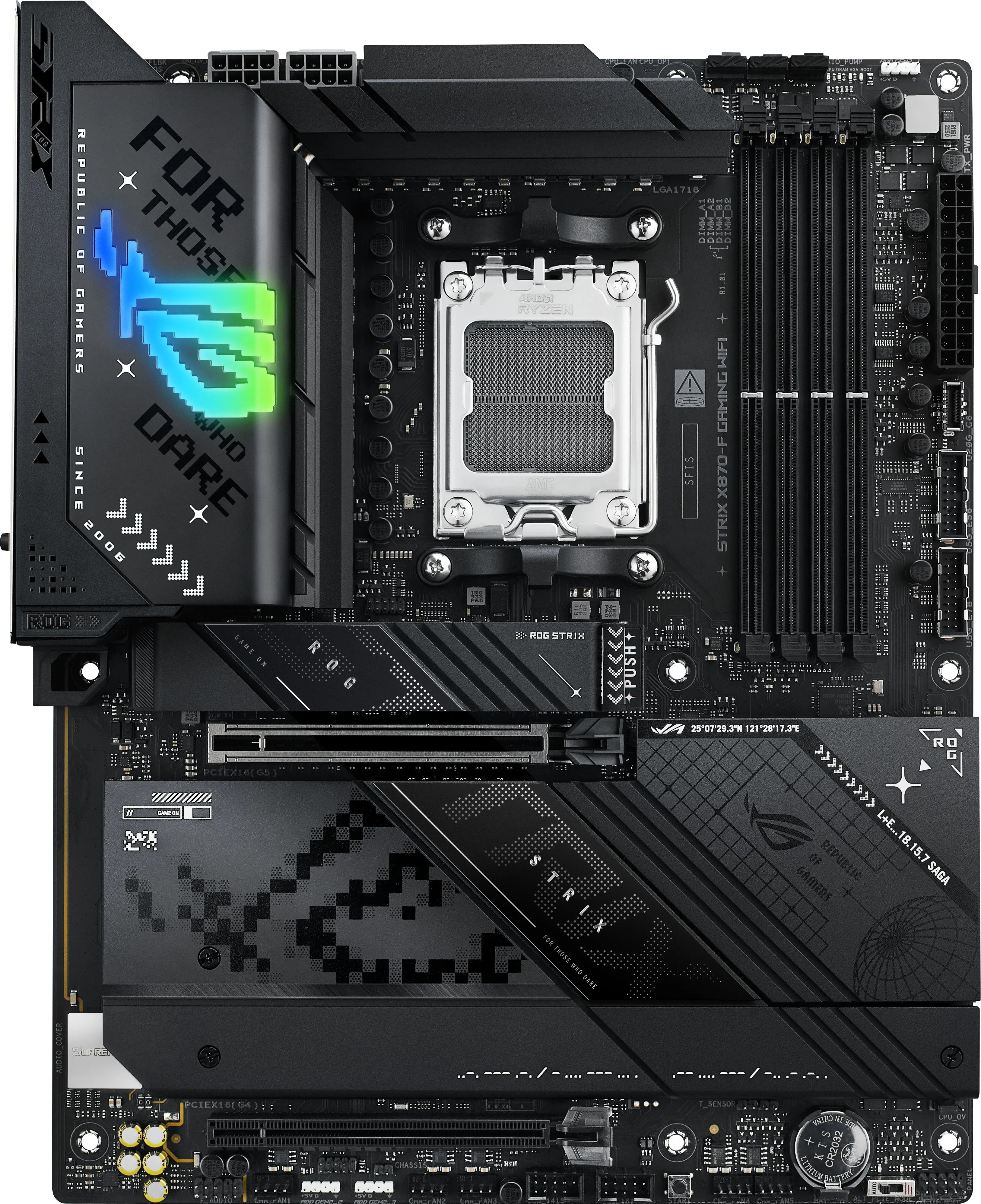

ASUS ROG STRIX X870-F GAMING WIFI, AMD X870 ATX motherboard with 16+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 support with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, four M.2 slots, PCIe 5.0 x16 SafeSlots with PCIe Q-Release Slim, two USB4 ports, USB 10Gbps Type-C with PD 3.0 up to 30W, AI Overclocking, AI Cooling II, AI Networking, and Aura Sync RGB lighting.
| Pros for ASUS - ROG Strix B850-F GAMING WIFI (Socket AM5) AMD B850 ATX DDR5 Wi-Fi 7 Motherboard - Black | |||
|---|---|---|---|
| Overall Performance, Features | There were no pros for this product— | Overall Performance, Connectivity, Features, Ease of Use, BIOS | Overall Performance, Connectivity, Design, Overclocking, Compatibility |
| Cons for ASUS - ROG Strix B850-F GAMING WIFI (Socket AM5) AMD B850 ATX DDR5 Wi-Fi 7 Motherboard - Black | |||
| Heatsink Design | There were no cons for this product— | There were no cons for this product— | There were no cons for this product— |
Specs
Reviews
Customers are saying
Customers often highlight the ROG Strix B850-F GAMING WIFI motherboard's attractive aesthetics and its comprehensive feature set. The build quality also receives positive feedback, with users noting the high-quality components. However, some customers express a desire for more USB ports and SATA connections.

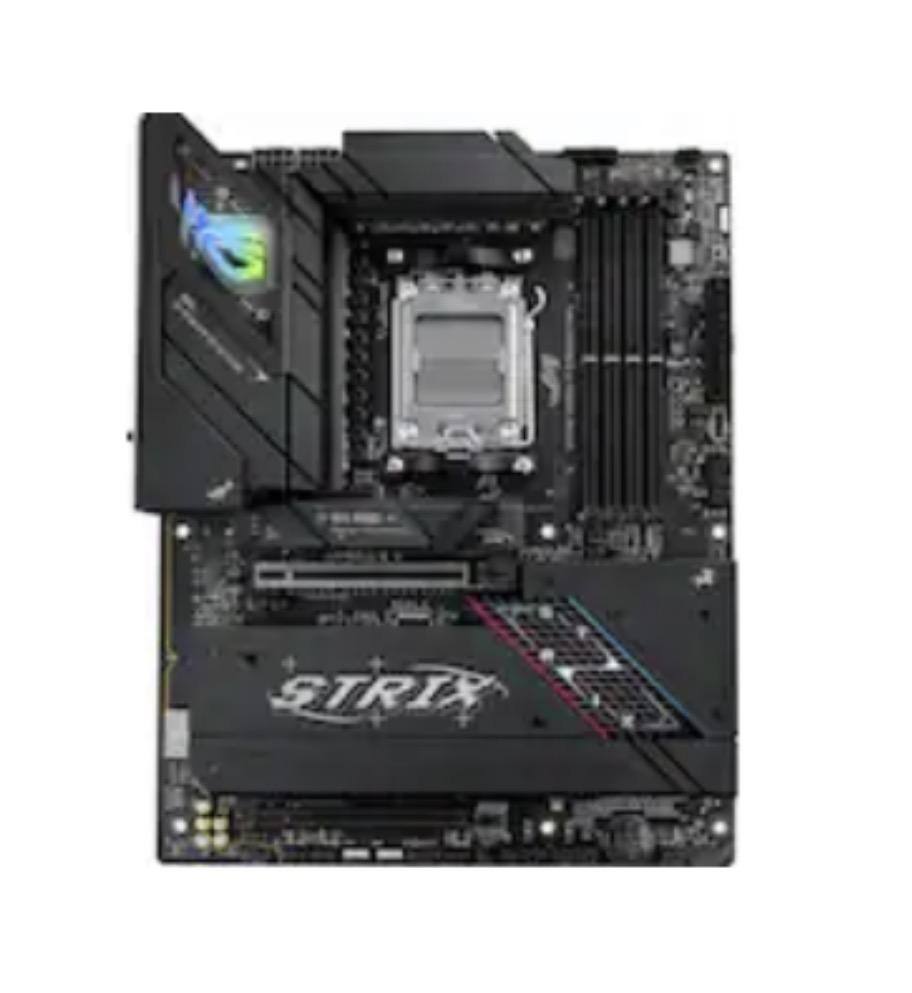

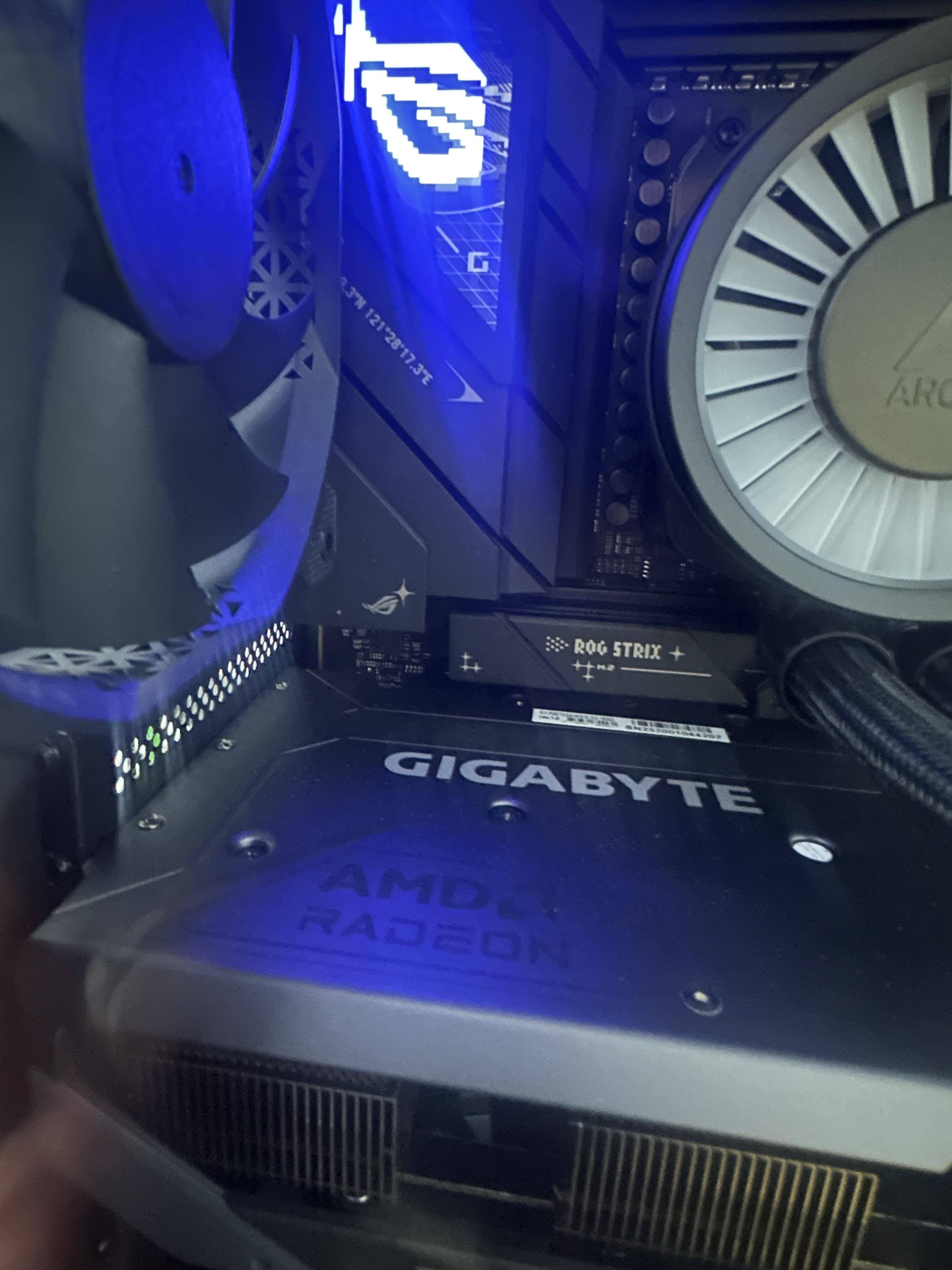

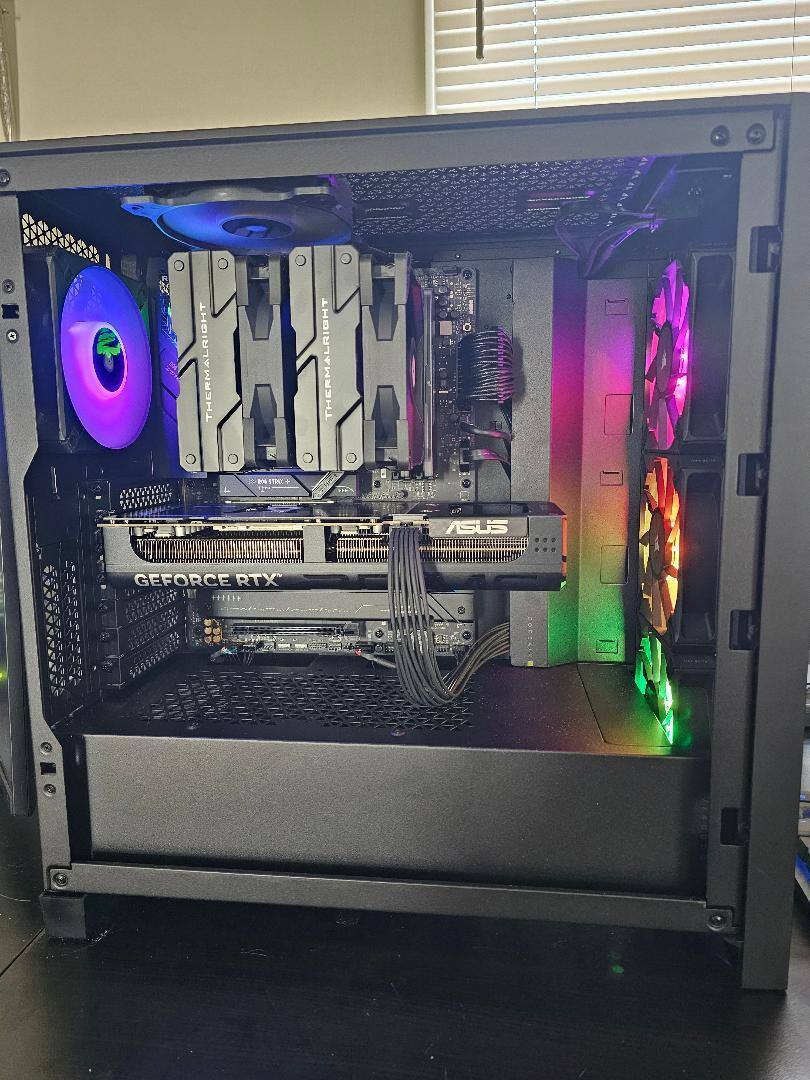

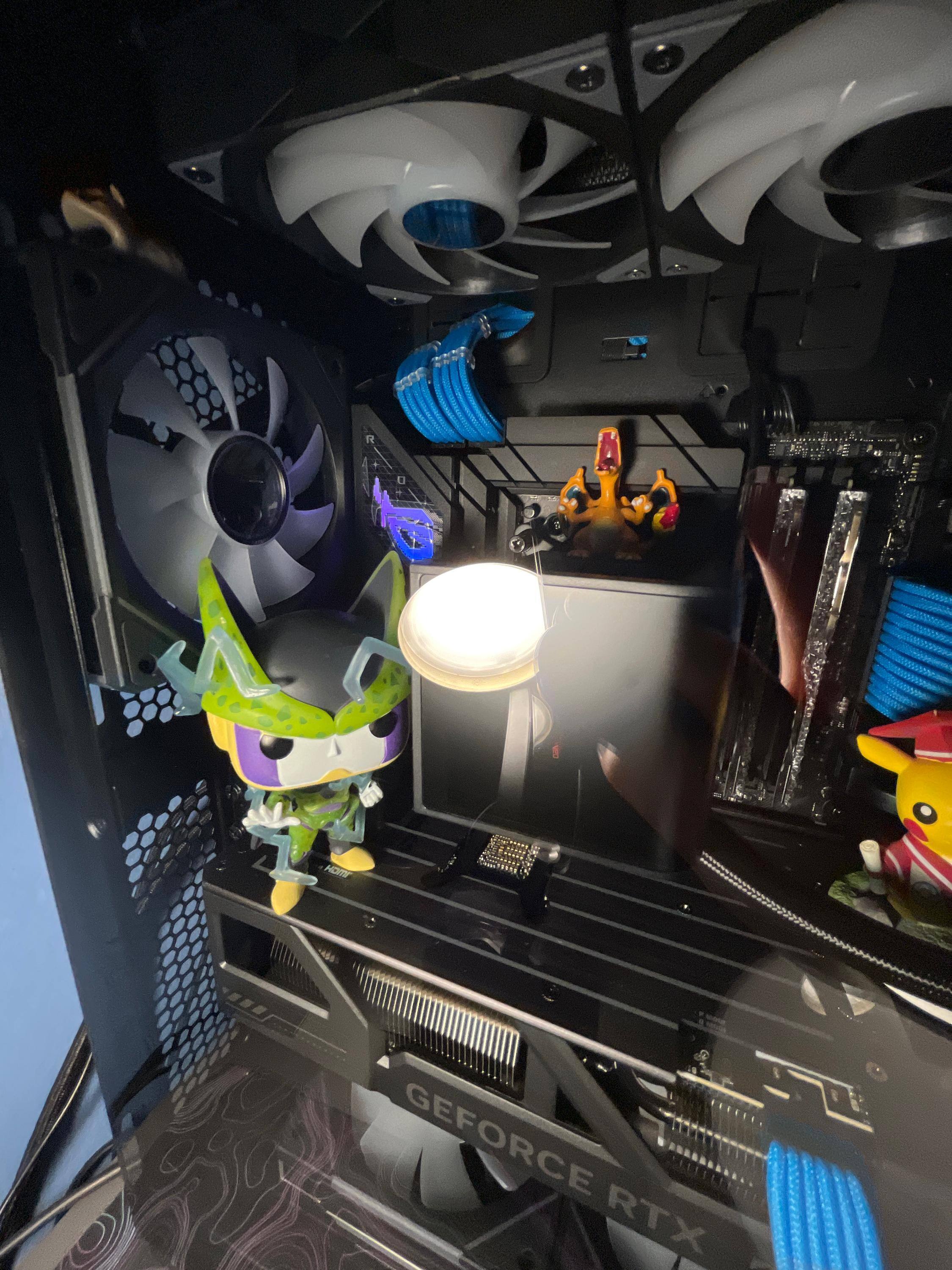

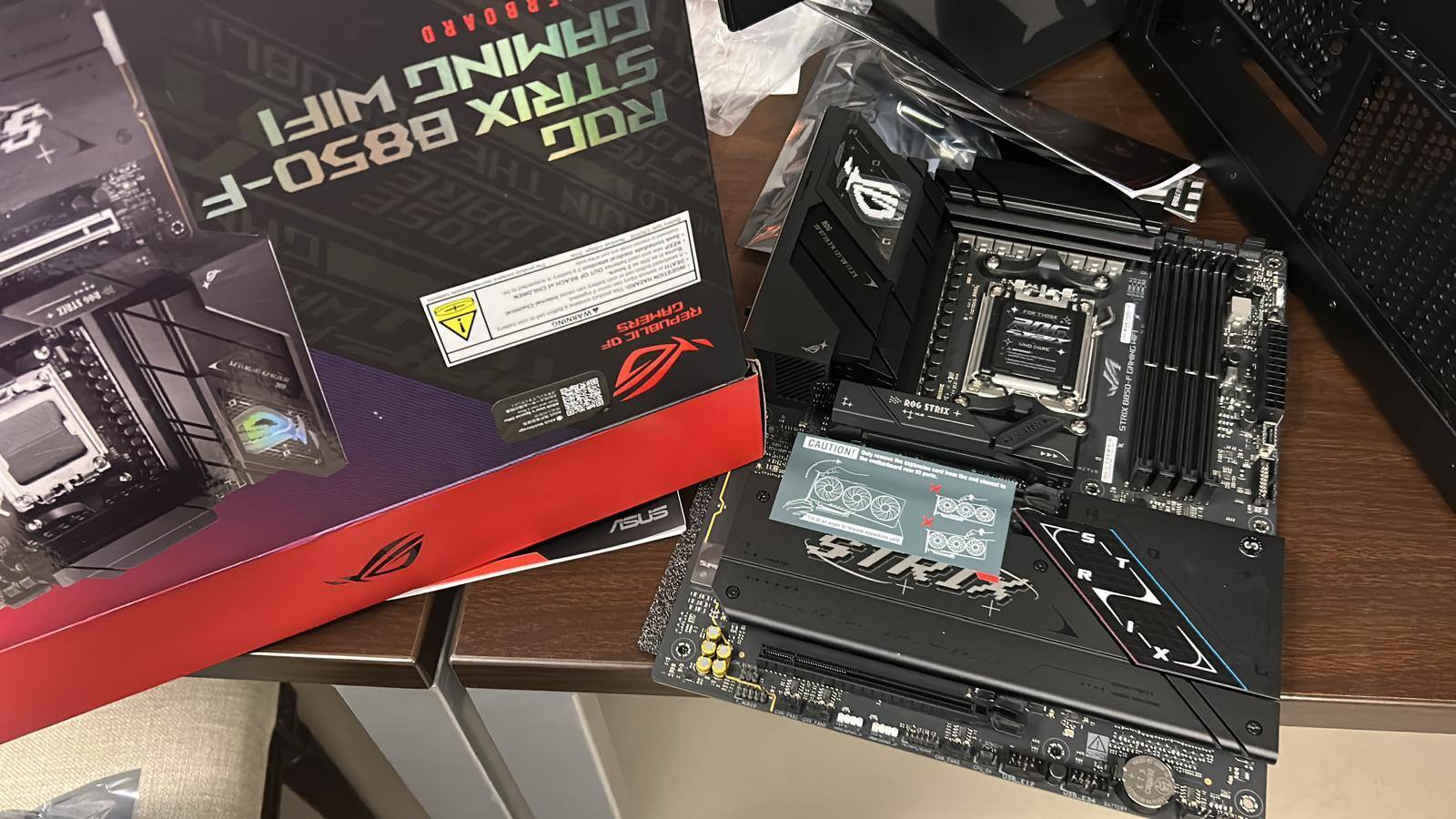

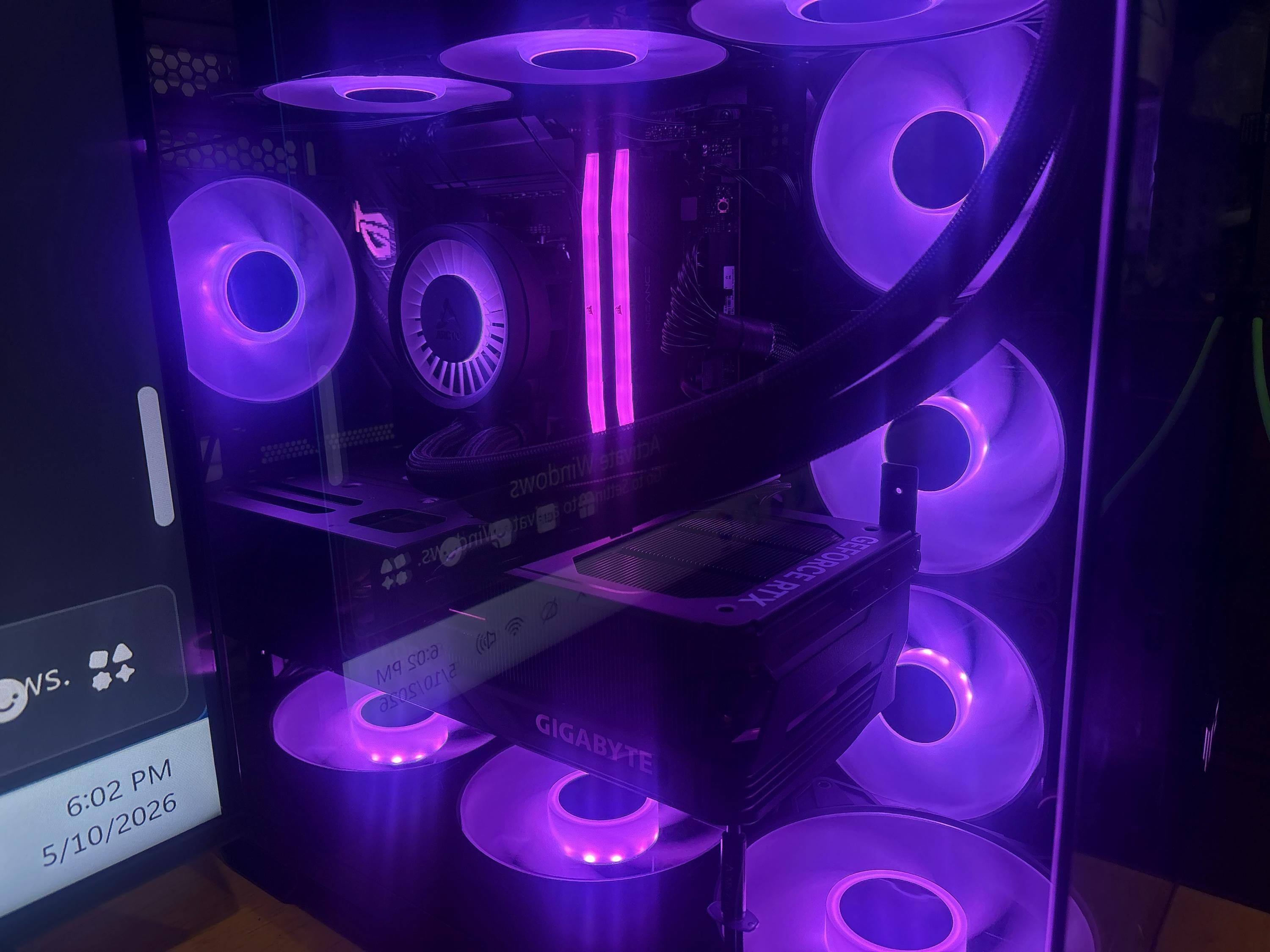

Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Can't beat the Features for the price!
Third ASUS ROG motherboard I buy and I have never had an issue. I updated bios using a thumb drive and flash Bios button in the back with the PC powered off during build and have had 0 issues. Amazing features for the price and on sale could not be happier
Posted by Ivan
- Rated 4 out of 5 stars
Great Mobo
I like the motherboard. Quality components and ease oif installation features. Likes: - Strong & Cool VRM. Step above the competitors. - GPU Quick release is nice - NVME m,2 slot easy to install - Wi-fi cable easy to connect - The PCIe 5.0 channels not sharing lanes is a step above the competitors. Dislike: - Wish it had 40GB USB-C - This board is pricey. It should be about 15% - 20% less. - The Pixilated RGB and text artwork is a bit much. I Wish it was more subtle. Just my tase, beauty is in the eye of the beholder.
Posted by
- Rated 5 out of 5 stars
Worked amazing
Worked perfectly would recommend for anyone building new pc
Posted by EdgardoG
