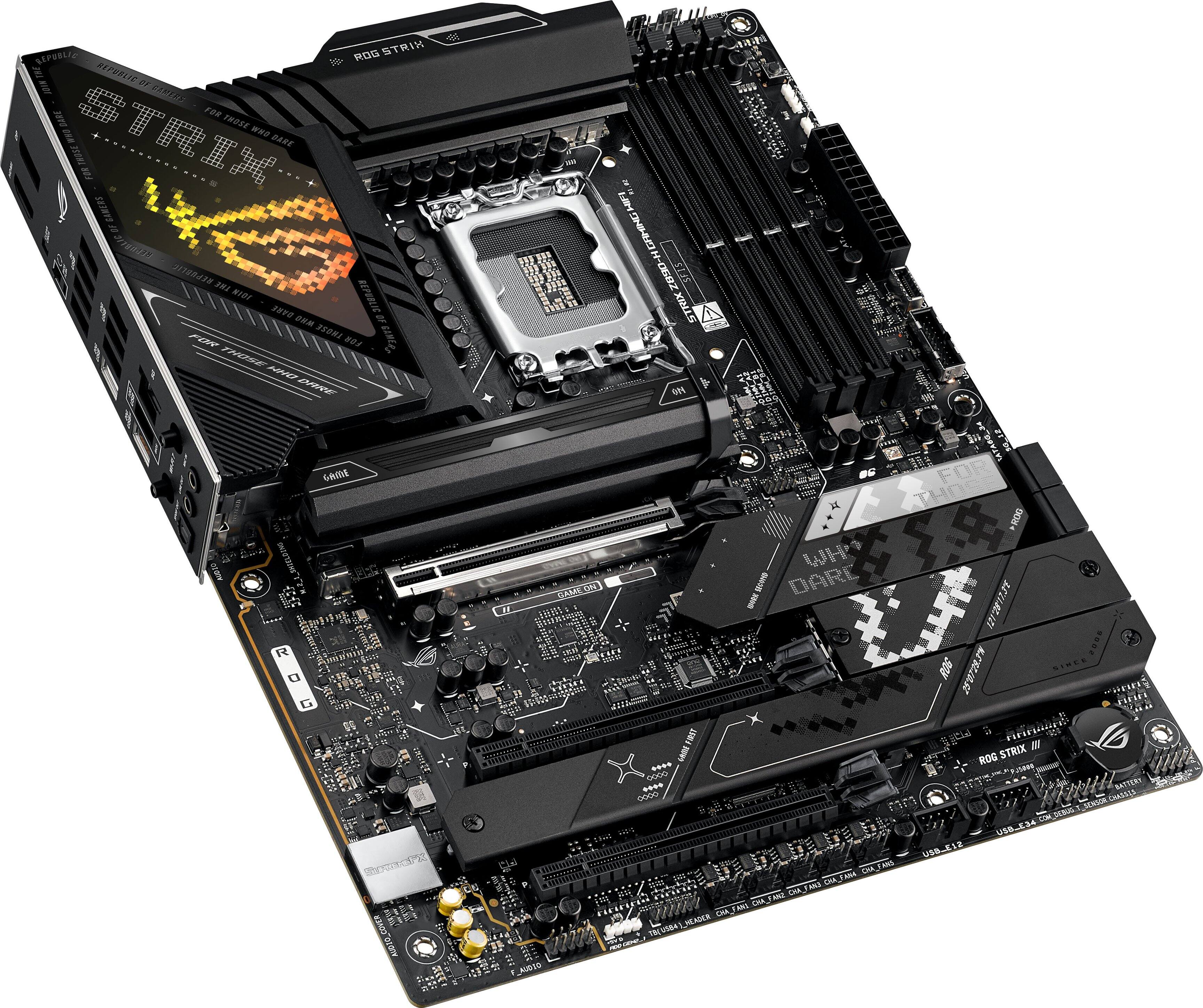

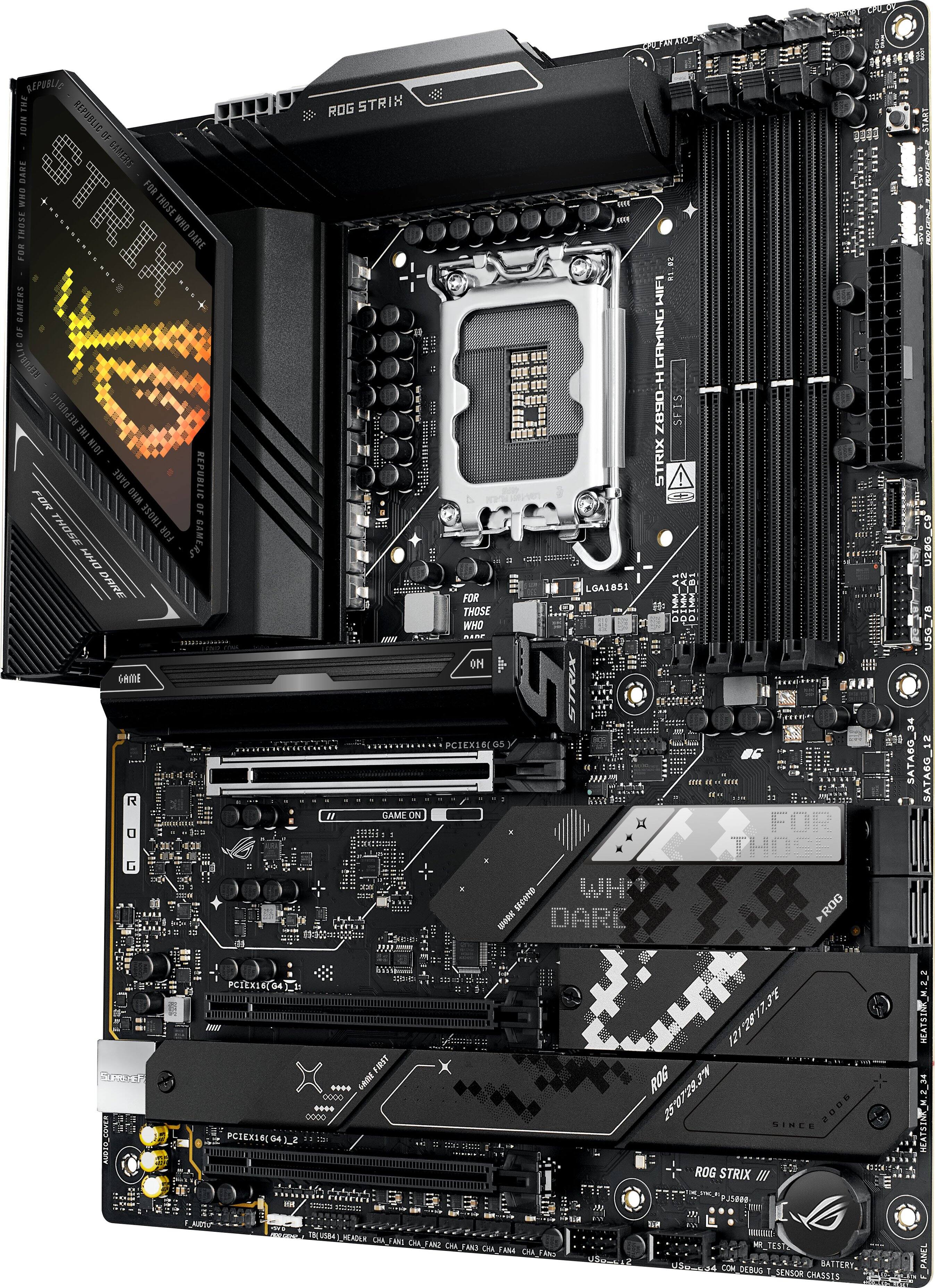

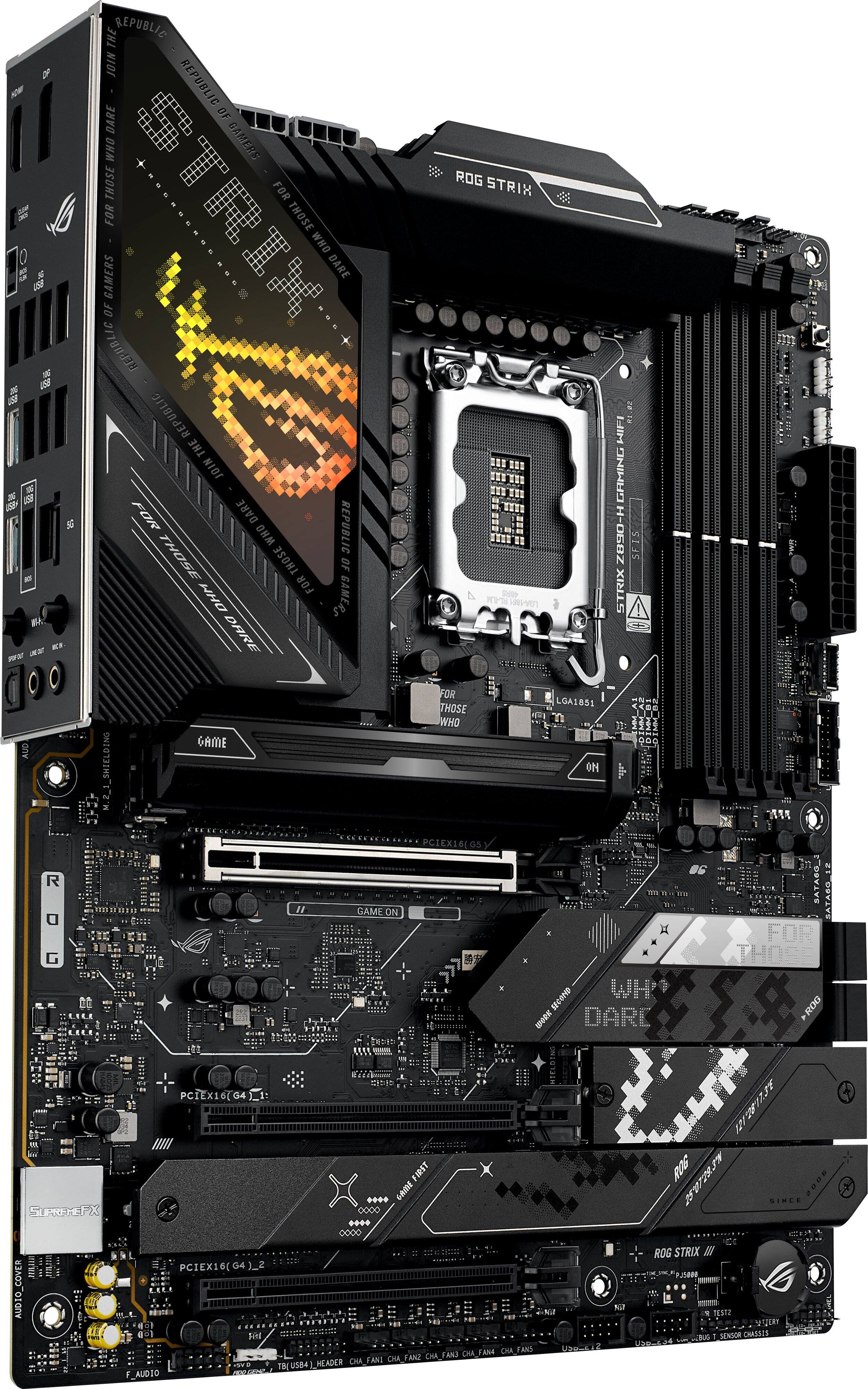

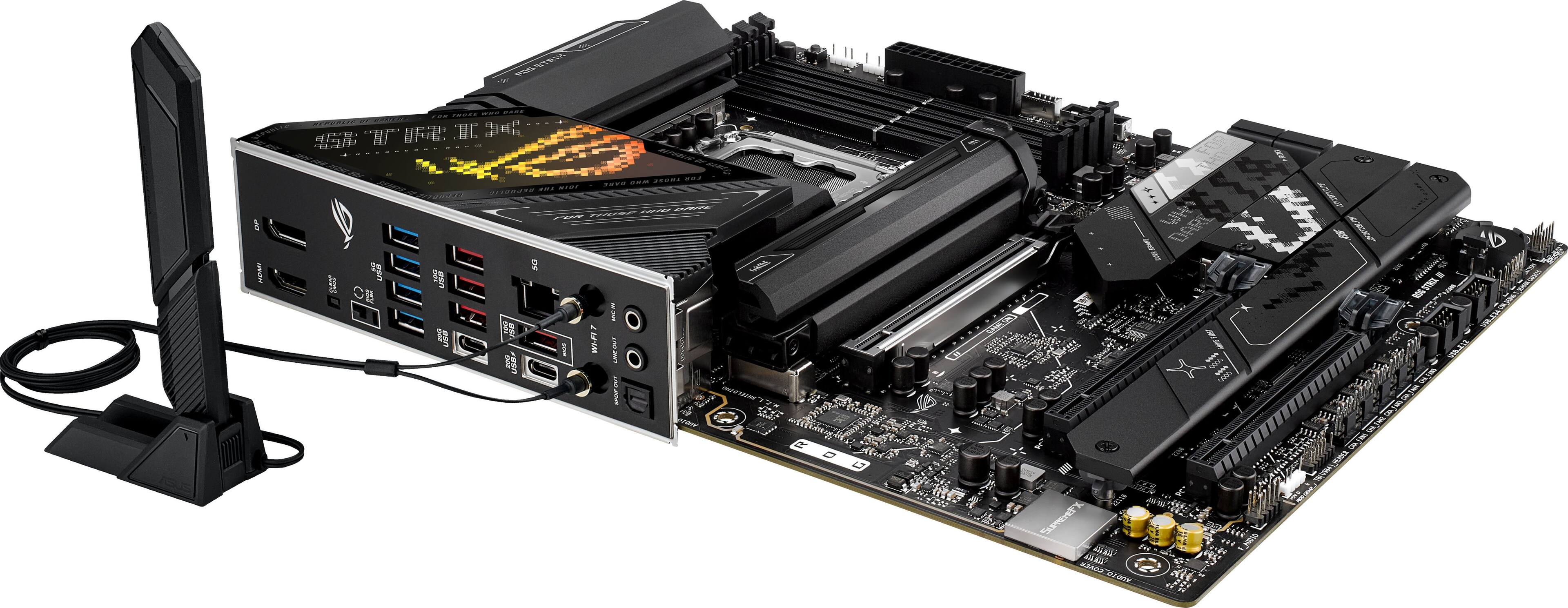

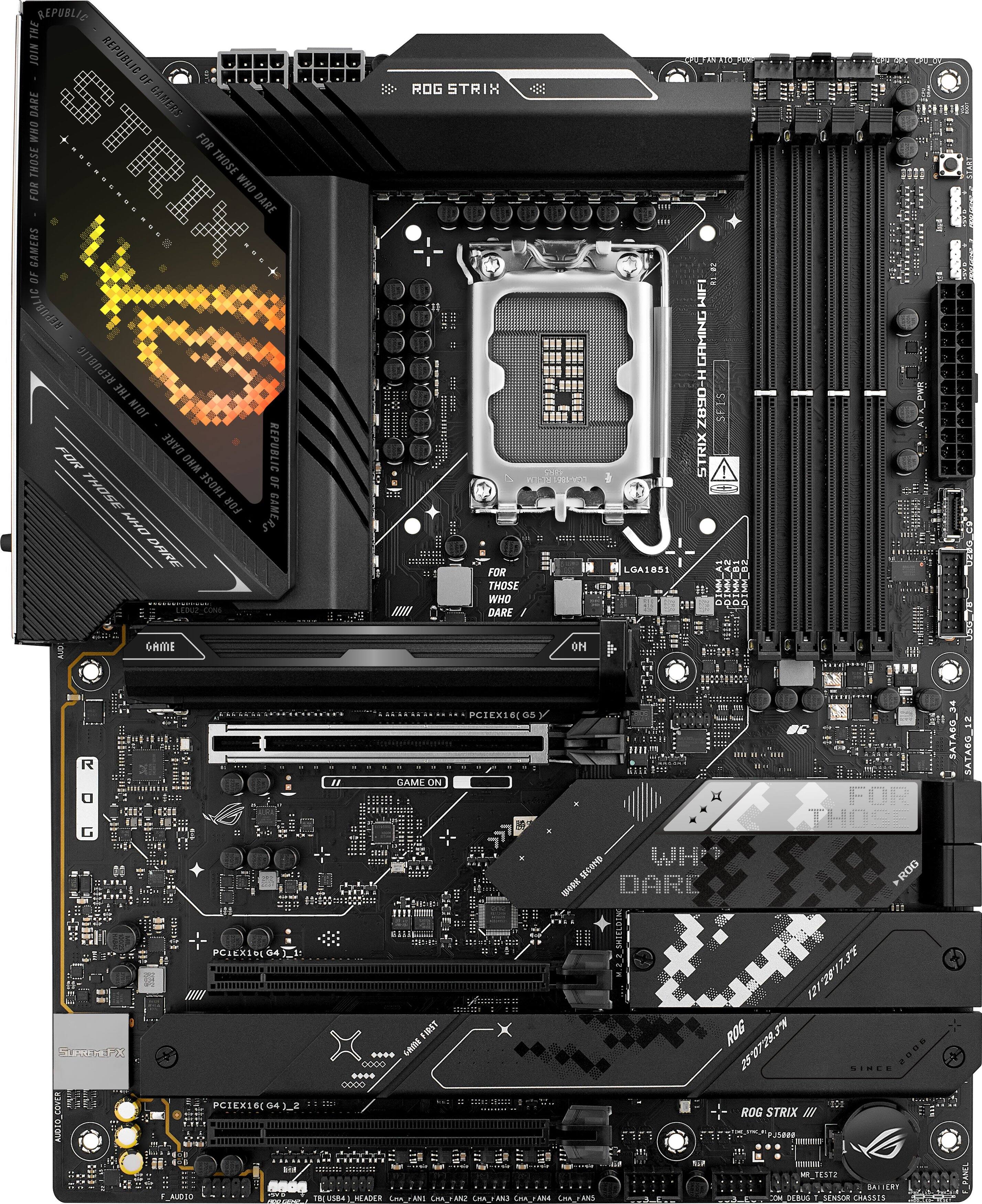

ASUS - ROG STRIX Z890-H (Socket LGA 1851) Intel Z890 ATX DDR5 Wi-Fi 7 BE Motherboard - Black
Key Accessories:
- Thermaltake - SMART 700W ATX 80 Plus Power Supply - Black$54.99The price was $59.99
More Buying Options from Best Buy and Marketplace sellers
Related Item
Specifications
- ChipsetIntel Z890Form FactorATXProcessor SocketSocket LGA 1851Number of PCI-E Slots3Wireless Networking StandardWi-Fi 7Number Of Memory Slots4
- Key Specs
- Chipset: Intel Z890
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASUS
- Model Number: ROG STRIX Z890-H GAMING WIFI
- Product Name: ROG STRIX Z890-H (Socket LGA 1851) Intel Z890 ATX DDR5 Wi-Fi 7 BE Motherboard
- Color: Black
- Year of Release: 2025
- Compatibility
- Chipset: Intel Z890
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Core Ultra 9 Series 2, Intel Core Ultra 7 Series 2, Intel Core Ultra 5 Series 2
- Operating System Compatibility: Windows 11 Home, Windows 11 Pro, Linux
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 2
- Number Of PCI-E x4 Slots: 1
- Number Of PCI-E x1 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
- SATA Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Fan/Cooling System Connector: 8 (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: BE (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports

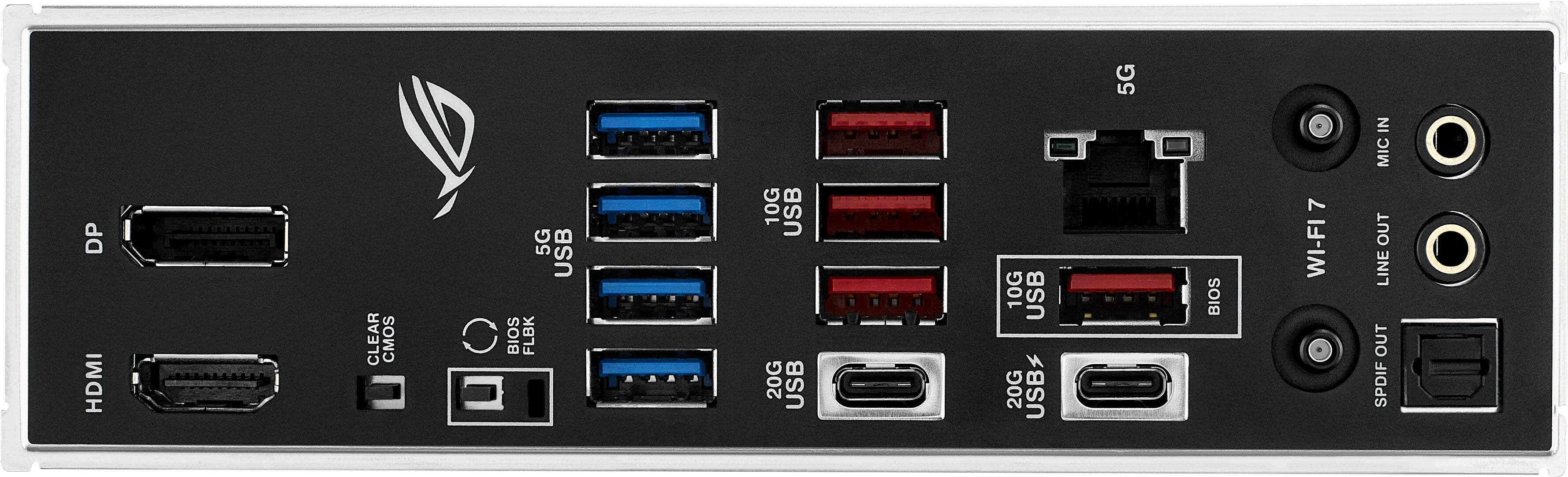

- USB Ports: 5 x USB-C 3.2, 10 x USB-A 3.2, 2 x USB-A 2.0 (The number and type of USB ports the product has.)
- Thunderbolt Ports: 2 x Thunderbolt 4 (The number and type of Thunderbolt ports the product has.)
- Audio Ports: 3
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 305 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 59.36 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: Up to 8000+MT/s (OC) (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- Multi-GPU Support: None
- RAID Support: RAID 0, RAID 01 (RAID 0+1), RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 197105880672
ASUS ROG STRIX Z890-H GAMING WIFI featuring Intel® Core™ Ultra Series 2 support, Advanced AI PC-ready, 16+2+1+2 power stages, DDR5, AEMP III, 5G LAN, Wi-Fi 7 with Q-Antenna, four M.2 slots, PCIe 5.0 x16, USB 20Gbps Type-C®, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II, Aura Sync.
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel® LGA 1851 Socket: Ready for Intel® Core™ Ultra Processors (series 2)
- Exclusive AI Technologies: ASUS AI Advisor, ASUS-exclusive AI Overclocking, AI Cooling II, and AI Networking II to simplify setup and improve performance
- Exclusive Overclocking & Memory Technologies: NitroPath DRAM Technology, NPU Boost, DIMM Fit, DIMM Flex and AEMP III to simplify setup and improve performance
- Robust Power Solution: 22(110A)+2(90A)+1(90A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors

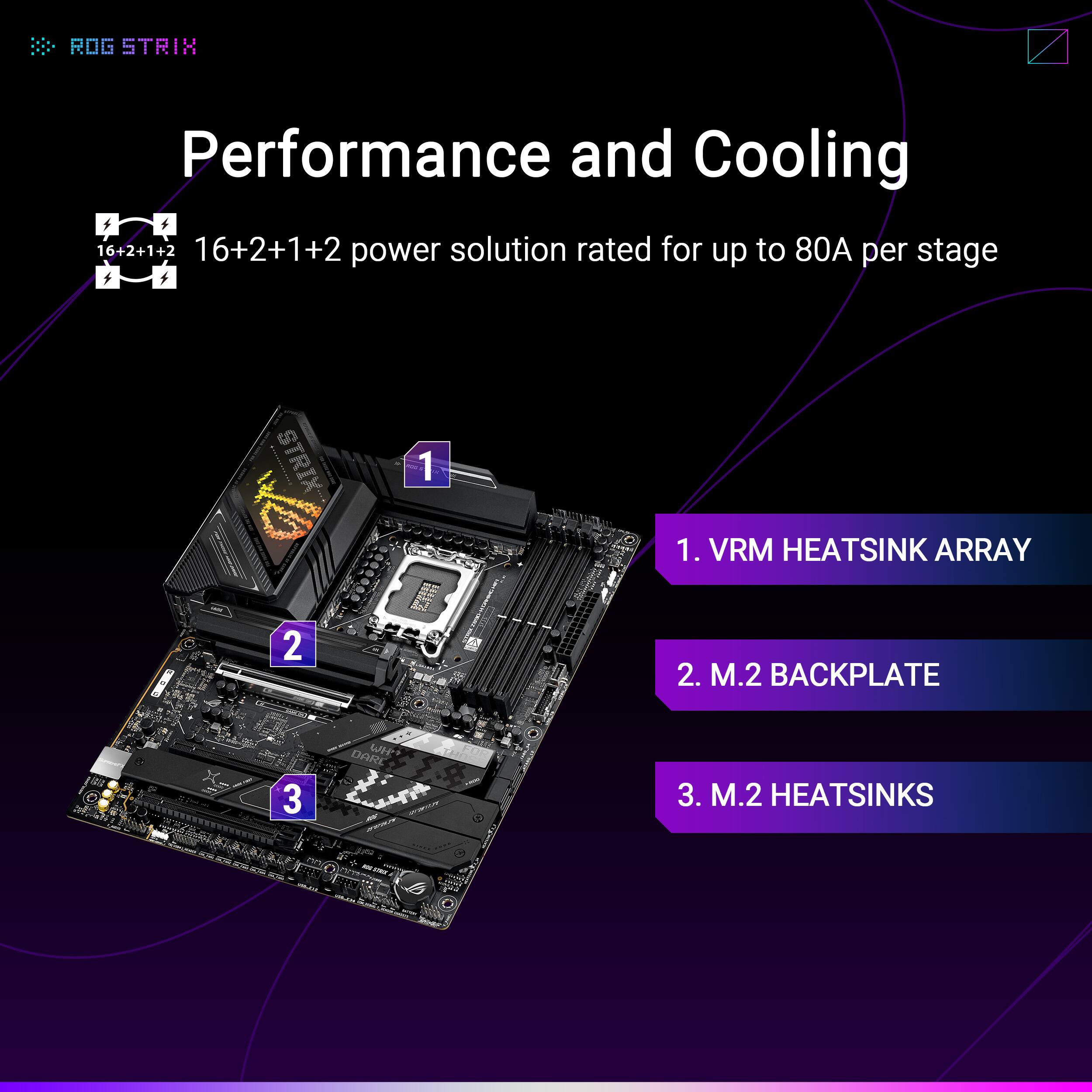

- Optimized Thermal Design: Massive heatsinks integrated with the I/O cover, joined by a U-shaped heatpipe and connected to the power stages with high-conductivity thermal pads
- Latest M.2 Support: Three onboard PCIe® 5.0 M.2 slots and three PCIe 4.0 M.2 slots onboard with ROG M.2 Power Boosts, all with substantial cooling solutions
- Abundant Connectivity: Dual Thunderbolt™ 4 USB Type-C® ports, USB 20Gbps Type-C front-panel connector with Quick Charge 4+ up to 60W and USB Wattage Watcher, USB 10Gbps Type-C front-panel connector, five additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, HDMI™ 2.1
- High-Performance Networking: On-board Wi-Fi 7 (802.11be) with ASUS Wi-Fi Q-Antenna, Intel 2.5Gb Ethernet and Realtek 5Gb Ethernet
- DIY Friendly Design: PCIe Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield
- Immersive Audio: ROG SupremeFX ALC4082 codec with ESS® ES9219 Quad DAC for up to 32-Bit/384 kHz playback
- Unmatched Personalization: I/O cover with Polymo Lighting II, three Gen 2 ARGB headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
- Renowned Software: ASUS DriverHub, Dolby Atmos®, exclusive 1-year Internet Security subscription, TurboV Core, GlideX, HWiNFO, and bundled 1-year AIDA64 Extreme subscription and intuitive BIOS Q-Dashboard

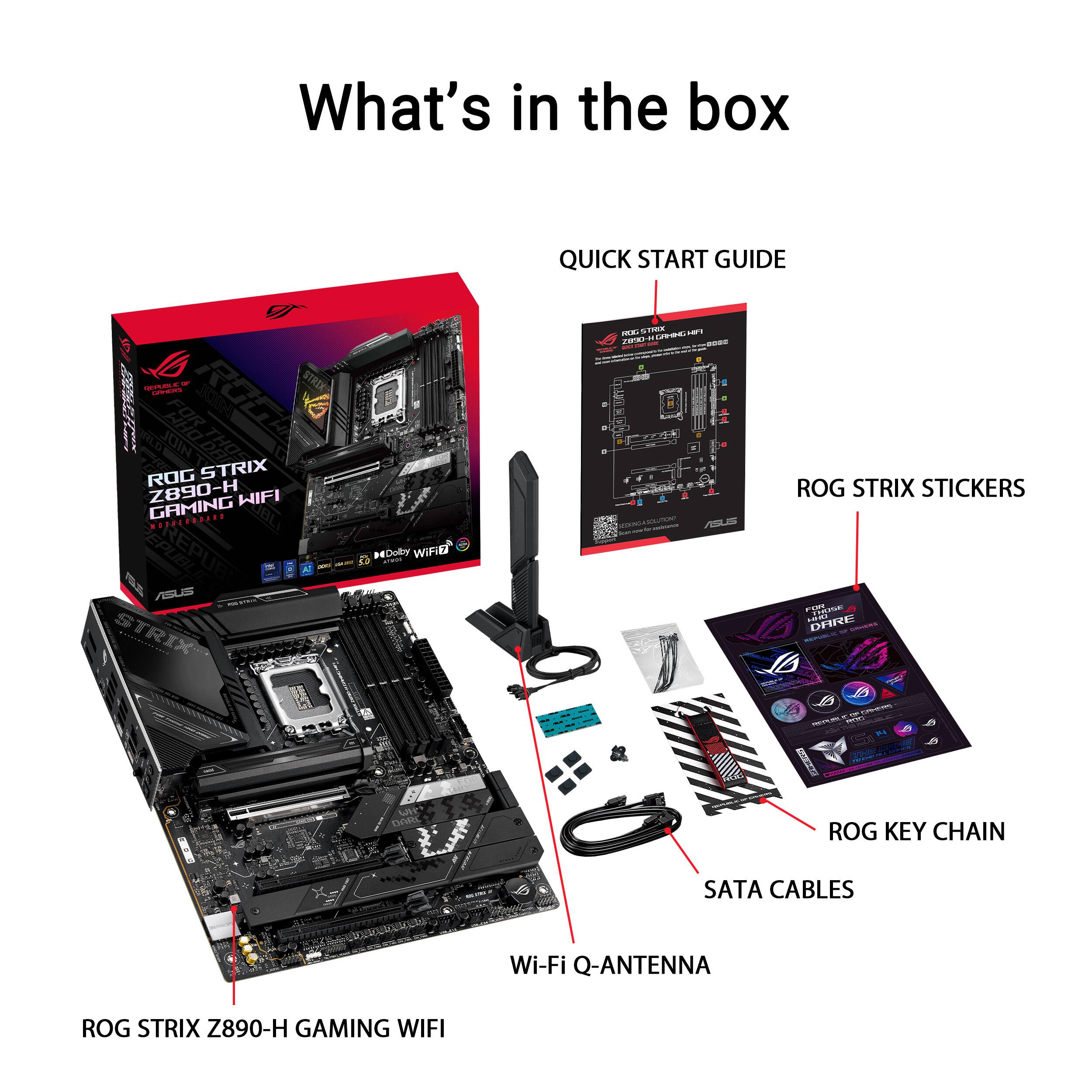

Whats Included
- ROG STRIX Z890-H GAMING WIFI Motherboard
- 2x SATA 6Gb/s Cables
- 1x Thermal Pad for M.2 22110
- 1x ASUS Wi-Fi Q-Antenna
- 1x Cable Ties Package
- 1x M.2 Q-Latch Package
- 1x ROG Key Chain
- 1x ROG Strix Stickers
- 4x M.2 Rubbers
- 1x Quick Start Guide
Q: Does this motherboard have M.2 slots for storage?
A: Yes, this motherboard has four M.2 slots.
Q: Does this motherboard support Wi-Fi connectivity?
A: Yes, this motherboard supports Wi-Fi 7 wireless connectivity.
Q: What kind of memory is supported by this motherboard?
A: This motherboard supports DDR5 memory.
Q: What series of processors is compatible with this motherboard?
A: This motherboard is compatible with Intel Core Ultra Series 2 processors.
Q: Are there Thunderbolt ports available on this motherboard?
A: Yes, this motherboard has dual Thunderbolt 4 USB Type-C ports.
Q: How many memory slots does this motherboard have?
A: This motherboard has four memory slots.
Q: What audio codec is used in this motherboard?
A: This motherboard uses ROG SupremeFX ALC4082 codec.
