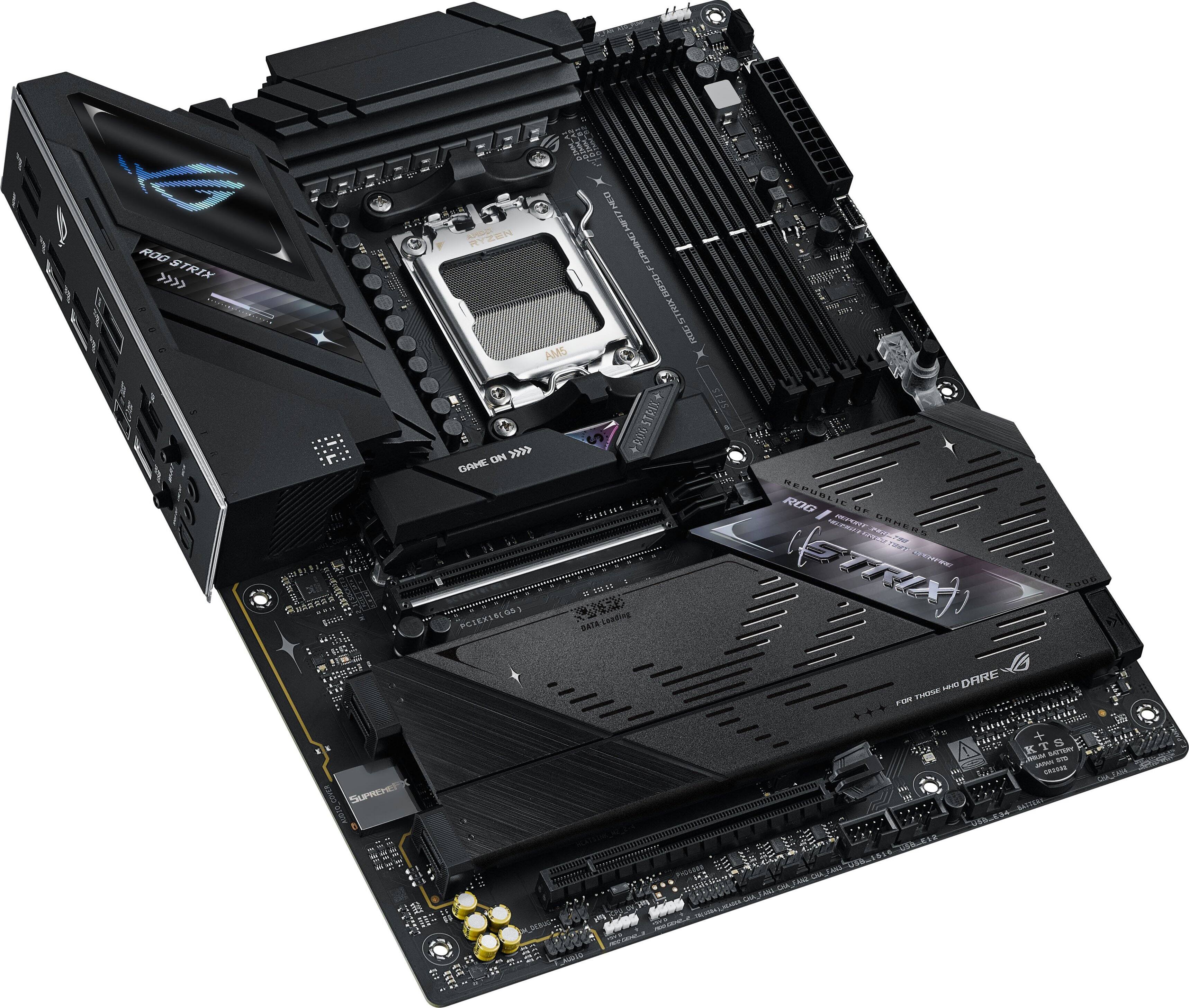

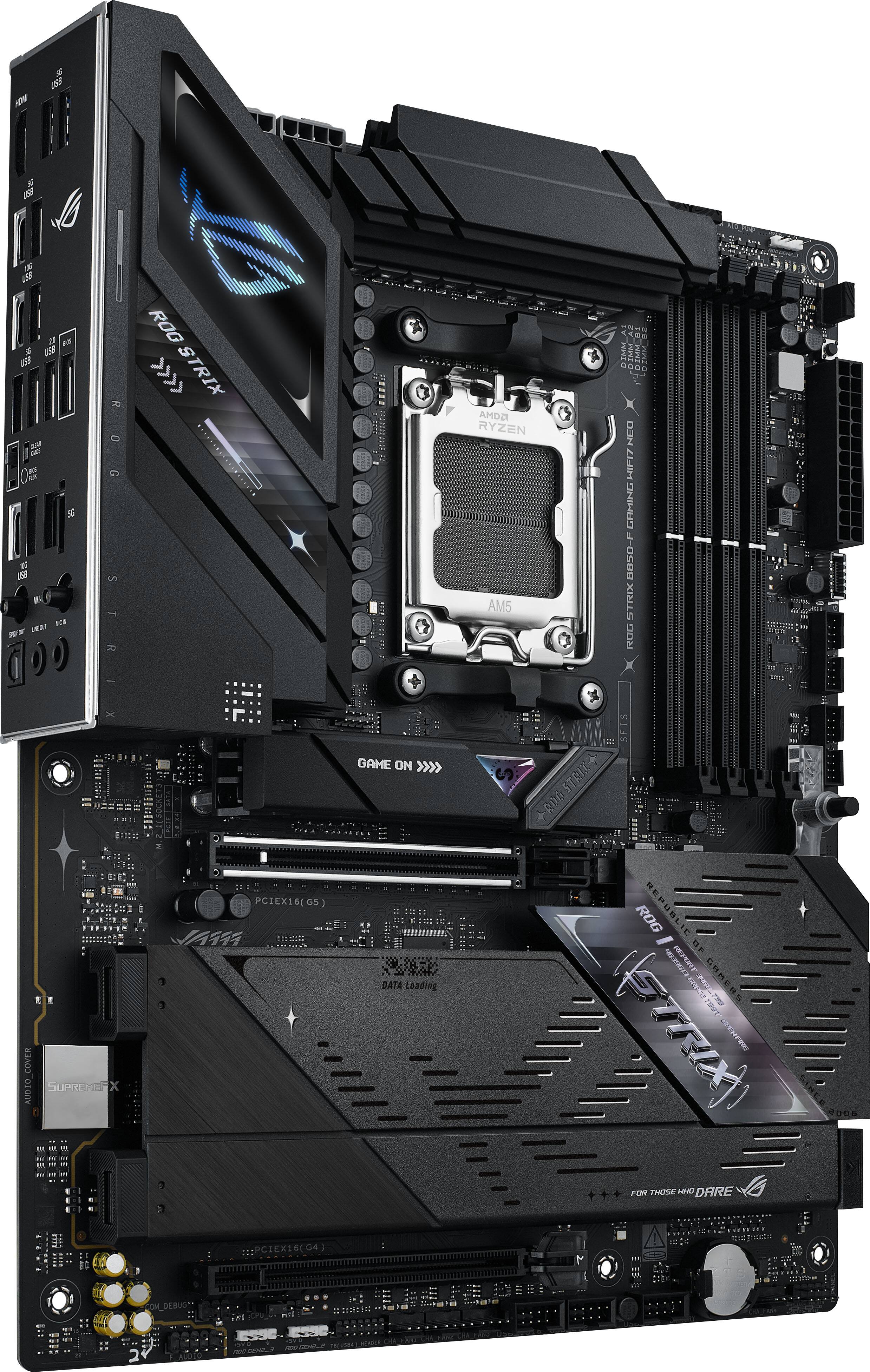

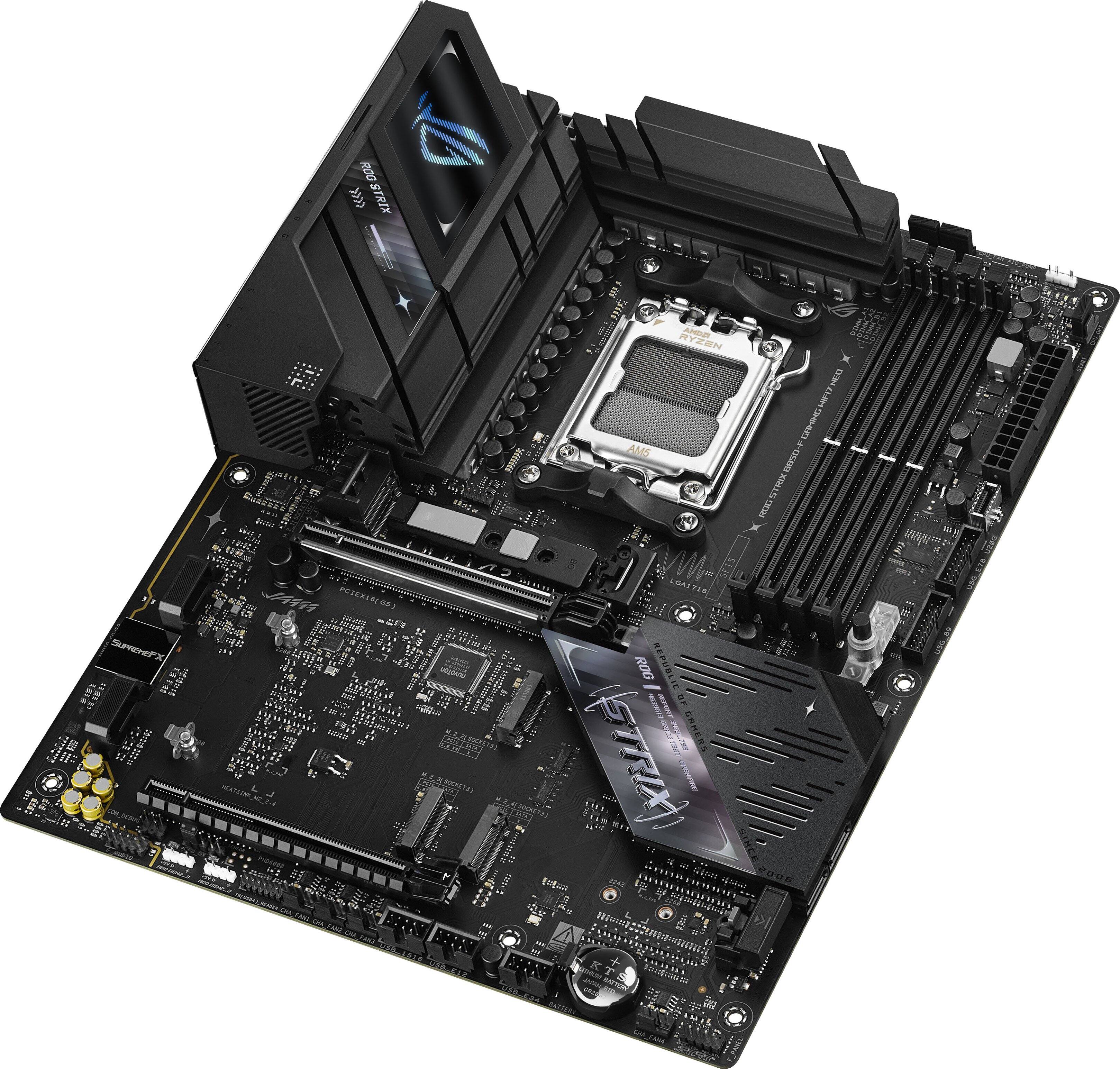

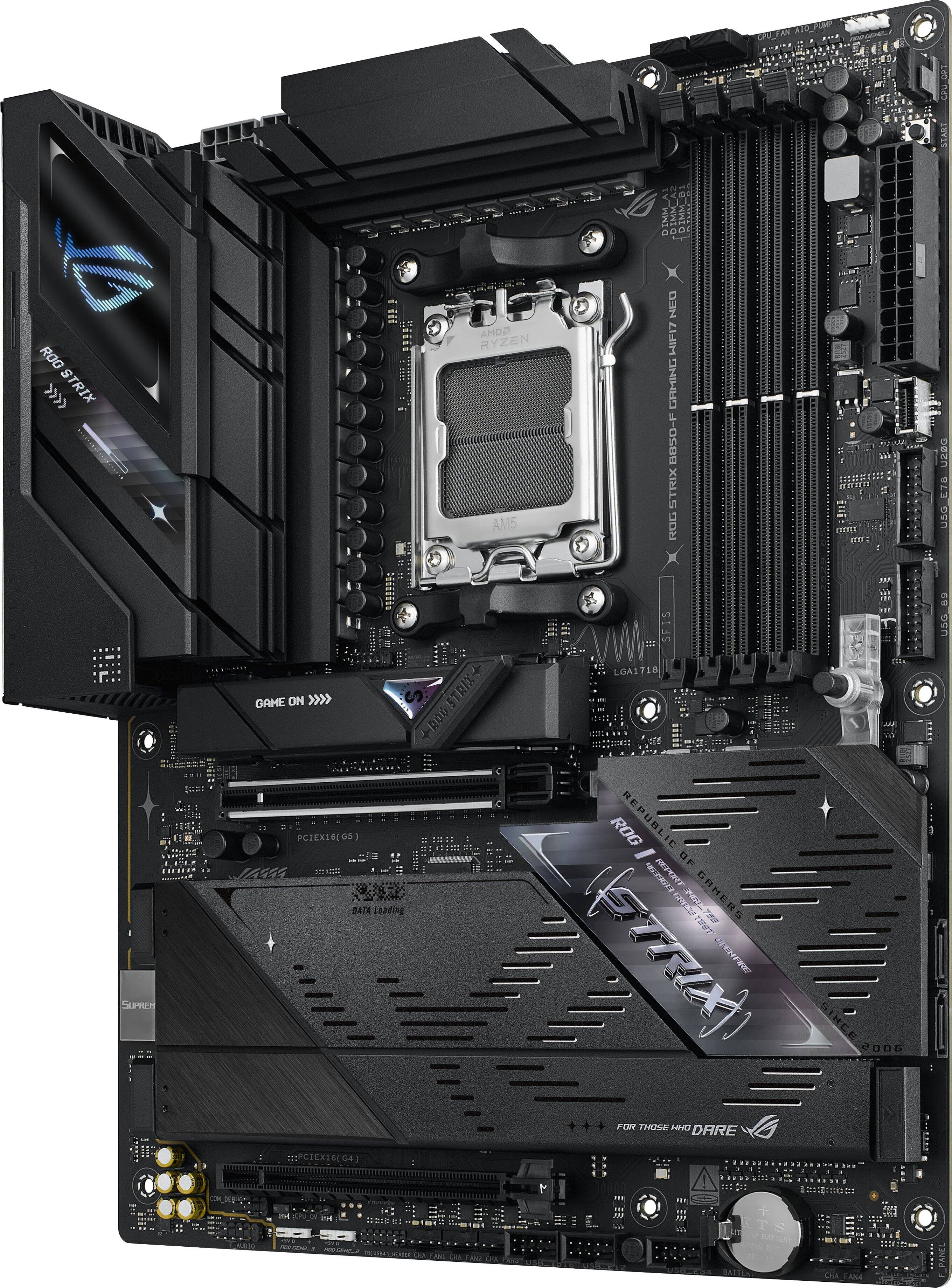

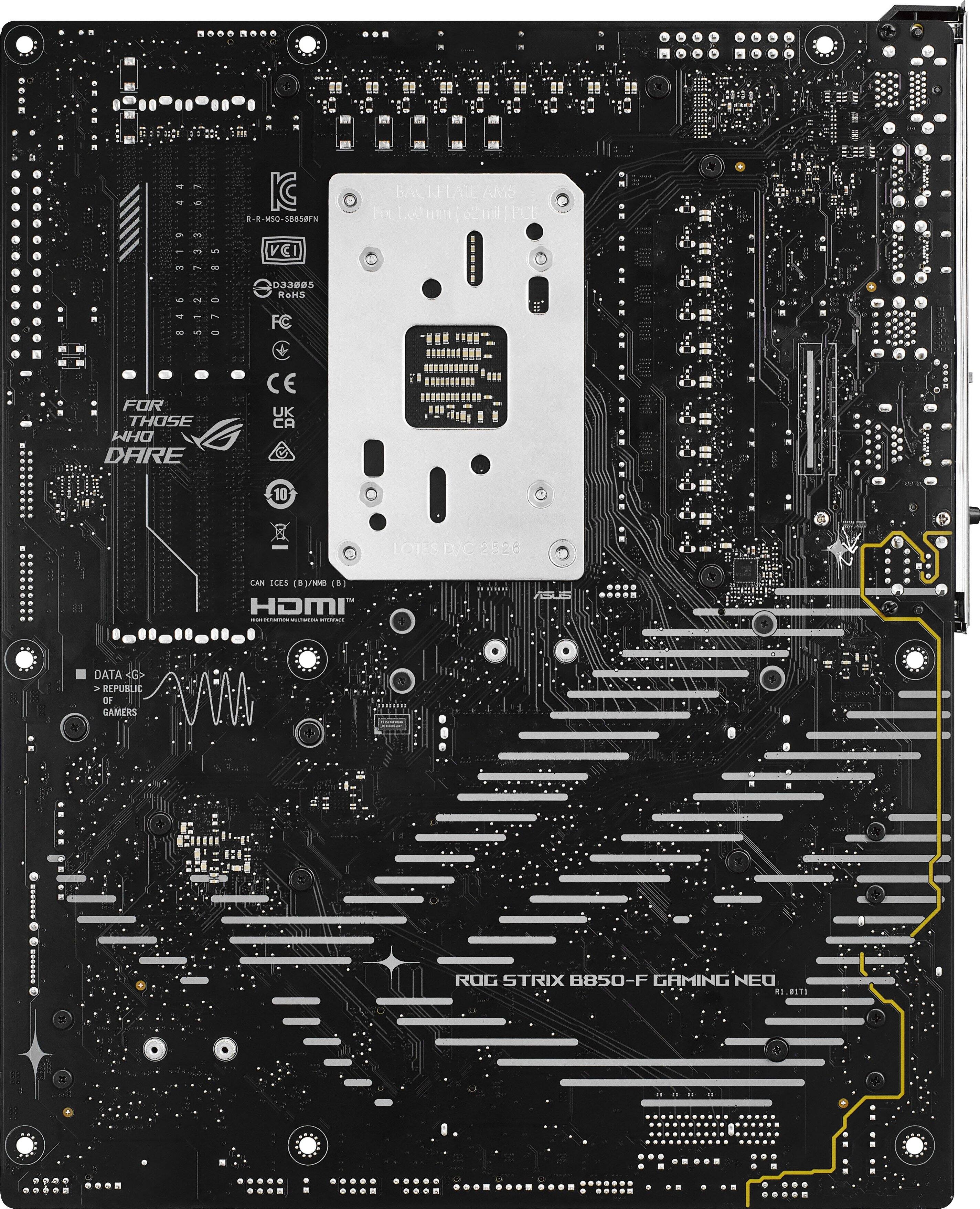

ASUS - ROG STRIX B850-F GAMING WIFI7 NEO (Socket AM5) AMD B850 ATX DDR5 Wi-Fi 7 Motherboard - Black
Model: ROG STRIX B850-F GAMING W7 NEO
SKU: 6677870
Sold byBest Buy
$319.99
or
$26.67/mo.
suggested payments with 12-Month Financing
Show me how
Availability
Order now for pickup on Thu, Jun 4 at
Sold by
More Buying Options from Best Buy and Marketplace sellers
New
$319.99 - $356.63
Related Item
Specifications
- ChipsetAMD B850Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Number of PCI-E Slots2Wireless Networking StandardWi-Fi 7Number Of Memory Slots4
- Key Specs
- Chipset: AMD B850
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 2 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASUS
- Model Number: ROG STRIX B850-F GAMING W7 NEO
- Product Name: ROG STRIX B850-F GAMING WIFI7 NEO (Socket AM5) AMD B850 ATX DDR5 Wi-Fi 7 Motherboard
- Color: Black
- Year of Release: 2026
- Compatibility
- Chipset: AMD B850
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 9000 Series, AMD Ryzen 7 9000 Series, AMD Ryzen 5 9000 Series, AMD Ryzen 9 8000 Series, AMD Ryzen 7 8000 Series, AMD Ryzen 5 8000 Series, AMD Ryzen 9 7000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 5 7000 Series, AMD Ryzen 3 8000 Series, AMD Ryzen 3 7000 Series
- Operating System Compatibility: Windows 11 Pro, Windows 11 Home, Windows 10 Pro, Windows 10 Home
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 2 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 2
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 1x24 Pin (The configuration of the connector as it connects the motherboard to a power supply unit.)
- SATA Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: BE (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports

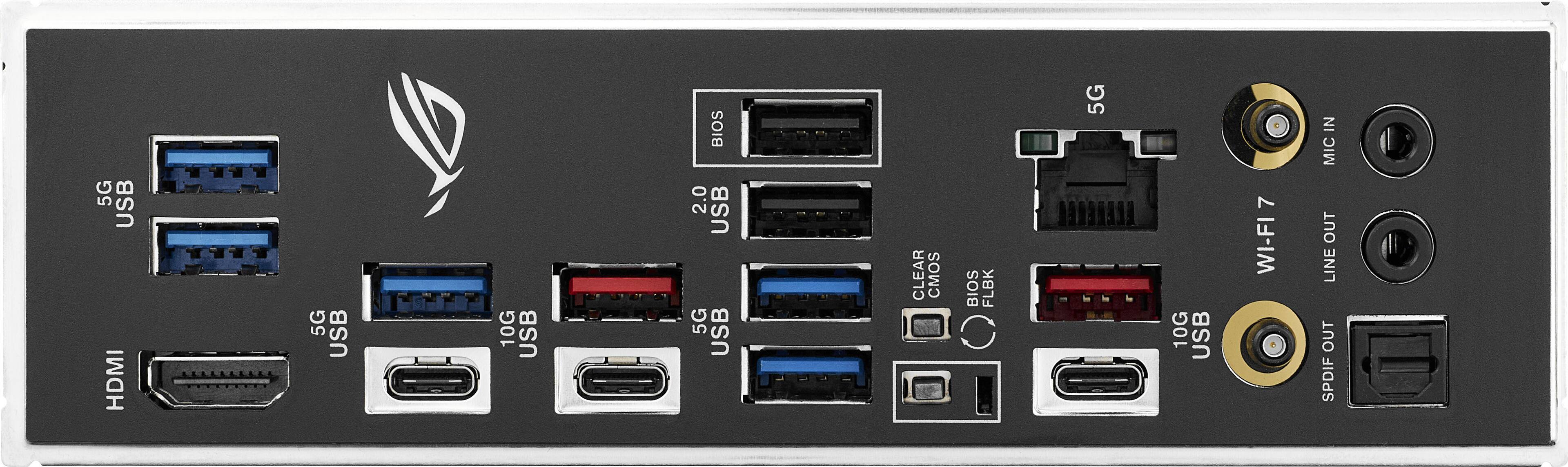

- USB Ports: 4 x USB-C 3.2, 7 x USB-A 3.2, 2 x USB-A 2.0, 2 x USB-A 2.0 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 305 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 57.44 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 8400+MT/s(OC)**/8200+MT/s(OC)***, 9000+MT/s(OC)**/8600+MT/s(OC)***, 8000+MT/s(OC)**/8000+MT/s(OC)***, ECC and Non-ECC, Un-buffered DIMM* (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 5, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 199291434905
ASUS ROG STRIX B850-F GAMING WIFI7 NEO AMD ATX motherboard with 16+2+2 power stages, DDR5 slots, PCIe 5.0 Ready, four M.2 slots, Wi-Fi 7, three USB 2.0 headers, upgraded gaming audio solution, Dynamic OC Switcher, advanced AI tuning with AI Cache Boost and DIY-friendly Q-design with robust thermals.
- Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Ryzen 9000, 8000 and 7000 series desktop processors
- Intelligent Control: ASUS AI Advisor, AI Cache Boost, AI Networking II, AI Cooling II and AEMP to simplify setup and improve performance
- Robust Power Solution: 16+2+2 power solution rated for 80A per stage with an 8+8-pin ProCool power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Massive heatsinks bridged to the VRMs with high-conductivity thermal pads and an integrated I/O cover
- Latest M.2 Support: Two PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots
- Abundant Connectivity: USB 20Gbps Type-C front-panel connector, two 5Gbps headers, three USB 2.0 headers , PCIe 5.0 x16 SafeSlot, HDMI port
- High-Performance Networking: On-board Wi-Fi 7 (802.11be) with Realtek 5Gb Ethernet
- DIY Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield
- Immersive Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 with Savitech SV3H712 amplifier
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including three addressable Gen 2 headers
- Renowned Software: ROG CPU-Z, Dolby Atmos, Armoury Crate, ASUS DriverHub, ASUS MB Manager, TurboV Core, ASUS GlideX, HWiNFO, intuitive UEFI BIOS dashboard
Whats Included
- ROG STRIX B850-F GAMING W7 NEO Motherboard
- 2x SATA 6Gb/s Cables

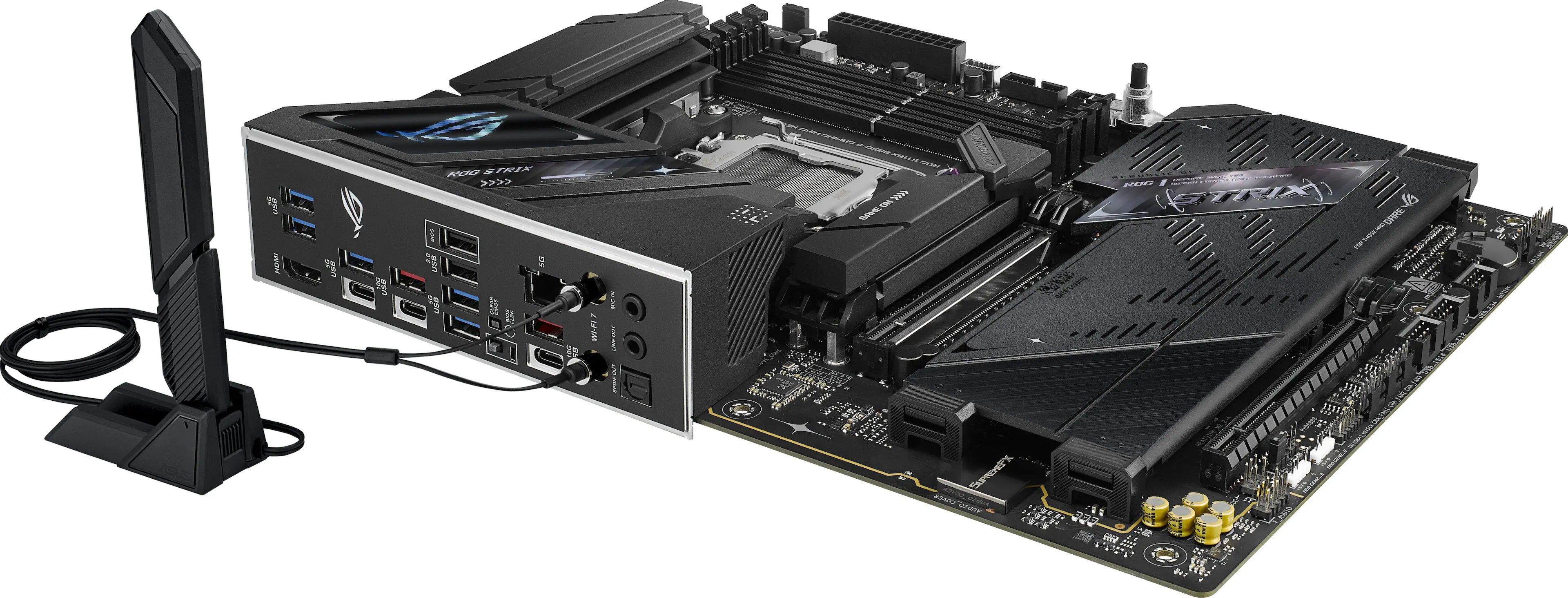

- 1x ASUS Wi-Fi Q-Antenna
- 1x M.2 Q-Latch Package(s)
- 1x M.2 Q-Slide Package
- 3x M.2 Rubber Package(s)
- 1x Cable Ties Package
- 1x M.2 Backplate Rubber Package(s)
- ROG Key Chain & ROG Strix Stickers
- Quick Start Guide & Warranty Card
Disclaimers
- * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function
- ** Max Manual Overclocking: Achievable with advanced BIOS configuration and potentially specialized hardware. Passed AIDA64 memory benchmark at this frequency, verifying read/write bandwidth. Results may vary according to system components
- *** XMP/EXPO/AEMP Profiles: Rated memory module speeds require setting the BIOS perormance profile. Results may vary according to system components and can be impacted when four DIMM slots are used. For XMP/EXPO/AEMP profile settings, please visit https://rog.asus.com/support/faq/1042256/
- **** Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market
Compare similar products
ASUS - ROG STRIX B850-F GAMING WIFI7 NEO (Socket AM5) AMD B850 ATX DDR5 Wi-Fi 7 Motherboard - Black
ASUS ROG STRIX B850-F GAMING WIFI7 NEO AMD ATX motherboard with 16+2+2 power stages, DDR5 slots, PCIe 5.0 Ready, four M.2 slots, Wi-Fi 7, three USB 2.0 headers, upgraded gaming audio solution, Dynamic OC Switcher, advanced AI tuning with AI Cache Boost and DIY-friendly Q-design with robust thermals.
4.8(59)
This mean machine powers your next hot rod. The ASUS ROG Strix B850-F GAMING WIFI features PCIe 5.0, DDR5 AEMP, WiFi 7 with Q-Antenna, robust 16+2+2 power stages, four M.2, total support of 19 USB ports including USB Type-C, AI Advisor, advanced cooling, and Aura Sync—perfect for Ryzen processors.

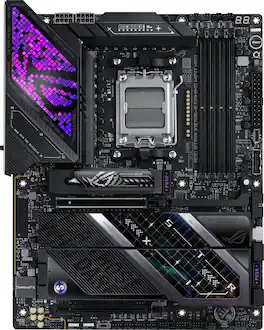

ASUS ROG STRIX X870E-E GAMING WIFI7 NEO AMD ATX motherboard with 18+2+2 power stages, DDR5 with NitroPath DRAM Technology and AEMP, PCIe 5.0 Ready, four M.2 slots, Wi-Fi 7, Dual USB4, Dynamic OC Switcher, advanced AI tuning with AI Cache Boost and DIY-friendly Q-design with robust thermals.
