MSI - MAG B850 TOMAHAWK MAX WIFI (Socket AM5) AMD B850 ATX DDR5 Wi-Fi 7 Motherboard - Black
Key Accessories:
- Intel - Core i7-14700 14th Gen 20-Core 28-Thread (5.4GHz Turbo) Socket LGA1700 Unlocked Desktop Processor - Multi$557.99The price was $575.25
More Buying Options from Best Buy and Marketplace sellers
Specifications
- ChipsetAMD B850Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Wireless Networking StandardWi-Fi 7Number Of Memory Slots3Maximum Memory Supported256 gigabytes
- Key Specs
- Chipset: AMD B850
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 3
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: MSI
- Model Number: MAG B850 TOMAHAWK MAX WIFI
- Product Name: MAG B850 TOMAHAWK MAX WIFI (Socket AM5) AMD B850 ATX DDR5 Wi-Fi 7 Motherboard
- Color: Black
- Year of Release: 2025
- Compatibility
- Chipset: AMD B850
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 9000 Series, AMD Ryzen 9 7000 Series, AMD Ryzen 7 9000 Series, AMD Ryzen 7 8000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 5 9000 Series, AMD Ryzen 5 8000 Series, AMD Ryzen 5 7000 Series
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 3
- Number Of Memory Slots: 3
- Connectivity
- SATA Connector: 4x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: BE (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports
- USB Ports: 8 x USB-A 2.0, 1 x USB-C 3.2, 2 x USB-A 3.1, 3 x USB-C 3.1, 5 x USB-A 3.0 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 304.10 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 243.86 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 50 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4x DDR5, Maximum Memory Capacity 256GB (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Other
- UPC: 824142395356
MAG B850 TOMAHAWK MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds.
- Processor compatibility: Supports AMD Ryzen 9000/7000 Series Desktop Processor Socket AM5
- Speed (memory speed supported): 4 DIMMs, Dual Channel DDR5-8400+ MT/s (OC)
- Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
- Wi-Fi 7: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
- Audio Boost 5: Isolated audio with a high quality audio processor for the most immersive gaming experience
Product Manuals
Q: What type of wireless connectivity does this motherboard offer?
A: This motherboard offers Wi-Fi 7 and Bluetooth connectivity.
Q: What kind of audio experience does this motherboard provide?
A: It features Audio Boost 5 technology, which provides isolated audio with a high-quality audio processor for an immersive gaming experience.
Q: Does this motherboard support RAID?
A: Yes, it supports RAID 0.
Q: What is the maximum memory supported by this motherboard?
A: The maximum memory supported is 256 gigabytes.
Q: How many M.2 slots does this motherboard have?
A: This motherboard has 4 M.2 slots.
Q: Which processors are compatible with this motherboard?
A: This motherboard supports AMD Ryzen 9000/7000 Series Desktop Processors with Socket AM5.
Q: Hi will this graphics card support gen 5 for the new 50 series cards,
A: Hello Ty - this motherboard includes support for PCIe 5.0
Q: What type is CPU cooler will I need for this motherboard?
A: Hello Moab - this motherboard will support air or liquid cooling options
Compare similar products
MAG B850 TOMAHAWK MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds.
MAG X870E TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds.
The X870 AORUS ELITE WIFI7 supports AM5 Processors and features unparalleled performance. GIGABYTE X870 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
The ASUS ROG Strix B850-A Gaming WiFi pairs powerful performance with sleek design. Featuring 14+2+2 power stages and thick metal heatsinks, it’s ready for AMD Ryzen 9000 Series processors. Enjoy DDR5 with AEMP, PCIe 5.0 M.2, WiFi 7 with Q-Antenna, four M.2 slots, advanced USB connectivity, and Aura Sync RGB.
| Pros for MSI - MAG B850 TOMAHAWK MAX WIFI (Socket AM5) AMD B850 ATX DDR5 Wi-Fi 7 Motherboard - Black | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | Overall Performance, Connectivity, BIOS, Installation, Wi-Fi 7 | Overall Performance, Installation Ease, BIOS Usability, Features, Compatibility |
| Cons for MSI - MAG B850 TOMAHAWK MAX WIFI (Socket AM5) AMD B850 ATX DDR5 Wi-Fi 7 Motherboard - Black | |||
| There were no cons for this product— | There were no cons for this product— | There were no cons for this product— | Driver Support |
Specs
Reviews
Rating 4.8 out of 5 stars with 134 reviews

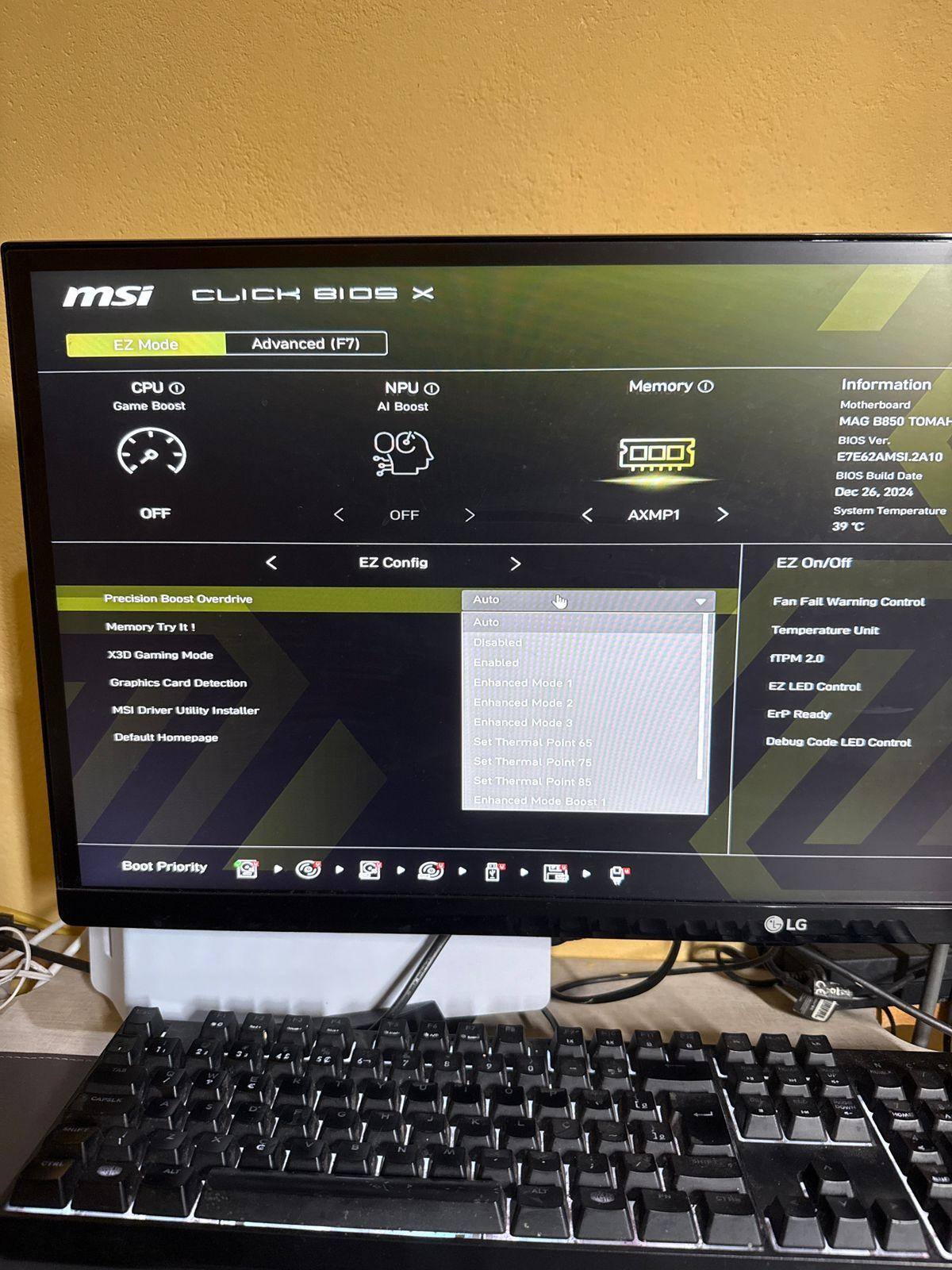

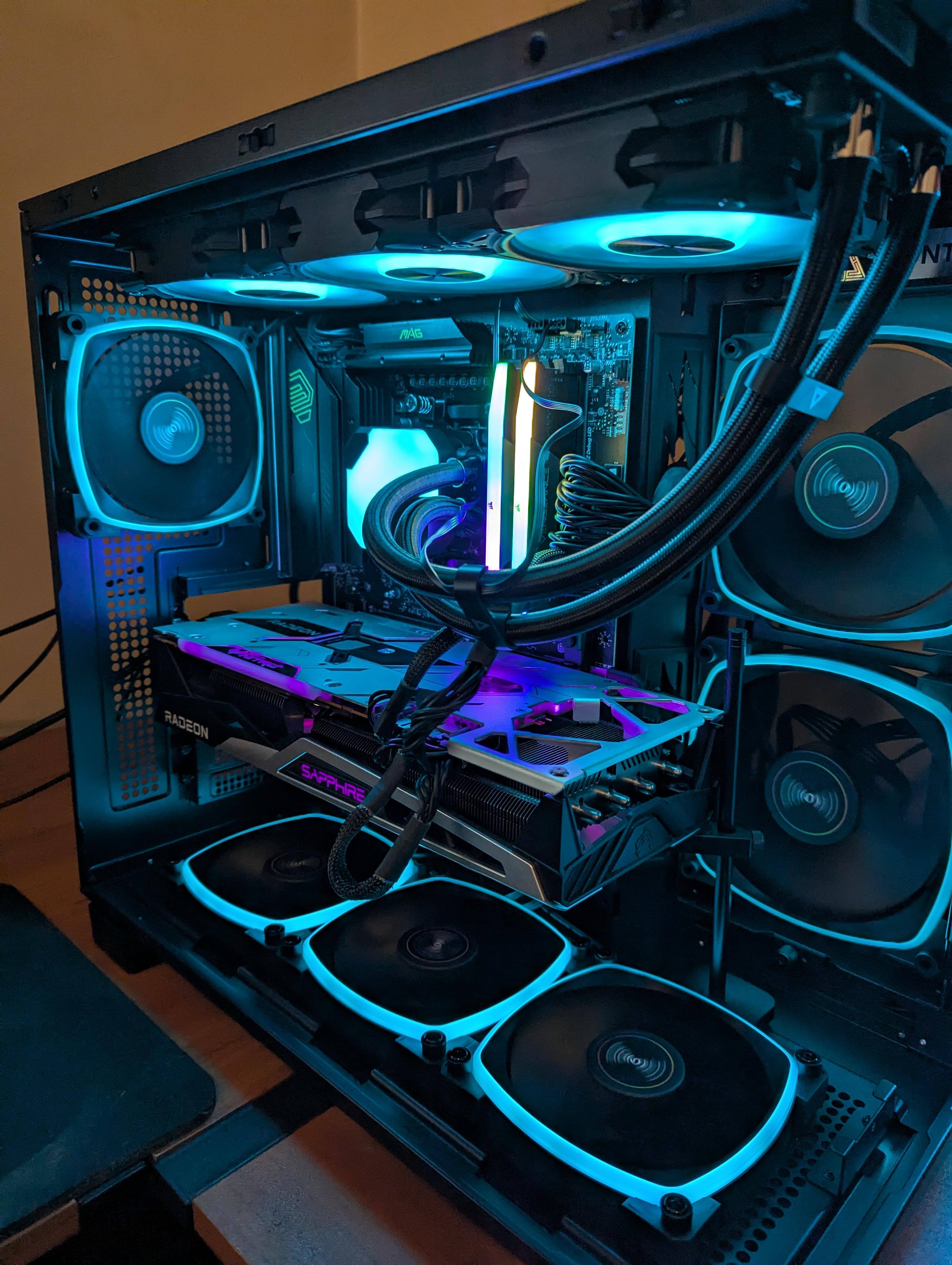

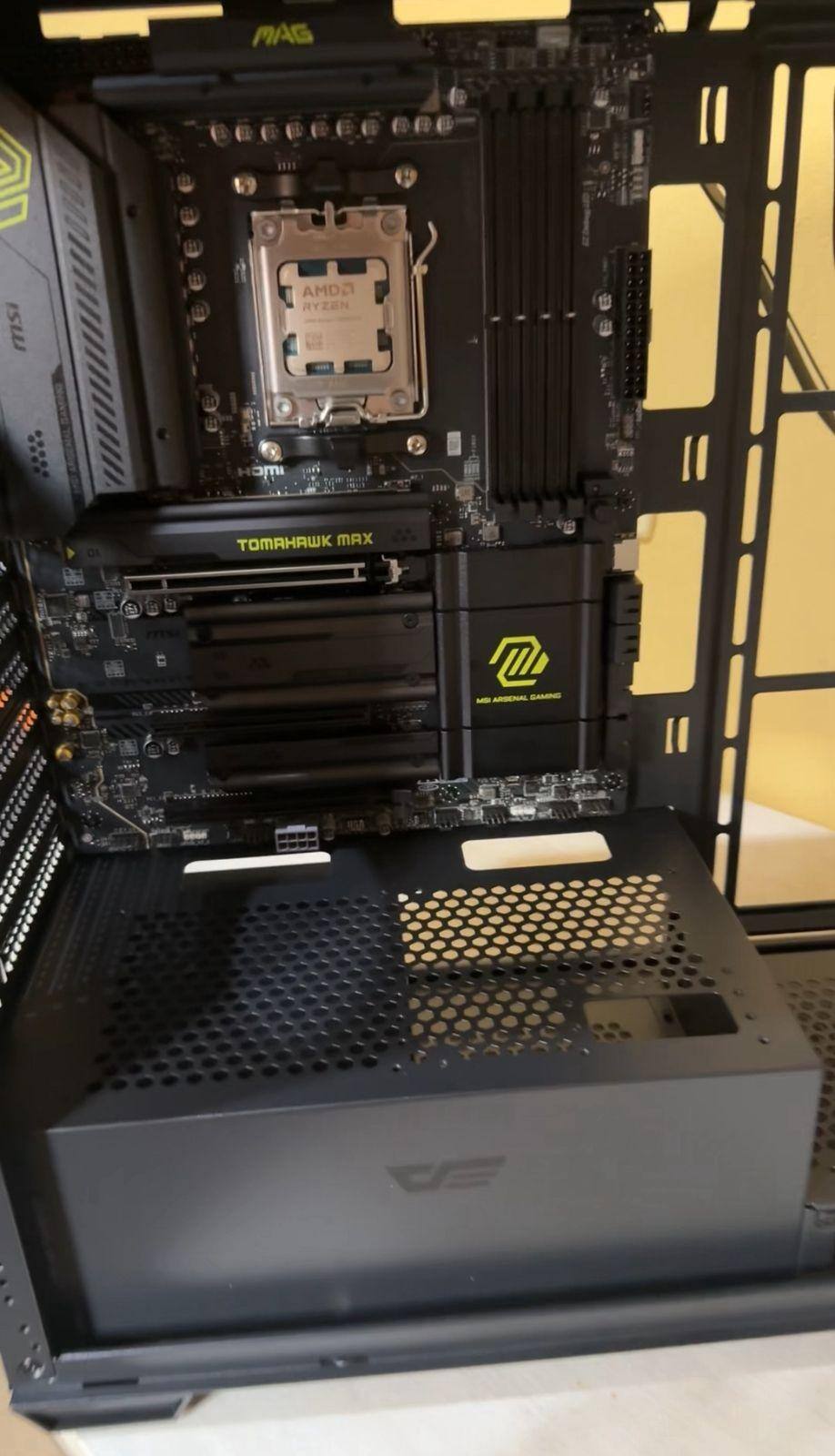

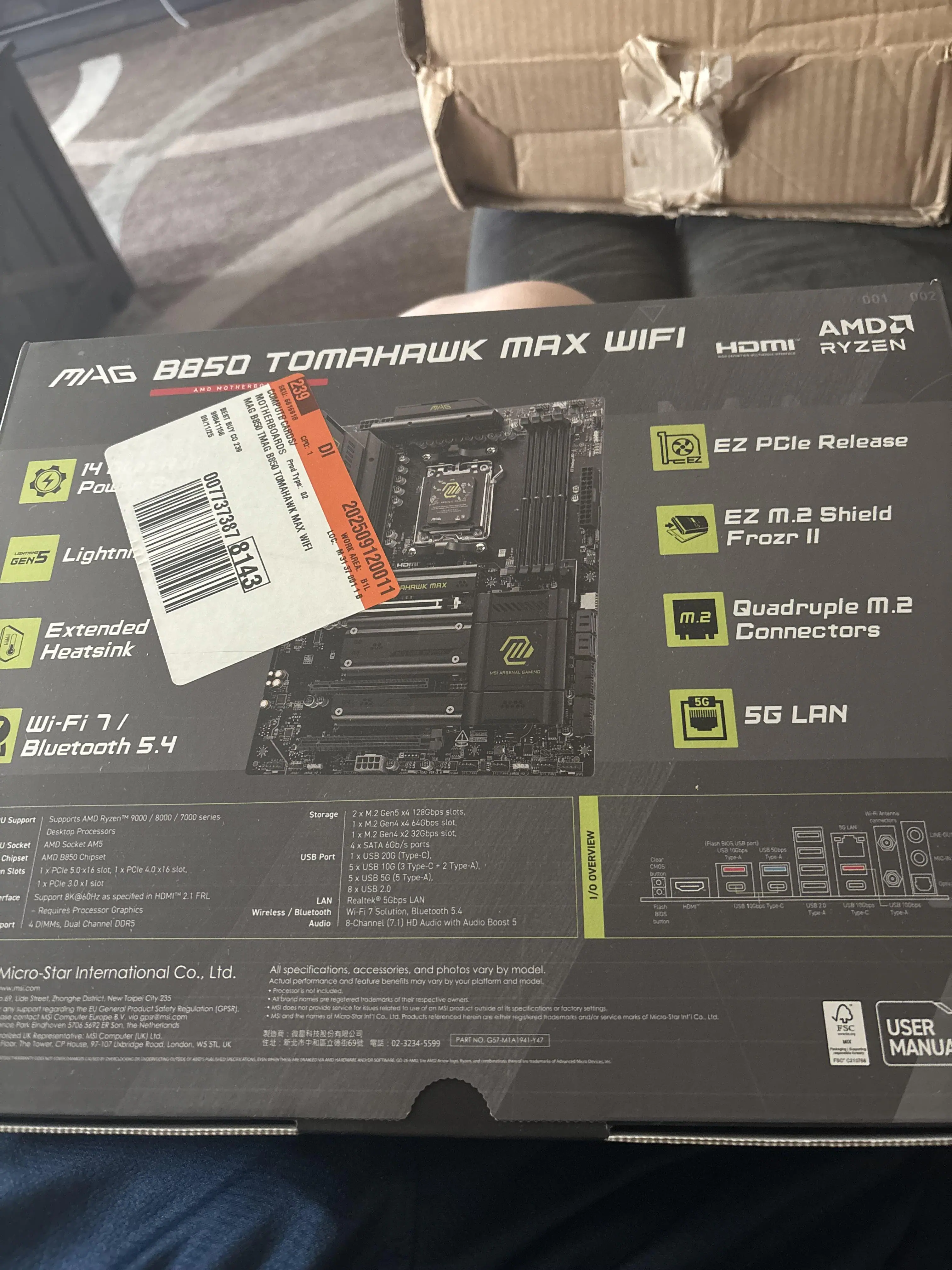

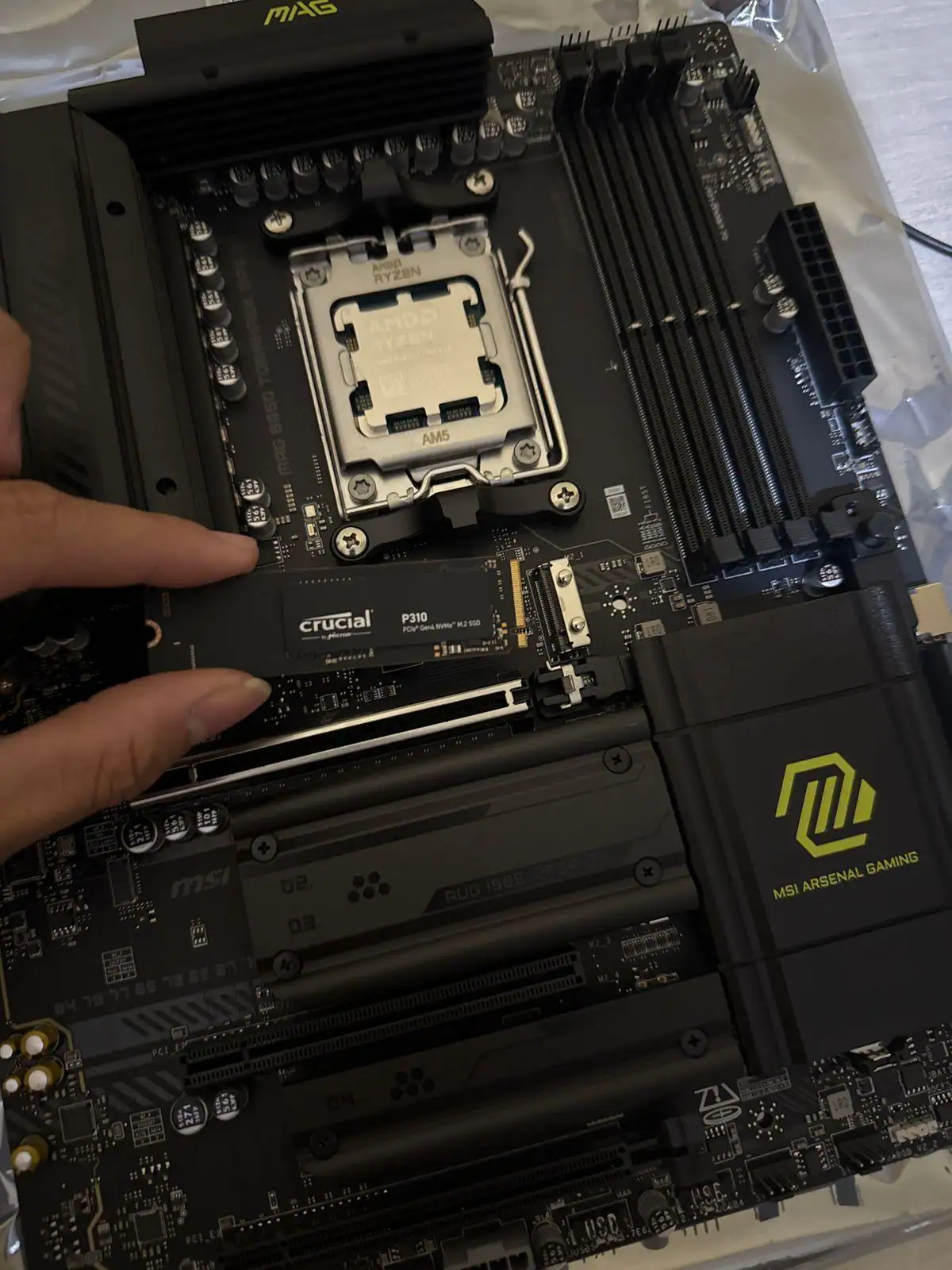

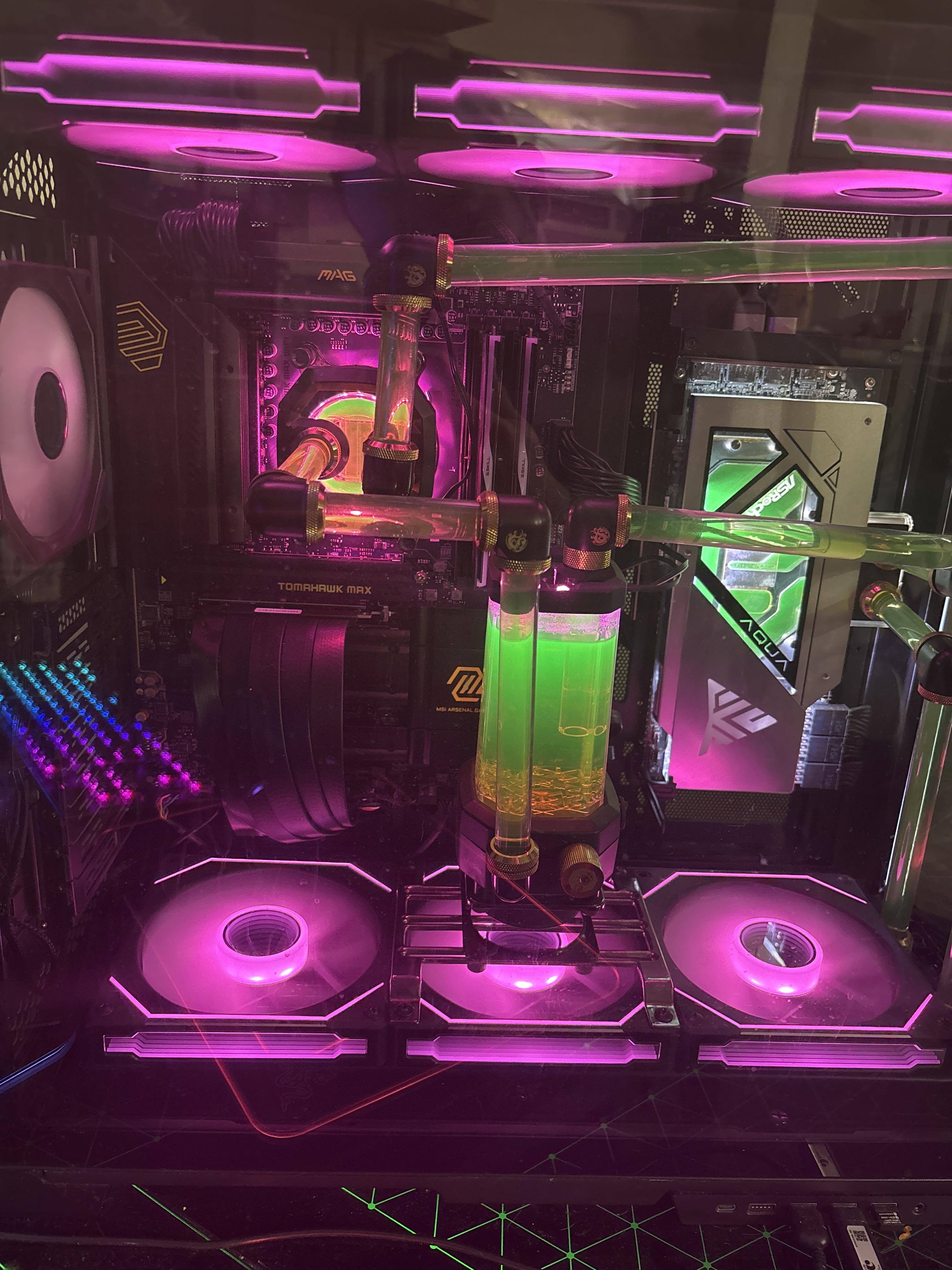

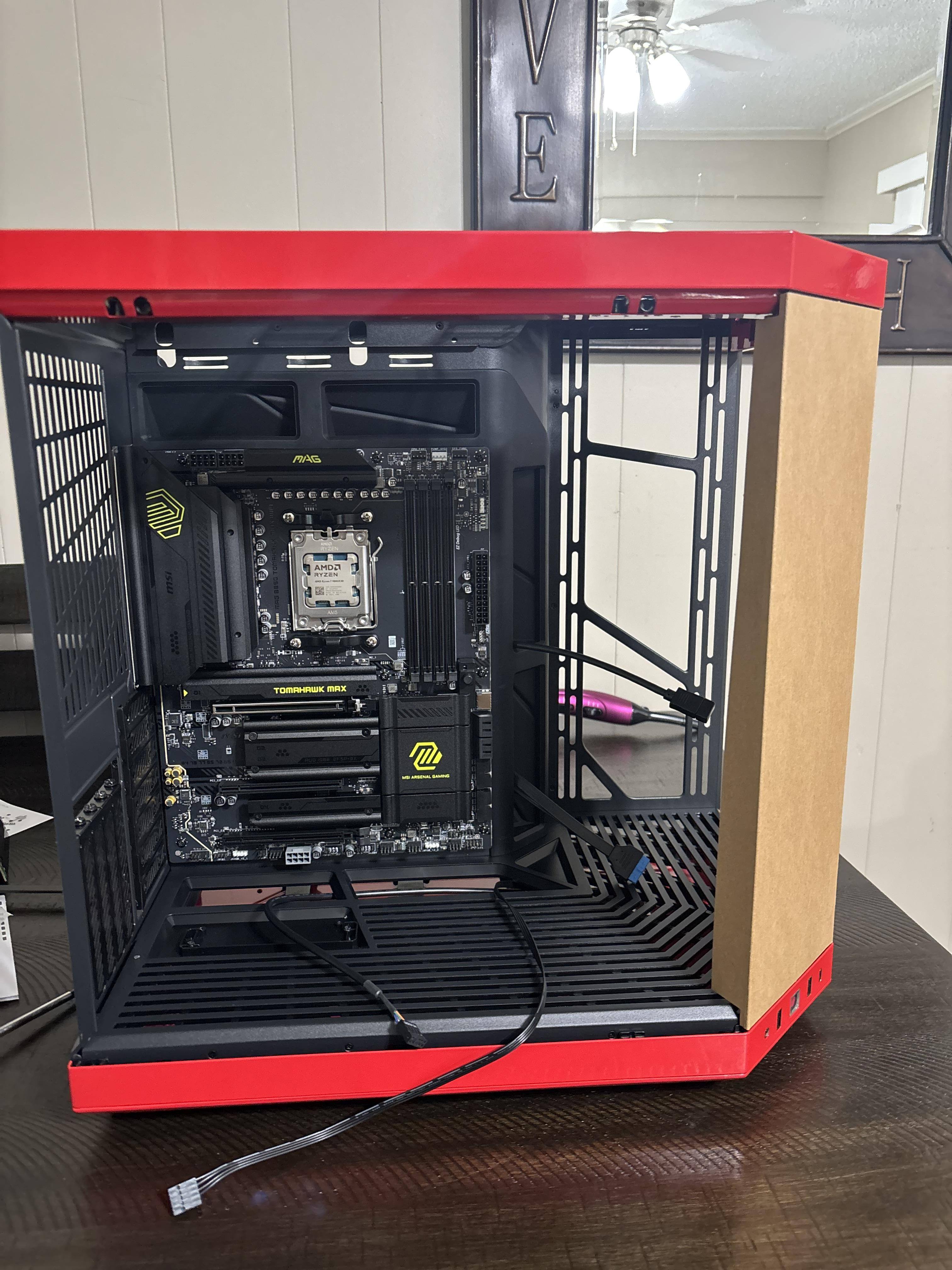

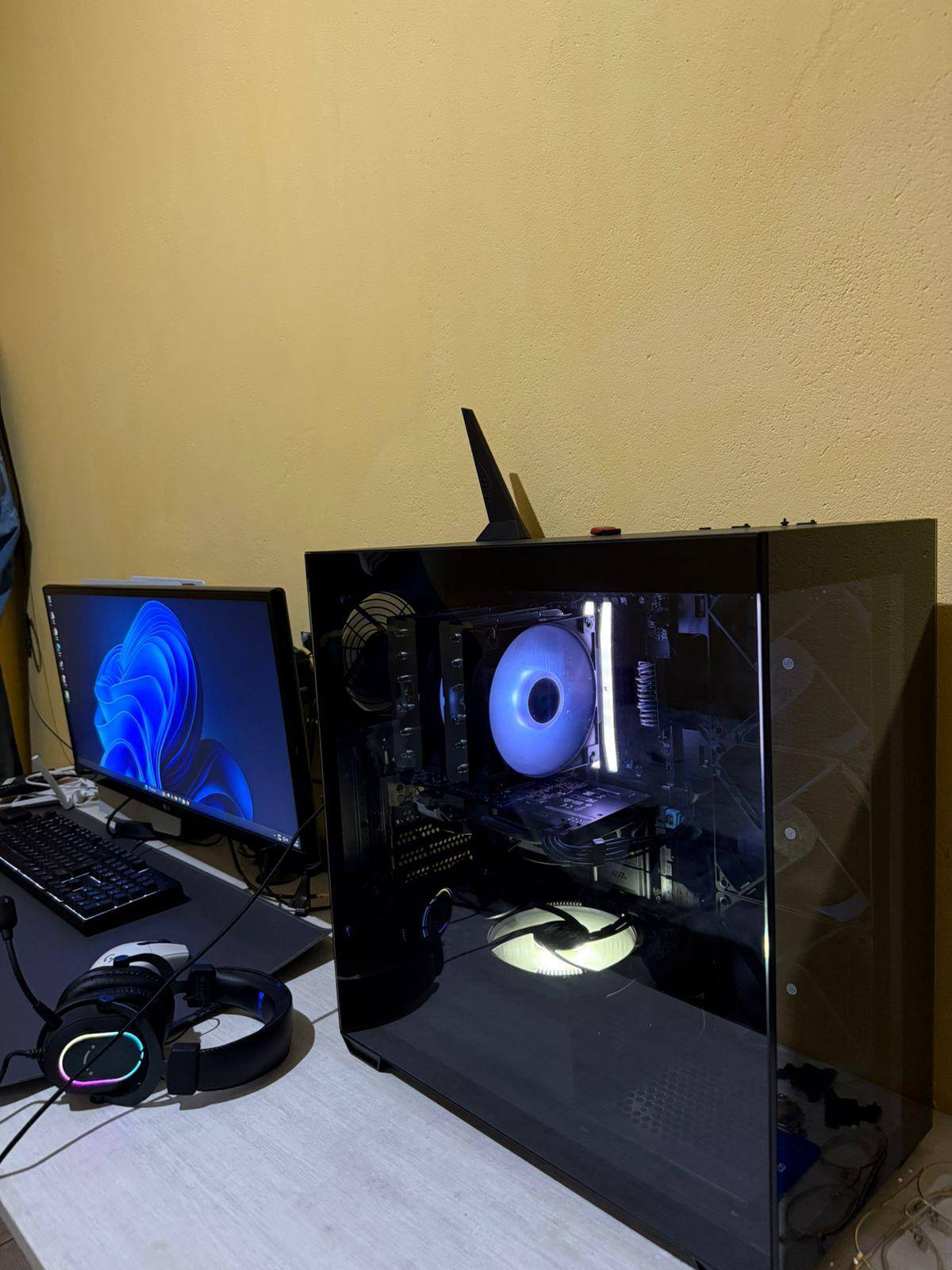

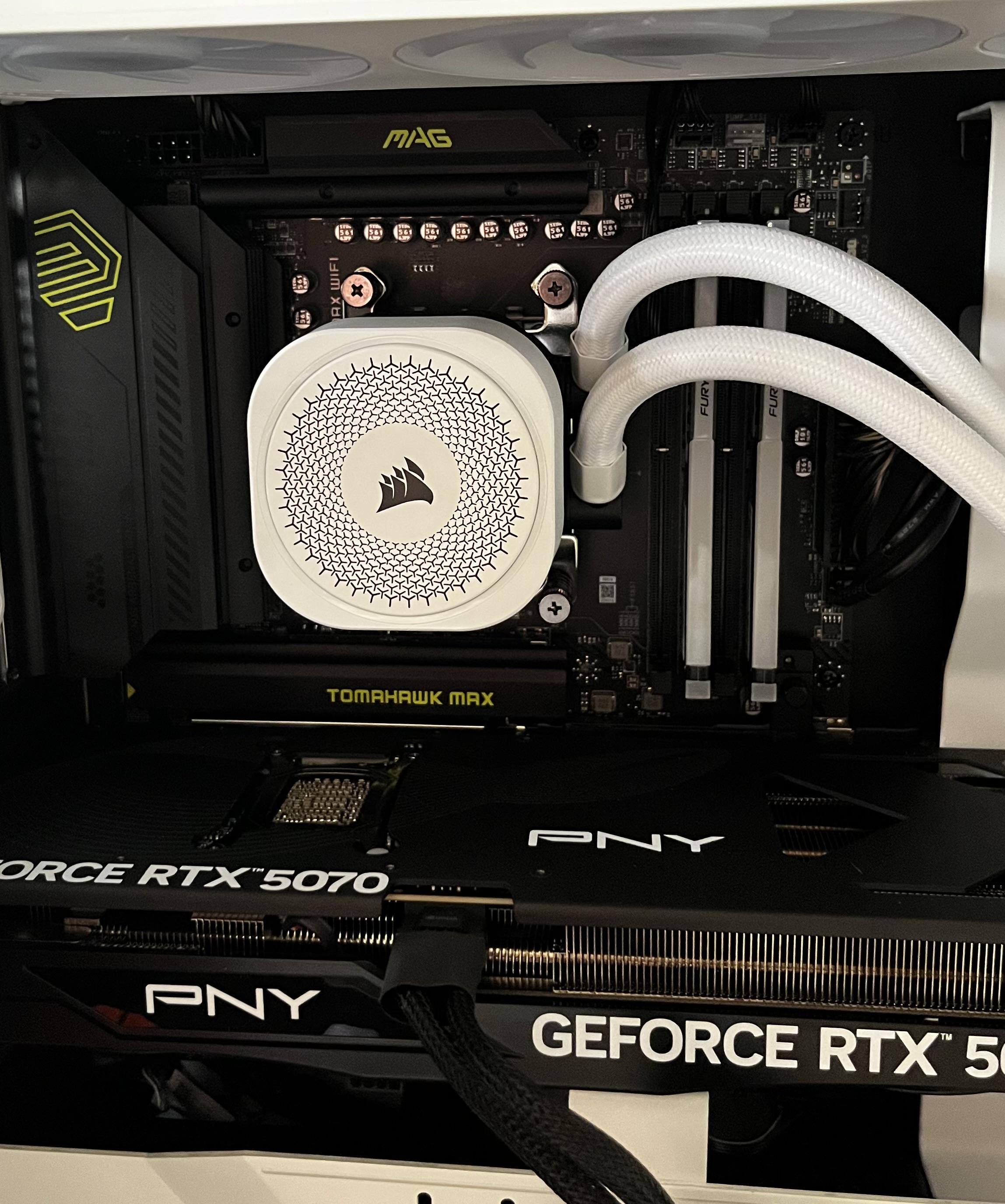

Customer Images
