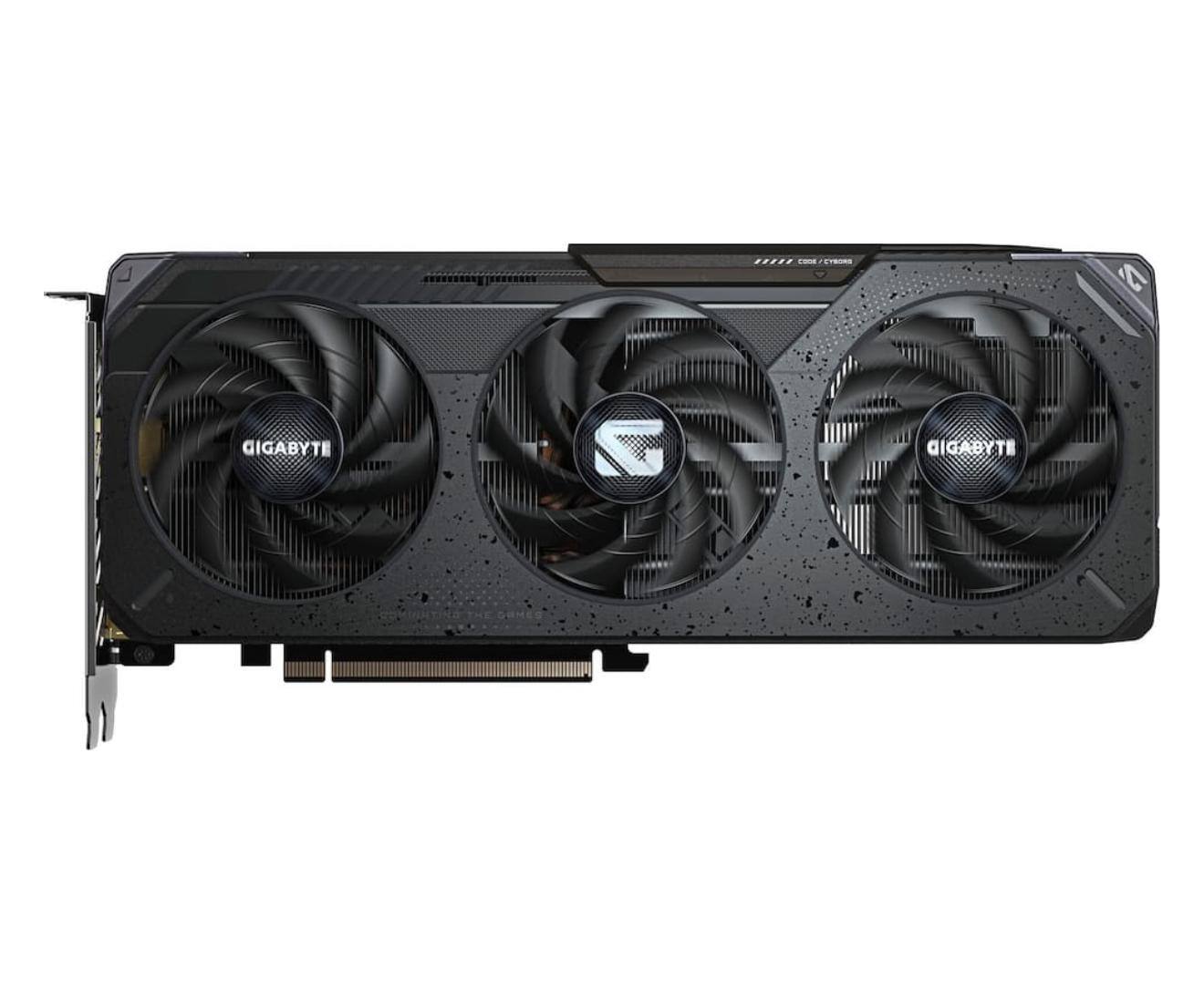

GIGABYTE - Radeon RX 9060 XT GAMING OC 16G GDDR6 PCI Express 5.0 Graphics Card - Black
Specifications
- GPU Base Clock Frequency3.13 gigahertzGPU Boost Clock Frequency3.32 gigahertzDisplayPort Ports2 x DisplayPort 2.1HDMI Ports2 x HDMI 2.1Maximum Resolution8K (4320p)Maximum Number of Displays Supported4
- Key Specs
- GPU Base Clock Frequency: 3.13 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 3.32 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 2 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 2 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 5.0
- Product Height: 40 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 118 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 281 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): AMD Radeon RX 9060 XT (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: GIGABYTE
- Model Number: GV-R9060XTGAMING OC-16GD
- Product Name: GIGABYTE - Radeon RX 9060 XT GAMING OC 16G GDDR6 PCI Express 5.0 Graphics Card
- Color: Black
- GPU Chipset Manufacturer: AMD
- Graphics Processing Unit (GPU): AMD Radeon RX 9060 XT (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2025
- Performance
- GPU Base Clock Frequency: 3.13 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 3.32 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 2 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 2 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 2 gigahertz
- Compatibility
- Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 5.0
- Operating System Compatibility: Windows
- Power
- Total Graphics Power: 217 watts
- Recommended Power Supply: 450 watts
- Dimensions
- Product Height: 40 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 118 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 281 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 1.85 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 889523049761
The most advanced GPU for gamers is here - the GIGABYTE Radeon RX 9060 XT GAMING OC 16G Graphics Cards. Experience unprecedented performance, visuals, and power efficiency at 4K and beyond with AMD Radeon RX 7000 Series graphics cards, the world's first gaming GPUs powered by AMD RDNA 3 technology.
- Graphics Processing Unit (GPU)/Clock Speed: Powered by Radeon RX 9060 XT.
- Video Memory: 16GB GDDR6.
- Interface Compatibility: PCI Express 5.0.
- AMD Radeon Technology: RDNA 4 architecture.
- HDMI And Display Port Outputs: HDMI x 2, DP x 2.
- Series: AMD RDNA 4 architecture RX 90-Series.

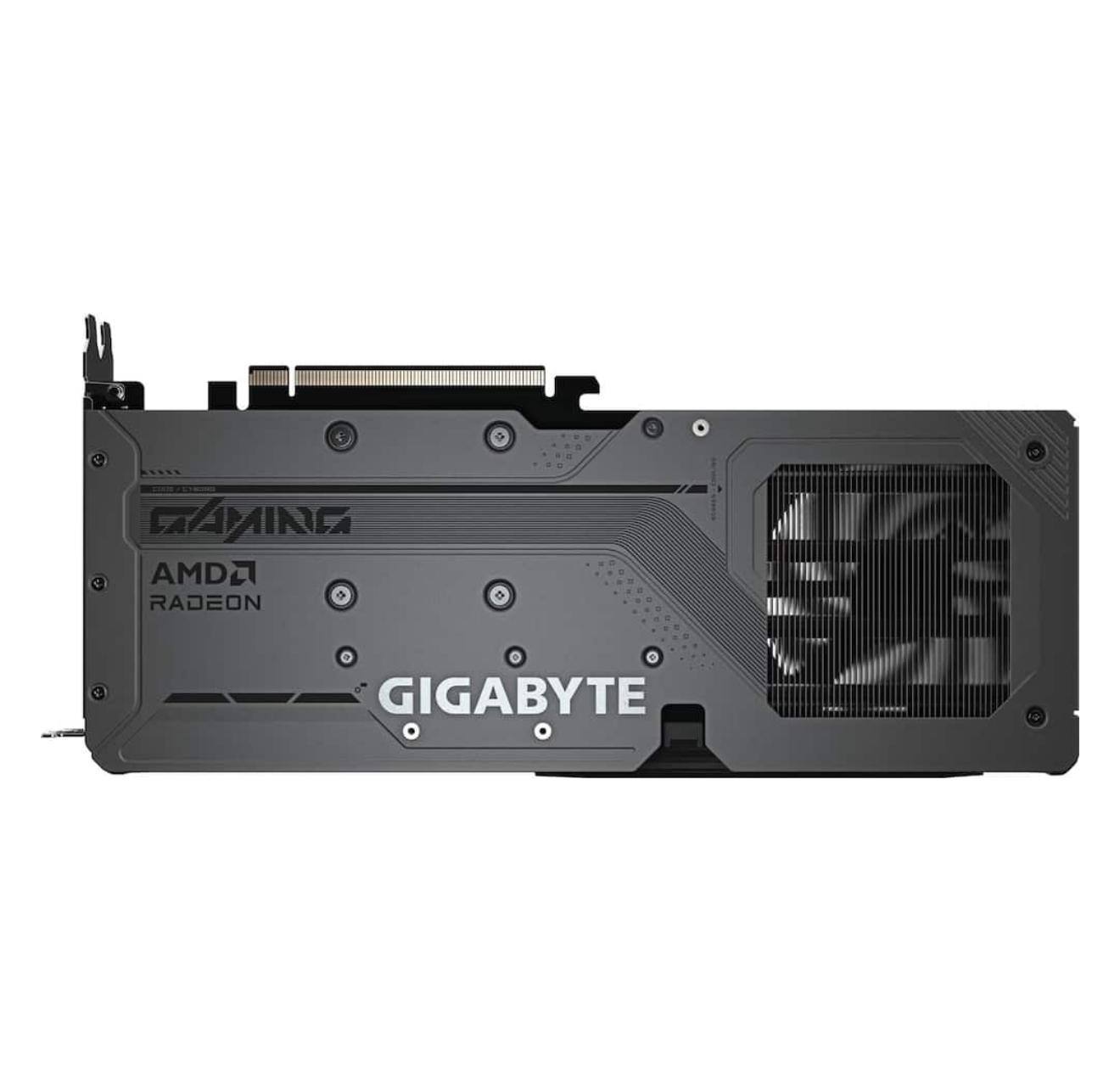

- 2-Slot Design: Protective metal back plate.
- Thermal Solution: Features server-grade thermal conductive gel, innovative Hawk fans with alternative spinning 3D active fans.
- Power Indicator: When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
- RGB Lighting: With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE Control Center.
- Dual BIOS: The factory default setting is Performance mode, which provides users with the best performance. Switching to Silent mode allows a quieter experience.
Whats Included
- Radeon RX 9060 XT GAMING OC 16G GDDR6 PCI Express 5.0 Graphics Card
- User Manual Quick Guide
Q: How many displays can this graphics card support?
A: This graphics card can support a maximum of four displays.
Q: Does this graphics card have a dual bios?
A: Yes, this graphics card has a dual BIOS.
Q: What is the boost clock frequency of this graphics card?
A: The GPU boost clock frequency is 3.32 gigahertz.
Q: Does this graphics card have RGB lighting?
A: Yes, this graphics card has RGB lighting with customizable color options.
Q: What type of memory does this graphics card use?
A: This graphics card uses 16GB GDDR6 memory.
Q: How much power does this graphics card consume?
A: This graphics card consumes 217 watts of power.
Q: What is the recommended power supply for this graphics card?
A: The recommended power supply for this graphics card is 450 watts.
A: The 9060xt only has 1 hdmi port but it also has 2 display port connections
Compare similar products
The most advanced GPU for gamers is here - the GIGABYTE Radeon RX 9060 XT GAMING OC 16G Graphics Cards. Experience unprecedented performance, visuals, and power efficiency at 4K and beyond with AMD Radeon RX 7000 Series graphics cards, the world's first gaming GPUs powered by AMD RDNA 3 technology.
AMD Radeon RX 9000 Series graphics cards, featuring the groundbreaking AMD RDNA 4 architecture, deliver ultra-high frame rates for your favorite games at 4K max settings.
The most advanced GPU for gamers is here - the GIGABYTE Radeon RX 9060 XT GAMING OC 8G Graphics Cards. Experience unprecedented performance, visuals, and power efficiency at 4K and beyond with AMD Radeon RX 7000 Series graphics cards, the world's first gaming GPUs powered by AMD RDNA 3 technology.
The ASUS Prime RTX 5070 OC features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance. A premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
| Pros for GIGABYTE - Radeon RX 9060 XT GAMING OC 16G GDDR6 PCI Express 5.0 Graphics Card - Black | |||
|---|---|---|---|
| Noise Level, Temperature, Performance, VRAM, Memory | Graphics Performance, Noise Level, Temperature, Appearance, Build Quality | Graphics Performance | Graphics Performance, Noise Level, Temperature, Appearance, Installation |
Specs
Reviews
Customers are saying
Customers love the Radeon RX 9060 XT GAMING OC 16G graphics card, especially its excellent performance for the price. Users appreciate the ample VRAM, quiet operation due to the zero RPM fans, and effective thermal management. Many recommend opting for the 16GB version of the card.
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Great midrange 1440p GPU
This was a good purchase and performs very well as long as you are not playing unoptimized games or UE5 games. I have been playing games with between 90-160 fps at 1440p depending on the game. This also worked out of the box on CachyOS linux with no tinkering required after putting the GPU into the PCIe slot of my PC which is no surprise since AMD GPU drivers are good on Linux. With using optiscaler to get FSR4 to work in games, it is definitely a noticeable improvement from FSR3. It also runs cooler compared to my old rx 6650 xt which ran at around 80-85C when playing a graphically demanding video game with the fans becoming loud while my new rx 9060 xt runs at 62C when playing a graphically demanding video game with the fans not running overly loud and mostly quiet.
Posted by ronin
- Rated 5 out of 5 stars
Great GPU, great value!
Looks very nice, works great so far. I'm a total member so I had Geek squad swap out the 7600 for this, thankfully was in the return window when this was released. Excellent value for small price difference. They stress tested everything and said it out performed all expectations by far. It has zero RPM fans and it's pretty cool but almost weird at the same time the fans have never come on for me yet. Temps have kept low, but I've only had the chance to do online based work and watch small amount of YouTube so far. The Gigabyte software user interface is extremely basic, but they may have something else available I'm simply not familiar with. I would absolutely recommend this at the price point!
Posted by CJWest
- Rated 5 out of 5 stars
Feels like winning the silicon lottery yet again!
Meeting a perfect blend and balance of enough VRAM to be comfortable, great AI model inference capability, and handling thermals like a champ. Looking forward to keeping this card running it's paces for quite some time!
Posted by AEsau
