ASUS - TUF GAMING B650E-PLUS WIFI (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 7 Motherboard - Black
ASUS - TUF GAMING B650E-PLUS WIFI (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 7 Motherboard - Black
- CORSAIR - 2’ Premium Individually Sleeved 12+4pin PCIe Gen 5 Type-4 600W 12VHPWR Cable - BlackClearance$23.99The price was $29.99
More Buying Options
Related Item
Specifications
- ChipsetAMD B650Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Number of PCI-E Slots4Wireless Networking StandardWi-Fi 7Number Of Memory Slots4
- Key Specs
- Chipset: AMD B650
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 4 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASUS
- Model Number: TUF GAMING B650E-PLUS WIFI
- Product Name: TUF GAMING B650E-PLUS WIFI (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 7 Motherboard
- Color: Black
- Year of Release: 2025
- Compatibility
- Chipset: AMD B650
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 9000 Series, AMD Ryzen 7 9000 Series, AMD Ryzen 5 9000 Series, AMD Ryzen 9 7000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 7 5000 Series, AMD Ryzen 5 9000 Series, AMD Ryzen 5 7000 Series, AMD Ryzen 5 5000 Series
- Operating System Compatibility: Windows 11 Home, Windows 11 Pro
- Slot
- Number of M.2 Slots: 3 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 4 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 2
- Number Of PCI-E x1 Slots: 2
- Number Of Memory Slots: 4
- Connectivity
- SATA Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: BE (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports
- USB Ports: 4 x USB-A 3.2, 2 x USB-C 3.2, 8 x USB-A 2.0 (The number and type of USB ports the product has.)
- Audio Ports: 7
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 305 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 36.32 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: up to 8000+MT/s (OC) (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- Multi-GPU Support: None
- RAID Support: RAID 0, RAID 01 (RAID 0+1), RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 197105995482
ASUS TUF GAMING B650E-PLUS WIFI motherboard features DDR5, PCIe 5.0 x16 SafeSlot, triple M.2 (one PCIe 5.0), Wi-Fi 6E, 2.5Gb LAN, USB-C 20Gbps, Q-Release, Q-LED, RGB Gen 2, BIOS FlashBack, and 12+2+1 80A DrMOS—built tough for performance, reliability, and next-gen gaming builds
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
- Enhanced Power Solution: 12+2+1 80A DrMOS power stages, 8-layer PCB, 8+8 pin ProCool power connectors, alloy chokes and durable capacitors for stable power delivery
- Latest M.2 Support: One onboard PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots, equipped with all M.2 heatsinks
- Ultrafast Connectivity: Wi-Fi 6E, PCIe 5.0 x16 slot, Realtek 2.5Gb Ethernet, rear USB 20Gbps Type-C port, front USB 10Gbps Type-C connector, Thunderbolt (USB4) header support
- Comprehensive Cooling: Enlarged VRM heatsink, three M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4
- DIY Friendly Design: PCIe Slot Q-Release, new M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack and Pre-mounted I/O shield
- Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
- Renowned Software: TurboV EVO, ASUS DriverHub, ASUS TUF PROTECTION, DTS Audio Processing
Whats Included
- TUF GAMING B650E-PLUS WIFI Motherboard
- Wi-Fi Antenna
Q: what is the graphics memory
A: undefined
Q: Why does the product description claim that this has wifi 7 when it doesn't?
A: false advertisement.
A: This specific motherboard model supports WiFi-6E, not WiFi-7.
Q: Is it compatible with an Intel processor
A: The ASUS TUF GAMING B650E‑PLUS WIFI motherboard supports AMD Ryzen AM5 CPUs only, and is not compatible with Intel processors. https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b650e-plus-wifi/techspec/
Compare similar products
ASUS TUF GAMING B650E-PLUS WIFI motherboard features DDR5, PCIe 5.0 x16 SafeSlot, triple M.2 (one PCIe 5.0), Wi-Fi 6E, 2.5Gb LAN, USB-C 20Gbps, Q-Release, Q-LED, RGB Gen 2, BIOS FlashBack, and 12+2+1 80A DrMOS—built tough for performance, reliability, and next-gen gaming builds
A new era is here. The B650 EAGLE AX supports AM5 Processors and features unparalleled performance. GIGABYTE B650 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
TUF GAMING B560-PLUS WIFI distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability.
A new era is here. The B650 AORUS ELITE AX supports AM5 Processors and features and unparalleled performance. GIGABYTE B650 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
| Pros for ASUS - TUF GAMING B650E-PLUS WIFI (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 7 Motherboard - Black | |||
|---|---|---|---|
| Overall Performance, Connectivity | Overall Performance, Wi-Fi, Ease of use, BIOS, M.2 Slots | There were no pros for this product— | Overall Performance, BIOS, Ease of use, Wi-Fi, Price |
| Cons for ASUS - TUF GAMING B650E-PLUS WIFI (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 7 Motherboard - Black | |||
| There were no cons for this product— | USB 2.0 | There were no cons for this product— | Firmware, Manual |
Specs
Reviews
Customers are saying
Customers are impressed with the TUF GAMING B650E-PLUS WIFI motherboard, noting its overall performance. Users report that everything simply works as expected. The motherboard appears to deliver a seamless and reliable experience.

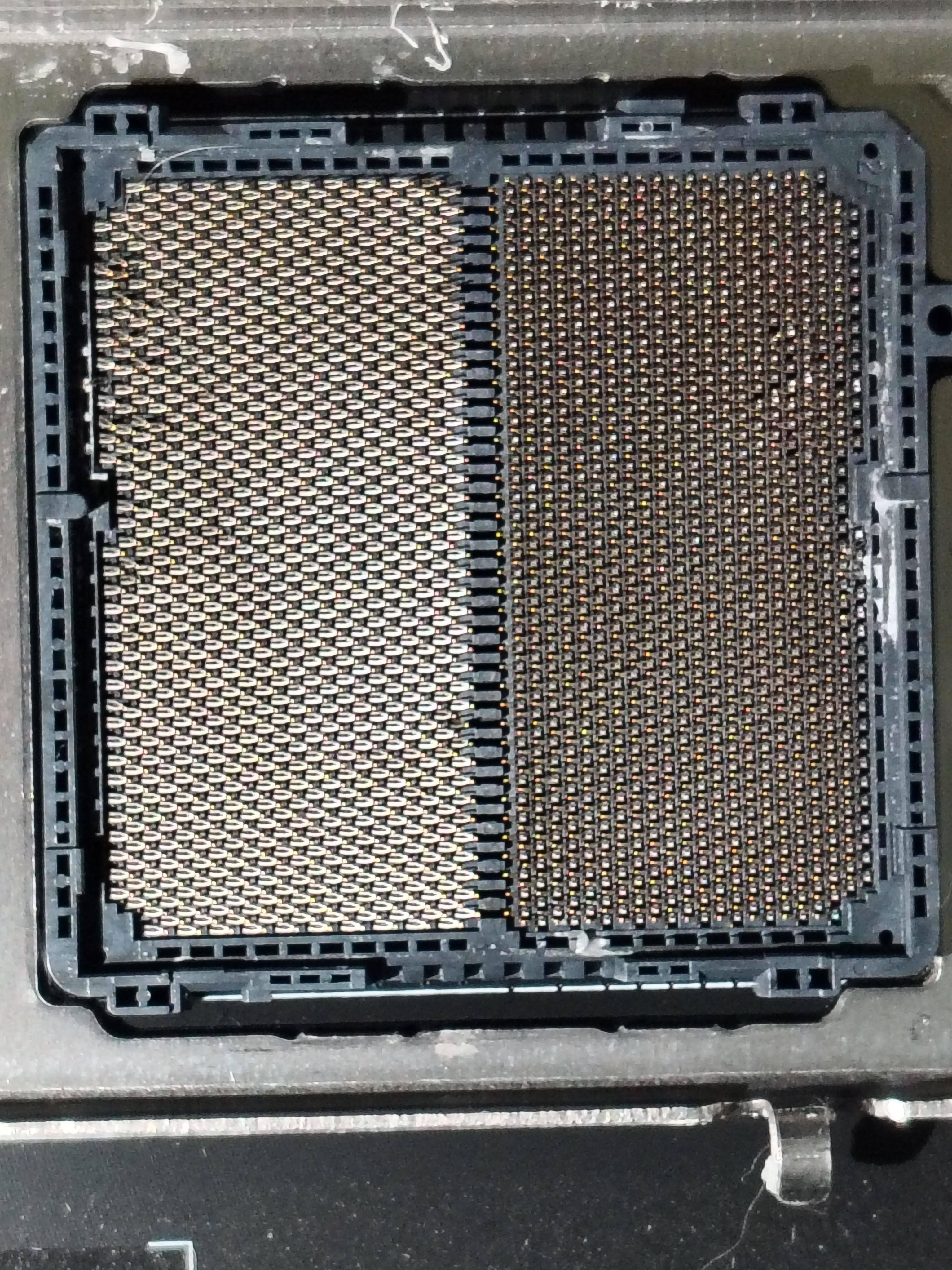

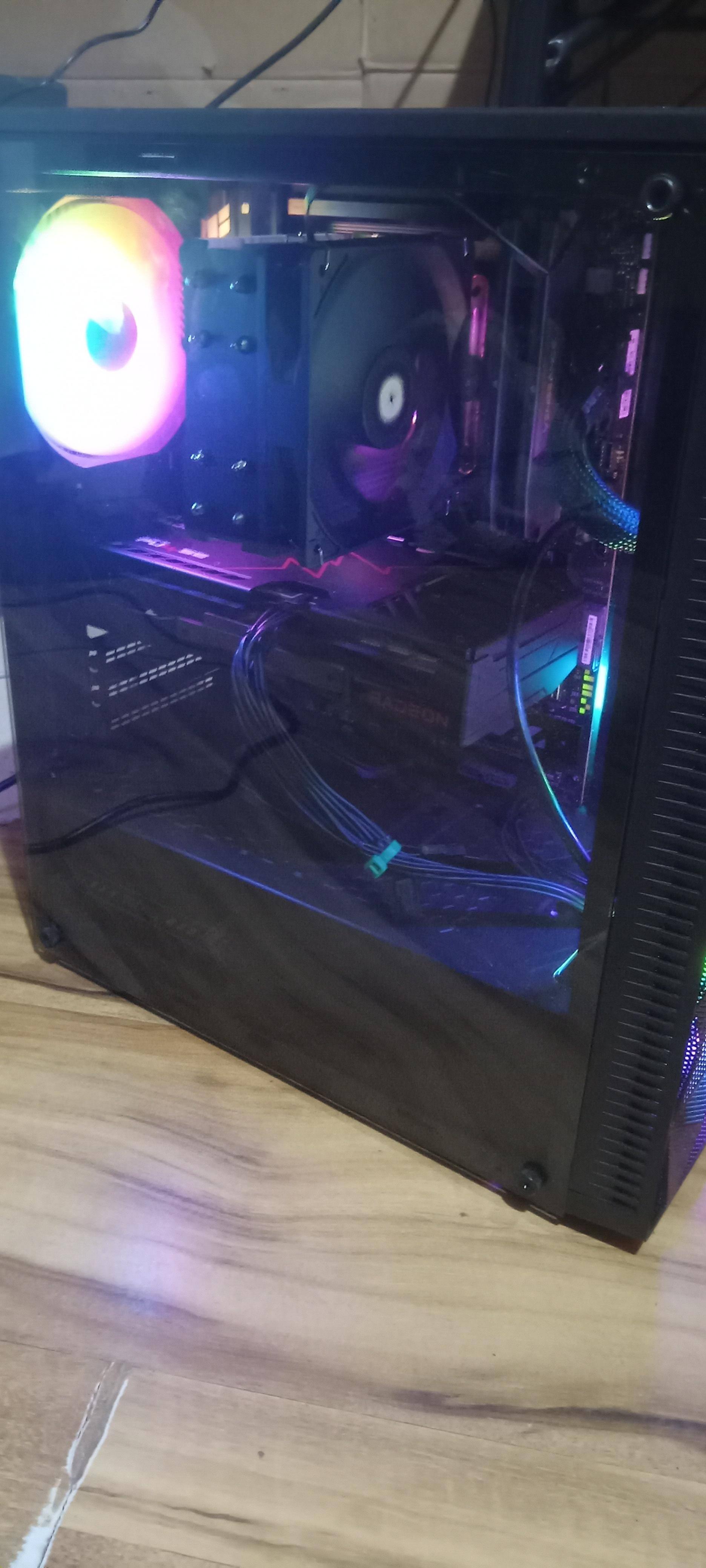

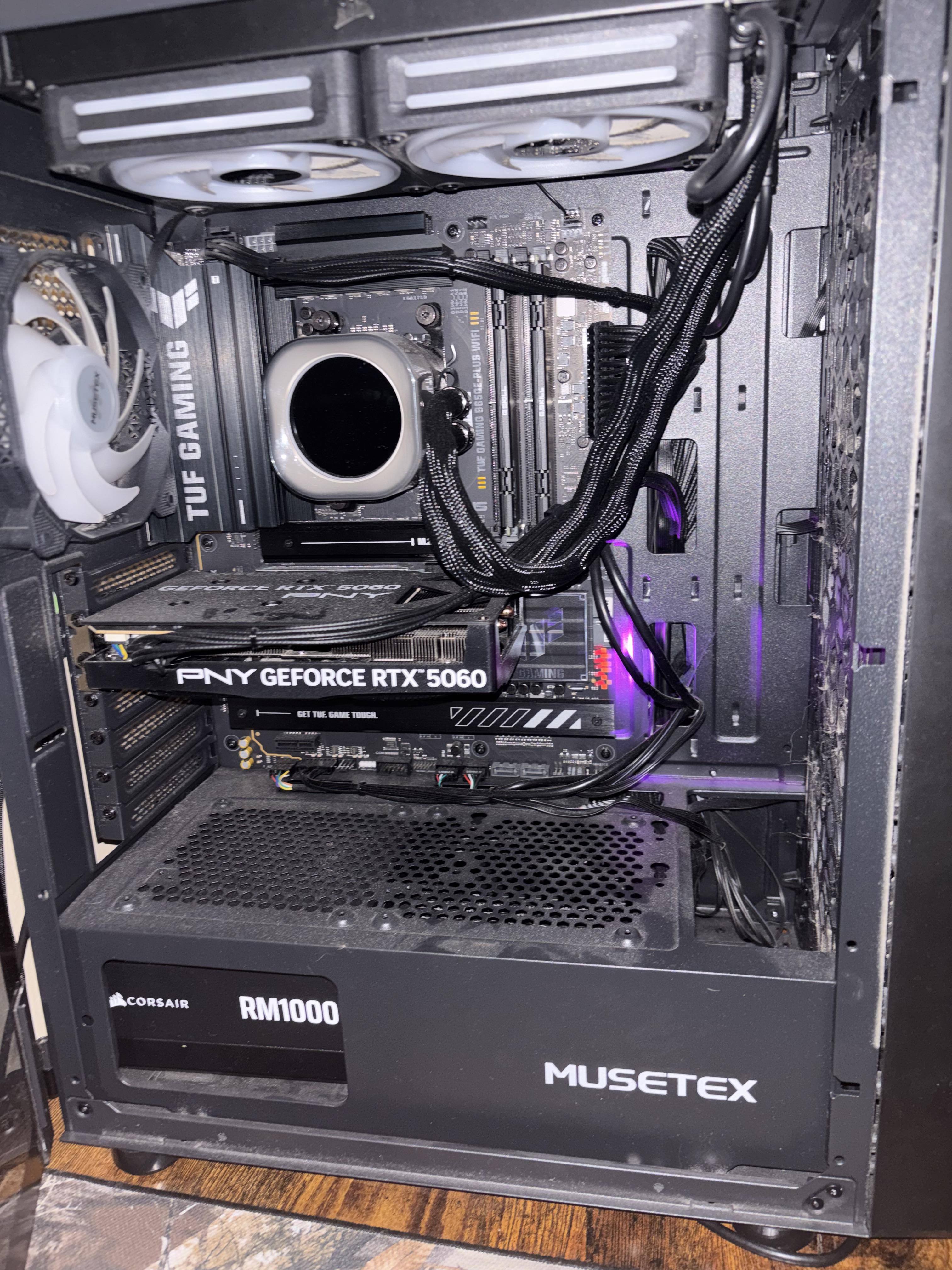

Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Asus Motherboard
A great Motherboeard for the price! Future proof with PCIE 5.0
HerinsoT Posted
- Rated 5 out of 5 stars
Perfect choice
Good motherboard with all next gen connections and under 200$
BrandonL Posted
- Rated 4 out of 5 stars
Tufft
Tuf gaming provides a reliable board for ddr5 OC, better bios support than the MSI version at this price point. Tho the box I got was dented still works
Cheapset Posted
