MSI - MAG A1000GL PCIE5 - Full Modular - 80 Plus Gold 1000W - ATX 3.1 Gaming Power Supply - Black
MSI - MAG A1000GL PCIE5 - Full Modular - 80 Plus Gold 1000W - ATX 3.1 Gaming Power Supply - Black
- Intel - Core i9-13900K 13th Gen 24 cores 8 P-cores + 16 E-cores 36M Cache, 3 to 5.8 GHz LGA1700 Unlocked Desktop Processor - Grey/Black/Gold$682.78The price was $705.37
Related Item
Specifications

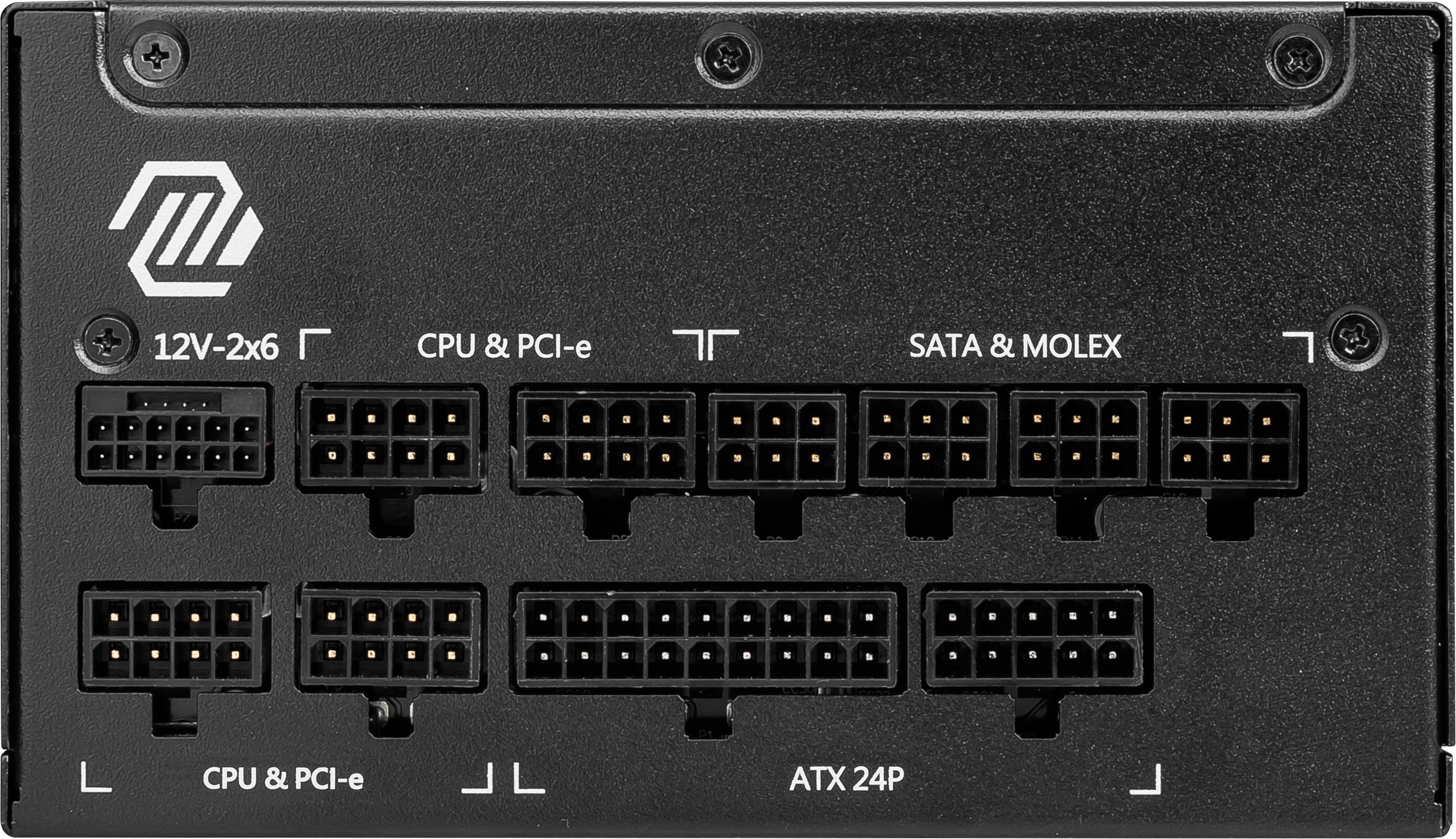

- Wattage1000 wattsModularFully modularEnergy Efficiency80 PLUS Gold, Cybenetics GoldATX Connector1x ATX (24 PIN) CablePCIe Connector6x PCIe (6+2 PIN) CablesPeripheral Connector4x Molex Cables
- Key Specs
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold, Cybenetics Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 1x ATX (24 PIN) Cable (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 6x PCIe (6+2 PIN) Cables (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4x Molex Cables (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 12x SATA Cables (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 129.03 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: MSI
- Model Number: MAG A1000GL PCIE5
- Product Name: MAG A1000GL PCIE5 - Full Modular - 80 Plus Gold 1000W - ATX 3.1 Gaming Power Supply
- Color: Black
- Power
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold, Cybenetics Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Specification Compliance: ATX 3.1
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Cord Length: 5 feet
- Connectivity
- ATX Connector: 1x ATX (24 PIN) Cable (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 6x PCIe (6+2 PIN) Cables (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4x Molex Cables (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 12x SATA Cables (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 234.95 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 293.12 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 129.03 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 121.6 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Fan Type: Fluid Dynamic Bearing
- Number of Fans Included: 1
- Features
- Lighting Type: None
- Warranty
- Warranty - Parts: 10 years
- Warranty - Labor: 10 years
- Other
- UPC: 824142339763
The MAG gaming power supply is equipped to support the latest NVIDIA GeForce RTX 4000 Series and AMD GPUs. The efficiency of your power supply can make a world of a difference; it's why we offer a reliable 80+ Gold power proficiency PSU and a 10-year limited warranty guaranteeing a long term reliable solution for your gaming system. Organizing cables is often the most bothersome part of building a PC. With the MPG gaming power supply's fully modular design, we've given you the option of what cables you'll need for your system and defeat the clutter. With that in mind we've gone with a flat black design to further help you create the most beautiful cable managed pc system around. The remaining cables can be nicely stored away in the included cable bag. The MAG gaming power supply comes in 160mm and 150mm wide dimensions to ensure a comfortable fit in more pc chassis so it can continue to maintain a comfortable space for your cable management needs.
- ATX3.1 Ready: It has an output port that is compliant with PCIE 5.1 and Intel PSDG ATX 3.1, also the power supply can hold up to 2X total power excursion and 3X GPU power excursion
- Level Up your Game: With native 16 PIN PCIe connector the power supply is ready for Nvidia GeForce 40 Series graphics cards. It can freely pipe up to 600W of power to PCIe 5.1 graphics cards.
- 80 Plus Gold Certified: The efficiency of your power supply directly influences your system's performance and your power consumption.
- Single Railed Design: The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCIe slots are more than plenty.
- Solid capacitors: The MAG gaming power supply solid capacitors aim for unwavering product quality and performance stability supply solid capacitors.

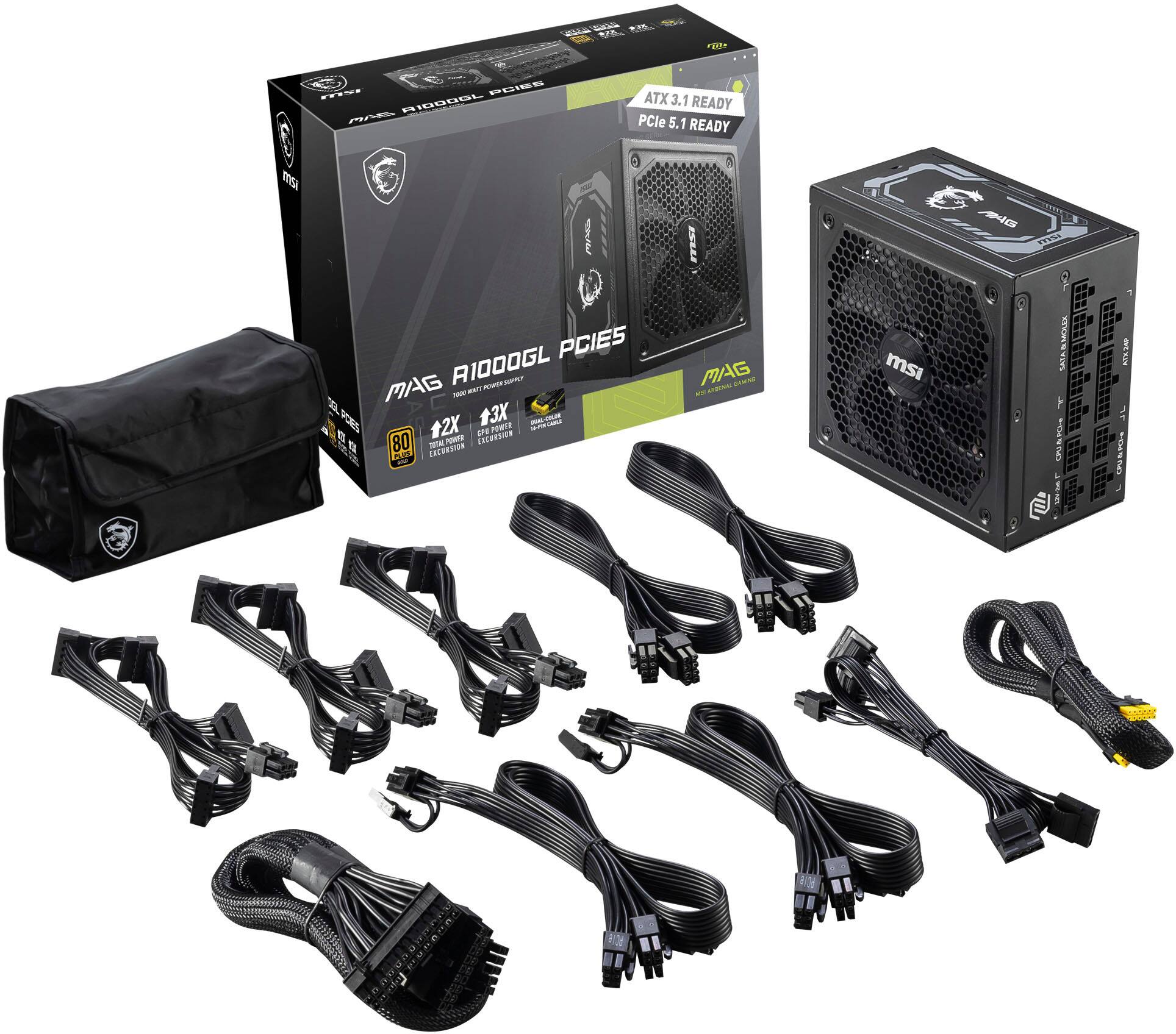

Whats Included
- A1000GL PCIE5
- AC cable
- DC cable set
- Mounting screws
Product Manuals
Q: What is the power supply's efficiency rating?
A: The power supply has an 80 PLUS Gold efficiency rating.
Q: What are the dimensions of the power supply?
A: The power supply has a length of 129.03 millimeters, a height of 234.95 millimeters, and a width of 293.12 millimeters.
Q: Does the power supply come with a cable bag?
A: The remaining cables can be nicely stored away in the included cable bag.
Q: Is the power supply fully modular?
A: The MPG gaming power supply has a fully modular design so you can choose the cables you need for your system.
Q: What is the warranty period for the power supply?
A: The MSI MAG A1000GL PCIE5 power supply comes with a 10-year limited warranty.
Q: How many SATA connectors does the power supply have?
A: The power supply has twelve SATA cables.
Compare similar products
The MAG gaming power supply is equipped to support the latest NVIDIA GeForce RTX 4000 Series and AMD GPUs. The efficiency of your power supply can make a world of a difference; it's why we offer a reliable 80+ Gold power proficiency PSU and a 10-year limited warranty guaranteeing a long term reliable solution for your gaming system. Organizing cables is often the most bothersome part of building a PC. With the MPG gaming power supply's fully modular design, we've given you the option of what cables you'll need for your system and defeat the clutter. With that in mind we've gone with a flat black design to further help you create the most beautiful cable managed pc system around. The remaining cables can be nicely stored away in the included cable bag. The MAG gaming power supply comes in 160mm and 150mm wide dimensions to ensure a comfortable fit in more pc chassis so it can continue to maintain a comfortable space for your cable management needs.
The MAG A850GL PCIE 5 power supply overflows with potency, a hallmark of the MAG series that aligns with gamers' pursuit of excellence. Infused with military-inspired elements, these gaming products have evolved into symbols of resilience. Efficiency matters, impacting performance and power use. The 80 PLUS Gold certification pledges lower energy consumption and higher efficiency. Compact and efficient, the A850GL PCIE 5 optimizes space and cable organization. Unneeded connectors are eliminated, reducing clutter and simplifying builds. Unused cables find refuge in the included cable pack. Cable organization, a common woe, finds a solution. Flat cables streamline management, enhancing airflow and orderliness. The power supply's fan employs fluid dynamic bearing, balancing cooling and noise. DC to DC and Full Bridge merge for higher efficiency and stable voltage, adapting swiftly to different needs. Sufficient power reigns, as the single rail supply caters to high-performance GPUs and CPUs with 5 CPU & PCI-E slots. Safety is paramount. Protective mechanisms ensure stability, empowering worry-free operation. In essence, the A850GL PCIE 5 L epitomizes power, space-efficiency, cable harmony, and safety. A pinnacle of technology in the MAG series, empowering triumphant gaming while embodying its spirit.
CORSAIR RMx Series Fully Modular Low-Noise Power Supplies deliver quiet, dependable power with Cybenetics Gold efficiency to your PC. Fully modular, ultra-flexible embossed cables make PC builds easy, as you connect only the cables your system requires. Compliant with the ATX 3.1 power standard from Intel, RMx PSUs have the connections needed to power today’s demanding PC hardware including a native 12V-2x6 connector. 100% Japanese 105°C-rated electrolytic capacitors deliver fantastic electrical performance, while a 140mm FDB fan provides low noise cooling. Backed by a ten-year warranty, RMx PSUs are the gold standard for many years to come.
Toughpower GF A3 series is 80 PLUS Gold certified and compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen technology with one new 12VHPWR cable.
| Pros for MSI - MAG A1000GL PCIE5 - Full Modular - 80 Plus Gold 1000W - ATX 3.1 Gaming Power Supply - Black | |||
|---|---|---|---|
| Overall Performance, Installation Ease, Noise Level, Power Supply Capacity | Overall Performance, Power Capacity, Noise Level, Modularity, Ease of Installation | Overall Performance, Power Capacity, Noise Level, Installation Ease, Cable Management | Overall Performance, Noise Level, Power Capacity, Modularity, Installation Ease |
| Cons for MSI - MAG A1000GL PCIE5 - Full Modular - 80 Plus Gold 1000W - ATX 3.1 Gaming Power Supply - Black | |||
| Cable Length | Fan Quality | Coil Whine | There were no cons for this product— |
Specs
Reviews
Customers are saying
Customers recognize the MAG A1000GL PCIE5 power supply for its overall performance and ample power capacity. Users appreciate its silent operation even under heavy loads and find the installation process straightforward. However, some customers have expressed a desire for slightly longer cables. Overall, the power supply is well-received for its performance and ease of use.
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Worth the money for future upgrades and quality.
Not a professional PC builder, but here are my opinions. Easy install, plenty of extra cables, ready for next gen graphics cards. Comes with the 600 watt cable. Powerful enough for your New 5070, 5080, 5090, and high end CPU(Processor). Came package very well even though my package was open upon arriving. Best Buy uses a third party delivery service through UPS, I highly recommend being home, or having a plan for when your packages arrive or do a in store pickup if available. If items are shipped to you I would definitely check to make sure all items arrived inside the box and no damage is visible inside or outside the package. Sensitive components need care during transportation. Overall product has been great. Haven't had a any issues with my high end PC build.
Jordy Posted
- Rated 4 out of 5 stars
Works very well
Works as described, very customizable, however it shipped with only 2 PCIe cables. Support was very understanding and sent another one. Good product overall.
Nolan Posted
- Rated 5 out of 5 stars
More Power
I just finished building my new computer to replace my old Windows 10 system. I chose the MSI MAG A1000W ATX 3.1 power supply to ensure stable performance for my Ryzen 9800X3D, especially during long sessions. Everything is running perfectly with no issues at all.
Milo2014 Posted
