Name: EVGA - 650W Modular BQ Power Supply - Black
Brand: EVGA
SKU: 5622832
Rating: 5 (2 reviews)

Key Specs
- Wattage: 650 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Bronze (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 24 Pin (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 2x 8pin (6+2), 6pin (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 3 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 7x (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Product Length: 165.1 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
General
- Product Name: 650W Modular BQ Power Supply
- Brand: EVGA
- Model Number: 110-BQ-0650-V1
- Color: Black
Power
- Wattage: 650 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Bronze (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Specification Compliance: ATX12V / EPS12V
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Cord Length: 5.91 feet
Connectivity
- ATX Connector: 24 Pin (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: true (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 2x 8pin (6+2), 6pin (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 3 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 7x (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
Dimensions
- Product Height: 83.82 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 149.86 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 165.1 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 81.1 ounces (The out of box weight of the item.)
Cooling
- Cooling Fan Type: Other
Other
- UPC: 843368036553

Keep your computer running with this EVGA power supply. It supplies 650W of output to give your gadgets the juice they need, and its ECO mode provides control over performance and efficiency. This EVGA power supply has a quiet 140mm cooling fan for safe operation, and its modular cables reduce clutter.

650W power supply: Delivers the power needed to run your PC.

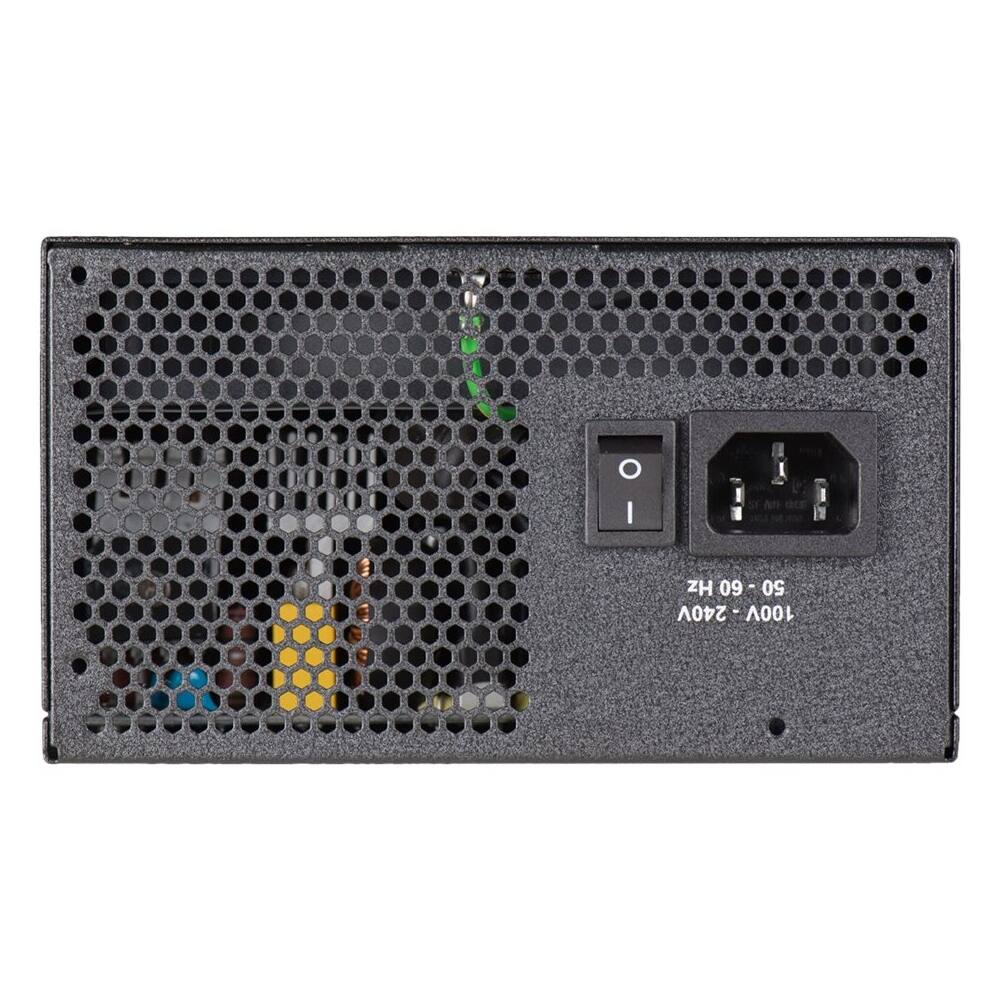

AC 100-240V input: With input 50/60Hz frequency for wide-ranging use.
140 mm teflon nano-steel bearing fan: Dissipates heat to help the power supply remain working at optimal temperature levels.
Maximum safety to your critical system components: Provides overcurrent, overvoltage, overpower, undervoltage and short-circuit protection.
80 PLUS Bronze Certification: Delivers 85% energy efficiency at real world load conditions.
Modular cable management: Allows you to use only the cables you need.
