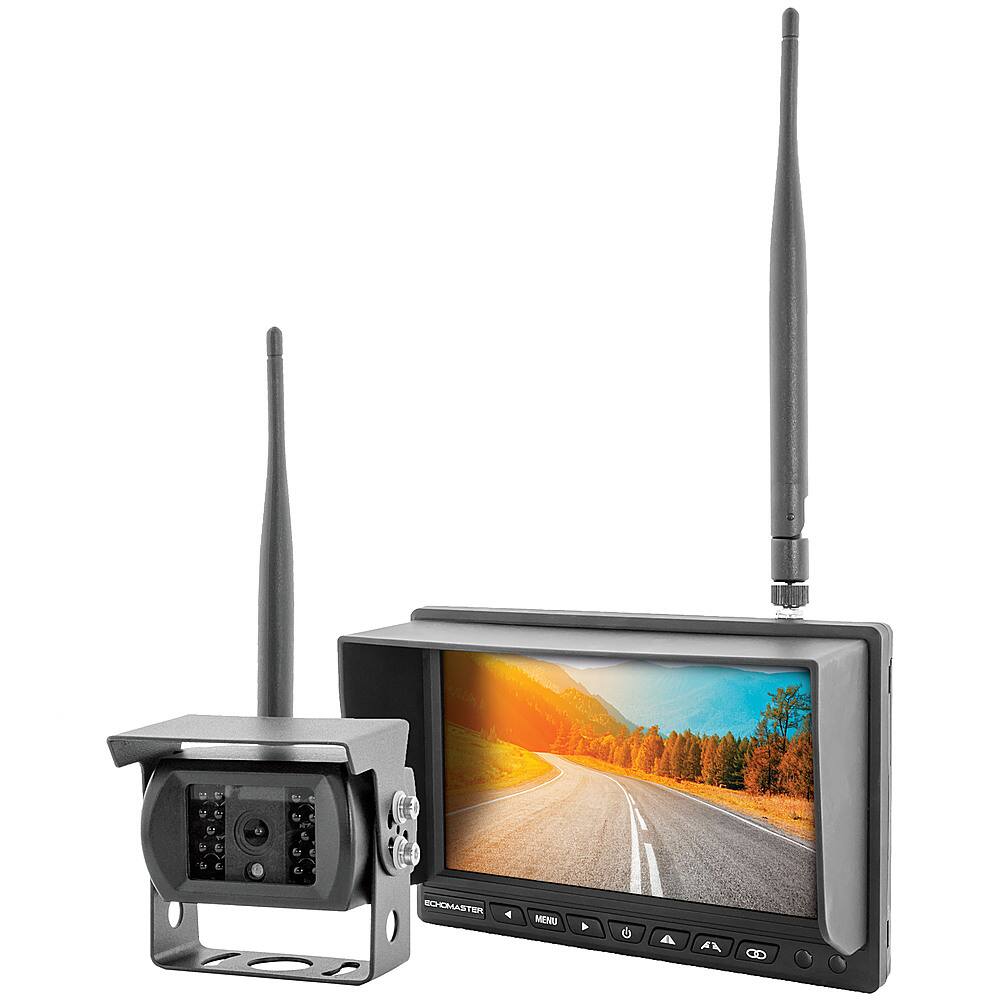

EchoMaster - Wireless AHD Camera and 7” Monitor Kit - Black

Model: PMC-WAHD
SKU: 6422498
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Field of View: 120 degrees
    • G-Sensor: false
    • Compatibility: Universal
    • Camera Mounting Location: Bumper, Other
    • Vehicle Camera Type: Dashboard
    • Professional Installation Recommended: false
  • General
    • Brand: EchoMaster
    • Model Number: PMC-WAHD
    • Product Name: Wireless AHD Camera and 7” Monitor Kit
    • Color: Black
    • Vehicle Camera Type: Dashboard
    • Professional Installation Recommended: false
  • Recording & Playback
    • Field of View: 120 degrees
    • G-Sensor: false
    • Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
    • Camera Power Source: Vehicle battery
    • Expandable Memory Compatibility: None
    • Recording Feature: false
  • Compatibility
    • Compatibility: Universal
  • Features
    • Integrated Microphone: true
  • Display
    • Screen Included: true
    • Screen Size: 7 inches (Size of the screen, measured diagonally from corner to corner.)
    • Screen Resolution: 720 (Screens come in a range of resolutions (measured in pixels, horizontal x vertical). The higher the resolution, the greater the picture quality.)
  • Mounting
    • Camera Mounting Location: Bumper, Other
    • Mount Included: true
    • Mount Type: Screws
    • Screen Mounting Location: Dashboard
  • Input
    • Number Of Auxiliary Inputs: 0
    • Number of USB Port(s): 0
  • Dimensions
    • Product Height: 4.76 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 7.09 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 0.87 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Product Weight: 1.45 pounds (The out of box weight of the item.)
  • Warranty
    • Warranty - Parts: 3 years
    • Warranty - Labor: None
  • Other
    • UPC: 609098831628

Improve driver awareness and create a safer driving experience with this Wireless AHD Camera and 7” Monitor Kit by EchoMaster. The PMC-WAHD comes complete with everything you need to install an Analog High Definition (AHD) monitor and backup camera in your vehicle. Without the need for wiring, you can easily place the wireless camera in areas with limited visibility to help eliminate blind spots. The 7” HD LED monitor clearly displays footage from your wireless safety camera and is perfect for vehicles such as trucks, buses, RVs, and more.

  • 7” wireless LED monitor with 720p resolution: Delivers clear image quality using a 2.4 GHz wireless video signal input.
  • Improved low light visibility with built-in infrared: Activates in low or no light settings to allow the cameras to reproduce black and white images with similar clarity of daytime images.
  • 1/3" CMOS image sensor: Ensures crisp, clear images.
  • IP67-rated water-resistant and debris-proof camera: Provides trouble-free operations in all weather conditions and prevents the elements from penetrating the camera and distorting your screen.
  • 120° rear viewing angles: Reduce rear blind spots for a safer and easier ride.
  • Integrated audio microphone: Produces audible insight from your vehicle’s surroundings.
  • Parking lines (selectable): Ensures extra security and guidance while reversing.
Whats Included
  • EchoMaster Wireless AHD Camera and 7” Monitor Kit
  • 2 bracket options
  • Dash mount
  • Power harness
  • Installation hardware
  • Optional antenna extension
  • Removable sunshade
  • User manual

Q: What is the resolution of the monitor?

A: The monitor has a resolution of 720p.

Q: Does the monitor have a built-in speaker?

A: Yes, the camera system has an integrated audio microphone to provide audible insight.

Q: Does the camera have night vision?

A: Yes, the camera has built-in infrared for improved low light visibility.

Q: Where can the monitor be mounted?

A: The monitor can be mounted on the dashboard.

Q: How is the camera powered?

A: The camera is powered by the vehicle's battery.

Q: What is the field of view for the camera?

A: The camera has a 120 degree field of view.

Q: would the monitor work with an echomaster mrc-mlp43 camera?

A: This camera/monitor package does not support additional cameras, and will only work when paired to the supplied wireless camera that comes in the kit. There are no external RCA type video or camera inputs.
