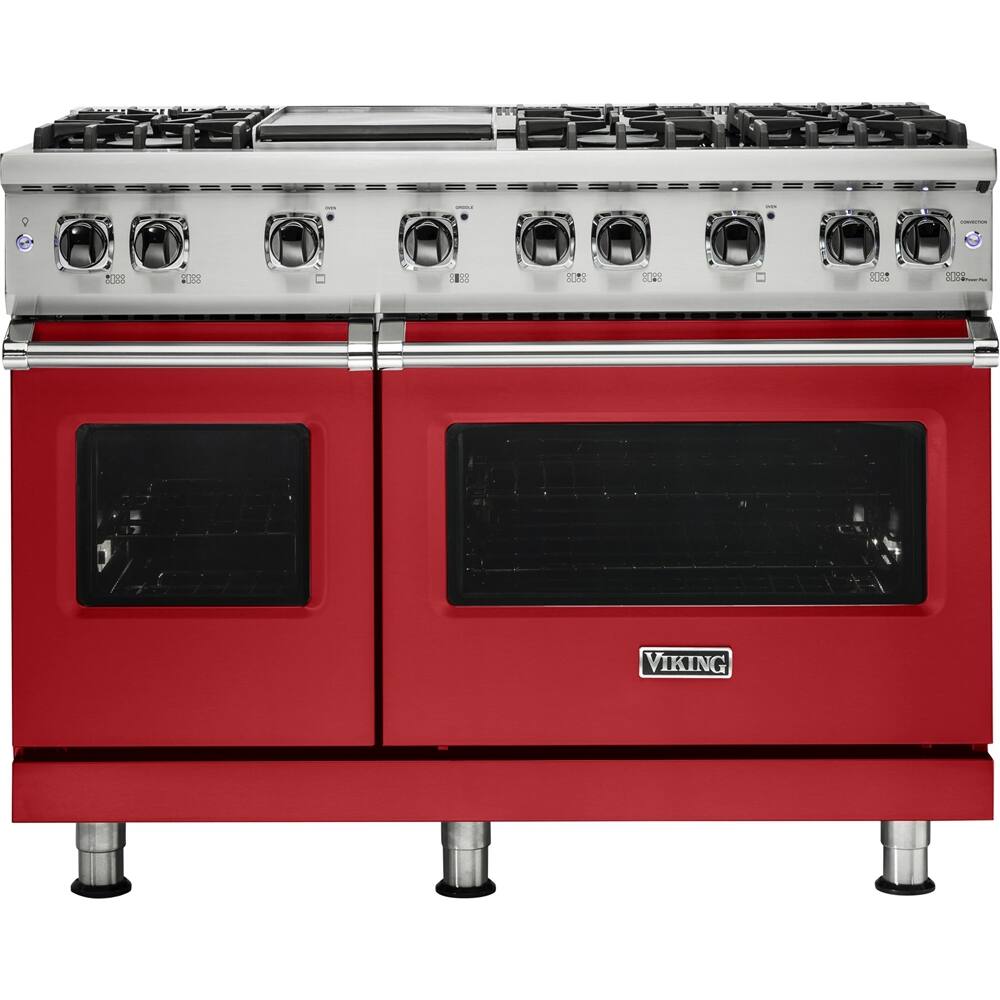

Viking - Professional 5 Series Freestanding Double Oven Gas Convection Range - San Marzano Red
- Key Specs
- Color Finish: Red
- Product Height: 36 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 48 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Single/Double Oven: Double Oven
- Number of Burners: 6
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Viking
- Model Number: VGR5486GSM
- Product Name: Professional 5 Series Freestanding Double Oven Gas Convection Range
- Color: San Marzano Red
- Color Finish: Red
- Dimensions
- Product Height: 36 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 48 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 1/3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 575 pounds (The out of box weight of the item.)
- Capacity
- Oven 1 Capacity: 2.1 cubic feet
- Oven 2 Capacity: 4 cubic feet
- Features
- Range Type: Freestanding (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Gas
- Gas Type: Natural gas
- Soft Close Door: true
- Control Type: Knob
- Oven Control Location: Front panel
- Oven Light: true
- Propane (LP) Convertible: true
- Propane Kit Model Compatibility: Convert to LP with Kit LPKPDR., LP conversion by experienced servicer.
- Functions
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Oven Cooking Modes: Convection
- Oven Settings: Time Bake, Broil, Convection
- Oven Features
- Convection Type: Single-fan with heating element (Convection adds a fan system to the two heating elements for continuous air motion and efficient cooking. True convection adds a third heating element to the fan system, for even more uniform heating.)
- Single/Double Oven: Double Oven
- Drawer Type: None (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Oven 1 Specification
- Oven 1 Location: Left
- Oven 1 Window: true
- Oven 1 Cleaning Method: Manual cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Oven 2 Specification
- Oven 2 Location: Right
- Oven 2 Window: true
- Oven 2 Cleaning Method: Manual cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Cooktop Features
- Cooktop Surface Material: Porcelain
- Number of Burners: 6
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): VSH Pro sealed, TruPowerPlus, griddle (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Griddle Included: true
- Griddle Type: Integrated (A griddle surface may either replace the burner grates on the cooktop or be able to be placed on top. Either type can typically be attached and removed as needed. Some griddles also feature a ribbed, grill-like side that can be reversed for even more cooking options.)
- Burner Rating
- Burner 1 Rating: 15000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 15000 british thermal units
- Burner 3 Rating: 15000 british thermal units
- Burner 4 Rating: 15000 british thermal units
- Burner 5 Rating: 15000 british thermal units
- Burner 6 Rating: 18500 british thermal units
- Total Maximum BTU Rating: 168500 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Propane Conversion Kit Included: false
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): CSA Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: 0 (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 800284025702
Make appetite-pleasing breakfasts, lunches and snacks with this Viking Professional 5 Series gas range. The dual ovens let you cook two dishes simultaneously at different temperatures, and the Gourmet-Glo infrared broiler produce the intense heat required to perfectly sear meat while locking in the juices. With a reversible griddle, this Viking Professional 5 Series gas range gives you the potential to make bacon, pancakes, bacon and sandwiches.
- 6 cooktop burners: To meet various cooking requirements.
- Porcelain-enamel cooktop surface: Offers a durable design.
- Circulates air throughout the oven: Convection technology for fast cook times and flavorful results.
- Prevents spills from spreading: Sealed burner eliminates the space between the burner and the cooktop.
- Accommodates multiple dishes in 2 separate ovens: 4 cu. ft. right oven and 2.1 cu. ft. left oven allow you to cook dishes at different temperatures.
- Cook pancakes, eggs, grilled sandwiches and other foods: The stovetop griddle lets you prepare a variety of foods and can be removed for easy cleanup.
- Safety features: Include SureSpark reignition system.
- 6 cooktop burners: To meet various cooking requirements.
- Porcelain-enamel cooktop surface: Offers a durable design.
- Circulates air throughout the oven: Convection technology for fast cook times and flavorful results.
- Prevents spills from spreading: Sealed burner eliminates the space between the burner and the cooktop.
- Accommodates multiple dishes in 2 separate ovens: 4 cu. ft. right oven and 2.1 cu. ft. left oven allow you to cook dishes at different temperatures.
- Cook pancakes, eggs, grilled sandwiches and other foods: The stovetop griddle lets you prepare a variety of foods and can be removed for easy cleanup.
- Safety features: Include SureSpark reignition system.
Whats Included
- Viking Professional 5 Series VGR5486GSM
- 3 x rack
- 2 x rack
- Viking Professional 5 Series VGR5486GSM
- 3 x rack
- 2 x rack
Product Manuals
Disclaimers
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
- Understand the air quality implications of having an indoor gas stove.
- Comprenda las implicaciones en la calidad del aire al tener una estufa de gas en interiors.
- https://cdphe.colorado.gov/health-impacts-of-gas-fueled-stoves
Q: Does the range come with a griddle?
A: The Professional 5 Series Freestanding Double Oven Gas Convection Range does not come with a griddle. However, the optional 15,000 BTU griddle can be purchased separately.
Q: What is the BTU rating of the most powerful burner?
A: The most powerful burner on this Viking Professional 5 Series Freestanding Double Oven Gas Convection Range is the front right burner, which has a BTU rating of 18,500. All other burners on this range are rated at 15,000 BTUs.
Q: What material are the grates on the cooktop made of?
A: The grates on the cooktop of the Professional 5 Series Freestanding Double Oven Gas Convection Range by Viking are made of cast iron. This information can be found in the specifications section under "Grate Material: Cast iron".
Q: Does the range have a downdraft ventilation system?
A: The Viking Professional 5 Series Freestanding Double Oven Gas Convection Range does not have a downdraft ventilation system. The product specifications clearly state "Downdraft Ventilation: false".
A: The height of the range is 36.875 inches. The context mentions "Product Height: 36.875 inches".
Q: Can the range be converted to use propane instead of natural gas?
A: Yes, the range can be converted to use propane instead of natural gas. The Propane Kit Model Compatibility section in the product specifications mentions "Convert to LP with Kit LPKPDR.".
Q: What is the maximum temperature the oven can reach?
A: The maximum temperature that the oven can reach is 450°F. This information can be found in the section "Before first use".
Q: What type of cooktop surface does the range have?
A: The cooktop surface of the Viking Professional 5 Series Freestanding Double Oven Gas Convection Range is made of porcelain-enamel, offering a durable design for easy cleaning and maintenance. The exclusive one-piece tooled and porcelainized cooking surface contains spills for easy cleaning. The porcelain cooktop surface is resistant to scratches, stains, and heat, making it a durable choice for everyday cooking.
