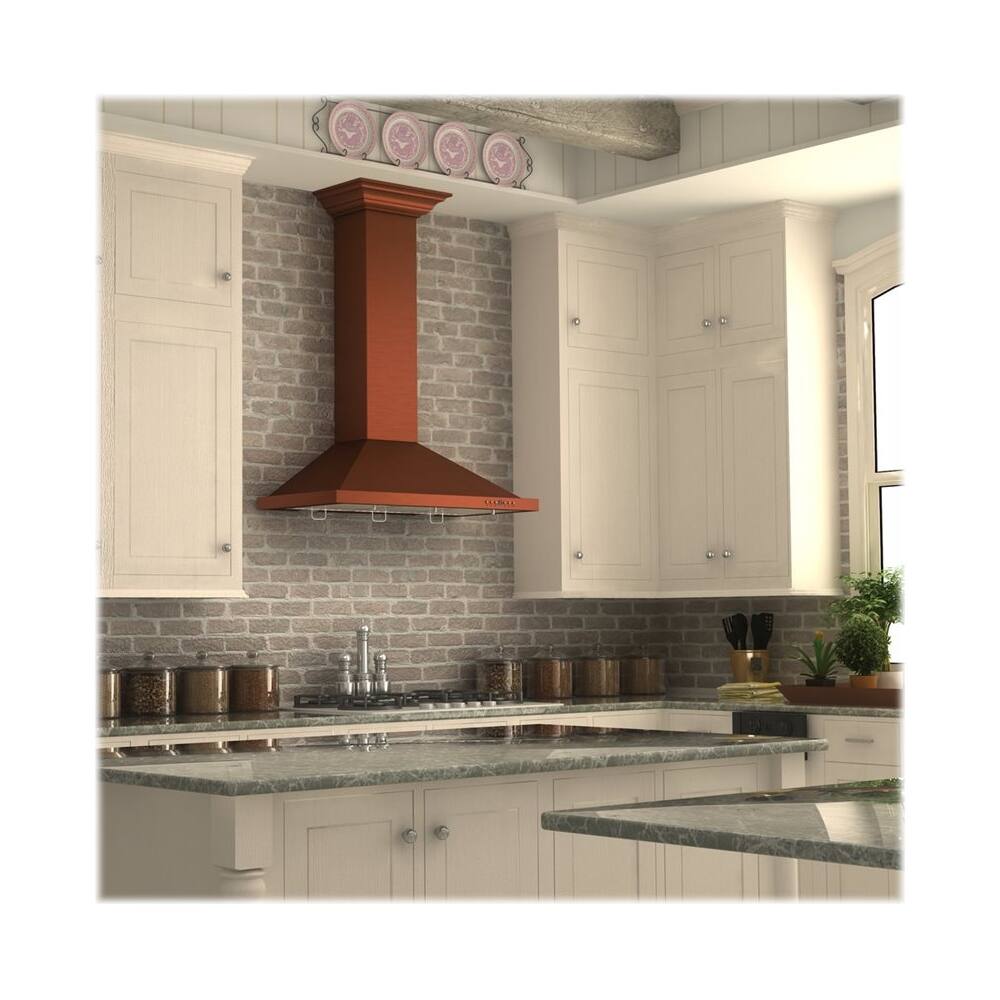

ZLINE - 48 inches - Externally Vented - Wall Range Hood - Baked Copper
- Key Specs
- Color Finish: Brown
- Product Height: 46 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 48 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 7/10 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: ZLINE
- Model Number: 8KBC-48
- Product Name: Designer Copper 48" Externally Vented Range Hood
- Color: Baked Copper
- Color Finish: Brown
- Dimensions
- Product Height: 46 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 48 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 7/10 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 48 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 52 pounds (The out of box weight of the item.)
- Features
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Number of Fan Speeds: 4
- Control Type: Button
- Display Type: None
- Integrated Light(s): true
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 6 watts
- Performance
- Maximum Air Flow Capacity: 400 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Filter Info
- Filter Material: Stainless steel
- Dishwasher-Safe Filter: true
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 814118022447
8KBC-48 is a 48 in. professional wall mount stainless steel range hood with a modern design and built-to-last quality, making it a great addition to any kitchen. The professional Copper hood is made from 304 grade stainless steel, featuring ZLINE's proprietary hand-rubbed 7-layer copper finish. This hood's high-performance, 400 CFM 4-speed motor will provide all the power you need to quietly and efficiently ventilate your stove while cooking. Enjoy modern features, including built-in LED lighting for an illuminated culinary experience and dishwasher-safe stainless steel baffle filters for easy clean-up. This wall mount range hood has a convertible vent, so you can have a luxury range hood whether you need a ducted or ductless option. Enjoy easy installation and an easy recirculating conversion process. ZLINE Kitchen and Bath stands by all products with its manufacturer parts warranty. The 8KBC-48 ships next business day when in stock.
- 400 cfm exhaust capacity: Quickly pull smoke and cooking odors out of the air.
- 4 fan-speed settings: Allow you to adjust ventilation to meet your needs.
- Pushbutton controls: Offer simple operation.
- Dishwasher-safe stainless steel baffle filters: Provide easy clean-up and make use of this hood simple.
- Dual LED lights shine down on the cooktop: To illuminate your workspace.
- Baked copper finish: Offers a stylish look.
- Designed to fit standard 6" round ductwork: For ease of installation.
- Shipping: This product ships in multiple boxes and will require minimal assembly upon arrival
- 400 cfm exhaust capacity: Quickly pull smoke and cooking odors out of the air.
- 4 fan-speed settings: Allow you to adjust ventilation to meet your needs.
- Pushbutton controls: Offer simple operation.
- Dishwasher-safe stainless steel baffle filters: Provide easy clean-up and make use of this hood simple.
- Dual LED lights shine down on the cooktop: To illuminate your workspace.
- Baked copper finish: Offers a stylish look.
- Designed to fit standard 6" round ductwork: For ease of installation.
- Shipping: This product ships in multiple boxes and will require minimal assembly upon arrival
Whats Included
- 36" chimney with crown molding
- ZLINE Designer Copper 48" Externally Vented Range Hood
- 36" chimney with crown molding
- ZLINE Designer Copper 48" Externally Vented Range Hood
Product Manuals
Q: What type of mount does this range hood have?
A: This range hood has a wall mount type. The installation manual suggests installing the hood into wood supports to hold its weight. To mount the hood, you will need to: 1. Find the center of the wall and mark two mounting points, ensuring they are level. 2. Drill holes into the mounting points, tap in anchors, and fasten mounting screws and washers, leaving the screw heads out about 1/4 inch. 3. Mount the main body of the hood onto the screws and slide it into place.
Q: What type of control does this range hood have?
A: The Designer Copper 48" Externally Vented Range Hood by ZLINE features a button control panel for easy operation. The control panel includes buttons for power, power-off delay, low speed, medium 1 speed, high speed, and medium 2 speed.
Q: What is the maximum airflow capacity of this range hood?
A: The maximum airflow capacity of the Designer Copper 48" Externally Vented Range Hood by ZLINE is 400 cubic feet per minute (CFM). This information is provided in the product specifications section of the context.
Q: What is the maximum bulb wattage for this range hood?
A: The maximum bulb wattage for the Designer Copper 48" Externally Vented Range Hood by ZLINE is 6 watts. This information is specified in the product specifications section of the provided context.
Q: How much does this range hood weigh?
A: The weight of the Designer Copper 48" Externally Vented Range Hood by ZLINE is 52 pounds. This information is found in the "Product Weight" section of the product specifications.
Q: What is the width of this range hood?
A: The width of the Designer Copper 48" Externally Vented Range Hood is 48 inches. This information can be found in the product specifications section, where it states "Product Width: 48 inches".
Q: What is the maximum installation height above the cooktop?
A: The maximum installation height above the cooktop for the Designer Copper 48" Externally Vented Range Hood by ZLINE is 36 inches. The recommended height for optimal venting efficiency is between 30 and 36 inches above the range top or cooktop.
Q: What material are the filters made of in this range hood?
A: The range hood has two types of filters: baffle filters and charcoal filters. The baffle filters are made of stainless steel, while the charcoal filters are not reusable and need to be replaced every six months or sooner, depending on cooking style and frequency.
