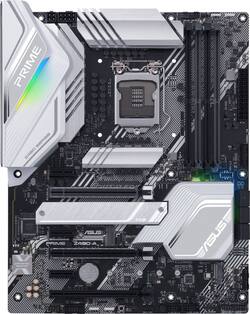

ASUS - PRIME Z490-A Socket 1200 USB 3.2 Intel Motherboard - Black
- Key Specs
- Chipset: Intel® Z490 Chipset
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1200 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number Of Memory Slots: 4
- General
- Product Name: PRIME Z490-A Socket 1200 USB 3.2 Intel Motherboard
- Brand: ASUS
- Model Number: PRIME Z490-A
- Compatibility
- Chipset: Intel® Z490 Chipset
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1200 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium Quad-Core
- Connectivity
- Power Connector: 1 x 24-pin main power connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Slot
- Number Of Memory Slots: 4
- Dimensions
- Product Length: 12.01 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 9.61 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 2.49 ounces (The out of box weight of the item.)
- Other
- UPC: 192876678688
ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime Z490 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features
- Processor compatibility: Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
- Speed: 4 x DIMM
- Graphics: Integrated Graphics Processor
- Memory: 128GB, DDR4
- Audio: Realtek ALC S1220A 7.1 Surround Sound High Definition Audio CODEC
- Interfaces: Rear USB Port ( Total 8 ). 4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x USB Type-C®). 2 x USB 3.2 Gen 1 port(s)(2 x Type-A). 2 x USB 2.0 port(s)(2 x Type-A). Front USB Port ( Total 7 ). 1 x USB 3.2 Gen 2 front panel connector port(s). 2 x USB 3.2 Gen 1 port(s). 4 x USB 2.0 port(s)
- Expansion slots: Intel® 10th Gen Processors. 2 x PCIe 3.0 x16 (x16 or dual x8) *1. Intel® Z490 Chipset. 1 x PCIe 3.0 x16 (max at x4 mode). 3 x PCIe 3.0 x1 *2
- AI Networking: GameFirst VI optimizes and organizes network bandwidth, effectively reducing jitter and eliminating spike lag to ensure smooth online gameplay
- Operating System: Windows® 10 64-bit
Q: 1. Is it ATX size, 2.can a i5 9600K fit in the socket
A: This is a ATX motherboard, but a 9600k will not fit. You will need a Z390 socket.
Q: Which type of wifi card support in this?
A: The PRIME Z490-A uses M.2 (E Key) interface, example of supported wireless card is the (BT INTEL AX200NGW).
A: If upgrading the ethernet firmware with the guide below does not resolve the issue, please contact Best Buy to arrange a return. https://www.intel.com/content/www/us/en/support/articles/000057261/network-and-i-o/ethernet-products.html
Q: Does this MB support intel 9th gen (i9 9900k) out of the box.
A: No, this is mostly ready for 10 Gen Processors. Please review the QVL list and specifications here: https://www.asus.com/us/Motherboards-Components/Motherboards/All-series/PRIME-Z490-A/HelpDesk_CPU/
Q: Will this work with my gtx 1060 3gb from msi and my i7-8700 cpu? Will it work on an NZXT X63 Kraken?
A: I know this Motherboard has a 1200 socket I do not see a problem running you NZXT AIO
Q: Will this mother board fit in a lian li case
A: As long as it supports ATX form factor.
A: You can have a total of 7 fans that includes CPU. I have all pins used
A: You need to make sure you have the drivers installed and updated. Keep in mind, there are different drivers for different usb types
