Specifications
- Color FinishStainless steelProduct Height33 7/8 inchesProduct Width23 1/2 inchesProduct Depth22 1/2 inchesOperating Sound Level46 decibels adjustedNumber Of Racks3
- Key Specs
- Color Finish: Stainless steel
- Product Height: 33 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Operating Sound Level: 46 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Number Of Racks: 3
- Tub Finish: Hybrid stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Place Setting Capacity: 15 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Assistant, SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Bosch
- Model Number: SHX5AEM5N
- Product Name: 100 Series Premium 24" Top Control Smart Built-In Hybrid Stainless Steel Tub Dishwasher with 3rd Rack, 46 dBA
- Color: Stainless Steel
- Color Finish: Stainless steel
- Vendor Collection: Bosch 100 Series (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 33 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 23 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 1/2 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 22 1/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 24 1/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth With Door Open: 47 1/4 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 67 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 33 7/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 24 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 24 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Hard Food Disposer: false (This feature has blades to chop and disintegrate hard food particles, making them small enough to easily drain away. This prevents them from being recirculated back onto dishware and allows for easy maintenance.)
- Drying Method: Heated drying (Appliances that use heat to dry the dishes will include a heating element or minerals which transform moisture into heat. A fan or vent then circulates the hot dry air throughout the tub during the drying cycle. This may reduce drying time and the risk of water spots. Appliances that use minerals to produce heat are considered more energy efficient than those that include a heating element. Appliances that use condensation drying are considered more energy efficient than those that use heated drying. Instead, high temperature water is produced during the final rinse cycle which warms the interior and eventually condensates and drains out of the machine.)
- Operating Sound Level: 46 decibels adjusted (Today's appliances are pretty quiet. To get a sense for how quiet you'll need, think about having a conversation in the same room. Choose from Not as Quiet (56 dBA or higher. You'll likely need to raise your voice); Quiet (50-55 dBA. Need to raise your voice slightly); Very Quiet (43-49 dBA. Easily have a conversation right next the appliance); and Nearly Silent (42 dBA or lower. You'll hardly know the appliance is on).)
- Delay Start: true (Allows you to program the appliance to automatically run at a later time. This feature helps you coordinate with your household’s water needs, noise preferences, and more. Additionally, operating your appliance during off-peak hours may reduce energy costs.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Cycle Status Lights: true (Lights on the control panel that indicate which cycle is in use and/or its current status. Know when to unload with a simple glance.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Filtered Water: true (Internal water filter(s) remove minerals and chemicals from hard water before the wash cycle. Filtered water is less likely to leave mineral deposits or stains, meaning your dishware will look cleaner for longer.)
- Water Soil Sensor: true (Feature that measures how dirty the water is throughout the wash cycle and adjusts the energy and water usage as needed. This can increase washing efficiency and may reduce energy costs.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cycle Specifications
- Number of Cycles: 8 (Standard dishwashers have at least 3 cycles, each with different water pressure, speed, and temperature settings designed for particular loads.)
- Dishwasher Cycles: 8
- Options and Programs: Heavy, Auto, Normal, Speed60 (1hr Wash), Favorite, Delicate, Rinse, MachineCare
- Sensor Wash: true (Feature that automatically senses the load's soil levels and adjusts the wash cycle as needed. This often results in reduced water usage, which in turn may reduce energy costs.)
- Steam Cleaning: false (Wash cycle that primarily uses steam to loosen food debris and clean fragile dishware without force.)
- Steam Pre-Wash: false (Loosens food debris by creating steam inside the washer before the primary wash cycle, allowing for an easier, gentler clean of dishware.)
- NSF-Certified Sanitization Cycle: true (Meets the National Sanitation Foundation (NSF) standards for performance and cleaning effectiveness. When operated on the sanitizing cycle, an NSF-Certified dishwasher reaches a final rinse temperature of 150⁰ Fahrenheit and achieves a minimum 99.999% percent reduction of bacteria.)
- Water Consumption Per Cycle: 3.5 gallons (Estimated amount of water used during a standard wash cycle. Most standard-size dishwashers today use an average of 3-6 gallons.)
- Rack Features
- Number Of Racks: 3

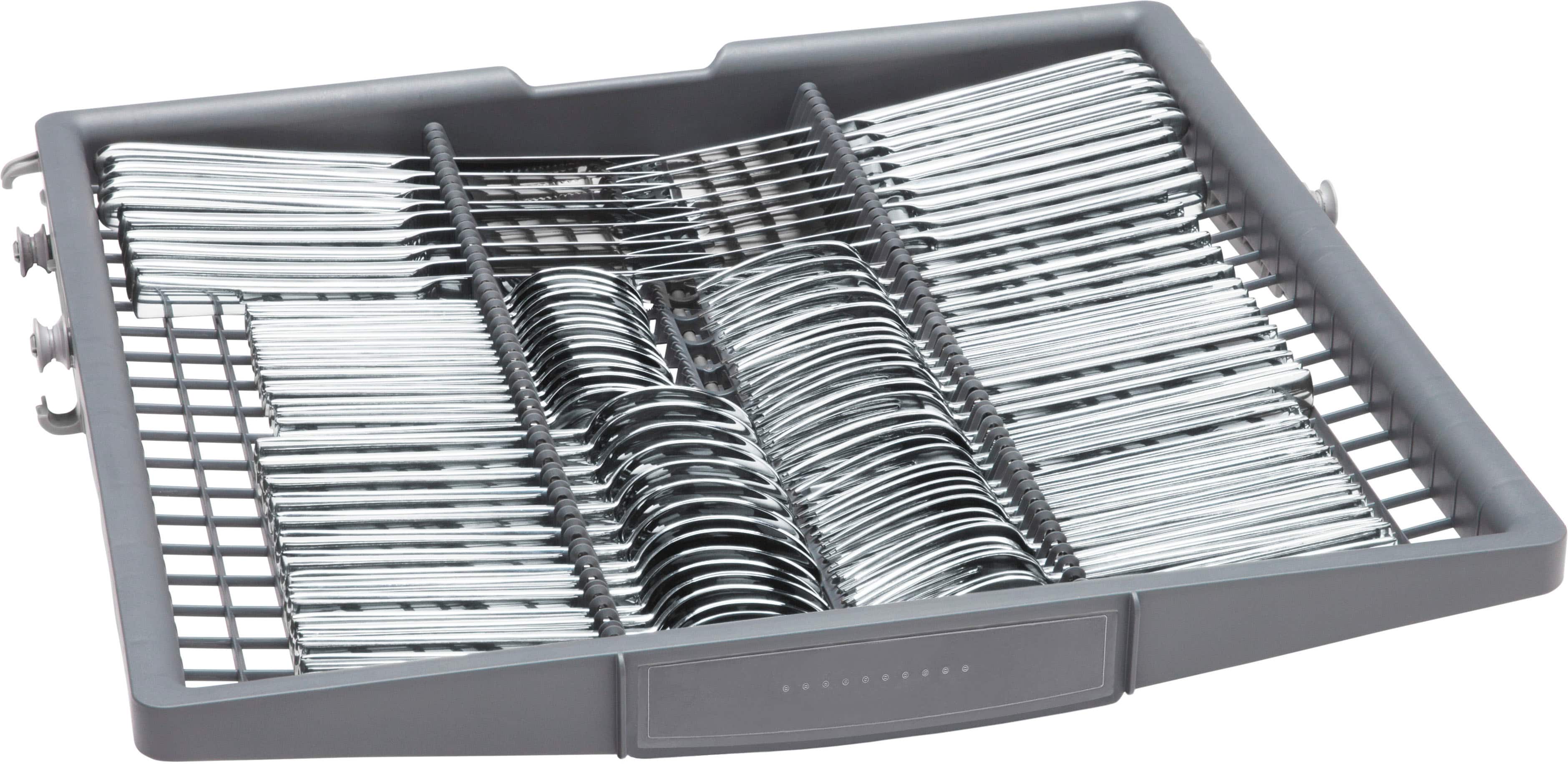

- Third Rack Features: Utensil separator (Aspects of third rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)

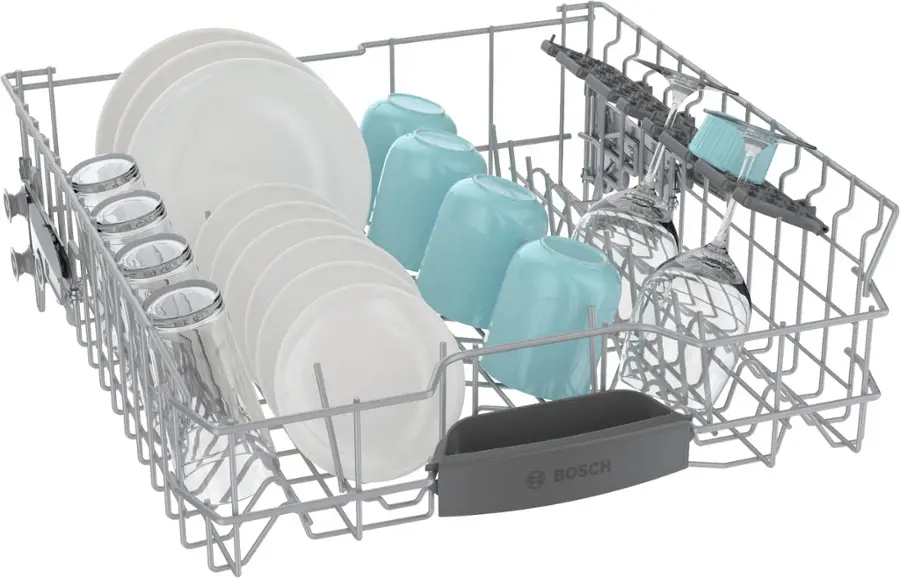

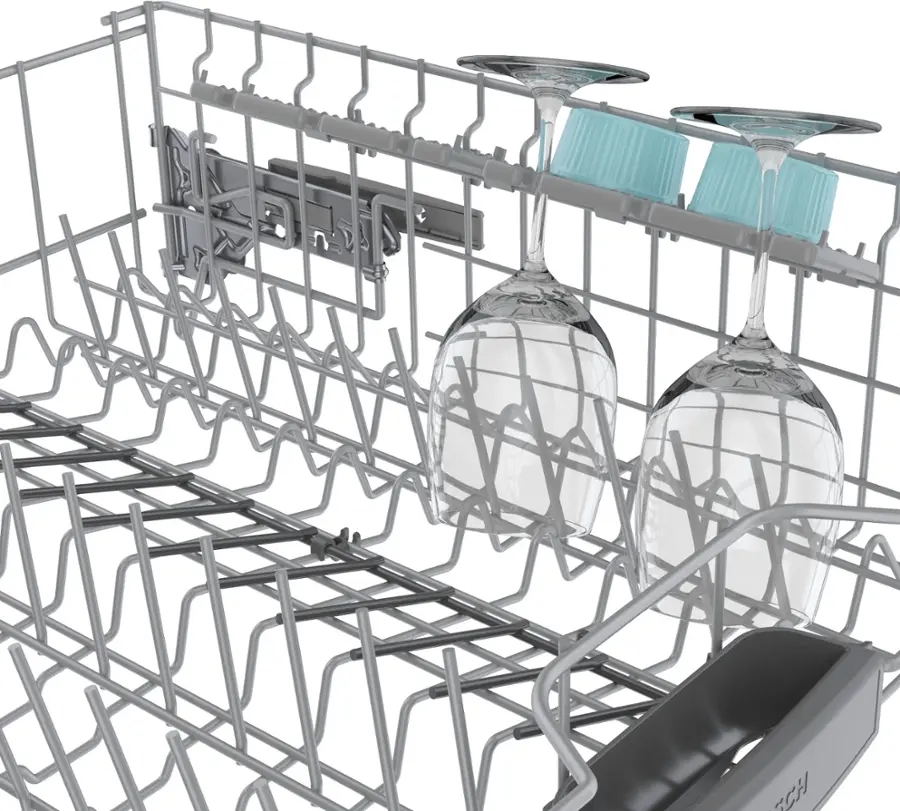

- Upper Rack Features: Adjustable height, Stemware holders, Adjustable tines (Aspects of upper rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, cup clips, and stemware holders.)

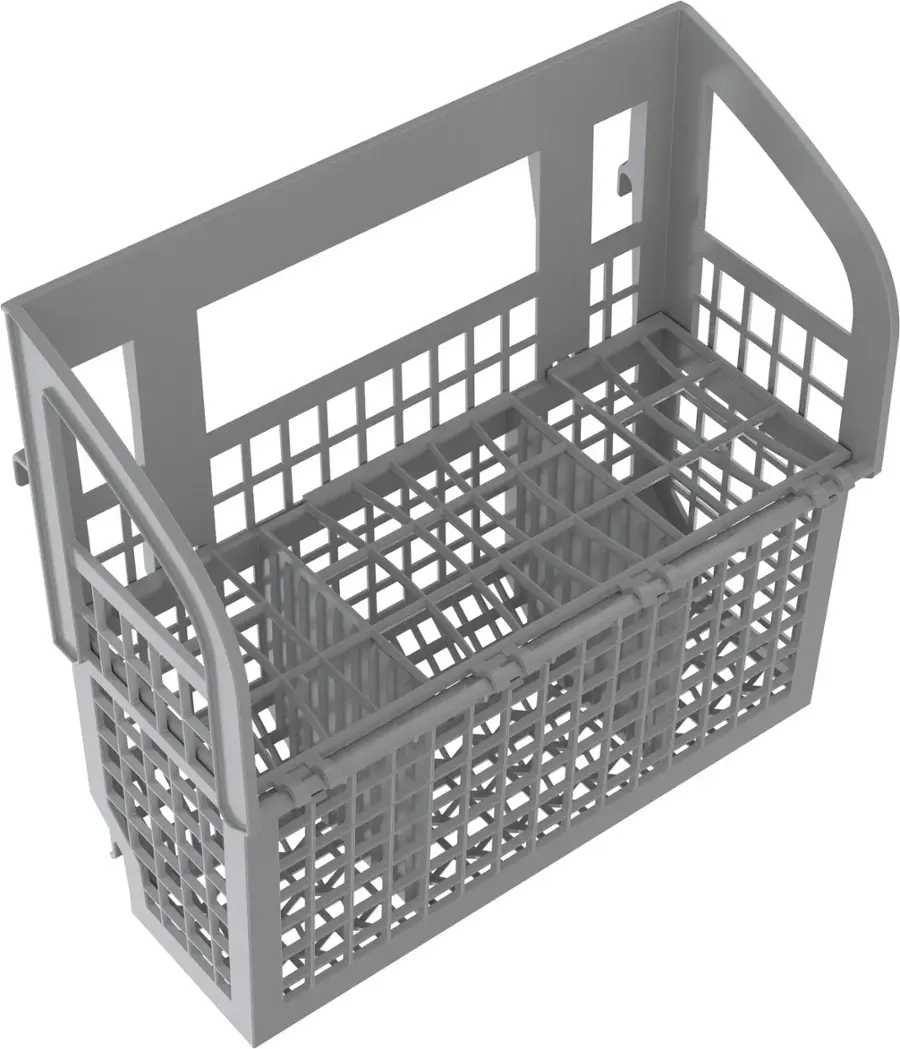

- Lower Rack Features: Adjustable tines, Removable silverware basket (Aspects of lower rack designed for better dishware organization, cleaning, and usability, such as adjustable height and tines, utensils separator, and utility basket.)
- Rack Material: Nylon
- Design
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Dishwasher Type: Built-in dishwashers
- Tub Finish: Hybrid stainless steel (Certain coatings or materials on the inside of the dishwasher, such as stainless steel, are more durable, retain heat better, and can withstand higher temperatures than materials such as plastic. These higher quality materials may increase the appliance’s efficiency, but there may be also be extra initial cost. Some models marketed as Hybrid will use both materials in the tub, often using stainless steel on the interior door to increase durability on the part of the appliance with the most common wear and tear.)
- Control Type: Touchpad
- Control Location: Top control
- Display Type: LCD
- Handle Type: Bar handle
- Fingerprint Resistant: true
- Place Setting Capacity: 15 (A basic place setting typically consists of a dinner plate, side plate, drinking glass, cutlery, and optional soup bowl and coffee cup. Full-size dishwashers typically hold 12-16 place settings. This does not include pots, pans, or other cookware.)
- Included
- Power Cord Included: false (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Integrated Water-Softener: false (A built-in water softener that automatically filters minerals from hard water to clean your dishes, reducing clouding, streaks, hard-water stains, or mineral deposit build-up.)
- Electrical Specification
- Estimated Annual Electricity Use: 269 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 38 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Amperage: 12 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 1440 watts (Measurement of electrical power.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): Not Applicable (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- Warranty
- Warranty - Parts: 1-year limited
- Warranty - Labor: 1-year limited
- Compatibility
- Works With: Amazon Alexa, Google Assistant, SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 825225969013
Bosch 100 Premium dishwashers provide the space you need with the addition of a standard 3rd rack, combined with PrecisionWash and PureDry performance. With PrecisionWash, intelligent sensors continually scan and check the progress of dishes throughout the cycle, while powerful spray arms target every item of every load, for a smarter clean. PureDry technology delivers simply clean, simply dry dishes with an energy efficient, closed drying system. A standard 3rd rack adds versatility and more loading capacity, while RackMatic middle rack adjusts to 9 positions to fit your dishes. A redesigned bar handle with a streamlined touch control panel tucks discretely away for a clean, modern look. And you can enhance your cleaning experience with personalized app features like Smart Cycle, hands free voice control with Amazon Alexa or Google Home and so much more, all when you use Wi-Fi enabled Home Connect.

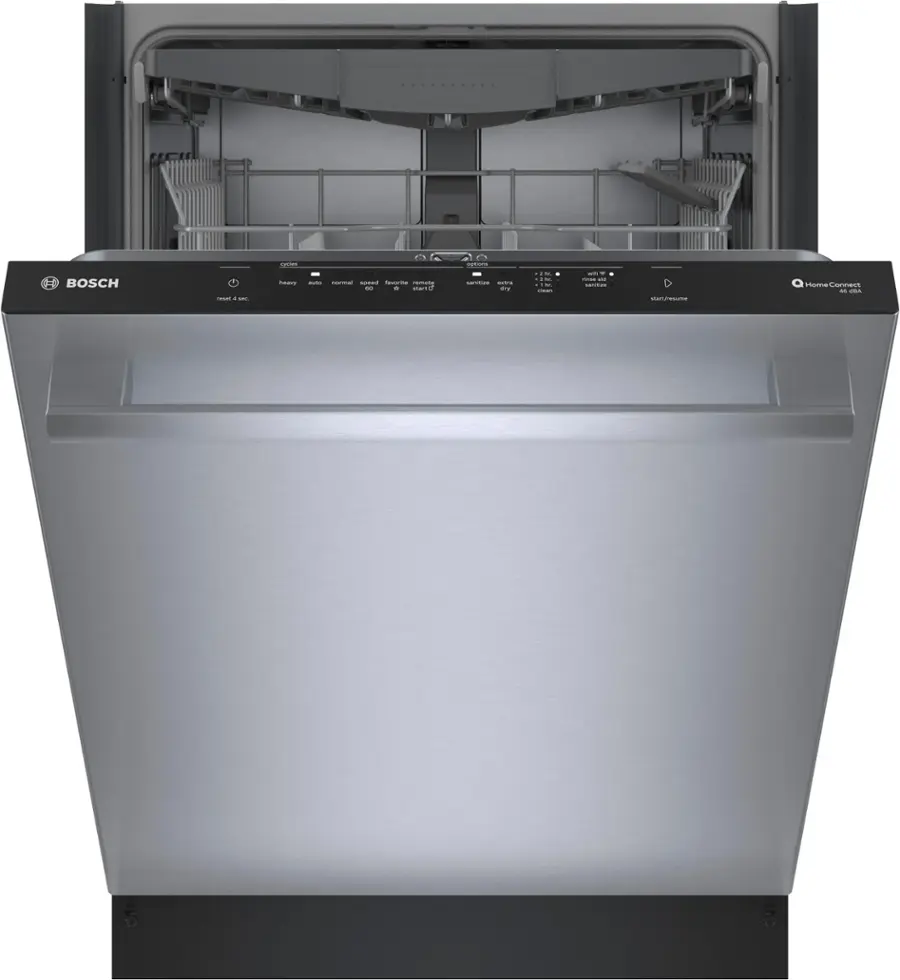

- Hidden top touch controls maintain a clean exterior: The touch control panel has been simplified to offer the cycles and options you use most--all at the touch of your fingertips. Additional cycles and options are available through the Home Connect app.
- Remarkably quiet operation at 46 dBA: Creating a dishwasher so quiet, you can't always tell it's running. InfoLight shines a red beam on the floor to indicate when it is running.
- Large interior provides ample space and loading flexibility: Large interior provides ample space and flexibility for pots, pans, dishes, and more, and the standard 3rd rack provides additional space for silverware and utensils.
- Choose the perfect wash cycle and options for all of your loads: Offers 5 standard wash cycles, including the following Heavy, Auto, Normal, Speed60, Smart Cycle, and 3 standard options, including Sanitize, Remote Start, and Extra Dry.
- Hybrid Tub: Hybrid tub consists of a mix of stainless steel walls and a polypropylene base.
- Optimized detergent tray: Precisely engineered detergent tray holds detergent tabs in place for a dedicated spray jet to directly dissolve them, preventing buildup for a deeper clean.

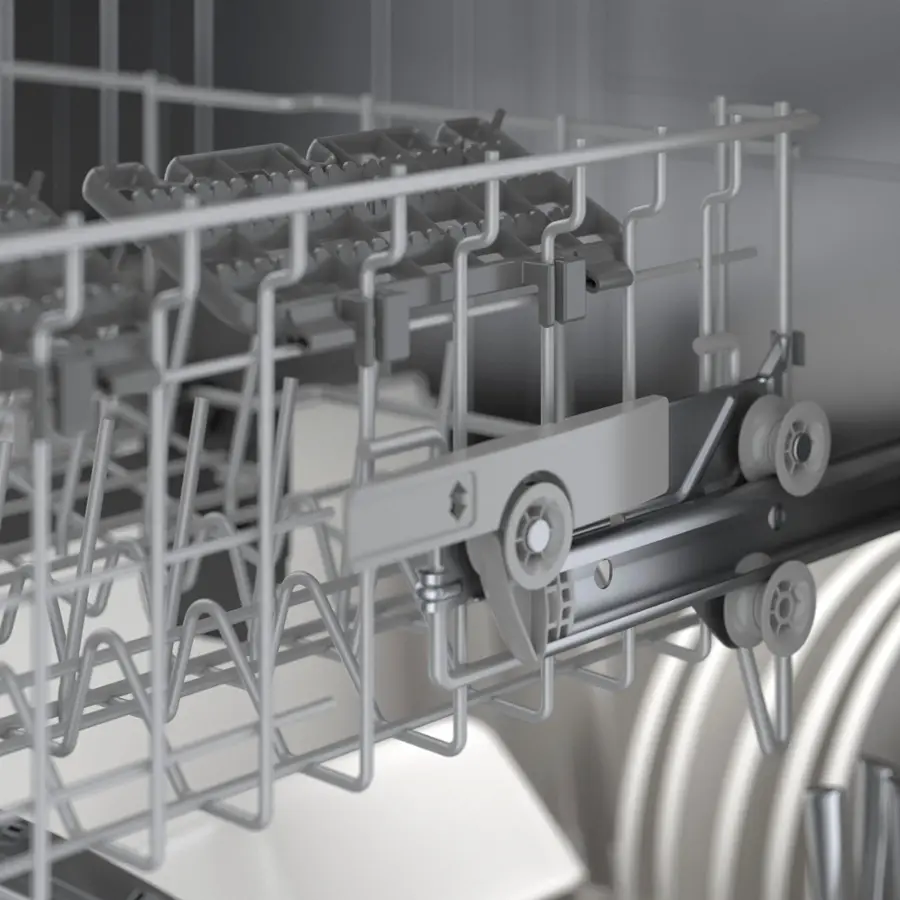

- Fit in tall items with RackMatic: RackMatic easily adjusts to three different heights and up to nine separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below.
- Loading flexibility with a 3rd rack dishwasher: The Standard 3rd Rack provides the perfect space for flatware, large utensils, measuring cups, or nearly anything else that’s difficult to fit in a traditional dishwasher.
- A smarter clean with PrecisionWash: With Bosch PrecisionWash, simply start your dishwasher and walk away. Intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load. So when you
- Sanitization for your dishes: Sanitize Option eliminates up to 99.9% of bacteria and meets NSF requirements for sanitization.
- Smaller load? No problem.: The Half Load Option, accessible through Home Connect, allows you to load half of the normal dishes anywhere in the dishwasher to reduce water usage without sacrificing wash performance.
- Enhance your cleaning experience with Wi-Fi enabled Home Connect: Enhance your cleaning experience with personalized app features like Smart Cycle, hands-free voice control with Amazon Alexa or Google Home and so much more, all when you use Wi-Fi enabled Home Connect.
- Favorite button lets you access your favorite cycle & option combination with one touch: The Favorite button on the control panel lets you select and save your favorite cycle/option combo that you preset in the Home Connect app.
- Protect your kitchen with the 24/7 Overflow Protection System: Bosch’s exclusive 24/7 Overflow Protection System looks out for you even when the unit is off. If the water level ever gets too high, water is drained and the water inlet is closed.
- Not just dry, but PureDry: PureDry is an energy efficient, closed drying system that does not pull in outside air and gently whisks moisture away from dishes as they cool. And with no exposed heating element, you can safely place plastics anywhere.
- Always keep your dishwasher interior clean with Machine Care: Machine Care cycle removes grease and limescale build up from the dishwasher's interior when partnered with a cleaning/descaling agent.
Whats Included
- 100 Series Premium 24" Top Control Smart Built-In Hybrid Stainless Steel Tub Dishwasher, 46dBA
- Owners manual
Documents
- Energy_Guide_PDF
Q: Does this dishwasher have an adjustable height feature?
A: Hi Sandi, thanks for your question and interest in model # SHX5AEM5N. Yes, this dishwasher has adjustable feet that can raise and lower the dishwasher. Per the installation instructions, the maximum height the unit can be raised to is 34.5" (867.3 mm).
A: Hi MV! Thanks for your questions about the Bosch dishwasher model SHX5AEM6N. This dishwasher uses a condensation drying process called PureDry™ and does not have a separate dry cycle. PureDry™ is an energy-efficient, closed drying system that does not pull in outside air or use an exposed heating element. During the final rinse, an extra hot wash heats the dishes, and the coolness of the stainless steel interior helps pull moisture away from the dishes onto the tub walls, where remaining water droplets are drained away. This model does not have interior lighting, but it features fold-down tines in the lower rack and a 3rd rack for added loading capacity. The InfoLight® projects a red solid light onto the floor to indicate a cycle is running. We hope this information is helpful and thank you for considering Bosch!
Q: Is possible to use just the dry cycle through home connect? Is there a interior light?
A: Hi! Thanks for your questions and interest in model SHX5AEM6N. This dishwasher uses a condensation drying process called PureDry™ and does not have a separate dry cycle. PureDry™ is an energy-efficient, closed drying system that does not pull in outside air or use an exposed heating element. During the final rinse, an extra hot wash heats the dishes, and the coolness of the stainless steel interior helps pull moisture away from the dishes onto the tub walls, where remaining water droplets are drained away. This model does not have interior lighting. We hope this information is helpful and thank you for considering Bosch!
Q: Does the middle rack (glasses) allow the height to be adjusted up/down?
A: Hi BHSC, thanks for your question and interest in model # SHX5AEM5N. Yes, the RackMatic® adjusts the rack to 9 different positions, allowing for taller items like stemware or leaving room for pots and pans below.
Q: Does it come with all the pipes and stuff needed to hook it up?
A: Yes it did, hook up was a breeze
Q: is this stainless steel model fingerprint resistant?
A: Hi JAG, thanks for your question. The SHX5AEM5N does feature an anti-fingerprint finish.
Q: What is this unit's Bosch model number? Is this the SHX5AEM5N?
A: Hi jmg1, thanks for your question. The model number for this dishwasher is SHX5AEM5N.
Q: Is this dishwasher open bottom?
A: Hello, thank you for your question. All Bosch dishwashers use a sealed bottom to aid in sound reduction. Thank you!
