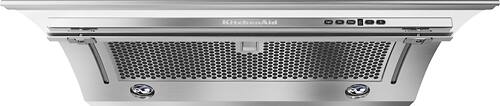

KitchenAid - 30 inches - Under cabinet Range Hood - Stainless Steel
Model: KXU2830YSS
SKU: 2512147
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 12 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Color Finish: Stainless steel
- General
- Product Name: Architect Series II 30" Externally Vented Range Hood
- Brand: KitchenAid
- Model Number: KXU2830YSS
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 12 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 7/8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 42 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 2 inches
- Duct Length: 420 inches
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 4
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Remote Control: false
- Auto Fan Shut-Off: false
- Damper Included: true
- Integrated Light(s): true
- Number of Lights: 2
- Number of Light Levels: 2
- Bulb Type Required: Halogen
- Bulb(s) Included: true
- Maximum Bulb Wattage: 20 watts
- Performance
- Maximum Air Flow Capacity: 400 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 100 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Filter Info
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Other
- UPC: 883049218748
This 30" range hood features a 4-speed fan and dishwasher-safe mesh filters that capture steam, grease and odors to help keep your kitchen fresh. A tempered-glass canopy with aluminum trim offers a sleek look.
- 400 cfm blower motor: Quickly pulls smoke and cooking odors out of the air.
- 4-speed fan: Can be easily adjusted to accommodate exhaust needs.
- Electronic, push-button controls: For ease of use. LED display provides feedback on the fan speed setting.
- 5-minute boost function: Provides extra ventilation when needed.
- 2 halogen lights: Provide increased visibility of the cooking surface with bright, natural-looking light.
- Dishwasher-safe mesh filters: Capture grease, steam and odors and allow for easy cleanup.
- Tempered-glass canopy: With aluminum trim extends only when the vent is in use to offer a sleek, integrated appearance.
- Designed to fit 6" round ductwork: For ease of installation.
Whats Included
- Hardware
- KitchenAid Architect Series II 30" Externally Vented Range Hood
- Owner's manual
Q: What is the duct size? The 2” listed must be an error!.
A: A 6'' round duct system is recommended with this range hood.
A: Yes, you lose some cabinate space, but on the sides there is a bit of room and I keep baking soda and baking power cans there. The doors open and close like normal and the great thing is the kitchen outside doors stay unchanged. Hope this helps.
Q: Does this style come in 600 CFM
A: No, this style does not come in 600 CFM.
