Highlights
- Key Specs
- Wi-Fi Range: 10000 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Wi-Fi Mesh System: true (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Number of Wi-Fi Satellites Included: 4 (Quantity of Wi-Fi satellite modules/nodes for a Wi-Fi Mesh System that come with the product.)
- Number Of LAN Ports: 3 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Wi-Fi Speed: 5.2 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- General
- Brand: NETGEAR
- Model Number: RBK754P-100NAS
- Product Name: Orbi 750 Series AX5200 Tri-Band Mesh Wi-Fi 6 System (4-pack)
- Color: White
- Security
- Data Encryption: true
- Encryption Type: WPA2-PSK (The security protocols or certification programs that protect the Wi-Fi network.)
- Firewall Type: NAT (The method the firewall uses to filter and process data to increase network security, primarily by blocking malicious traffic requests while allowing legitimate traffic through.)
- Security Features: NETGEAR Armor; NETGEAR Smart Parental Controls; guest Wi-Fi network
- Parental Controls: true (Allows user to block unwanted content, signals, channels, networks, etc. from being received or accessed.)
- Network
- Band Technology: Tri (Refers to the number of frequency bands used to wirelessly transmit an internet signal. For example, dual-band devices may use one 2.4 and one 5 GHz band, while tri-band devices may use one 2.4 and two 5 GHz bands. Multiple bands also provide more flexibility for designating connected devices to specific band use.)
- Ethernet Standard: 10/100/1000 (Each standard is a variation of the IEEE 802.3 set of computer networking technologies known as Ethernet. New versions evolved to include higher bandwidth, different physical media, and other new and improved features. Standards are often denoted by speeds (in Megabits per second). For example, a 10/100/1000 Ethernet port transmits at 10 Mbps, 100 Mbps, and 1000 Mbps (1 Gbps).)
- Number Of Connected Devices: 75
- Number of Antennas: 4
- Frequency Band: 2.4 GHz, 5.0 GHz (Bands may be grouped into categories such as low- and high-band VHF (Very High Frequency), low- and high-band UHF (Ultra High Frequency), or certain frequency channels (measured in MHz or GHz). Generally, higher frequencies transmit information faster but have shorter range than lower frequencies.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: N, AC, AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Wi-Fi Range: 10000 square feet (The device will provide a Wi-Fi connection to this approximate area.)
- Input/Output Technology: MU-MIMO (Multi-user Multiple-Input Multiple Output) (Generally, multiple-input multiple-output communication technologies allow for more signals to be transmitted at a single time, which can improve the device's overall performance.)
- Wi-Fi Mesh System: true (A single wireless network consisting of a main router (connected directly to a modem) that connects to a series of satellite modules or nodes placed around the home. Routers with this capability promote stronger, faster wireless signals as well as increase Wi-Fi coverage by reducing interference and eliminating dead zones.)
- Number of Wi-Fi Satellites Included: 4 (Quantity of Wi-Fi satellite modules/nodes for a Wi-Fi Mesh System that come with the product.)
- Number of Wi-Fi Satellites Supported: 3 (Maximum quantity of Wi-Fi satellite modules/nodes that are able to be connected to the main router in a Wi-Fi Mesh System.)
- Ethernet Switch: true (Connects multiple devices to expand the Local Area Network (LAN).)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Features
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- App Name: NETGEAR Orbi app
- Beamforming: true (A signal processing technique that enables a router to focus a Wi-Fi signal in a specific direction. The router determines where a connected device in the network is located and projects a stronger signal in that specific direction. This can result in faster and higher quality data transfer as well as reduced signal interference.)
- Integrated Modem: false
- Wireless: true
- Ports
- Number Of WAN Ports: 1 (Number of devices able to be connected to the Wide Area Network (WAN). This type of port may simply be labeled "Internet," and it allows the device to share its internet connection with all devices connected to it via LAN ports.)
- Port Type(s): RJ-45 (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Number Of LAN Ports: 3 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- Speed
- Wired Speed: 1000.0 megabits per second (The maximum rate at which data is transferred between a network device and router using an Ethernet cable.)
- Wi-Fi Speed: 5.2 gigabits per second (The maximum rate at which data is transferred between a network device and wireless router.)
- Gigabit Ethernet Speed: true (Supports the gigabit Ethernet networking standard, which has a data rate of at least one gigabit per second, or 1,000 Mbps.)
- Compatibility
- System Requirements: High-speed Internet connection to existing modem or gateway (The software that a product must have for it to be able to integrate with another product.)

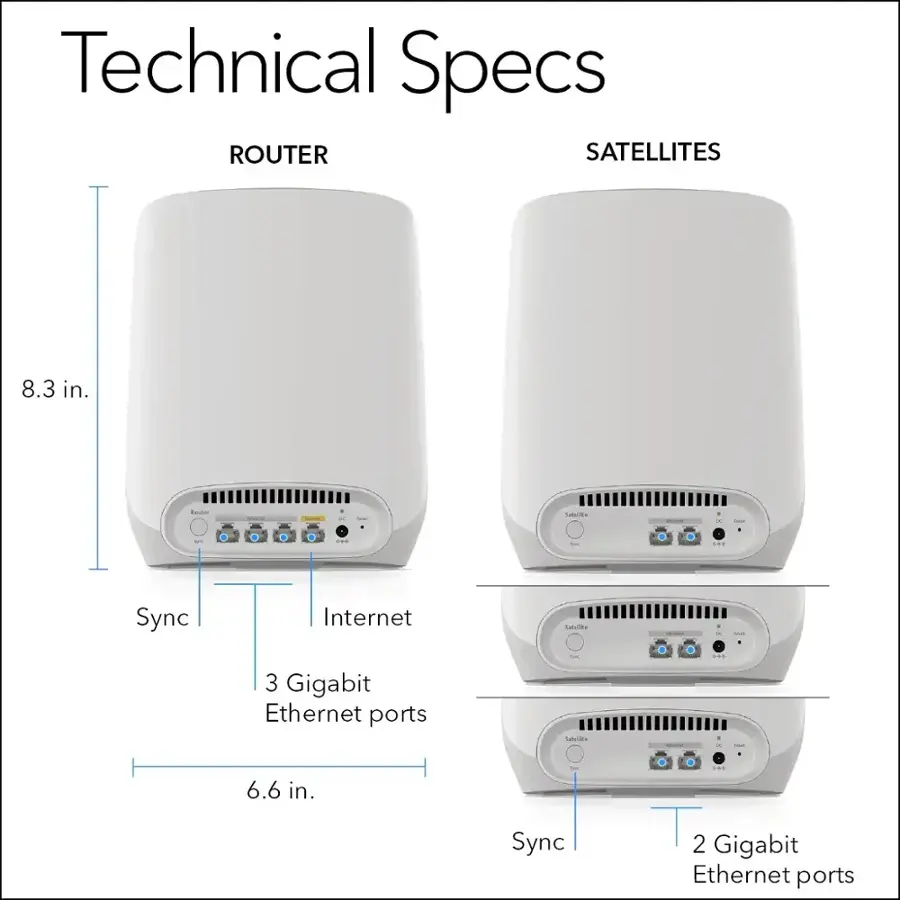

- Dimensions
- Product Height: 8.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 2.5 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 6.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.6 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 Year
- Warranty - Labor: 90 Days
- Other
- UPC: 606449170320
Break free from limitations with strong, reliable, and lightning-fast Wi-Fi in every room of your home. From the top floor down to the basement, the NETGEAR Orbi 750 Series AX5200 tri-band mesh Wi-Fi 6 system brings you higher performance and simultaneous Wi-Fi streaming, gaming, and browsing on even more devices.
- Cutting-edge AX5200 performance: Features wireless speeds up to 5.2 Gbps. Enjoy 4K/8K UHD streaming, lag-free gaming, and smooth streaming.

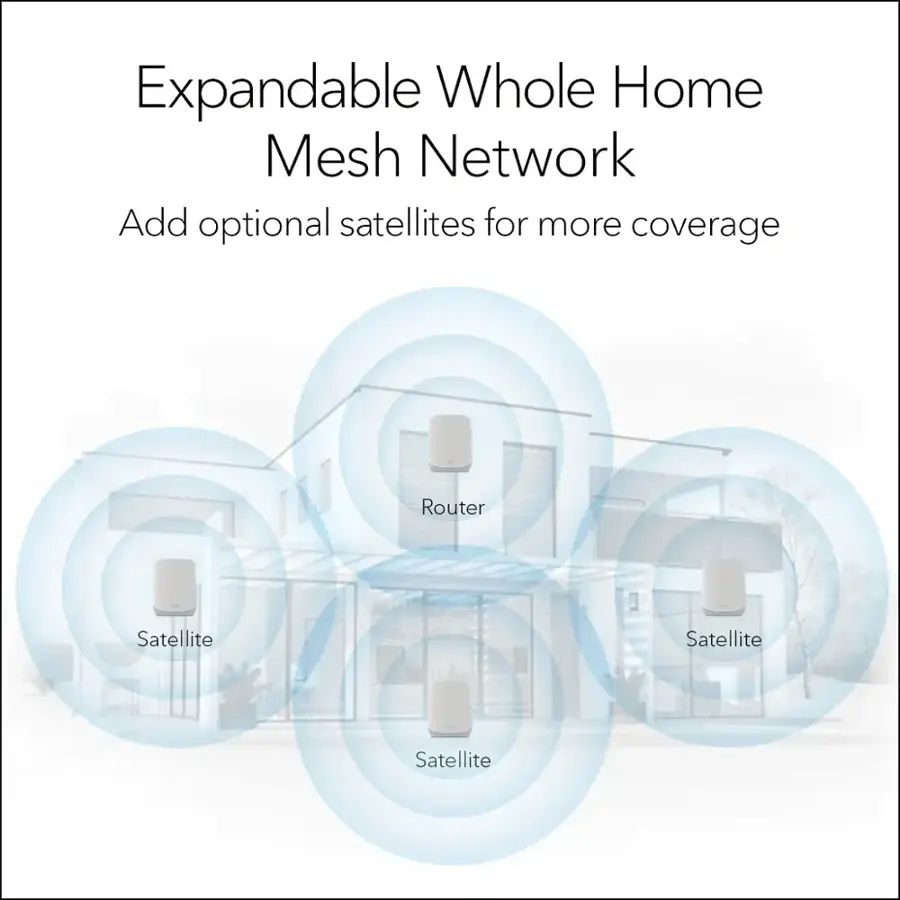

- Up to 10,000 sq. ft. of Wi-Fi 6 coverage: Blankets your entire home with up to 10,000 sq. ft. of reliable Wi-Fi coverage, leaving no dead zones or slow spots. The system includes a Wi-Fi router and three satellites. Add optional satellites for more coverage.
- Powerful Security: NETGEAR devices come with security measures built in as well as enhanced safety features and updates designed to help protect you and your family.
- Advanced tri-band technology: With Orbi’s patented tri-band dedicated wireless backhaul Wi-Fi, you can enjoy consistent maximum speeds and high performance on devices throughout your home.
- 9 x 1G Ethernet ports: Plug in computers, game consoles, streaming players, and more with three Gigabit Ethernet ports on the router and two Gigabit Ethernet ports on each satellite.
- Essential all-in-one internet security: NETGEAR Armor provides a powerful suite of tools to help keep you safe online, including enhanced protection against hackers, malware and identity theft, at home or on the go. Includes 30-day trial.

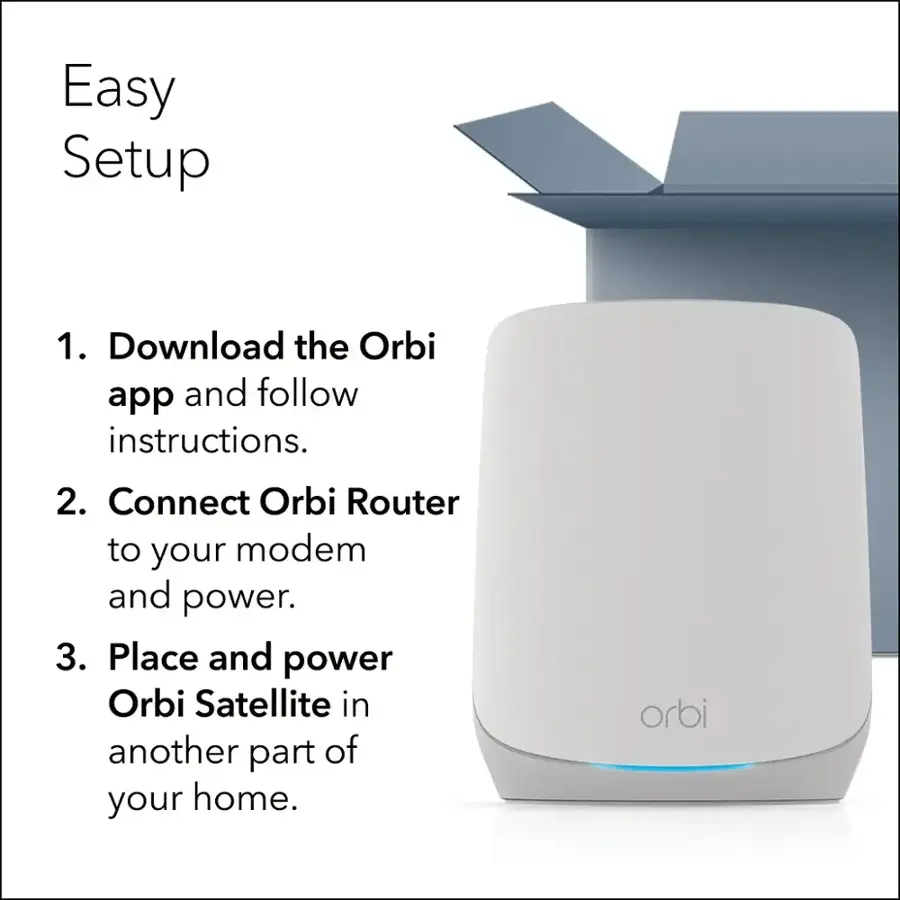

- NETGEAR Orbi app: Easily set up and manage your Wi-Fi with the Orbi app.
Whats Included
- NETGEAR Orbi 750 Series AX5200 Tri-Band Mesh Wi-Fi 6 System (4-pack)
- One (1) Orbi Router (RBR750P)
- Three (3) Orbi Satellite (RBS750P)
- One (1) 2m Ethernet cable
- Four (4) power adapters
- Quick start guide
Q: What is the maximum coverage area of this mesh Wi-Fi system?
A: This mesh Wi-Fi system can cover up to 10,000 sq. ft.
Q: Does this system come with a free trial of NETGEAR Armor?
A: Yes, this system includes a 30-day free trial of NETGEAR Armor.
Q: Why is tri-band technology beneficial in this system?
A: The tri-band dedicated wireless backhaul Wi-Fi ensures consistent maximum speeds and high performance on devices throughout your home.
Q: What is the maximum wireless speed this mesh Wi-Fi system can provide?
A: This mesh Wi-Fi system provides wireless speeds up to 5.2 Gbps.
Q: How many devices can connect to this mesh Wi-Fi system simultaneously?
A: This mesh Wi-Fi system can support up to 75 connected devices.
Q: How many ethernet ports does each satellite have?
A: Each satellite has two Gigabit Ethernet ports.
