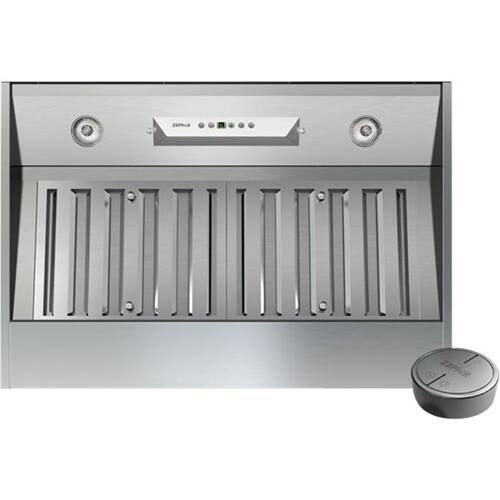

Zephyr - 30 inches - Range Hood Insert - Stainless Steel
Model: AK9228AS
SKU: 7694002
This item is no longer available in new condition. See similar items below
- Key Specs
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 28 2/5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 3/10 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Color Finish: Stainless steel
- General
- Product Name: Essentials Power Monsoon I 28" Externally Vented Range Hood
- Brand: Zephyr
- Model Number: AK9228AS
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 12 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 26 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 28 2/5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19 3/10 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 0 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Width: 28 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 19 3/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Exhaust Vent Location: Top/Rear
- Vent Type: Ducted
- Range Hood Type: Insert
- Number of Fan Speeds: 6
- Control Type: Touch pad
- Remote Control: true
- Integrated Light(s): true
- Bulb Type Required: Halogen
- Bulb(s) Included: true
- Maximum Bulb Wattage: 70 watts
- Performance
- Maximum Operating Sound Level: 6 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 1 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Other
- Electrical Specification
- Amperage: 5 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Other
- UPC: 646328002601
Monsoon I has taken the standard one-piece liner to the next level with innovative features that enhance performance and are easy to maintain.
- 600 cfm exhaust capacity: Quickly pull smoke and cooking odors out of the air.
- 6 fan-speed settings: Allow you to adjust ventilation to meet your needs.
- Electronic controls: Offer simple operation.
- Dual halogen lights: Illuminate the cooktop below with bright or subtle lighting for better visibility while cooking.
- Top and rear exhaust: Allow the option of connecting the duct work to either the top or the rear of the hood.
- Stainless steel finish: Offers a sleek, stylish look.
- Designed to fit standard 8" round ductwork: For ease of installation.
Whats Included
- Zephyr Essentials Power Monsoon I AK9228AS
- Remote control
