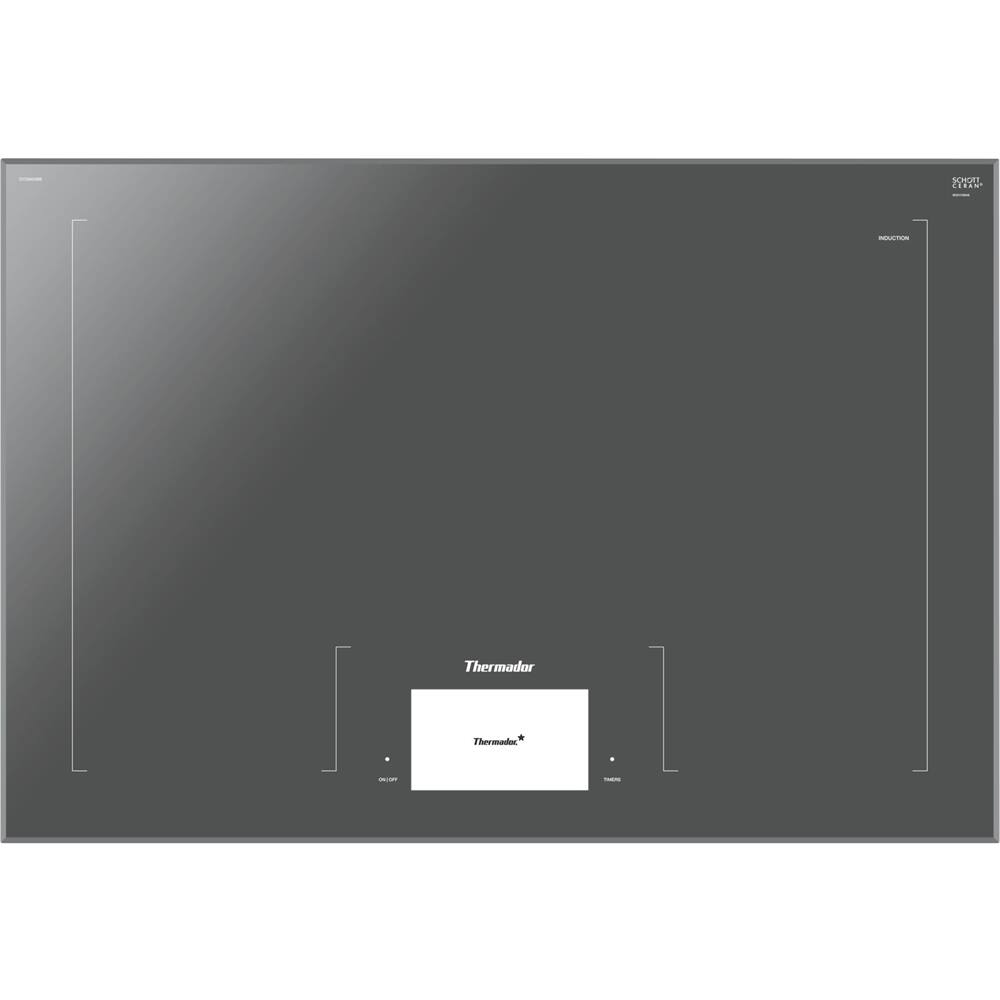

Thermador - Masterpiece Series 30" Freedom® Built-In Electric Induction Cooktop with 5 elements and HomeConnect, Frameless - Dark Gray
Model: CIT30XWBB
SKU: 6281810
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Gray
- Product Height: 4 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 31 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Elements: 5
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Thermador
- Model Number: CIT30XWBB
- Product Name: Masterpiece Series 30" Freedom® Built-In Electric Induction Cooktop with 5 elements and HomeConnect, Frameless
- Color: Dark Gray
- Color Finish: Gray
- Vendor Collection: Thermador Masterpiece (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 4 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 31 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 31 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 65 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 4 1/8 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 3/4 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 19 7/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Installs Over Built-In Oven: true
- Control Type: Electronic
- Control Location: Top
- Digital Display: true
- Power-On Indicator Light(s): true
- Hot Surface Indicator(s): true (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
- Portable: false
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Cooktop Features
- Induction: true (Induction cooktops use magnetic currents to heat compatible cookware directly instead of warming the cooktop itself, which can allow for faster and more efficient cooking. There is also an added safety benefit because the surface begins to cool when cookware is removed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Ceramic, Glass
- Number of Cooking Zones: 1
- Number of Elements: 5
- Pan Presence Sensor: true (Sensors detect when a pan comes into contact with the cooking surface and when it is removed. When a pan is removed, the cooktop will automatically shut off as a safety precaution.)
- Pan Size Sensor: true (This feature adjusts the heated surface of the element to fit the cookware placed on top. This helps ensure optimal heat distribution and more evenly cooked foods.)
- Bridge Element: false (This feature is an additional heating element located between two individual burners. When this is enabled, the individual burners and the bridge element act as one connected cooktop. This equal heat distribution on the cooktop surface helps accommodate larger cookware, such as roaster pans or griddles.)
- Specialty Element(s): FALSE
- Expandable Element: true (Accommodate large cookware and ensure even heat distribution with this feature, which allows more surface area for the individual heating element.)
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Griddle Included: false
- Power
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Cooktop Power Source: Electric
- Electrical Specification
- Wattage: 7200 watts (Measurement of electrical power.)
- Amperage: 30 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. Libre de PFAS, PFOA, plomo, y cadmio. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- Works With: SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 825225930914
With Freedom® induction the entire surface of the cooktop can be used as one large cooking area. Up to 5 pots or pans can be heated simultaneously in any position and controlled using a full color touch screen. The Thermador Connected Experience by Home Connect®, provides added flexibility and personalization. Largest 30" fully usable cooking surface on the market within it's class. 48 inductor elements combined with pot detection automatically recognizes the size, shape and position of your cookware on the cooktop. TeppanyakiPro® function divides a teppanyaki grill plate into one heated and one non-heated area. WiFi smart appliance capabilities include personalized control, notifications & remote diagnostics via Home Connect app. Freedom to move. If you need to move your pot to another location, the cooktop will transfer all of your programmed settings to the new position of the pot
Whats Included
- Thermador MASTERPIECE SERIES 30" Electric Induction Cooktop
- Wireless Temperature sensor
- Thermador MASTERPIECE SERIES 30" Electric Induction Cooktop
- Wireless Temperature sensor
Q: Does it use 110 V or 240 v outlet?
A: Hi YB2020, thank you for your question and interest in Model:CIT30XWBB. Here is the technical information: it is 208 / 240 Volts, it has no plug and the conduit is 39" flexible 3-Wire.
Q: Can we get a stainless steel trim for this? Tim
A: undefined
