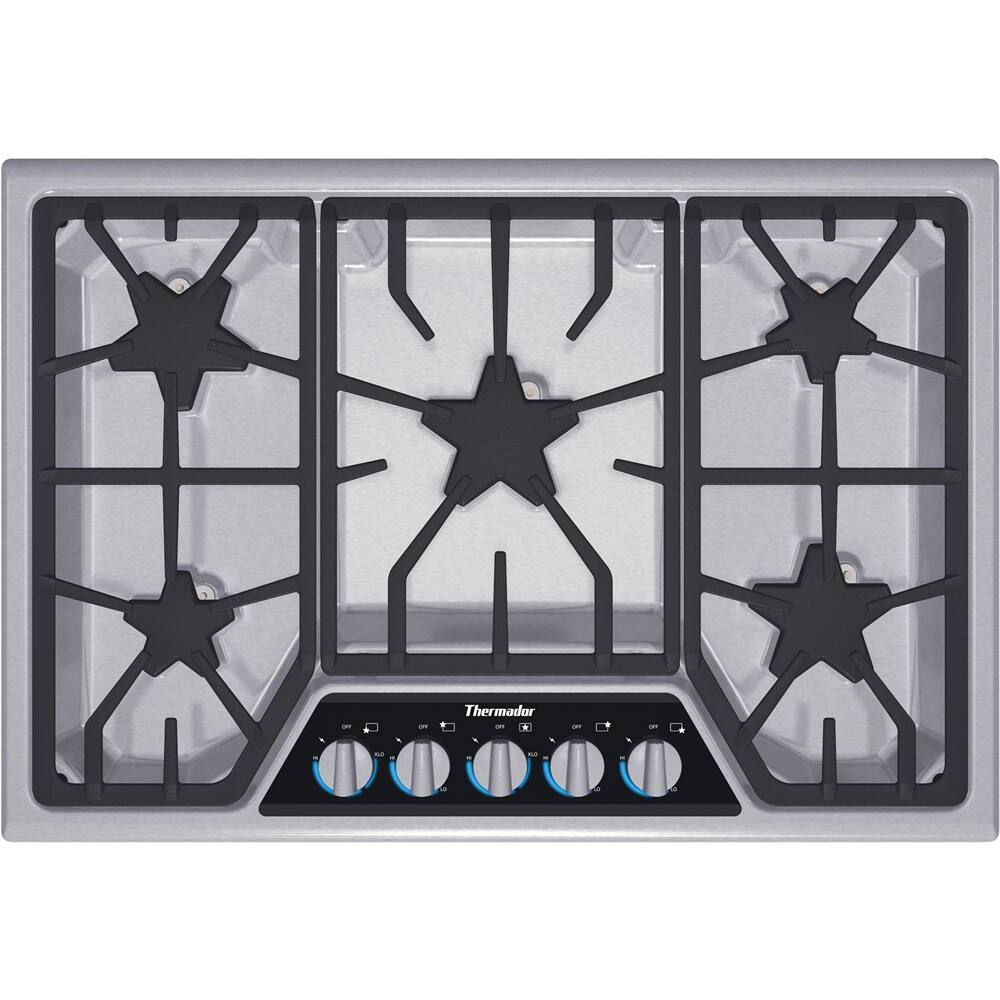

Thermador - MASTERPIECE SERIES 30" Gas Cooktop - Stainless Steel
- Key Specs
- Color Finish: Stainless steel
- Product Height: 3 13/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 31 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Number of Burners: 5
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Thermador
- Model Number: SGSX305FS
- Product Name: MASTERPIECE SERIES 30" Gas Cooktop
- Color: Stainless Steel
- Color Finish: Stainless steel
- Vendor Collection: Thermador Masterpiece (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 3 13/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 31 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 31 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 42 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 3 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 15/16 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 19 1/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Features
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Control Type: Analog
- Control Location: Top
- Digital Display: false
- Hot Surface Indicator(s): false (Visual indicators turn on when the cooktop surface is hot and remain on until it is cooled, acting as a convenient safety reminder.)
- Child Lock: false (Setting that allows appliance to be temporarily locked to prevent use.)
- Form Factor: Cooktop (The size, arrangement, and physical configuration of the product.)
- Portable: false
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Gas Type: Natural gas
- Cooktop Features
- Cooktop Surface Type: Smoothtop (On electric cooktops, coil elements are typically more durable and tend to provide more evenly conducted heat than smoothtops. However, smoothtops may be easier to clean and have a distinctive streamlined appearance.)
- Cooktop Surface Material: Stainless steel
- Number of Cooking Zones: 5
- Number of Burners: 5
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): ExtraLow Select (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Type: Continuous (Continuous grates allow cookware to be slid from burner to burner, while individual grates require the pot or pan to be lifted when moving around the cooktop.)
- Grate Material: Cast iron
- Burner Rating
- Burner 1 Rating: 8000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 10000 british thermal units
- Burner 3 Rating: 16000 british thermal units
- Burner 4 Rating: 8000 british thermal units
- Burner 5 Rating: 10000 british thermal units
- Total Maximum BTU Rating: 52000 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Power
- Cooktop Power Source: Gas
- Ignition Type: Electric
- Propane (LP) Convertible: true
- Propane Conversion Kit Included: false
- Propane Kit Model Compatibility: SNLPKITF
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. Libre de PFAS, PFOA, plomo, y cadmio. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 825225853312
Bring a custom look to your kitchen island or counter with this Thermador Masterpiece Series gas cooktop. Five star burners distribute heat evenly for thorough cooking, and the elegant control panel makes it easy to control the temperature of each burner. Featuring continuous grates, this Thermador Masterpiece Series gas cooktop lets you transfer cookware effortlessly from one burner to another.
- Sealed cooktop burners: Eliminate the space between the burners and cooktop to contain spills and boilovers for easy cleaning.
- 5 burners: Deliver 2345-4688 watts of power for versatile heating options.
- Automatic electronic ignition: Ensures simple startup of your cooktop.
- Sealed cooktop burners: Eliminate the space between the burners and cooktop to contain spills and boilovers for easy cleaning.
- 5 burners: Deliver 2345-4688 watts of power for versatile heating options.
- Automatic electronic ignition: Ensures simple startup of your cooktop.
Whats Included
- Thermador MASTERPIECE SERIES 30" Gas Cooktop
- Thermador MASTERPIECE SERIES 30" Gas Cooktop
Q: What type of grates does this cooktop have?
A: The Thermador Masterpiece Series 30" Gas Cooktop features continuous cast iron grates. These grates allow for effortless transfer of cookware from one burner to another, enhancing the cooking experience.
Q: What are the dimensions (W x H x D) of this cooktop?
A: The dimensions of the MASTERPIECE SERIES 30" Gas Cooktop by Thermador are 31 inches in width, 3 inches in height, and 21.3 inches in depth.
Q: How many burners does this Thermador Masterpiece Series gas cooktop have?
A: This Thermador Masterpiece Series gas cooktop has five burners. The product description mentions "Five star burners distribute heat evenly for thorough cooking". The product specifications also state "Number of Burners: 5".
Q: What material is used for the cooktop surface?
A: The cooktop surface of the Thermador Masterpiece Series 30" Gas Cooktop is made of stainless steel. The product specifications clearly state "Cooktop Surface Material: Stainless steel".
Q: What type of ignition system does this cooktop use?
A: The Thermador Masterpiece Series 30" Gas Cooktop uses an electric ignition system for simple startup. The automatic electronic ignition ensures a hassle-free cooking experience.
Q: Does this cooktop have a digital display or analog controls?
A: This Thermador Masterpiece Series gas cooktop features analog controls, as specified in the product specifications. The control type is explicitly stated as "Analog" in the specifications. Therefore, the cooktop does not have a digital display but rather traditional analog knobs for controlling the temperature of each burner.
Q: Does this cooktop have a child lock feature?
A: The Thermador Masterpiece Series 30" Gas Cooktop does not have a child lock feature. The product specifications clearly state "Child Lock: false".
Q: What material are the grates made of?
A: The grates of the Thermador Masterpiece Series 30" Gas Cooktop are made of cast iron. This information can be found in the "Grate Material" section of the product specifications.
