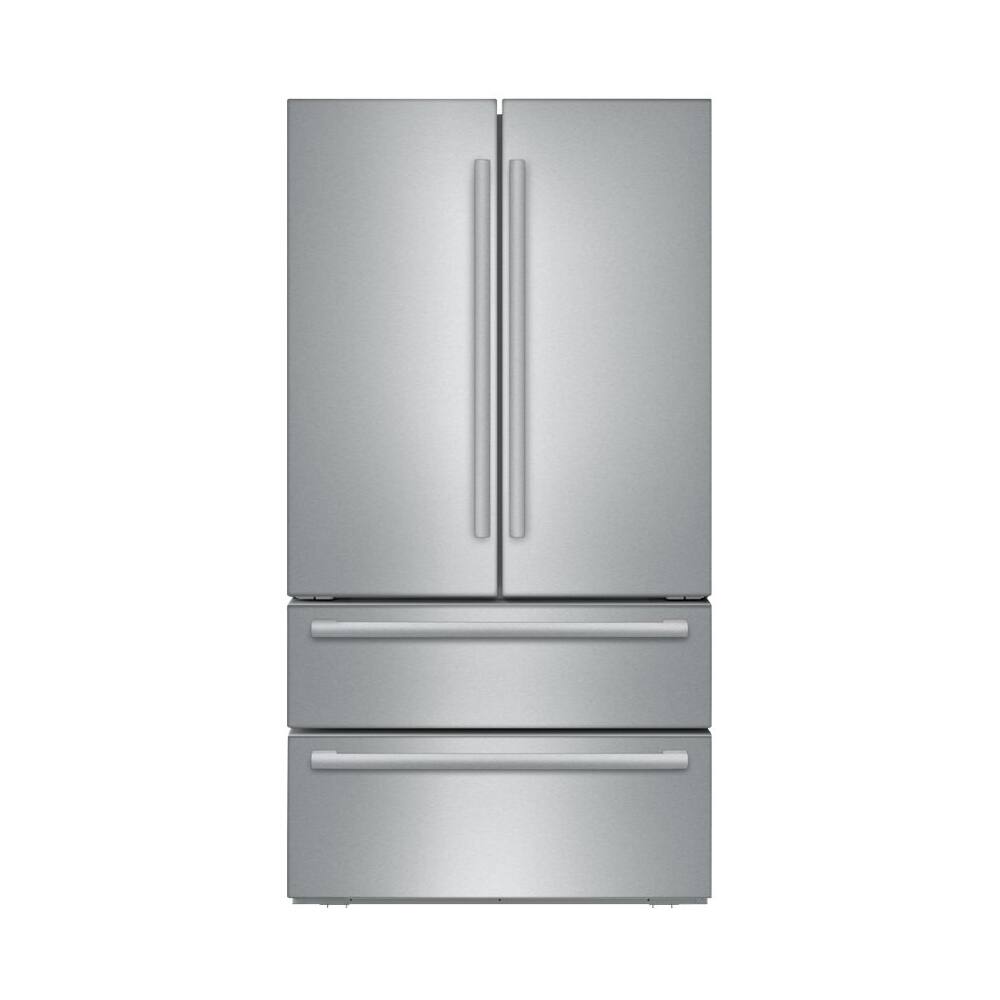

Bosch - 800 Series 20.7 Cu. Ft. 4-Door French Door Counter-Depth Refrigerator
- Key Specs
- Product Height: 69 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 5/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 69 7/8 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 28 3/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 30 3/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 20.7 cubic feet
- Refrigerator Style: French Door
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Color Finish: Stainless steel
- General
- Product Name: 800 Series 20.7 Cu. Ft. 4-Door French Door Counter-Depth Refrigerator
- Brand: Bosch
- Model Number: B21CL81SNS
- Vendor Collection: Bosch 800 Series (Part of a line of different product types, like kitchen appliances.)
- Color Finish: Stainless steel
- Dimension
- Product Height: 69 7/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 30 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 5/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 69 7/8 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 28 3/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 30 3/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 24 5/8 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 43 1/2 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 301.8 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 70 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 36 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 25 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 20.7 cubic feet
- Refrigerator Capacity: 14.7 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 6 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Freestanding (The size, arrangement, and physical configuration of the product.)
- Refrigerator Style: French Door
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Defrost Type: Automatic (Frost free appliances regulate temperature to prevent ice build-up. Automatic and adaptive defrost systems prevent and remove ice build-up by circulating heat as needed; automatic systems typically run on a timer while adaptive systems use sensors to determine when to circulate the heat.)
- Lighting Type: LED
- Ice and Water
- Ice Maker: Yes
- Storage
- Quick Access Door: false (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Dairy Center: true (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Humidity-Controlled Crisper: true
- Deli Meat Drawer: true (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Tempered Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Freezer Shelf Material: Other
- Filter Info
- Water Filtration: false
- Electrical Specification
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 623 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 75 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Manufacturer's Warranty - Parts: 1 year
- Manufacturer's Warranty - Labor: 1 year
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 825225924784
The 4-door counter-depth refrigerator features better freezer access, extra-cold storage & humidity controlled drawers to keep food fresh.
- Stainless-steel finish: Aligns perfectly with any stylish kitchen design.
- Chiller zone: Suitable for cooling wine bottles.
- Organize contents with ease: Includes a retractable shelf, 4 half-width shelves, 2 humidity controlled crispers, 5 tempered glass shelves and 5 gallon storage door bins to provide ample space for storing items.
- LED interior lighting: Bright lights to illuminate interior.
- Automatic Defrost: Helps reduce frost buildup to simplify maintenance.
- Egg tray: Safely store eggs using the egg tray.
- Automatic ice maker: Provides a steady supply of ice without the mess of having to refill ice trays.
Whats Included
- Bosch 800 Series B21CL81SNS
- 2 x egg tray
- 1 x ice scoop
- 1 x trim cover
Documents
- Energy_Guide_PDF
A: OK I have diagnosed the problem - the ice tray flexes to empty the ice. The issue is the tray has a rectangular slot in the back of the tray which connects to the dump motor. The plastic tray breaks at that slotted point thus not able to flex and empty the tray. Its a bad/poor design in my opinion with no reinforcement around the slot in the tray to take the stress of the motor flexing the tray. My temp solution was to wrap electrical tape around the back of the tray to hold it together and still dump ice but its intermittent so I still get overflows, until you can get a replacement tray PN BSH-12017983 $24. I will report back once I have the tray, but I also ordered the complete ice maker for $133 too just in case. Also another tip - clean the tray and polish it with some carnuba wax (car polish) which is non toxic helps ice release and improve the dumping action, sort of like a laxative for your ice maker!
A: I found a workaround: In the Bosch 800 series you can lift the front white icemaker panel and there is an on/off button. (ON is lit button - OFF is dark) When the tray is full just shut off the ice maker and use up the ice in the tray. When about half full (plus or minus) turn on the ice maker again. This works around the problem that once the tray is full one cube getting caught on the top back of the tray can fall backwards when you pull out the freezer door. I am going to try to cut a rubber flap to put between the back of the removable ice tray and the back of the drawer. to see if that stops the occasional cube from falling backwards.
A: Great question, we have owned or Bosch same amount of time and have same problem. I’ve looked both online Manuel’s and you tube... the closest thing I could figure is that temperature might be part of problem...I tried turning fridge up 38degrees and freezer 5 degrees . It’s kinda works , I keep pressing ice maker on???? If u find better answer , please let me know.
A: When you press the ice maker switch off/then on, it should be lit and stay lit. Our 3 yr old Bosch has been finnicky as well - so to "engage" it I turn off/on to kick start the ice maker - for some reason the main board signal IMO is telling it its full of ice when its not. We had a problem early on - low ice production two/three trays a day at most. So I did a hard power reset (turned the breaker on/off) and let the fridge reset. That seemed to cure the issue. The other issue as you may read below posts is the flex tray design is a poor one - our tray broke where the motor engaged the flex tray slot ( a very poor design with limited reinforcement on the flex tray) so I have a modification in mind when I get my new ice trays - I have two on order now and a complete ice maker too ($24 for the tray, $130 for the complete ice maker.). The kicker is Bosch DIRECT service wanted $129 for the service call, then $40 per 15 minutes on site, PLUS parts $250 for the ice maker. Total $500-700 and our third party warranty service denied the claim - they would pay for the service call to diagnose - then the Bosch tech was to submit an estimate, ONLY then would they approve the claim. So this is when I decided to dig deeper and figure out the issue. If you are still under warranty use it -and make sure you record each issue and get a warranty extension on the part replaced in the event it happens again.
A: I do not have mine hooked up to a water line so can not help you with the ice question. Concerning the temperature not staying lit up mine does not either. It only lights up when you press it to let you know what temperature you want to set it at. It is not meant to tell you the current temperature. I have purchased 2 thermometers (1 for the refrigerator and 1 for the freezers) so that I can keep track of the actual temperature. Had to set the refrigerator at 38 instead of the original 39 to keep it in the proper safe zone.
Q: I don't need so much ice. Can I use a smaller ice tray. Also the ice tray takes up so much room.
A: Please answer this question... my wife and use ice every day, but unless we had a huge party, this ice cube storage tray is way to big using up valuable freezer space!
Q: In what country is this unit manufactured?
A: Hi there, thank you for your question. This unit is manufactured in China.
Q: Is there an on/off switch for the ice maker?
A: Yes, there is an on/off switch for the ice maker.
