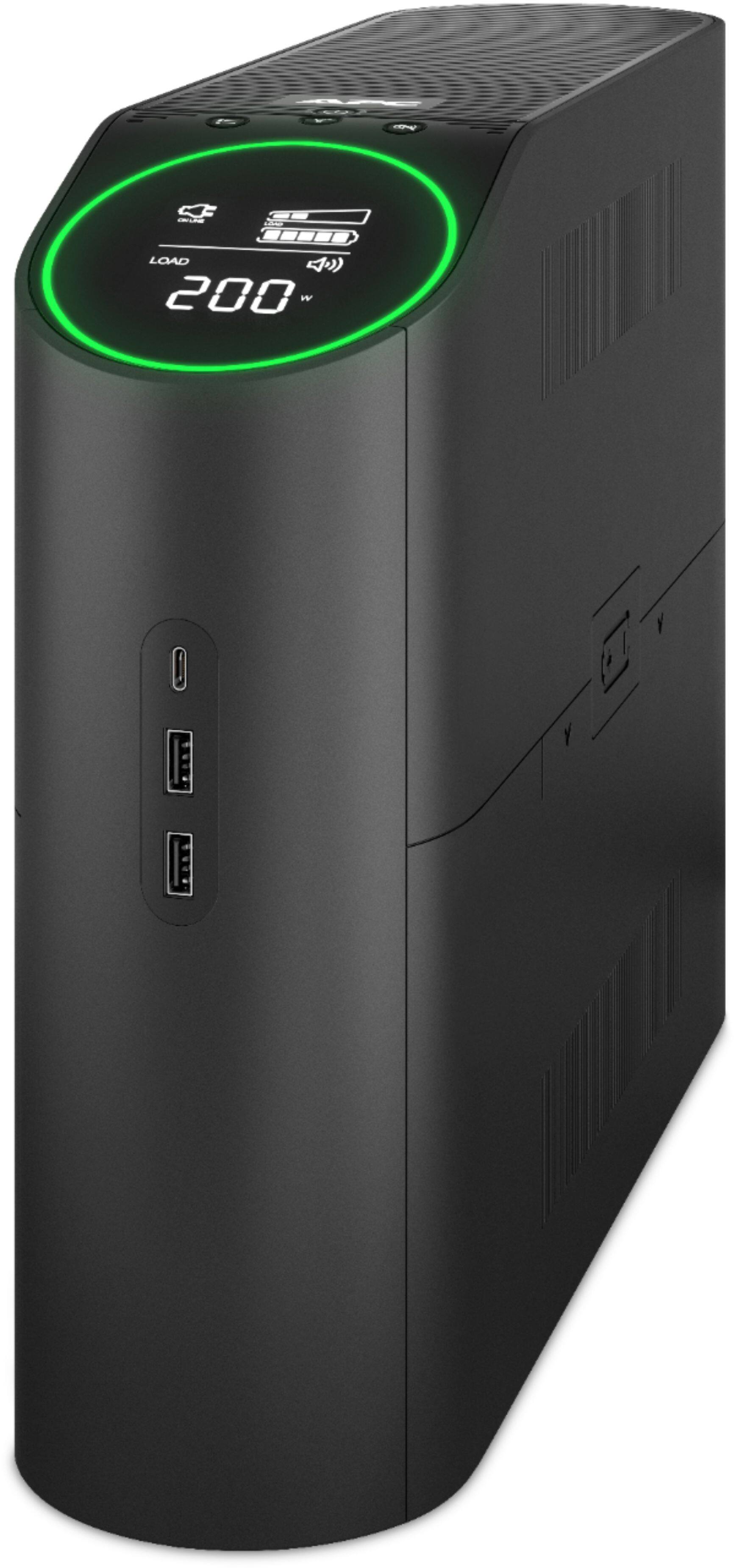

APC - Back-UPS Gaming 1500VA - 10 Outlet/3-USB Battery Back-up and Surge Protector - Midnight Black
- General
- Brand: APC
- Model Number: BGM1500B
- Product Name: Back-UPS Gaming 1500VA - 10 Outlet/3-USB Battery Back-up and Surge Protector
- Color: Midnight Black
- Power
- Battery Capacity: 1500 milliampere hours (The amount of energy stored in the battery.)
- Volt-Ampere Capacity: 1500 volt-amperes
- Half Load Maximum Run Time: 12 minutes
- Full Load Maximum Run Time: 3 minutes
- Wattage: 900 watts (Measurement of electrical power.)
- Joule Rating: 1080 joules
- Auto Shutdown Software: true
- Maximum Battery Life: 5 hours
- Features
- Diagnostic LEDs: true
- Fax Protection: false
- Modem Protection: true
- Phone Protection: false
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Connectivity
- USB Port(s): true
- Environmental
- EMI/RFI Noise Filter: true
- Dimensions
- Product Height: 11.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 16 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 25.5 pounds (The out of box weight of the item.)
- Cord Length: 6 feet
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 Year
- Other
- UPC: 731304410973
A gaming uninterruptible power supply (UPS) is a battery backup for your PC and console. APC Back-UPS™ Pro Gaming keeps you protected, connected, and in the game.
- Backup Power for Gaming PCs and Consoles: Power capacity of 1500VA / 900W provides battery power for devices during power outages
- Compatible Battery Power for Sensitive Gaming PCs and Consoles: Sine wave power on battery backup for your sensitive gaming gear
- 10 Outlets: 10 Total outlets: 6 battery backup outlets, plus 4 additional outlets with surge protection only. 3 USB Charging Ports: 2 Type-A, and 1 Type-C (5V/3A shared)
- LCD Display and Reactor Circle: Interactive LCD display with reactor circle that ticks down counterclockwise when on battery power to indicate the amount of battery time left
- Titled LCD: Tilted LCD display allows you to easily view UPS information from many angles
- LED Customization: 12 customizable RBG LED colors so you can match the UPS to your gaming setup
- Back LEDs: Rear RBG LEDs illuminate outlets so you can easily view where to plug in devices
- USB Ports: Use the easy-access USB ports in the front to charge gaming accessories or mobile phone
- Automatic Voltage Regulation: Automatic Voltage Regulation (AVR) instantly corrects high/low voltage fluctuations without using the battery, and is Active PFC compatible
- Dataline Protection: Surge-protected 1 Gb dataline ports and gold-plated co-axial ports
- Power Cord: 6' Power Cord with space saving right-angle wall plug
- User Conveniences: Hot-swappable, User-Replaceable batteries, and circuit breaker on the back for easy recovery
- Re-charge Time: 14 hour battery recharge time
- Warranty: 3 year APC warranty and $150,000 lifetime connected equipment protection policy
- Backup Power for Gaming PCs and Consoles: Power capacity of 1500VA / 900W provides battery power for devices during power outages
- Compatible Battery Power for Sensitive Gaming PCs and Consoles: Sine wave power on battery backup for your sensitive gaming gear
- 10 Outlets: 10 Total outlets: 6 battery backup outlets, plus 4 additional outlets with surge protection only. 3 USB Charging Ports: 2 Type-A, and 1 Type-C (5V/3A shared)
- LCD Display and Reactor Circle: Interactive LCD display with reactor circle that ticks down counterclockwise when on battery power to indicate the amount of battery time left
- Titled LCD: Tilted LCD display allows you to easily view UPS information from many angles
- LED Customization: 12 customizable RBG LED colors so you can match the UPS to your gaming setup
- Back LEDs: Rear RBG LEDs illuminate outlets so you can easily view where to plug in devices
- USB Ports: Use the easy-access USB ports in the front to charge gaming accessories or mobile phone
- Automatic Voltage Regulation: Automatic Voltage Regulation (AVR) instantly corrects high/low voltage fluctuations without using the battery, and is Active PFC compatible
- Dataline Protection: Surge-protected 1 Gb dataline ports and gold-plated co-axial ports
- Power Cord: 6' Power Cord with space saving right-angle wall plug
- User Conveniences: Hot-swappable, User-Replaceable batteries, and circuit breaker on the back for easy recovery
- Re-charge Time: 14 hour battery recharge time
- Warranty: 3 year APC warranty and $150,000 lifetime connected equipment protection policy
Whats Included
- Includes: USB cable, User manual
- Includes: USB cable, User manual
Q: Can you turn off the lighting on the unit, so the unit would be dark at night during sleeping hours?
A: I was able to turn off everything except the illuminated letters "APC" on the top of the unit. The manual's list of functions includes: Function: Turn on/off the led lights Timing: 6 seconds Description: Press and hold the LED button to turn on/off the LED lights status (buzzer will beep when 6 seconds pass). The status will cycle through: Front and rear LED on - Front LED on, rear LED off - Front LED off, rear LED on - Front LED and rear LED off. The manual didn't say anything about turning off the illuminated letters "APC" on the top of the unit. (I presume, but haven't tested, that when the unit is turned off, the letters won't be illuminated.)
Q: Does this model provide pure sine wave when on battery power?
A: Thank you for your interest in our products. Yes the BGM1500B would have a pure wine wave online and on battery.
Q: What is power switch time from AC to battery in milliseconds when AC power goes out?
A: Thank you for your interest in our products. The BGM1500B is a line interactive UPS. The transfer time would depend on the sensitivity setting is set too. At high it would be 2-4 milliseconds. At medium it would be 6-8 milliseconds. At low it would be 8-10 milliseconds.
Q: Can this unit be charged with a protentional harmonic rating of 23%THD from a standard generator?
A: Thank you for your interest in our products. 23% THD would be a bit high so there is a chance that the UPS would stay on battery the entire time the generator is running. If it does run on battery you can try dropping the sensitivity down to low but if the generator power is to far out of spec it will cause the UPS to stay on battery. Generally we recommend our SmartUPS or SmartUPS Online for use with a generator.
Q: i have 36 cameras at my business. will this battery back up be strong enough
A: Thank you for your interest in our products. It really depends on how much power the cameras draw. The BGM1500 would support 900 watts of equipment connected to it so it would need to be under that. I would see if you can find the specs on the cameras to see how much power they draw.
A: Thank you for your inquiry. Yes the UPS will turn back on once the battery is around 15%.
A: Thank you for inquiry. Yes they would both use the same software.
Q: How long would this run my dild-o?
A: Thank you for interest in our products. The runtime would really depend on how much power the connected devices draw. At 90 watts you would get around 1 hour and 24 minutes of runtime. If the power draw is lower which I suspect it will be the runtime will be higher. If the power draw is higher then the runtime will be lower.
