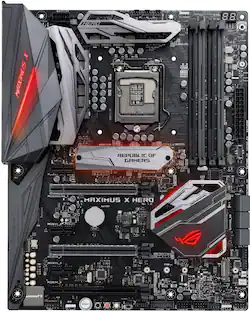

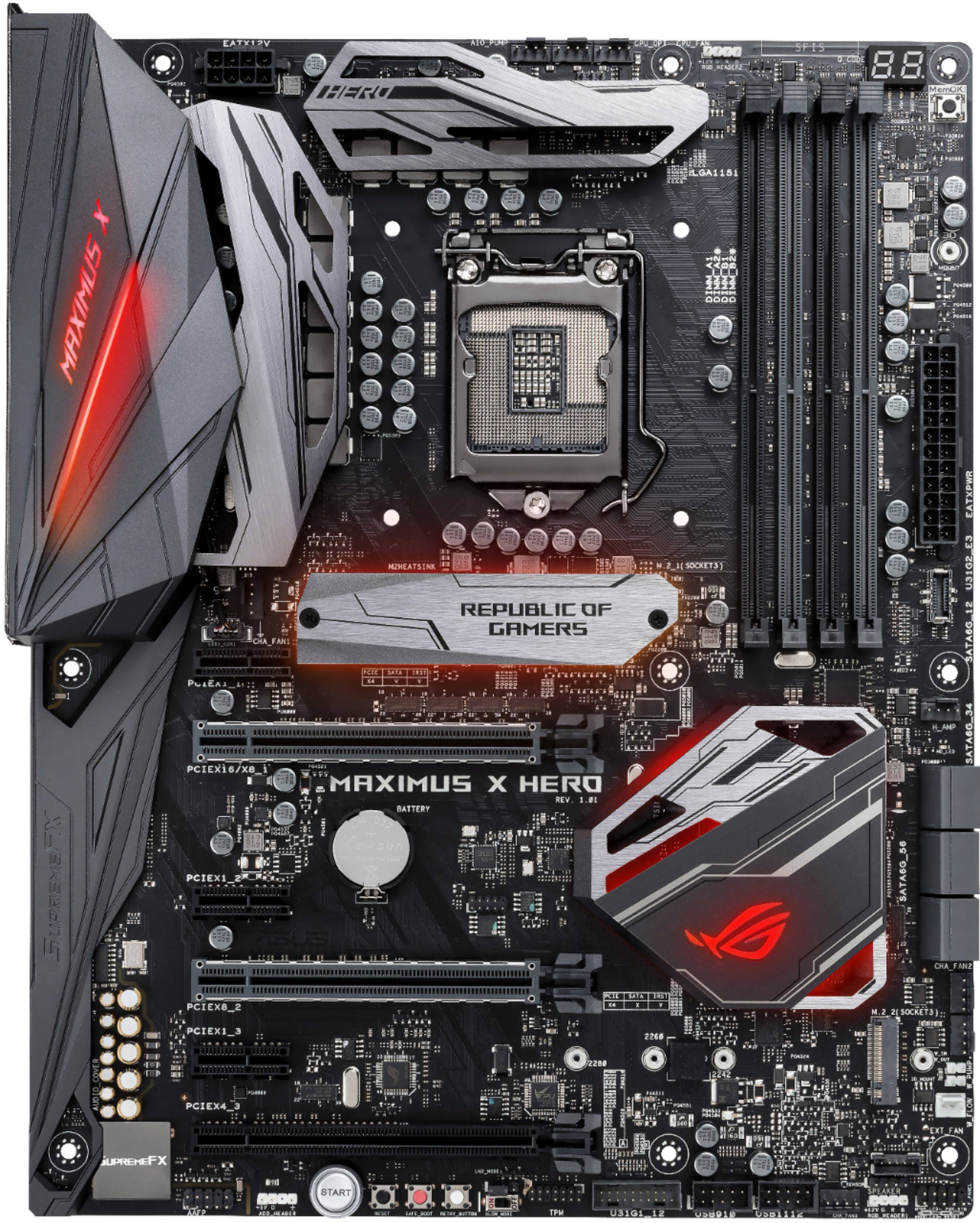

ASUS - ROG MAXIMUS X HERO (Socket LGA1151) USB 3.1 Gen 1 Intel Motherboard with LED Lighting - Black

Model: MAXIMUS X HERO
SKU: 6211749
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Chipset: Intel Z370
    • Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
    • Processor Socket: Socket LGA 1151 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
    • Number Of Memory Slots: 4
    • Maximum Memory Supported: 64 gigabytes
  • General
    • Brand: ASUS
    • Model Number: MAXIMUS X HERO
    • Product Name: Asus - ROG MAXIMUS X HERO (Socket LGA1151) USB 3.1 Gen 1 Intel Motherboard with LED Lighting
    • Color: Black
  • Compatibility
    • Chipset: Intel Z370
    • Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
    • Processor Socket: Socket LGA 1151 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
    • Processor Compatibility: Intel Core i5, Intel Core i3, Intel Core i7
  • Connectivity
    • Power Connector: 24-pin main power connector, 8-pin ATX12V connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
  • Slot
    • Number Of Memory Slots: 4
  • Dimensions
    • Product Length: 9.6 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
    • Product Width: 12 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Weight: 6.26 ounces (The out of box weight of the item.)
  • Memory
    • Maximum Memory Supported: 64 gigabytes
    • Memory Slot Type: 288-pin DIMM
  • Other
    • UPC: 889349756805

Create your dream computer with this Asus Maximus X Hero motherboard. Its RGB lighting and multiple presets let you design a custom look, and its dedicated 3D mounts make it easy to attach 3D-printed nameplates, cable covers and other parts. This Asus Maximus X Hero motherboard is compatible with eighth-generation Intel Core processors for maximum connectivity and speed.

PC Gaming Buying Guide

  • Supports Intel® processors: Including Core™ i5, Core™ i3 and Core™ i7 in an LGA 1151 socket.
  • Up to 4133MHz (OC) system speed: With an Intel® Z370 chipset for efficient operation.
  • NVIDIA 2-way SLI and AMD 3-way CrossFireX graphics support: Provides ultrarealistic image detail when gaming.
  • Four 288-pin DDR4 SDRAM DIMM sockets: Support up to 64GB of system memory.
  • Supports 8-channel SupremeFX (S1220) audio: For high-definition sound.
  • Peripheral interfaces: Include 1 HDMI, 1 DisplayPort, 4 USB 3.1 Gen 1, 1 LAN (Gigabit Ethernet), 1 audio line-in, 1 audio line-out, 1 microphone, 1 audio line-out (center/subwoofer), 1 audio line-out (rear), and more.
  • Expansion capabilities: Include 3 PCI Express 3.0 x16 and 3 PCI Express 3.0 x1.
  • Supports Intel® processors: Including Core™ i5, Core™ i3 and Core™ i7 in an LGA 1151 socket.
  • Up to 4133MHz (OC) system speed: With an Intel® Z370 chipset for efficient operation.
  • NVIDIA 2-way SLI and AMD 3-way CrossFireX graphics support: Provides ultrarealistic image detail when gaming.
  • Four 288-pin DDR4 SDRAM DIMM sockets: Support up to 64GB of system memory.
  • Supports 8-channel SupremeFX (S1220) audio: For high-definition sound.
  • Peripheral interfaces: Include 1 HDMI, 1 DisplayPort, 4 USB 3.1 Gen 1, 1 LAN (Gigabit Ethernet), 1 audio line-in, 1 audio line-out, 1 microphone, 1 audio line-out (center/subwoofer), 1 audio line-out (rear), and more.
  • Expansion capabilities: Include 3 PCI Express 3.0 x16 and 3 PCI Express 3.0 x1.
Whats Included
  • ASUS ROG MAXIMUS X HERO
  • 4 x Serial ATA cable
  • SLI bridge
  • 1 x M.2 screw, ROG coasters
  • 3D printing mount package
  • CPU installation tool
  • 2 RGB (RGBW) LED strip extension cables
  • MOS cooling kit, ROG big sticker
  • Software
  • ASUS ROG MAXIMUS X HERO
  • 4 x Serial ATA cable
  • SLI bridge
  • 1 x M.2 screw, ROG coasters
  • 3D printing mount package
  • CPU installation tool
  • 2 RGB (RGBW) LED strip extension cables
  • MOS cooling kit, ROG big sticker
  • Software
Product Manuals

Q: Does this board have any integrated wireless connectivity?

A: has no wireless connection, is a different version to another plate that does. WI-FI AC would be the other version that does.
