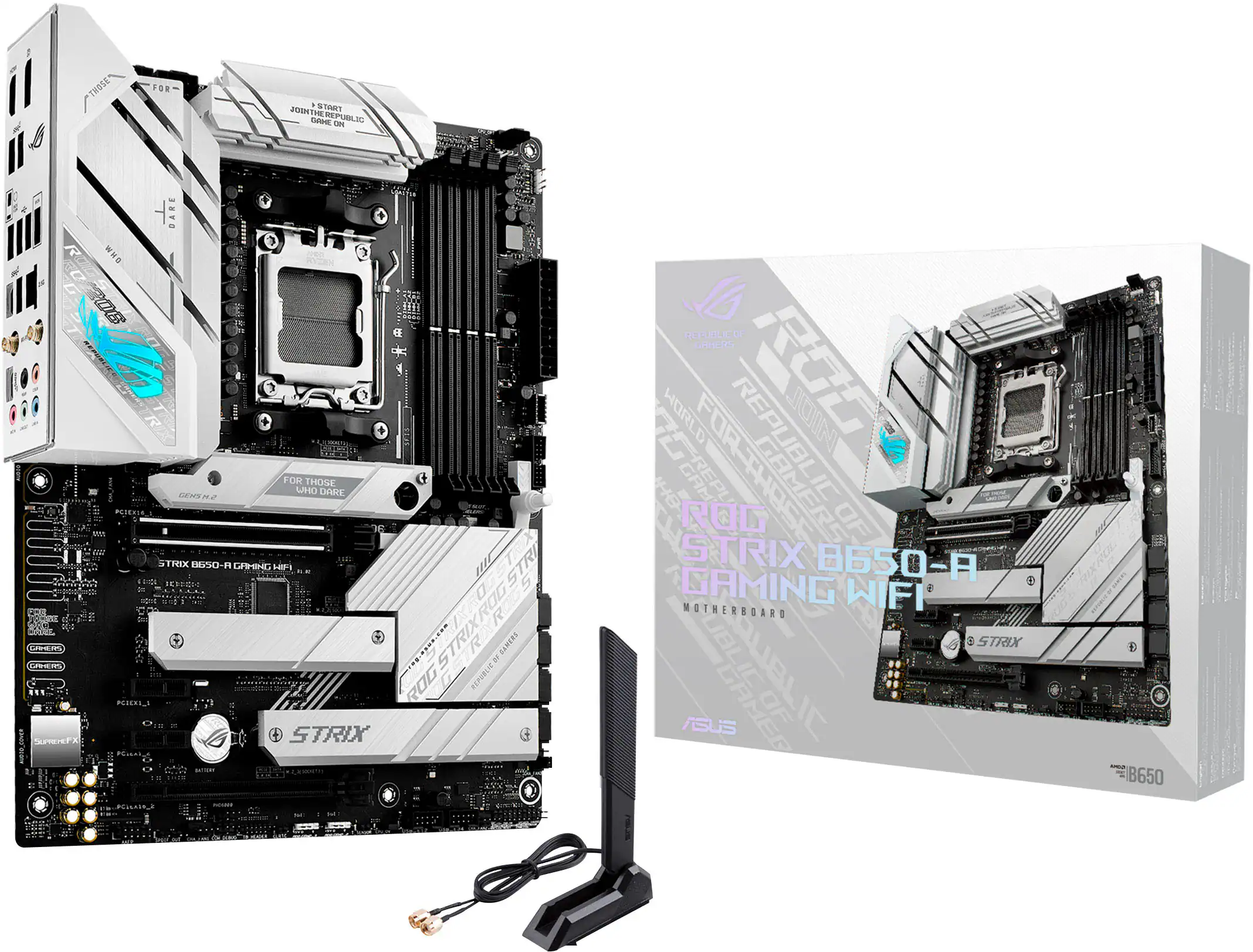

ASUS - ROG STRIX B650-A GAMING WIFI (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 6E Motherboard - White
NZXT - Kraken RGB 240mm Radiator CPU Liquid Cooler (2 x 120mm Core Fans) with RGB Controller and 1.54" LCD Display - White$203.99
More Buying Options
Specifications
- ChipsetAMD B650Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Number of PCI-E Slots4Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots4
- Key Specs
- Chipset: AMD B650
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 4 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASUS
- Model Number: ROG STRIX B650-A GAMING WIFI
- Product Name: ROG STRIX B650-A GAMING WIFI (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 6E Motherboard
- Color: White
- Year of Release: 2024
- Compatibility
- Chipset: AMD B650
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 7000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 5 7000 Series
- Operating System Compatibility: Windows 11 Home
- Slot
- Number of M.2 Slots: 3 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 4 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 3
- Number Of PCI-E x1 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- Power Connector: 24 (The configuration of the connector as it connects the motherboard to a power supply unit.)
- SATA Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Fan/Cooling System Connector: 7 (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports
- USB Ports: 4 x USB-A 2.0, 3 x USB-A 3.2, 2 x USB-C 3.2 (The number and type of USB ports the product has.)
- Thunderbolt Ports: 0 (The number and type of Thunderbolt ports the product has.)
- Audio Ports: 5
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 12.01 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 9.61 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 2.27 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- Multi-GPU Support: None
- RAID Support: RAID 01 (RAID 0+1) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 195553917766
ASUS ROG STRIX B650-A GAMING WIFI 6E white and silver scheme motherboard is designed with boosted power delivery and optimized cooling to cope with the demands of powerful Ryzen 7000 series processors. Along with Wi-Fi 6E and PCI Express 5.0 for superfast transfer speeds and storage, ROG STRIX B650-A GAMING WIFI 6E is ready to take the helm of your clean and neat white gaming gear.
- AMD Socket AM5(LGA 1718): Ready for AMD Ryzen 7000 Series desktop processors.
- Robust Power Solution: 12 + 2 power stages with 8 + 4 pin ProCool power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors.
- Optimized Thermal Design: Massive VRM heatsinks with strategically cut airflow channels and high conductivity thermal pads.
- Next-Gen M.2 Support: One PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots, all with heatsinks to maximize performance.
- Advanced Connectivity: One USB 3.2 Gen 2x2 Type-C and eight additional rear USB ports, USB 3.2 Gen 2 Type-C front-panel connector, HDMI 2.1, DisplayPort 1.4, and one PCIe 4.0 x16 SafeSlot
- AMD Socket AM5(LGA 1718): Ready for AMD Ryzen 7000 Series desktop processors.
- Robust Power Solution: 12 + 2 power stages with 8 + 4 pin ProCool power connectors, high-quality alloy chokes, and durable capacitors to support multi-core processors.
- Optimized Thermal Design: Massive VRM heatsinks with strategically cut airflow channels and high conductivity thermal pads.
- Next-Gen M.2 Support: One PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots, all with heatsinks to maximize performance.
- Advanced Connectivity: One USB 3.2 Gen 2x2 Type-C and eight additional rear USB ports, USB 3.2 Gen 2 Type-C front-panel connector, HDMI 2.1, DisplayPort 1.4, and one PCIe 4.0 x16 SafeSlot
Q: What type of memory does this motherboard support?
A: This motherboard supports DDR5 type memory.
Q: What is the maximum amount of memory supported by this motherboard?
A: The maximum memory supported is 192 gigabytes.
Q: How many M.2 slots are on this motherboard?
A: This motherboard has 3 M.2 slots.
Q: What socket type does this motherboard use?
A: This motherboard uses the AMD Socket AM5(LGA 1718).
Q: Why is this motherboard good for gaming?
A: This motherboard is designed with boosted power delivery and optimized cooling to cope with the demands of powerful Ryzen 7000 series processors, making it perfect for gaming.
Q: Does this motherboard have built-in Wi-Fi?
A: Yes, this motherboard comes with Wi-Fi 6E for superfast transfer speeds.
A: No, the AMD Ryzen 9 3900X processor will not fit on this Socket AM5 motherboard.
Q: Will this board support the AMD Ryzen 7 9700x chip?
A: Yes, the ASUS ROG STRIX B650-A GAMING WIFI motherboard does support the AMD Ryzen 7 9700X processor. It features the AM5 socket and is compatible with Ryzen 7000, 8000, and 9000 series CPUs, including the 9700X. https://rog.asus.com/motherboards/rog-strix/rog-strix-b650-a-gaming-wifi-model/spec/
Compare similar products
ASUS ROG STRIX B650-A GAMING WIFI 6E white and silver scheme motherboard is designed with boosted power delivery and optimized cooling to cope with the demands of powerful Ryzen 7000 series processors. Along with Wi-Fi 6E and PCI Express 5.0 for superfast transfer speeds and storage, ROG STRIX B650-A GAMING WIFI 6E is ready to take the helm of your clean and neat white gaming gear.
The B850 AORUS ELITE WIFI7 ICE supports AM5 Processors and features unparalleled performance. GIGABYTE B850 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
MAG B850 TOMAHAWK MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds.
The ASUS ROG Strix B850-A Gaming WiFi pairs powerful performance with sleek design. Featuring 14+2+2 power stages and thick metal heatsinks, it’s ready for AMD Ryzen 9000 Series processors. Enjoy DDR5 with AEMP, PCIe 5.0 M.2, WiFi 7 with Q-Antenna, four M.2 slots, advanced USB connectivity, and Aura Sync RGB.
| Pros for ASUS - ROG STRIX B650-A GAMING WIFI (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 6E Motherboard - White | |||
|---|---|---|---|
| Overall Performance, BIOS, Ease of use, Wi-Fi 6E, M.2 Slots | There were no pros for this product— | Overall Performance, BIOS, Features, Ease of Use, Connectivity | Overall Performance, Features, BIOS, Installation Ease |
Specs
Reviews
Customers are saying
Customers regard the ROG STRIX B650-A GAMING WIFI motherboard highly for its performance and ease of use, praising its straightforward setup and compatibility with various components. The built-in Wi-Fi 6E is also a frequently cited advantage, delivering fast and reliable connections. Many users appreciate the ample M.2 slots and the user-friendly BIOS.

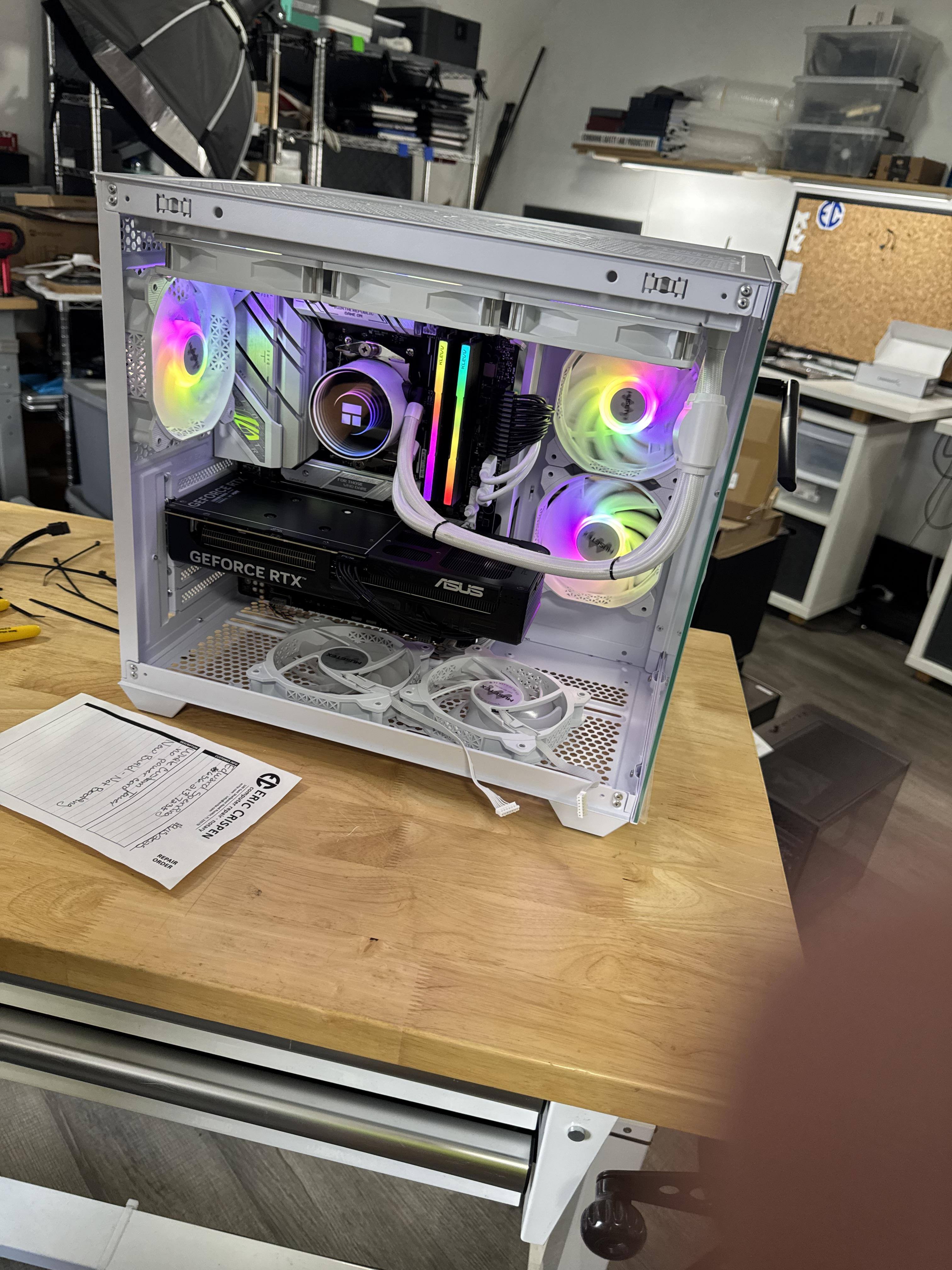

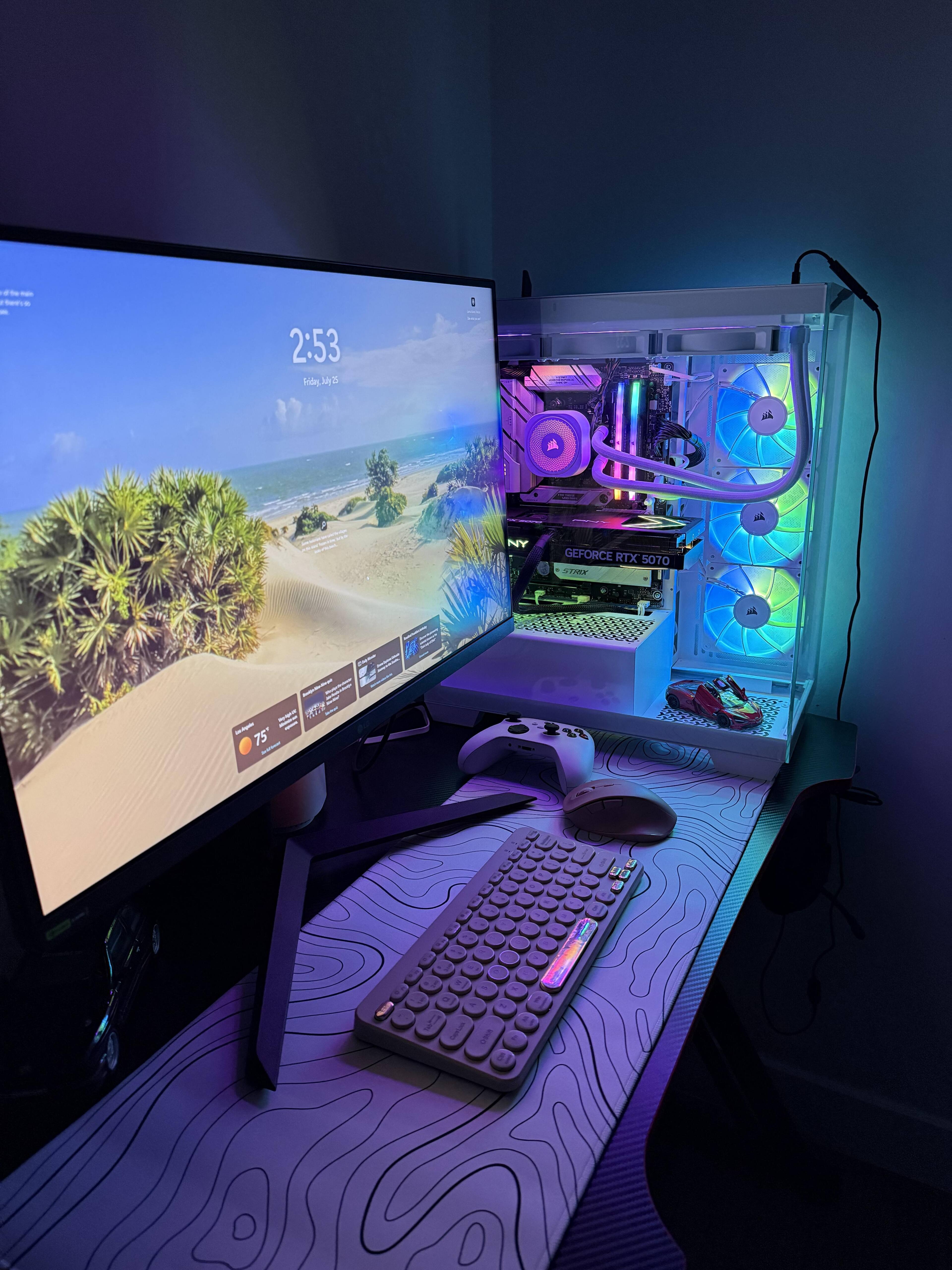

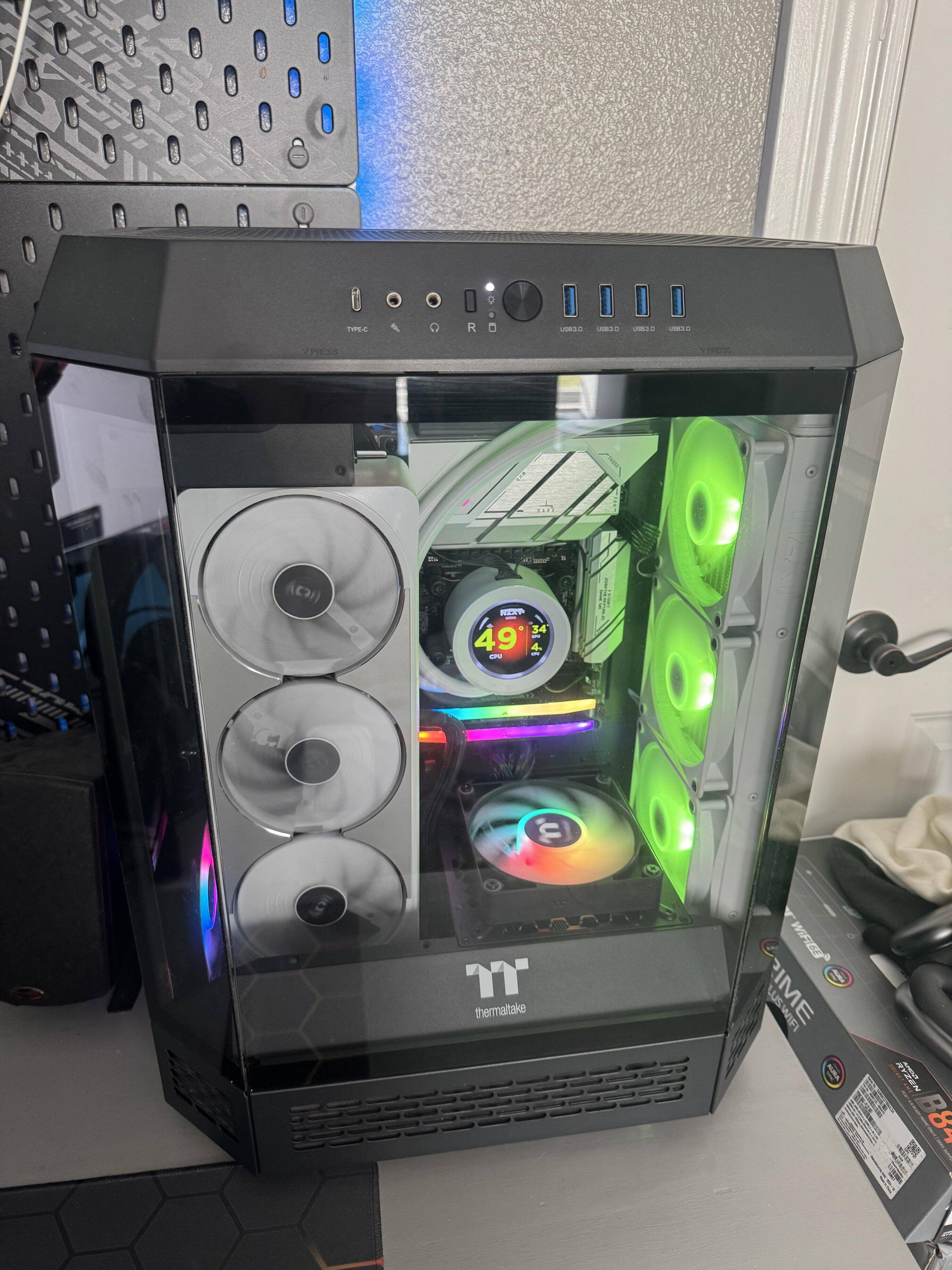

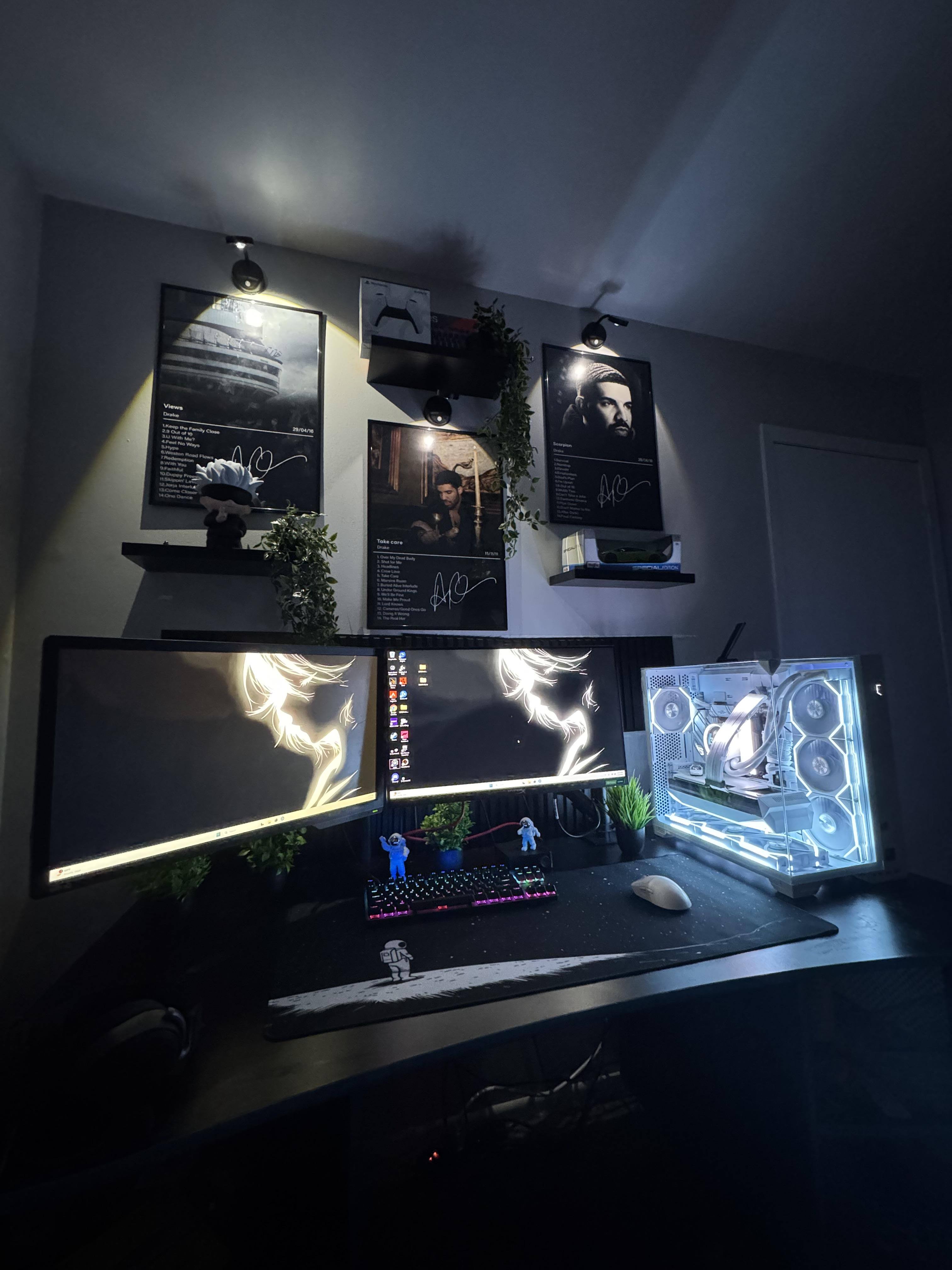

Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 4 out of 5 stars
Solid Mid-Range board with Great Performance
I recently upgraded to the ASUS ROG Strix B650 motherboard, I’ve been really impressed with its performance and ease of use. It’s perfect for anyone looking to build a mid-range gaming PC without overspending on features you might not use. The installation process was smooth, and the layout of the board is well thought out. There’s plenty of space for components, and the multiple fan headers are great for managing cooling. The BIOS is incredibly user-friendly, making it simple to adjust settings or tweak performance without being overwhelming, even for someone who isn’t a hardcore overclocker. One thing I appreciate is the support for DDR5 RAM, which helps the build. It also has enough M.2 slots for more and fast storage, and the built-in Wi-Fi works like a charm. On the downside, I had to upgrade the BIOS to the latest version already to be enabled my RAM speeds, but that was not complicated at all and but for a solid, reliable motherboard that hits all the essentials at a reasonable price, I’m really happy with it. Would definitely recommend it for anyone doing a new Ryzen build!
Posted by PauloR
- Rated 5 out of 5 stars
For those who dare!
This motherboard pairs well with most builds. I'm using a 7900XTX GPU with a AMD Ryzen™ 7 7800X3D CPU. Easy to install and cable manage. Motherboard has RGB that looks great. Sorry for my cable mgmt.. Easy to install, cant go wrong with ASUS ROG STRIX
Posted by Alexisdlr
- Rated 5 out of 5 stars
Great B650 Platform
I used this to build a new AMD Ryzen 9700X system. This is a higher end board, and it behaved accordingly. I had some failed overclocks (my fault) and recovering the bios and even upgrading was super easy with the provided instructions. The storage heatsinks so their job well and the board has an overall very pleasing look to it though the other components I used did end up obscuring most of that. Be sure to check you memory QVL when you select your RAM. Remember that booting a new AM5 platform for the first time will take longer than one might expect, be patient.
Posted by ReubenM
