product image

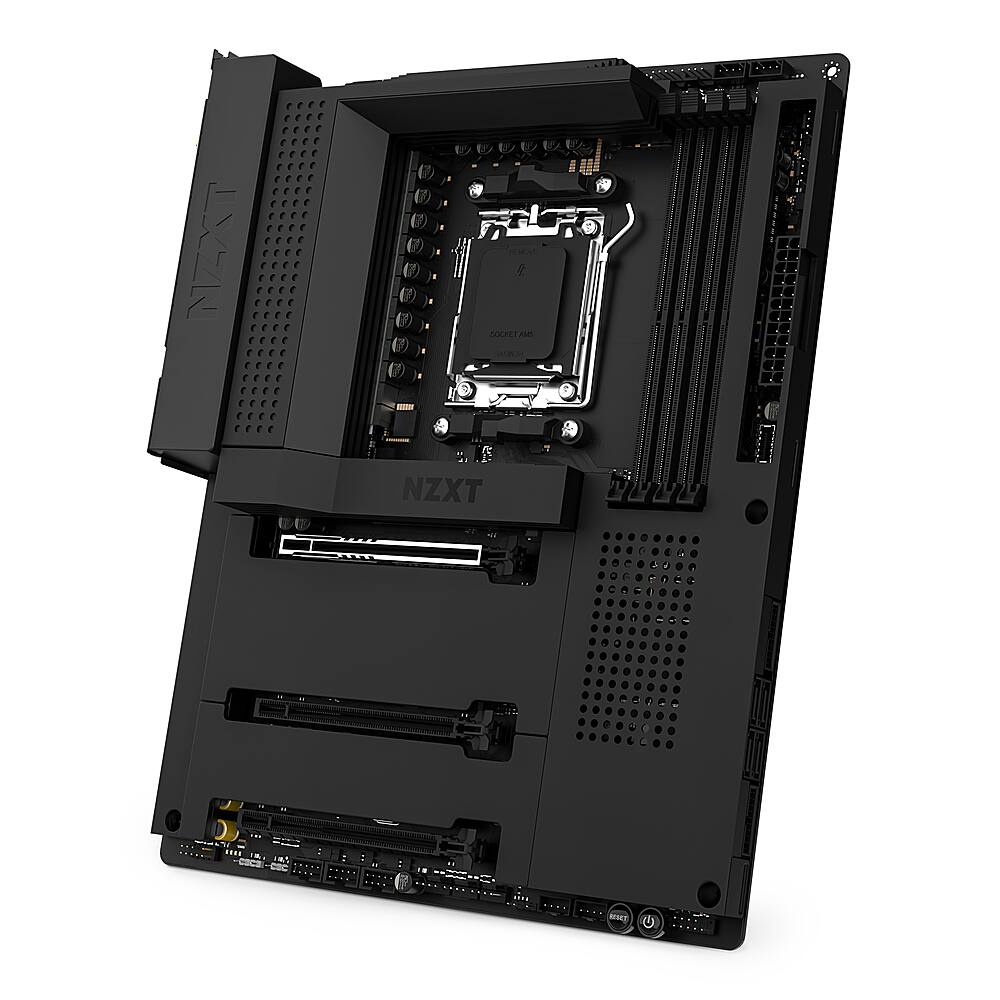

NZXT - B650E (Socket AM5) AMD B650E ATX DDR5 Wi-Fi 6E Motherboard - Black

Model: N7-B65XT-B1
SKU: 6538047
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Chipset: AMD B650
    • Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
    • Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
    • Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
    • Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
    • Number Of Memory Slots: 4
    • Maximum Memory Supported: 128 gigabytes
    • Memory Type Supported: DDR5, DDR5
  • General
    • Brand: NZXT
    • Model Number: N7-B65XT-B1
    • Product Name: B650E (Socket AM5) AMD B650E ATX DDR5 Wi-Fi 6E Motherboard
    • Color: Black
  • Compatibility
    • Chipset: AMD B650
    • Chipset Compatibility: AMD
    • Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
    • Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
    • Processor Compatibility: AMD Ryzen 9 7000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 5 7000 Series, AMD Ryzen 7 8000 Series, AMD Ryzen 9 8000 Series, AMD Ryzen 9 9000 Series
    • Operating System Compatibility: Windows 10, Windows 11 Home, Windows 11 Home in S Mode, Windows 11 Pro
  • Slot
    • Number of M.2 Slots: 1 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
    • Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
    • Number Of PCI-E x16 Slots: 3
    • Number Of Memory Slots: 4
  • Connectivity
    • Power Connector: 1 x24 pin, 1x 8+4 pin ATX 12V (The configuration of the connector as it connects the motherboard to a power supply unit.)
    • SATA Connector: 4x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
    • Fan/Cooling System Connector: 1 x 4-pin CPU_FAN connector(1) (The configuration of the connector as it connects a computer component to a fan or cooling system.)
    • Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
    • Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
    • Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
  • Ports
    • USB Ports: 2 x USB-A 2.0, 1 x USB-C 3.2, 2 x USB-A 3.2, 4 x USB-A 3.2 (The number and type of USB ports the product has.)
    • Audio Ports: 5x rear, 1x optical S/PDIF, 1x front panel audio connector
    • Number of Audio Channels: 8 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
  • Dimensions
    • Product Length: 305 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
    • Product Width: 244 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Weight: 43 ounces (The out of box weight of the item.)
  • Memory
    • Maximum Memory Supported: 128 gigabytes
    • Memory Type Supported: DDR5, DDR5
    • Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
    • Memory Speeds Supported: 6000 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
    • Memory Slot Type: 168-pin DIMM
  • Features
    • RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
  • Warranty
    • Warranty - Parts: 3 years
    • Warranty - Labor: 3 years
  • Other
    • UPC: 810074842884

Leverage the full value of your AMD Ryzen 7000, 8000 and 9000 series CPU with the AMD B650 chipset. The N7 B650E features upgraded compatibility as well as N7 favorites, such as digital RGB and fan control, Wi-Fi 6e, and more.

  • Ready to Rock: Integrated Wi-Fi 6E, a rear I/O shield, and clever port placement make the build process easy. There is also plenty of room on board for upgrades down the line.
  • Maximum Control: Easily customize lighting and cooling modes via NZXT CAM, with access to six RGB lighting channels. Configure lights and fans from any manufacturer.
  • Finishing Touch: A black metal cover conceals the inner workings, blending seamlessly with your case. The heat fins have been expanded to cool the PCIe Gen 5-enabled NVMe drive slot.
  • Supported RAM: DDR5
  • Graphics: Integrated AMD RDNA 2 graphics
  • Memory: 4 xDIMM Max, 128GB DDR5, Dual-channel DDR5 memory technology
  • Audio: Realtek ALC1220 Codec
  • Ready to Rock: Integrated Wi-Fi 6E, a rear I/O shield, and clever port placement make the build process easy. There is also plenty of room on board for upgrades down the line.
  • Maximum Control: Easily customize lighting and cooling modes via NZXT CAM, with access to six RGB lighting channels. Configure lights and fans from any manufacturer.
  • Finishing Touch: A black metal cover conceals the inner workings, blending seamlessly with your case. The heat fins have been expanded to cool the PCIe Gen 5-enabled NVMe drive slot.
  • Supported RAM: DDR5
  • Graphics: Integrated AMD RDNA 2 graphics
  • Memory: 4 xDIMM Max, 128GB DDR5, Dual-channel DDR5 memory technology
  • Audio: Realtek ALC1220 Codec
Whats Included
  • 1x N7 B650E Motherboard
  • 4x SATA cables (2 x 90°, 2 x 180°)
  • 2x M.2 screws
  • 2x Wireless antenna
  • 1x manual
  • 1x N7 B650E Motherboard
  • 4x SATA cables (2 x 90°, 2 x 180°)
  • 2x M.2 screws
  • 2x Wireless antenna
  • 1x manual
Disclaimers
  • Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11 and availability may vary by country and region. A 6GHz compatible router is required for 6E functionality.
  • Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11 and availability may vary by country and region. A 6GHz compatible router is required for 6E functionality.

Q: Is the NZXT N7 B650e compatible with the new ryzen 7 9800x3d?

A: Yes, the NZXT N7 B650e is compatible with the newest Ryzen 9 cpu's

Q: Does This support an Intel core I9 14900k?

A: This is only for AMD Am5 socket Ryzen Cpus. You'll want to find one that says "Intel Socket 1700" if you want to put that CPU in it.
