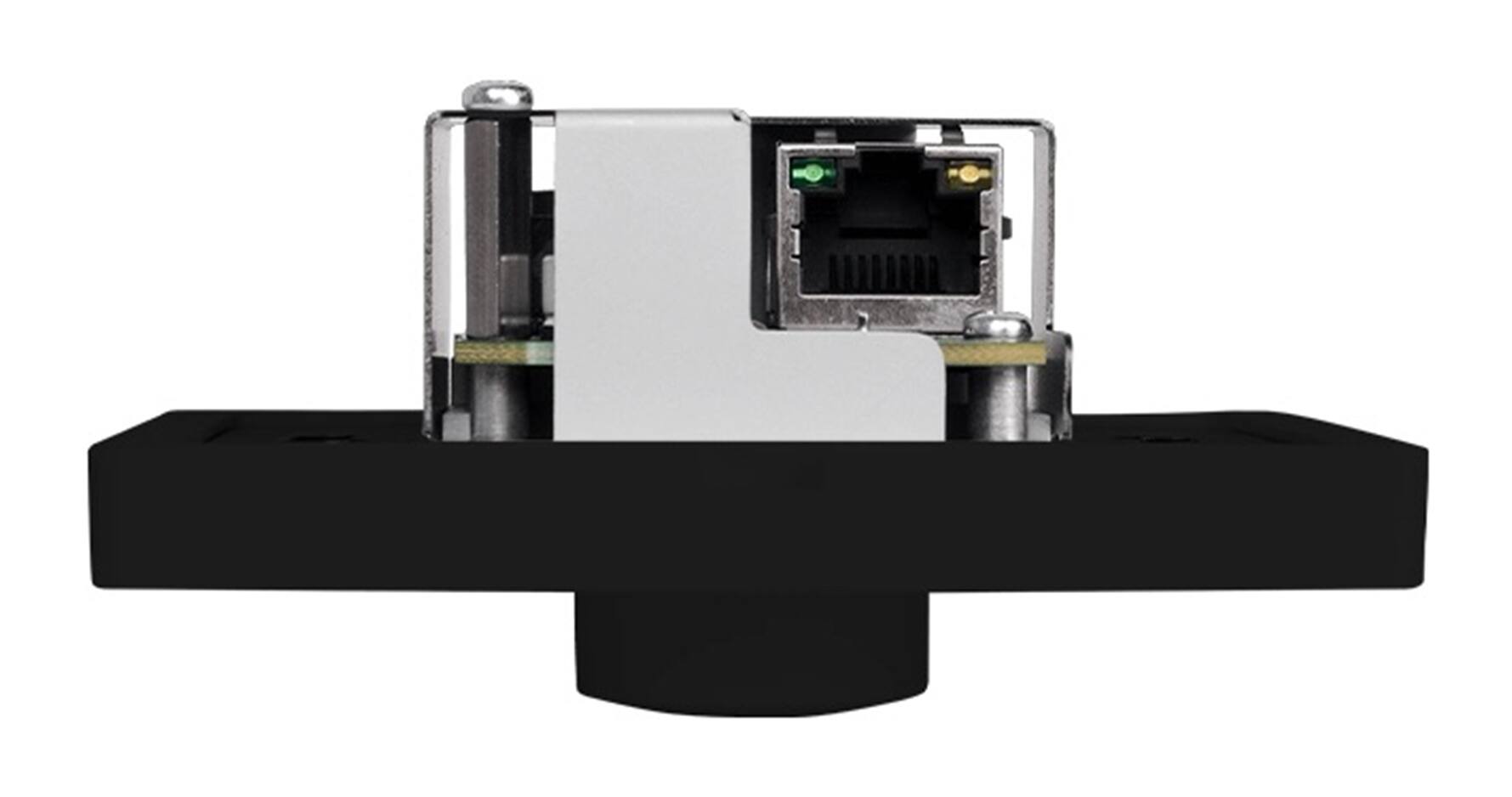

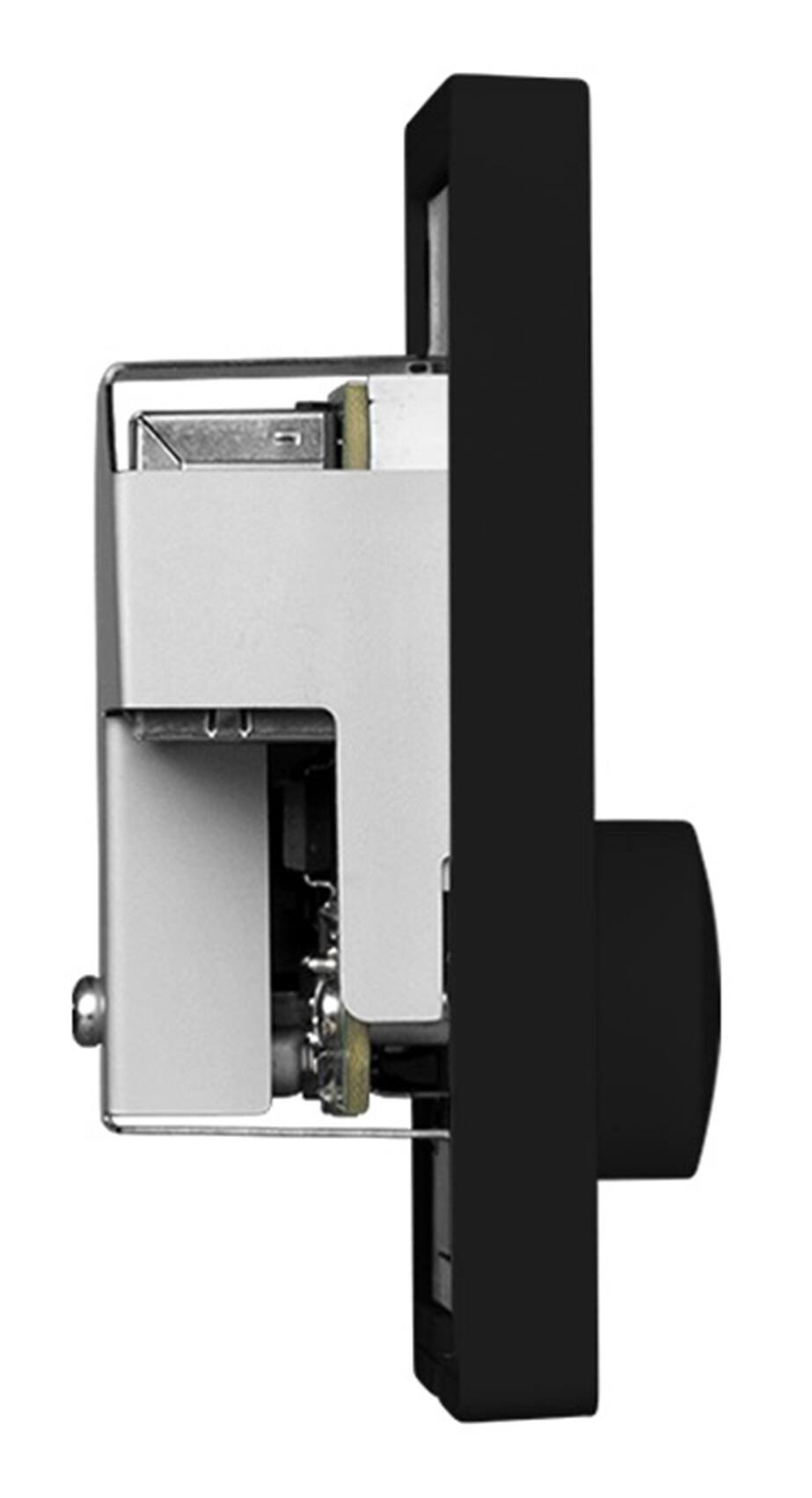

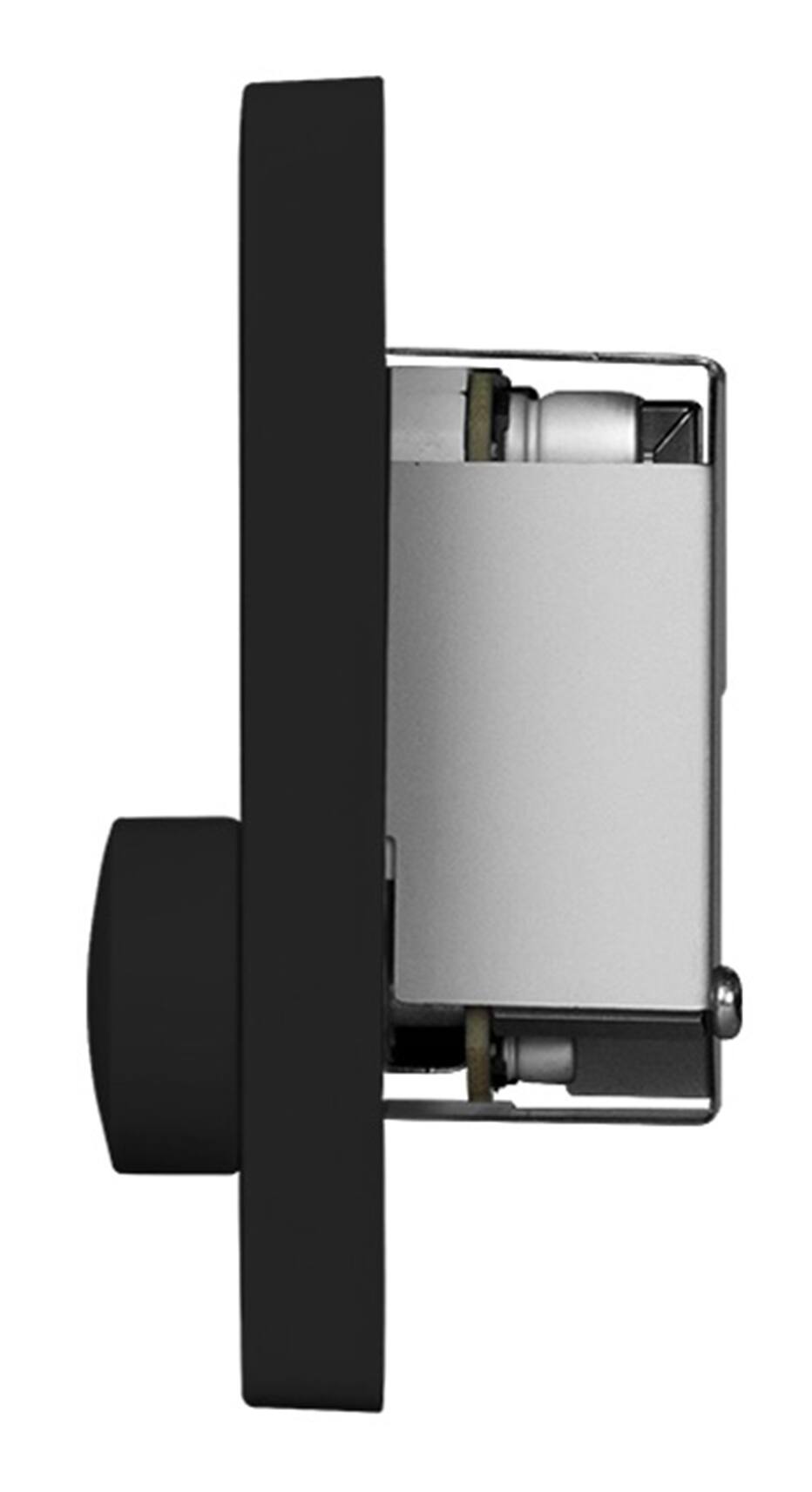

Sonance - Blaze Wall-M US - Multi-Zone PoE-Powered Wall-Controller (Each) - Black
Model: BGM-888-038
SKU: 6648592
This item is no longer available in new condition. See similar items below
- General
- Brand: Sonance
- Model Number: BGM-888-038
- Product Name: Blaze Wall-M US - Multi-Zone PoE-Powered Wall-Controller (Each)
- Color: Black
- Features
- Control Type: Rotary
- Dimensions
- Product Height: 3.42 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 3.42 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 1.68 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.26 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 810103861855
The Wall-M is a PoE-powered, wall-mounted controller that gives end users intuitive control over key zone functions such as volume and source selection, across up to 8 audio zones per PowerZone Connect amplifier. Wall-M supports up to 8 controllers per amplifier, with each unit configurable for eithermulti-zone or single-zone use, depending on the system configuration managed through the amplifier’s DSP.
- Minimalist Danish Design: Clean, modern appearance with concealed mounting screws.
- Comprehensive Zone Control: Easily manage source, volume, and mute across up to 8 independent audio zones.

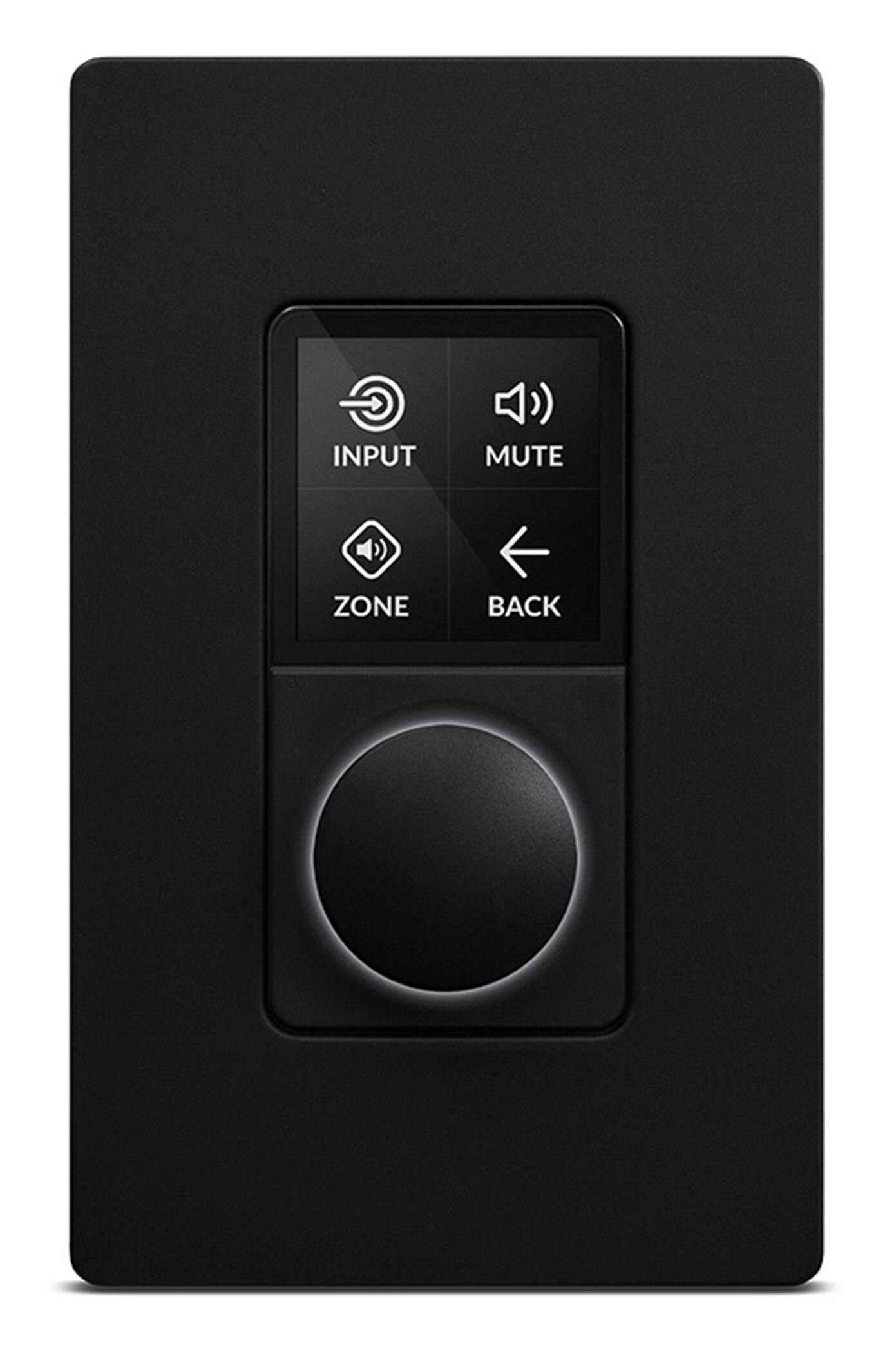

- Customizable Display: Integrated screen with adjustable themes, brightness, and button backlight for optimal visibility in any environment.
- Intuitive User Interface: Rotary encoder with center-click navigation ensures quick and simple operation.
- Exclusive PowerZone™ Integration: Pairs seamlessly with PowerZone™ Connect amplifiers (firmware 1.8+), supporting up to 8 controllers per amplifier.
- Amplifier Power Management: Direct control of amplifier power on/off from the wall controller.
- Simplified Installation via PoE: Powered by PoE Class 1 (48V) over Cat5e or higher cabling—no additional power supply required.
- Secure Operation: Optional PIN lock with multi-level access for added security in commercial environments.
- Flexible Setup: Configurable for single-zone or multi-zone operation; supports both DHCP and static IP addressing.
