Marantz - AMP 30 6-Channel Power Amplifier with 200 Watts and Exclusive HDAM - Black
Related Item
Specifications
- Continuous Watts x Channel @ Ohms200 Watts X 12 Channels @ 8 OhmsNumber of Channels6Network Connector(s)1 x RS-232, 1 x IR in
- Key Specs
- Continuous Watts x Channel @ Ohms: 200 Watts X 12 Channels @ 8 Ohms
- Number of Channels: 6 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Network Connector(s): 1 x RS-232, 1 x IR in
- General
- Brand: Marantz
- Model Number: AMP30
- Product Name: Marantz AMP 30 6-Channel Power Amplifier with 200 Watts and Exclusive HDAM
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 200 Watts X 12 Channels @ 8 Ohms
- Maximum Watts x Channel @ Ohms: 400 Watts X 6 Channels @ 4 Ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Number of Channels: 6 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Amplifier Type: Power amplifiers
- Inputs
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Network Connector(s): 1 x RS-232, 1 x IR in
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Outputs

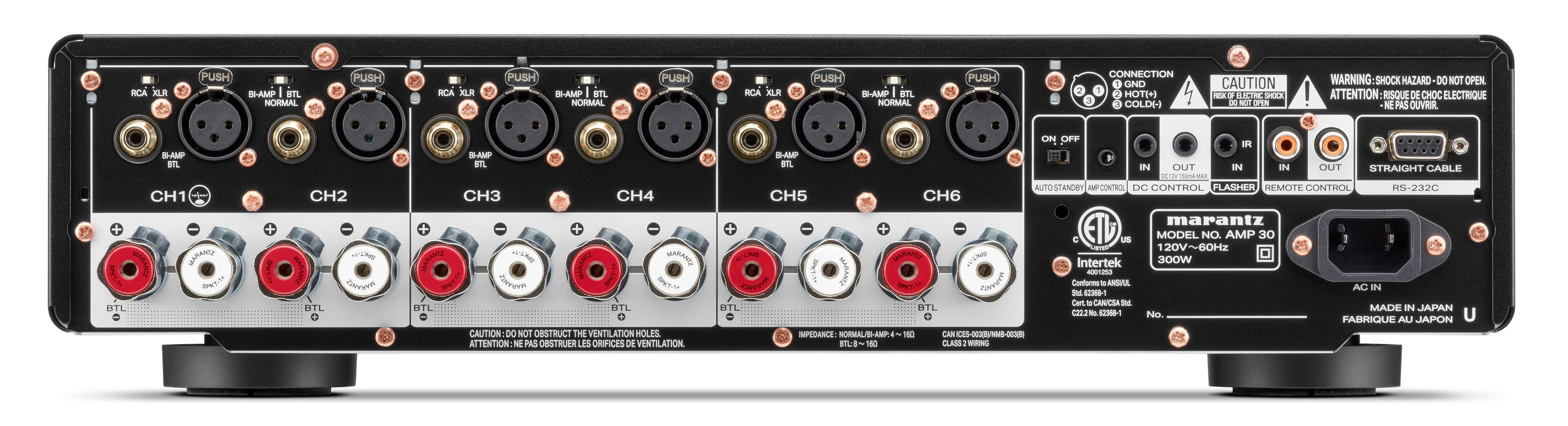

- Speaker Connection Type: Binding posts
- Video Only Outputs: No video only outputs, No video only outputs, No video only outputs (The number and type of video signal only outputs the product has.)
- Features
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Dimensions
- Product Height: 8.86 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 20.98 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21.26 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 27.34 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 years
- Other
- UPC: 747192145699

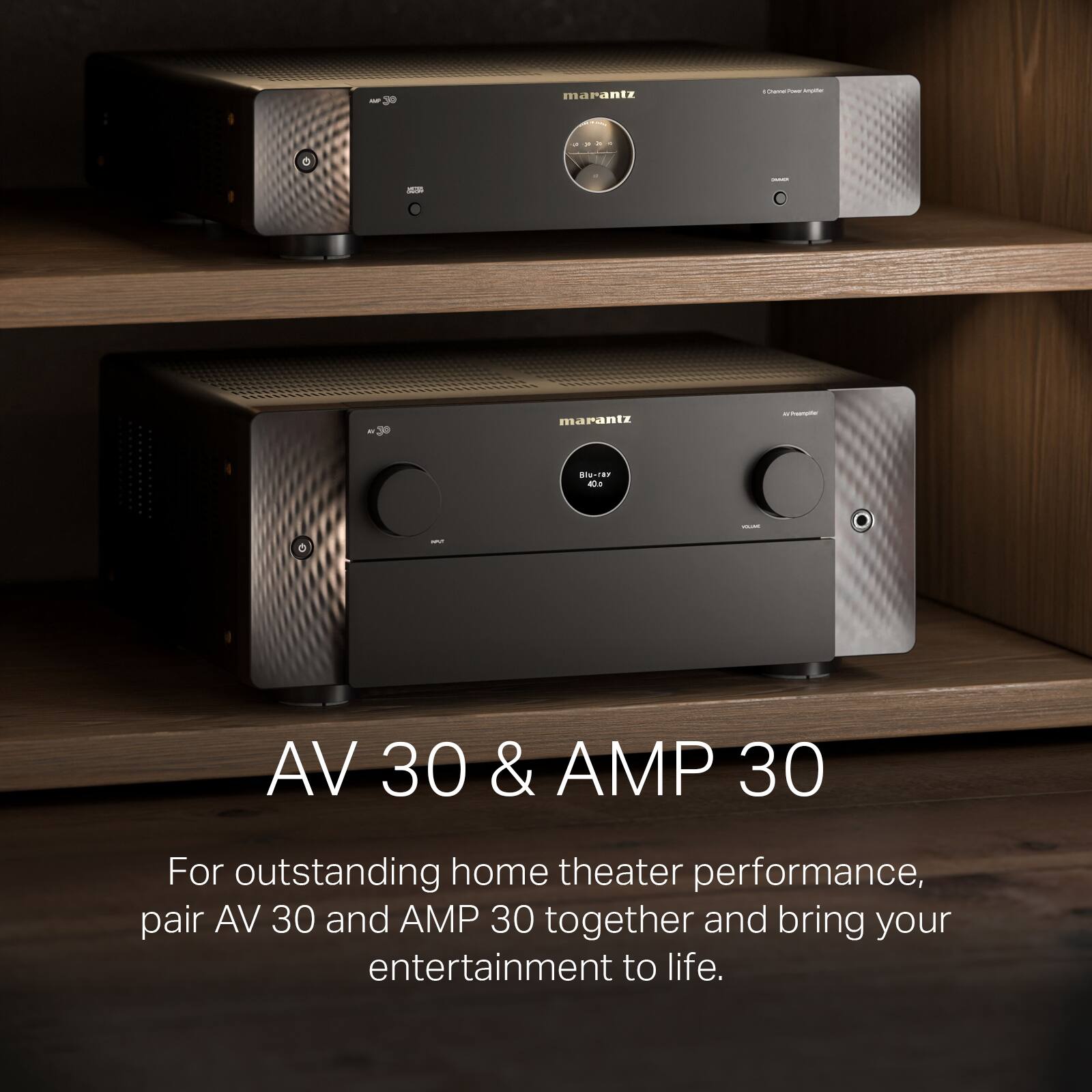

AMP 30 is a remarkably powerful slimline 6-channel amplifier, which can be paired with AV 30 for an outstanding home theater system. AMP 30 is rated at 200 watts per channel into 8 ohms and 400 watts per channel into 4 ohms, and is built on Marantz’s exclusive HDAM and high-efficiency low-distortion Class D amplification. Combine with additional AMP 30, AMP 20 or AMP 10 power amplifiers to drive more complex speaker configurations.
- Peerless Performance: AMP 30 delivers a thrilling movie experience, with immersive spaciousness, extraordinary detail, and lifelike dynamics.
- Technology Leader: AMP 30 is engineered using best-in-class technologies to enable extraordinary power output, and the dynamic, rich, warm sound for which Marantz is renowned.
- Easy Operation: When paired with AV 30 via the included link cable, AMP 30 can be controlled using the preamplifier. Power and illumination settings sync seamlessly for a unified experience.
- Elegant Design: A modern expression of timeless design principles, AMP 30 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel
Whats Included
- Main Unit
- Quick Start Guide
- AC cord
- Amp Control Cable
- Remote Control Cable
Q: How many channels does this power amplifier have?
A: This power amplifier has six channels.
Q: Does this amplifier use HDAM technology?
A: Yes, this amplifier is built on Marantz’s exclusive HDAM.
Q: Can this amplifier be paired with a preamplifier?
A: Yes, this amplifier can be paired with AV 30 preamplifier.
Q: Are there line-level inputs on this amplifier?
A: Yes, this amplifier has line-level inputs.
Q: What is the power output into 8 ohms?
A: The power output is 200 watts per channel into 8 ohms.
Q: Does this amplifier support being bridged?
A: Yes, this amplifier is bridgeable for increased power.
Q: What amplifier class does this unit use?
A: This amplifier operates in Class D.
Q: you can connect 3 speakers to this amp ?
A: Hello hhdd. Yes - you can connect three speakers to the AMP 30. With up to six speaker output ports, you have the choice of conventional mode, Bi-Amp mode or BTL (bridged) mode. Here is a link to the details: https://manuals.marantz.com/AMP30/NA/EN/DRDZSYwzvzpfqq.php
