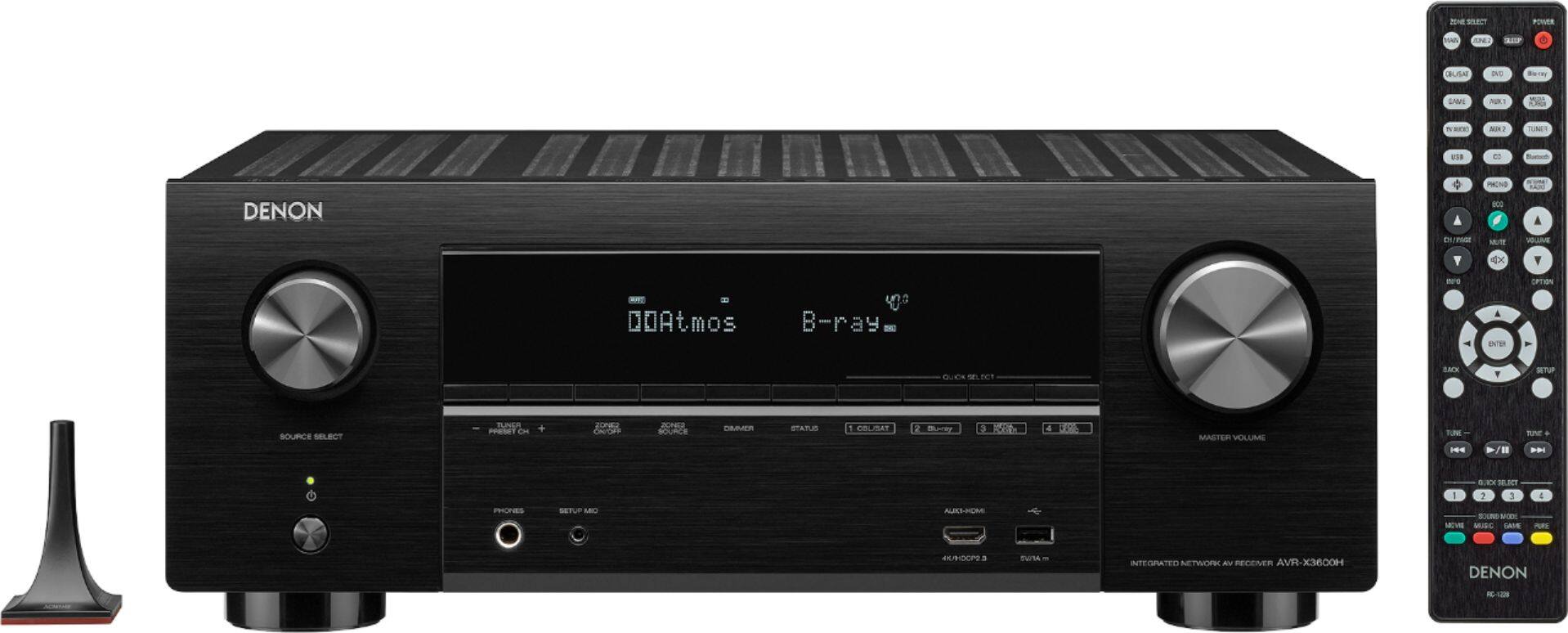

Denon - AVR-X3600H UHD AV Receiver (2019 Model) - 9.2 Channel, 105W Each | Airplay 2 Alexa & HEOS - Black
- Key Specs
- Number of Channels: 9.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Audio Only Inputs: 2 x Coaxial digital audio, 2 x Optical digital audio, 1 x Phono
- Video Pass-through: HDR, 2160 (4K) (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- General
- Product Name: AVR-X3600H UHD AV Receiver (2019 Model) - 9.2 Channel, 105W Each | Airplay 2 Alexa & HEOS
- Brand: Denon
- Model Number: AVR-X3600H
- Color: Black
- Audio
- Number of Channels: 9.2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- High Resolution Audio: true (Hear music the way musicians and sound technicians intended it to be heard. Products that support hi-res audio deliver audio signals with a dynamic range and bandwidth far greater than that of a standard CD so you'll be able to enjoy pure music with outstanding sound quality. The device supports high-resolution audio signals, which more closely resemble the quality of music as it was originally recorded, with more texture and detail than can be heard via typical music streaming services or CDs.)
- Surround Sound Supported: DTS:X, Dolby Atmos (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Inputs
- Audio Only Inputs: 2 x Coaxial digital audio, 2 x Optical digital audio, 1 x Phono
- Video Only Inputs: 2 x Component video (The number and type of video signal only inputs the product has.)
- Number of HDMI Inputs (Total): 2
- Number of USB Inputs: 1
- Video
- Video Pass-through: HDR, 2160 (4K) (Devices with this feature allow video signals to travel from their source to a target device without alteration. For example, a receiver with 4K pass-through would allow 4K video signal from a Blu-ray player to pass to a target TV with surround sound; without the pass-through ability, the receiver would not allow both 4K video and surround sound to be transmitted simultaneously.)
- High Dynamic Range Format: Dolby Vision, HDR 10, Hybrid Log-Gamma (HLG) (There are a few HDR formats that tell the TV or other HDR-compatible product how to best utilize its capabilities to display HDR content. HDR technology can support one or multiple formats, each with various benefits to picture quality.)
- Outputs
- Speaker Connection Type: RCA
- Number of HDMI Outputs (Total): 1
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Features
- Remote Control Included: true
- Dimensions
- Product Height: 9.52 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 20.43 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18.82 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 29.33 pounds (The out of box weight of the item.)
- Warranty
- Manufacturer's Warranty - Parts: 3 years
- Manufacturer's Warranty - Labor: 3 years
- Other
- UPC: 883795004855
Immerse yourself in high-power home theater with the Denon AVRX3600H. With 105W per channel (8 ohms, 20Hz-20kHz, THD .08%, 2 ch driven), the performance-tuned Denon amplifier delivers an amazing 3D audio experience with support for Dolby Atmos, DTS:X, DTS Virtual:X, Dolby Atmos Height Virtualization Technology and new IMAX Enhanced. Supports the latest 4K video technologies — including Dolby Vision, HDR10, and HLG as well as 4K video upscaling and ALLM — to ensure your TV or projector powers the ultimate in picture brightness, contrast and clarity. The 8 HDMI inputs and 3 outputs with eARC and full HDCP 2.3 support on all ports are compatibility with the latest HD and Ultra HD TVs, Blu-ray players and game consoles. The front-panel USB offers convenient audio playback of MP3 and Hi-Res audio formats (WAV, FLAC, ALAC and DSD 2.8/5.6MHz files). Stream popular music services like Spotify, Pandora, Tidal, Deezer and more wirelessly via Bluetooth, Apple AirPlay 2 and Wi-Fi with HEOS Built-in. Works with Amazon Alexa, Google Assistant and Apple Siri for effortless voice control. The powerful DSP is capable of 11.2 channel processing, allowing you to extend the system with an additional power amplifier. By visually guiding you through each step in the setup process, the award-winning Denon Setup Assistant ensures you get set up right the first time. Every home theater is different — that’s why Denon uses the premium MultEQ XT32 room calibration technology from Audyssey that automatically measures and optimizes your AV receiver to provide a truly immersive 3D audio experience custom-tailored to your unique listening environment.
- POWERFUL 9-CHANNEL AMPLIFIER WITH ADVANCED HOME CINEMA SPECS: 105 watts per channel deliver high power performance & features HDCP 2.3 support, advanced video processing with 4K upscaling and a 12V trigger output to connect an external device
- ADVANCED HDMI VIDEO SECTION WITH eARC (HDMI 8 In / 3 Out): Features 4K Ultra HD video, 4:4:4 Pure Color sub-sampling, Dolby Vision, HDR10, HLG, eARC, 3D & BT.2020. Plus a full suite of video calibration controls with ISF Day and ISF Night video modes
- MULTI-DIMENSIONAL AUDIO: Features Dolby Atmos, Dolby Atmos Height Virtualization, DTS:X & DTS Virtual:X. Set up a 9 channel, 7.2.4 system, add a two-channel amplifier to power additional surround speakers and two subs through the dual sub outputs
- IMAX ENHANCED TECHNOLOGY: Get the most premium, heart-pounding at-home cinematic entertainment with IMAX Enhanced. The digital content is remastered by IMAX to deliver better home theater imaging, superior sound and clearer pictures
- AWARD-WINING ON-SCREEN QUICK SETUP GUIDE: Walks you through simple, clear instructions to connect your TV, specify EQ settings & helps you optimize your surround sound. The back-panel is laid out with color-coded connections that makes organizing simple
- HOME AUTOMATION WITH CRESTRON CONNECTED: AVR-X3600H features external control & IP control capabilities with third-party integration like Control4 SDPP & is embedded with Creston Intelligence for seamless communication with Home Automation Systems
- APPLE, ALEXA, AND GOOGLE VOICE CONTROL: Sit back and enjoy music without having to reach out for the remote every now and then! Control this amp hands-free with Alexa. Adjust the volume, change the track or switch the inputs – “Just Ask.”
Whats Included
- Denon IN-Command Series 9.2-Ch. Bluetooth Capable With HEOS HDR Compatible A/V Home Theater Receiver
Q: What does tidal stand for ??? How do you use it ??? Thanks
A: Tidal is a streaming service like Amazon Music HD. You use Denon's Heos app, to stream Tidal's music into the Denon. Works effortlessly! About a dozen other steaming services can be used within the Heos app, including Spotify, Amazon, etc.
A: The 3500 could only power 7 channels and the 3600 can power 9 channels. The 3600 can also process up to 11 channels if you have an external amplifier for the last 2 channels.
Q: do i need a extra cooling fan?
A:
Hey philste4,
If the unit is in a cabinet where it has poor air circulation then this is recommended. Otherwise no it is not necessary.
Thanks,
Denon North America
A:
Hey Watson,
The AVR-X3600H AV receiver supports 3D video pass-through (720p/1080p only) from connected 3D-compatible Blu-ray, games and broadcast devices to 3D-compatible HDTVs (all 3D components must be connected via HDMI). Special eyewear will be required for viewing 3D content.
Thanks,
Denon North America
Q: Can I bi amp the front channels and still have 5.2.2
A: undefined
A: No. It has 2 zones.
A: Yes, will power 9 channels all on its own
