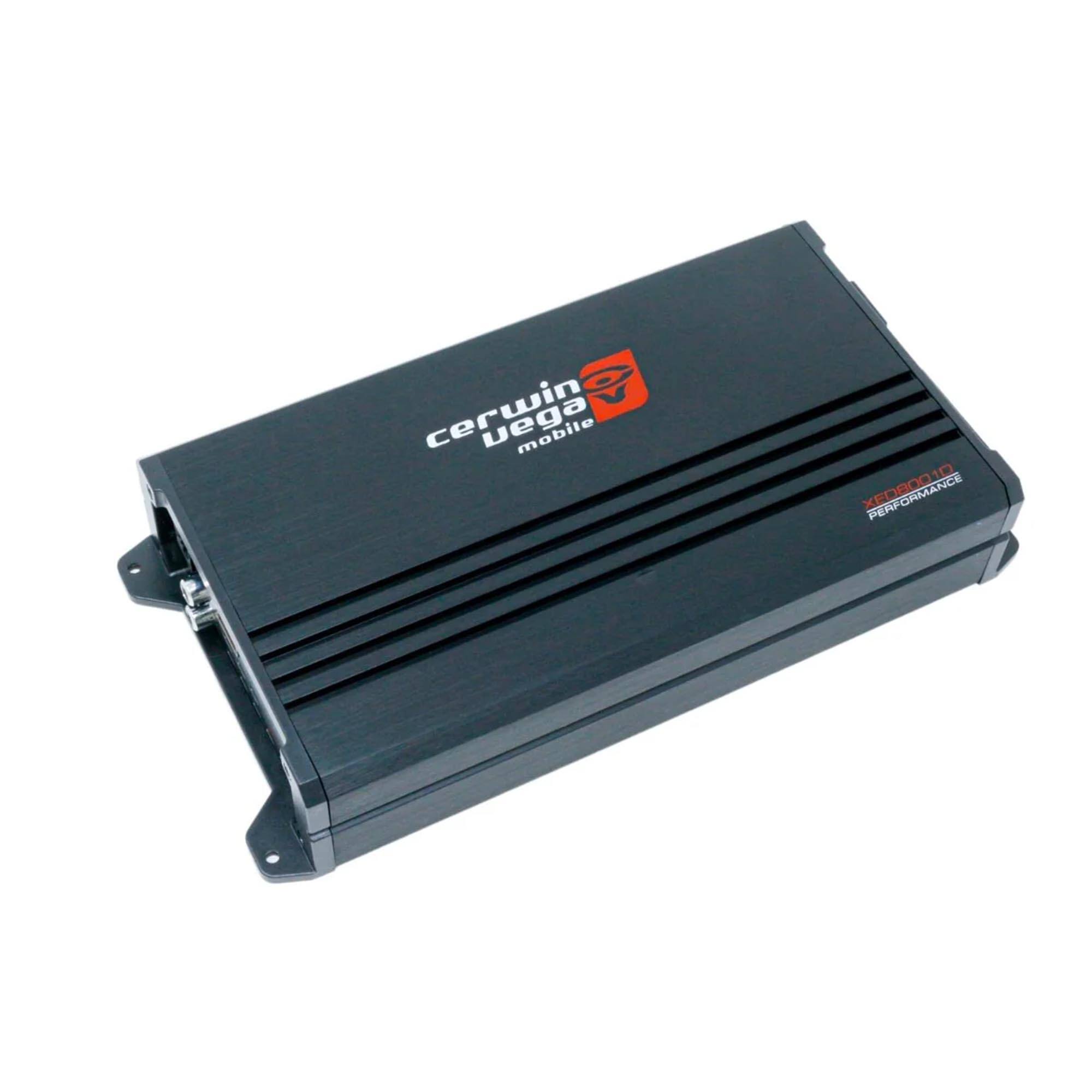

XED8001D - 1 Channel Class-D Amplifier. Cerwin-Vega XED Series Amplifiers – Xtreme Energy, Unleashed. The Cerwin-Vega XED Series Amplifiers are your ticket to high-performance car audio with power, precision, and reliability. Designed with Xtreme Energy Design, these amplifiers are engineered to take your sound system to the next level, delivering exceptional power and efficiency for every beat. Precision Engineering for Superior Performance. Class D Amplifier Technology: High-efficiency design ensures massive power output with minimal heat generation. Lightweight Aluminum Chassis: Enhances heat dissipation while reducing weight for efficient, long-lasting performance. Durability Meets Power Robust Construction: Crafted with premium components for consistent, reliable operation. Built for Demanding Setups: Ideal for high-power audio systems, effortlessly driving subwoofers and speakers with clean, distortion-free sound. Performance that Thrills The XED Series Amplifiers are built for those who crave deep bass, crisp highs, and seamless mids. With their cutting-edge technology and meticulous craftsmanship, they deliver the power and clarity needed to make every drive an immersive audio experience. Why Choose the XED Series? Unrivaled Efficiency: Advanced Class D technology provides unmatched power-to-heat performance. Durable & Lightweight: Aluminum construction ensures cool operation and lasting reliability. High-Energy Output: Perfect for audiophiles seeking powerful and dynamic sound reproduction."

• POWER RATING: Frequency Response (Hz): 35Hz-350Hz RMS Power per Channel 4Ω: 450W x 1 RMS Power per Channel 2Ω: 800W x 1 Power Supply – Full PWM. Power Supply Threshold: 10.0V-16.0V (DC). Idle Current: 0.7A. Distortion THD 4 (100Hz @4Ω): <0.1% S/N Ratio (A weighted @1W): -85dBA S/N Ratio (A weighted @FP): -101.1dBA
• INPUT SENSITIVITY: Low Input Level: 250mV-6V High Input Level: 1.1V~>20.0V Input Impedance – Low Input Level: 20KΩ, High Input Level: 100Ω. Output Stage – Output Impedance: 2Ω. Damping Factor (50Hz @ 4Ω): >70. Bandwidth (-3dB): 10Hz-250Hz.
• CROSSOVER (-12dB/Oct): Variable High-Pass: Variable Low-Pass: 35Hz-250Hz. Variable Sub-Sonic: 10Hz-50Hz. Fuse Rating ATC: 35A x 2 (Inside). Dimensions (L x W x H): 8.7” x 4.7” x 1.8” (220mm x 120mm x 46.5mm)
• FEATURES: Bass Boost: 0dB-12dB. LED Power/Protect Light Indicator. Bass Control Included. MFR #: XED8001D
• Key Feature: Built-In System Tuning and Remote Bass Control - Includes adjustable low-pass and subsonic filters, bass boost, LED power/protect indicator, and a wired remote bass control for in-vehicle adjustment.
