Cerwin Vega - - XED11001D XED Series 1-Channel Mono Block Class-D Amplifier - Black/Gray
More Buying Options from Marketplace sellers
Related Item
Specifications
- Amplifier ClassDNumber Of Channels1Bass BoostVariable
- Key Specs
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: Cerwin Vega
- Model Number: XED11001D
- Product Name: Cerwin Vega - - XED11001D XED Series 1-Channel Mono Block Class-D Amplifier
- Color: Black/Gray
- Audio Power
- Total Power Handling RMS: 1100 watts
- Total Power Handling Maximum: 2200 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Marine: false
- Dimensions
- Product Height: 1.8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.01 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 YEAR
- Warranty - Labor: None
- Other
- UPC: 847169054037
XED11001D - 1 Channel Class-D Amplifier. Cerwin-Vega XED Series Amplifiers – Xtreme Energy, Unleashed. The Cerwin-Vega XED Series Amplifiers are your ticket to high-performance car audio with power, precision, and reliability. Designed with Xtreme Energy Design, these amplifiers are engineered to take your sound system to the next level, delivering exceptional power and efficiency for every beat. Precision Engineering for Superior Performance – Class D Amplifier Technology: High-efficiency design ensures massive power output with minimal heat generation. Lightweight Aluminum Chassis: Enhances heat dissipation while reducing weight for efficient, long-lasting performance. Durability Meets Power – Robust Construction: Crafted with premium components for consistent, reliable operation. Built for Demanding Setups: Ideal for high-power audio systems, effortlessly driving subwoofers and speakers with clean, distortion-free sound. Performance that Thrills – The XED Series Amplifiers are built for those who crave deep bass, crisp highs, and seamless mids. With their cutting-edge technology and meticulous craftsmanship, they deliver the power and clarity needed to make every drive an immersive audio experience. Why Choose the XED Series? Unrivaled Efficiency: Advanced Class D technology provides unmatched power-to-heat performance. Durable & Lightweight: Aluminum construction ensures cool operation and lasting reliability. High-Energy Output: Perfect for audiophiles seeking powerful and dynamic sound reproduction. Unleash the full potential of your car audio system with Cerwin-Vega XED Series Amplifiers—where Xtreme Energy meets extreme performance.
- POWER RATING: Frequency Response (Hz): 35Hz-350Hz. RMS Power per Channel 4Ω: 650W x 1. RMS Power per Channel 2Ω: 1100W x 1. Power Supply – Full PWM. Power Supply Threshold: 10.0V-16.0V (DC). Idle Current: 0.7A.
- INPUT SENSITIVITY: THD 4 (100Hz @4Ω): <0.1%. S/N Ratio (A weighted @1W): -85dBA. S/N Ratio (A weighted @FP): -101.1dBA. Input Sensitivity – Low Input Level: 250mV-6V, High Input Level: 1.1V~>20.0V. Input Impedance – Low Input Level: 20KΩ, High Input Level: 100Ω.
- CROSSOVER (-12dB/Oct): Output Impedance: 2Ω. Damping Factor (50Hz @ 4Ω): >70. Bandwidth (-3dB): 10Hz-250Hz. Crossover (-12dB/Oct) – Variable High-Pass. Variable Low-Pass: 35Hz-250Hz. Variable Sub-Sonic: 10Hz-50Hz. Fuse Ratings – ATC: 35A x 3 (Inside). Dimensions (L x W x H): 11” x 4.7” x 1.8” (280mm x 120mm x 46.5mm)
- FEATURES: Bass Boost: 0dB-12dBLED Power/Protect Light IndicatorBass Control IncludedMFR #: XED11001D"

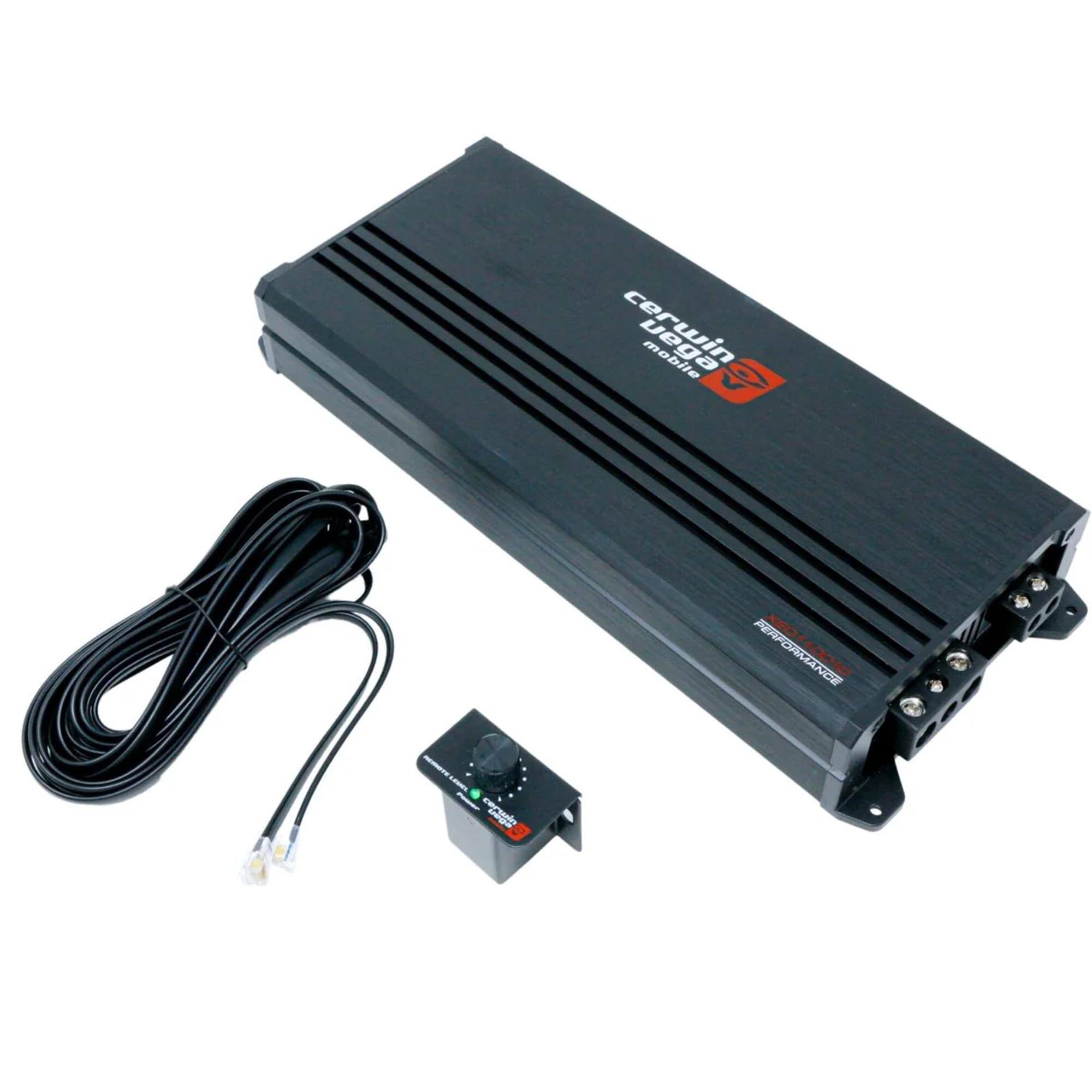

- Key Feature: Built-In System Tuning Controls - Includes adjustable low-pass and subsonic filters, bass boost control, and a remote bass level knob for fine-tuning subwoofer performance.
Whats Included
- AMP
