Cerwin Vega - Cerwin Vega- XED6001D XED Series 1-Channel Mono Block Class-D Amplifier - Black
FREE shipping to
Specifications
- Amplifier ClassDNumber Of Channels1Bass BoostVariable
- Key Specs
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: Cerwin Vega
- Model Number: XED6001D
- Product Name: Cerwin Vega- XED6001D XED Series 1-Channel Mono Block Class-D Amplifier
- Color: Black
- Audio Power
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Dimensions
- Product Height: 1.8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.7 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 7.1 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.01 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 847169054051
The Cerwin-Vega XED Series Amplifiers are your ticket to high-performance car audio with power, precision, and reliability. Designed with Xtreme Energy Design, these amplifiers are engineered to take your sound system to the next level, delivering exceptional power and efficiency for every beat.The XED Series Amplifiers are built for those who crave deep bass, crisp highs, and seamless mids. With their cutting-edge technology and meticulous craftsmanship, they deliver the power and clarity needed to make every drive an immersive audio experience.Unleash the full potential of your car audio system with Cerwin-Vega XED Series Amplifiers—where Xtreme Energy meets extreme performance.
- Precision Engineering for Superior Performance: Class D Amplifier Technology: High-efficiency design ensures massive power output with minimal heat generation. Lightweight Aluminum Chassis: Enhances heat dissipation while reducing weight for efficient, long-lasting performance. Durability Meets Power Robust Construction: Crafted with premium components for consistent, reliable operation. Built for Demanding Setups: Ideal for high-power audio systems, effortlessly driving
- Why Choose the XED Series?: Unrivaled Efficiency: Advanced Class D technology provides unmatched power-to-heat performance. Durable & Lightweight: Aluminum construction ensures cool operation and lasting reliability. High-Energy Output: Perfect for audiophiles seeking powerful and dynamic sound reproduction. Unleash the full potential of your car audio system with Cerwin-Vega XED Series Amplifiers—where Xtreme Energy meets extreme performance.
- Specifications: Power Rating (RMS) 600W x 1 @ 2Ω 320W x 1 @ 4Ω Power Supply Power Supply: Full WPM Power Supply Threshold: 10.0V-16.0V (DC) Idle Current: (0.7A) Distortion THD 4 (100HZ @4Ω): 0.1% S/N RATIO (A WEIGHTED @1W): -85dBA S/N RATIO (A WEIGHTED @FP): -101.1dBA Input Sensitivity Low Level Input: 250mV-6.0V High Level Input: 1.1V~>20.0V Low Level Input: 20KΩ High Level Input: 100KΩ

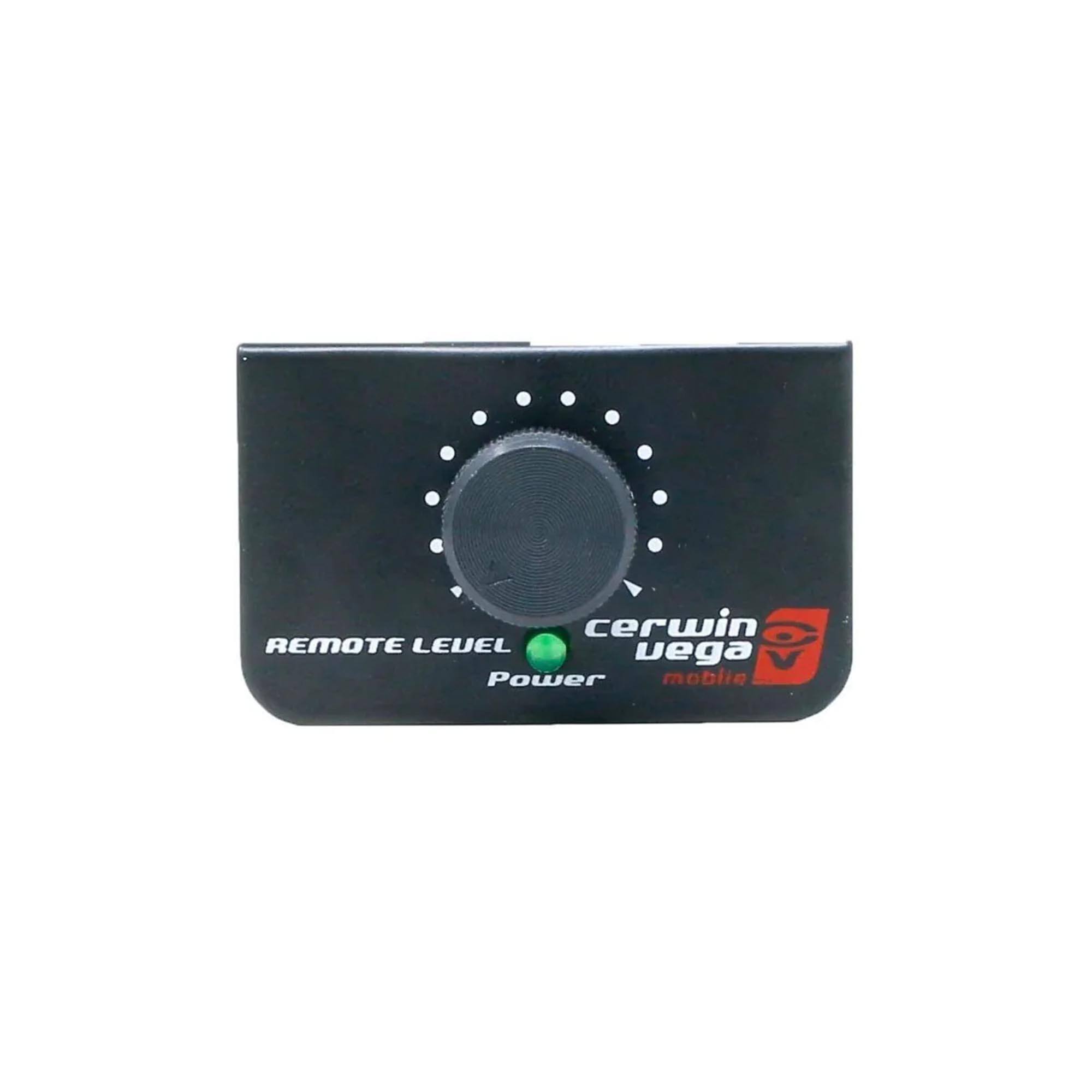

- Output Stage: Output Impedance: 2Ω Damping Factor (50Hz@4Ω): >70 Bandwidth (-3db): 10Hz-250Hz Crossover (1-12dB/Oct) Variable High-Pass: Variable low-Pass: 35Hz-250Hz Variable Sub-Sonic: 10Hz-50HZ Fuse Rating 2x30A (Inside) Dimensions Length x Width x Height: 7.1”x4.7”x1.8” (180mm x 120mm x 46.5mm) FEATURES Bass Boost: 0dB-12dB LED Power/Protect Light Indicator Bass Control Included MFR #: XED6001D
- Precision Engineering for Superior Performance: Class D Amplifier Technology: High-efficiency design ensures massive power output with minimal heat generation. Lightweight Aluminum Chassis: Enhances heat dissipation while reducing weight for efficient, long-lasting performance. Durability Meets Power Robust Construction: Crafted with premium components for consistent, reliable operation. Built for Demanding Setups: Ideal for high-power audio systems, effortlessly driving
- Why Choose the XED Series?: Unrivaled Efficiency: Advanced Class D technology provides unmatched power-to-heat performance. Durable & Lightweight: Aluminum construction ensures cool operation and lasting reliability. High-Energy Output: Perfect for audiophiles seeking powerful and dynamic sound reproduction. Unleash the full potential of your car audio system with Cerwin-Vega XED Series Amplifiers—where Xtreme Energy meets extreme performance.
- Specifications: Power Rating (RMS) 600W x 1 @ 2Ω 320W x 1 @ 4Ω Power Supply Power Supply: Full WPM Power Supply Threshold: 10.0V-16.0V (DC) Idle Current: (0.7A) Distortion THD 4 (100HZ @4Ω): 0.1% S/N RATIO (A WEIGHTED @1W): -85dBA S/N RATIO (A WEIGHTED @FP): -101.1dBA Input Sensitivity Low Level Input: 250mV-6.0V High Level Input: 1.1V~>20.0V Low Level Input: 20KΩ High Level Input: 100KΩ
- Output Stage: Output Impedance: 2Ω Damping Factor (50Hz@4Ω): >70 Bandwidth (-3db): 10Hz-250Hz Crossover (1-12dB/Oct) Variable High-Pass: Variable low-Pass: 35Hz-250Hz Variable Sub-Sonic: 10Hz-50HZ Fuse Rating 2x30A (Inside) Dimensions Length x Width x Height: 7.1”x4.7”x1.8” (180mm x 120mm x 46.5mm) FEATURES Bass Boost: 0dB-12dB LED Power/Protect Light Indicator Bass Control Included MFR #: XED6001D
Whats Included
- amp
- amp
