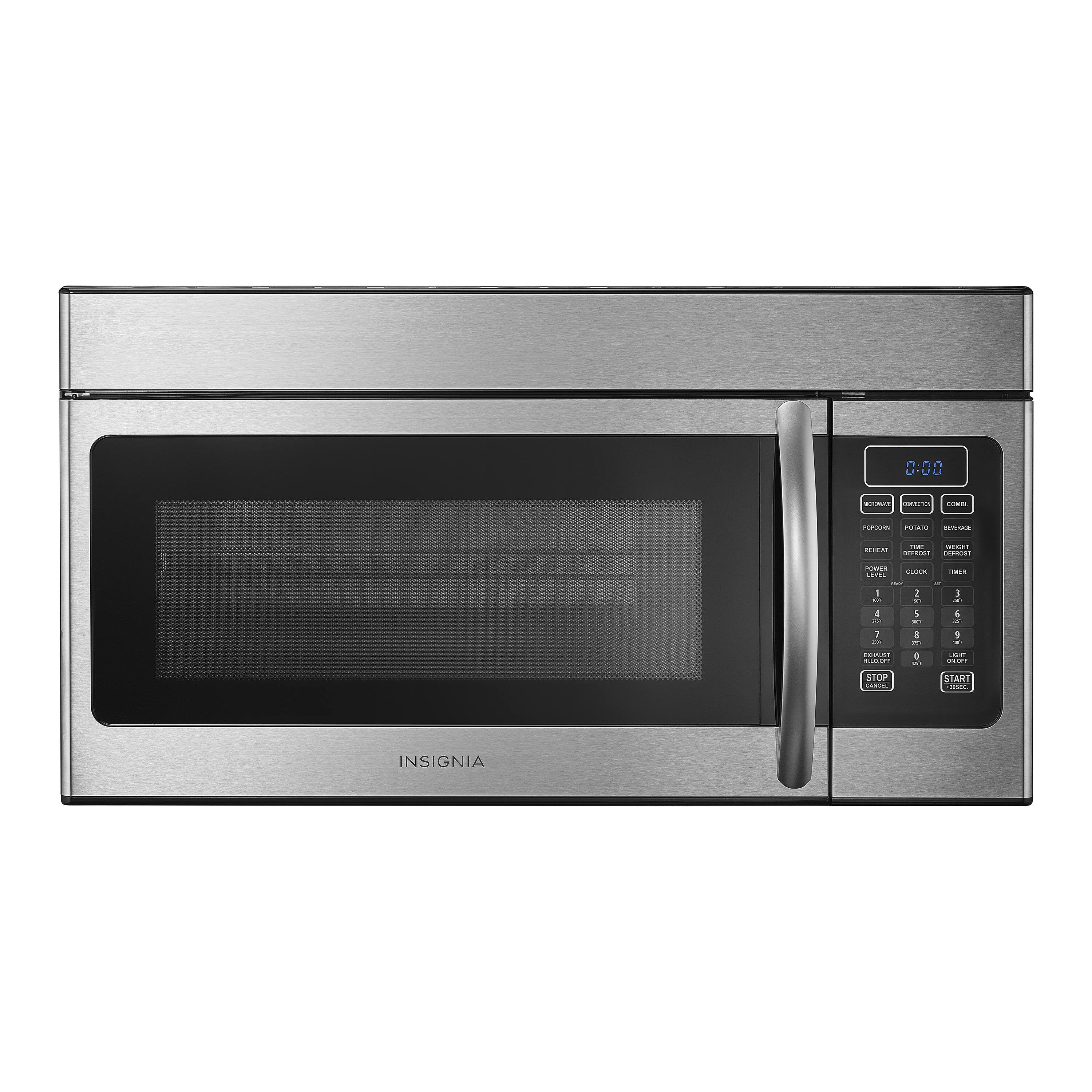

Insignia™ - 1.5 Cu. Ft. Convection Over-the-Range Microwave - Stainless Steel
- Key Specs
- Color Finish: Stainless steel
- Product Height: 16 15/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Turntable Diameter: 13 5/8 inches
- Control Type: Touchscreen
- Sensor Cook: false (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Wattage: 900 watts (Measurement of electrical power.)
- General
- Brand: Insignia™
- Model Number: NS-OTRC15SS9
- Product Name: 1.5 Cu. Ft. Convection Over-the-Range Microwave
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 16 15/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 62.2 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 16 15/16 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 30 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Capacity: 1.5 cubic feet
- Microwave Size: Full-size
- Connectivity
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Features
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Interior Material: Steel
- Fingerprint Resistant: false
- Timer: true
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
- Removable Turntable: true
- Turntable Diameter: 13 5/8 inches
- Interior Light(s): true
- Cooktop Lighting: true (A light that illuminates the cooktop below.)
- Nightlight: false
- Controls
- Control Type: Touchscreen
- Sensor Cook: false (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Display Type: LED
- Number of Preset Programs: 4
- Number of Fan Speeds: 2
- Number of Power Levels: 10
- Turntable On/Off Option: false
- Functions
- Oven Cooking Modes: Convection, Defrost
- Oven Preset Settings: Popcorn, beverage
- Filter Info
- Filter Type: Charcoal
- Removable Filter: true
- Ventilation
- Vent Style: Recirculating (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Exhaust Vent Location: Top
- Maximum Air Flow Capacity: 300 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Electrical Specification
- Amperage: 14 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 900 watts (Measurement of electrical power.)
- Power Consumption: 1500 watts
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Other
- UPC: 600603230165
Appliances should upgrade the functions of your kitchen. The Insignia NS-OTRC15SS9 1.5 Cu. Ft. Convection Over-the-Range Microwave saves you counter space and features everything you need in a microwave. With 900 W of power and a 1.5 cu. ft. interior, reheat meals or prepare yourself a snack with a touch of a button. Four auto-cook menu options, ten power levels, a two-speed exhaust fan, three heat modes and a defrost setting grant you ideal heating options for any type of dish. Control it all with a simple and straight-forward digital LED display. A removable 13.6 in. glass turntable ensures that your food is evenly heated and makes cleaning the inside of the microwave easy to do. Offering your kitchen extra lighting, this Insignia microwave has task lighting that lights up your stovetop with a press of a button. It also has a stainless-steel finish, giving your kitchen the modern style you’re looking for.
- 1.5 cu. ft. interior: Reheat large portions or cook a snack for your family and friends.
- Over-the-range design: Saves you countertop space.
- 900W of microwave cooking: Cook or reheat meat, vegetables, pasta and more at the touch of a button.
- Two-speed exhaust fan: Vents through the top, back or recirculates for even cooking.
- 4 auto-cook menu options: Cook popcorn, potatoes, beverages or reheat items based on quantity.
- 30-second express cooking: Heats with one press.
- Removable 13.6-inch glass turntable: Automatically rotates to evenly heat food and provides easy cleaning.
- 10 power levels: Heats food to your exact preference.
- 3 heat modes: Provides a variety of heat options with microwave, convection, or microwave/convection heat modes.
- Defrost setting: Thaw frozen items when you need them.
- Integrated cooking light: Check your items as they are heating to prevent overcooking or burning.
- Task lighting: Lights up your stovetop for an extra light source in your kitchen.
- Child lock: Keeps your children safe from accidents.
- 1.5 cu. ft. interior: Reheat large portions or cook a snack for your family and friends.
- Over-the-range design: Saves you countertop space.
- 900W of microwave cooking: Cook or reheat meat, vegetables, pasta and more at the touch of a button.
- Two-speed exhaust fan: Vents through the top, back or recirculates for even cooking.
- 4 auto-cook menu options: Cook popcorn, potatoes, beverages or reheat items based on quantity.
- 30-second express cooking: Heats with one press.
- Removable 13.6-inch glass turntable: Automatically rotates to evenly heat food and provides easy cleaning.
- 10 power levels: Heats food to your exact preference.
- 3 heat modes: Provides a variety of heat options with microwave, convection, or microwave/convection heat modes.
- Defrost setting: Thaw frozen items when you need them.
- Integrated cooking light: Check your items as they are heating to prevent overcooking or burning.
- Task lighting: Lights up your stovetop for an extra light source in your kitchen.
- Child lock: Keeps your children safe from accidents.
Whats Included
- Insignia 1.5 Cu. Ft. Convection Over-the-Range Microwave
- Turtable (with ring)
- Wire rack
- Shelf
- Installation hardware
- Greast filter
- Exhaust damper
- Installation Guide
- User Guide
- Insignia 1.5 Cu. Ft. Convection Over-the-Range Microwave
- Turtable (with ring)
- Wire rack
- Shelf
- Installation hardware
- Greast filter
- Exhaust damper
- Installation Guide
- User Guide
A: Yes it is a shield
Q: I need step by step to use convection oven
A: undefined
A: undefined
A: When using the Insignia™ 1.5 Cu. Ft. Convection Over-the-Range Microwave in convection mode, you do not need to remove the glass tray or the plastic pieces that support it. The glass tray can remain in place to help ensure even cooking. However, always make sure that any cookware you use is suitable for convection cooking and can withstand the high temperatures. If you have any other questions or need further assistance, feel free to ask!
A: The glass turntable for the Insignia™ 1.5 Cu. Ft. Convection Over-the-Range Microwave typically has a diameter of 13.6 inches. If you’re looking for a universal replacement, you can search for a 13.6-inch microwave turntable that fits the turntable support ring in your mom’s microwave. Here are a few steps to help you find a suitable replacement: 1. Measure the Diameter: Confirm the diameter of the broken turntable to ensure it matches the 13.6 inches. 2. Check the Turntable Support: Make sure the replacement turntable has the same type of support (e.g., three or four notches) to fit properly on the turntable ring. 3. Search for Universal Turntables: Look for universal microwave turntables online or at local appliance stores. Many universal turntables are designed to fit a variety of microwave models. If you have any questions or need further assistance, please don't hesitate to reach out. Thank you for choosing Insignia! - Emman | Insignia Support | https://www.bestbuy.com/site/brands/best-buy-brands/pcmcat1596746025285.c?id=pcmcat1596746025285
Q: How do I find the door latch part number
A: Where can I find this part?
