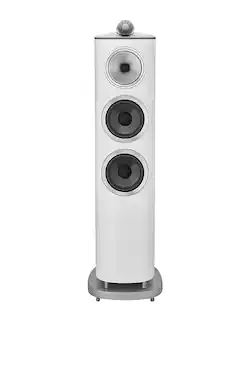

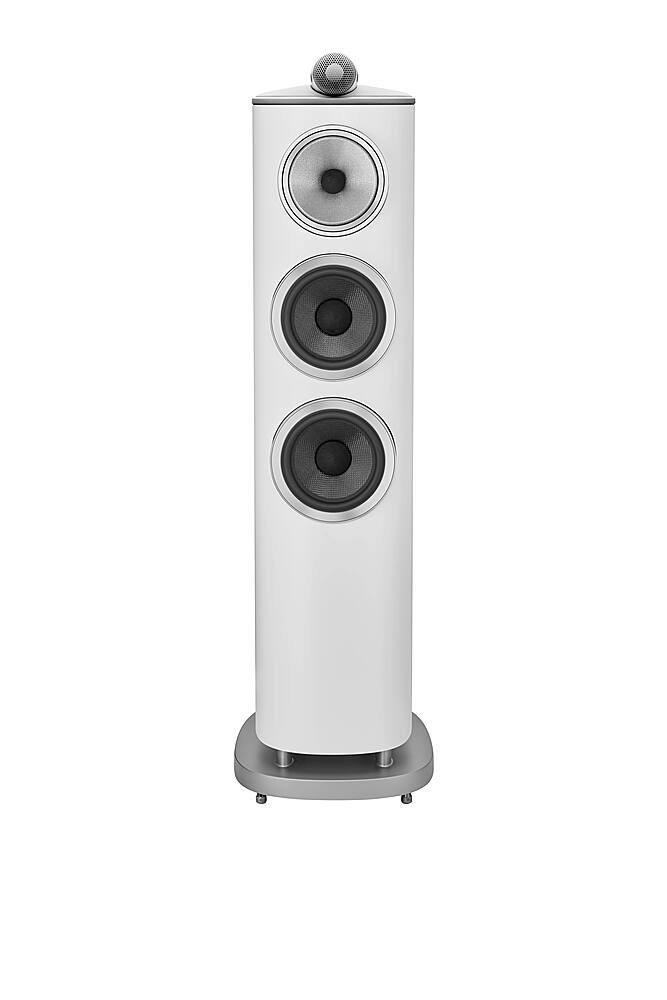

Bowers & Wilkins - 804 D4 Diamond 1" Diamond Tweeter, 5" Midrange, Dual 6.5" Woofer Floorstanding Speaker (each) - White
Color
WhiteSpecifications
- Speaker TypeFloorstanding
- Key Specs
- Speaker Type: Floorstanding
- General
- Brand: Bowers & Wilkins
- Model Number: 804 D4 White
- Product Name: 804 D4 Diamond 1" Diamond Tweeter, 5" Midrange, Dual 6.5" Woofer Floorstanding Speaker (each)
- Color: White
- Audio
- Speaker Type: Floorstanding
- High Resolution Audio: true (Hear music the way musicians and sound technicians intended it to be heard. Products that support hi-res audio deliver audio signals with a dynamic range and bandwidth far greater than that of a standard CD so you'll be able to enjoy pure music with outstanding sound quality. The device supports high-resolution audio signals, which more closely resemble the quality of music as it was originally recorded, with more texture and detail than can be heard via typical music streaming services or CDs.)
- Number of Speakers: 1
- Number of Tweeters: 1
- Tweeter Size: 1 inches
- Number of Midranges: 1
- Midrange Size: 5 inches
- Number of Drivers: 4
- Number of Woofers: 2
- Woofer Size: 6.5 inches
- Connectivity
- Speaker Connectivity: Wired
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Audio Only Inputs: No audio only inputs
- Network Connector(s): No network connectors

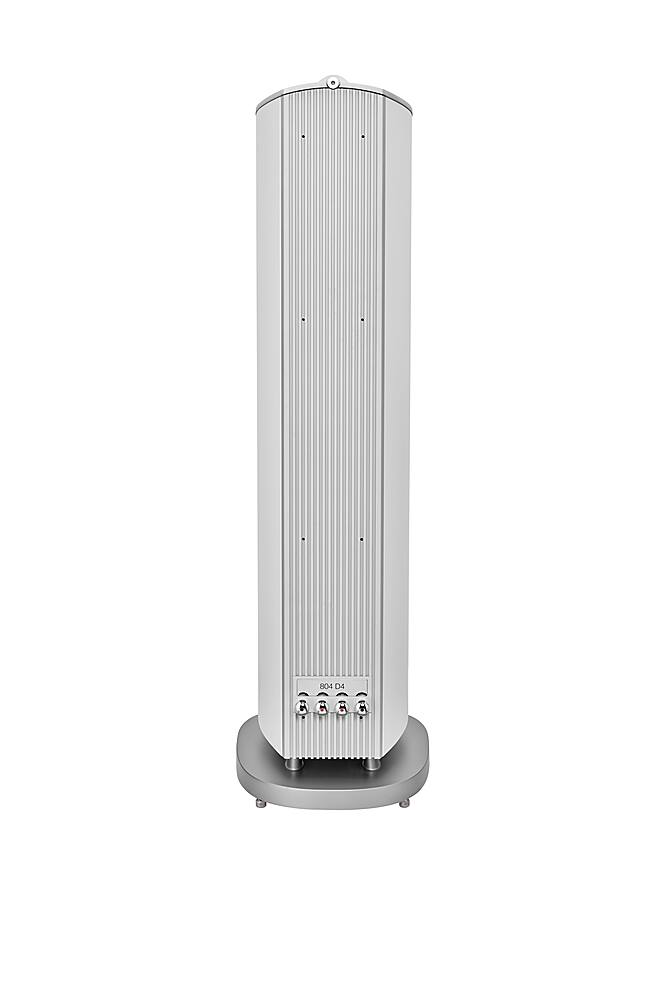

- Speaker Wire Connection Type: Binding posts
- Features
- Indoor Or Outdoor Use: Indoor (Indicates the appropriate environment product was designed to be used in.)
- Dimensions
- Product Height: 42.17 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12.05 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15.39 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 81.24 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 years
- Other
- UPC: 714346334292

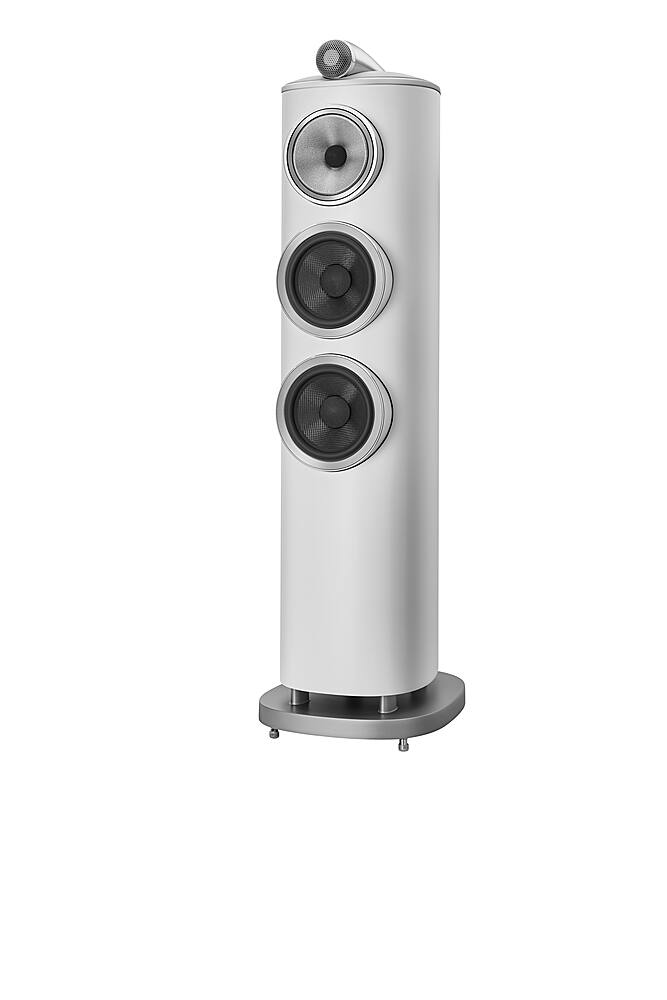

The 804 D4 is the most compact floor standing speaker in the 800 Series Diamond range. Its new reverse-wrap cabinet follows the proven design principles established by its larger siblings and its new plinth ensures rock-solid, accurate bass response. Cabinet stiffness has been increased with an Aluminium Plate that reinforces the top of the cabinet. Midrange performance has been dramatically improved with a new Biomemetic Suspension that replaces a conventional fabric spider with a groundbreaking innovation that reduces distortion behind the drive unit. The Solid Body Tweeter enclosure has been elongated, increasing air volume behind the diamond tweeter which improves the openness in high frequencies. The top section’s aluminium top-plate is covered in Leather by Connolly trim. We use luxurious, full-grain black leather for Gloss Black and Satin Rosenut finishes, and a light grey leather for White and Satin Walnut. Each new generation of 800 Series Diamond is a landmark event for Bowers & Wilkins. This is our benchmark and the most advanced range of loudspeakers we know how to make, equipped with our most sophisticated technologies and designed to deliver the upmost in sonic realism. The 800 Series Diamond is everything we know, and everything we are.
- Diamond Dome Tweeter: Prized in highly specialised industrial applications, the unique properties of diamond make for a near-perfect tweeter material. Our diamond domes are grown like crystals in super-heated furnaces under laboratory conditions before being cut to produce our tweeter domes.

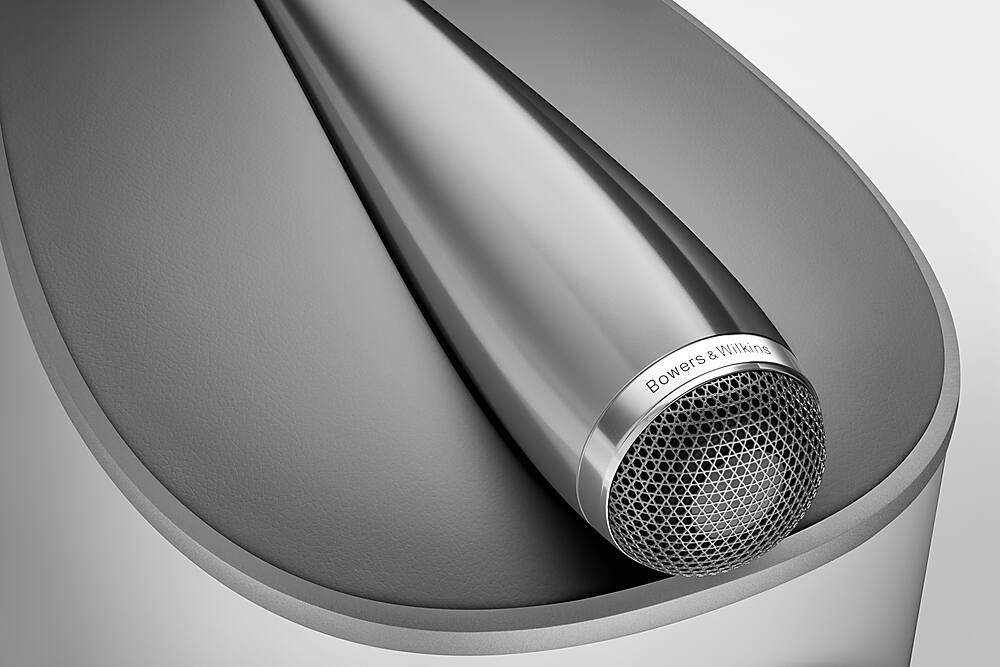

- Solid Body Tweeter: Precisely milled from a single billet of aluminum to better resist resonance, the improved tweeter enclosure features an elongated form with a longer tube-loading system. You'll experience more open high frequencies from the diamond tweeter.
- Continuum Cone: Continnum is a woven composite that blends control with flexibility. The result is breathtaking clarity. Hear voices, guitars and bass instruments with precision and transparency.

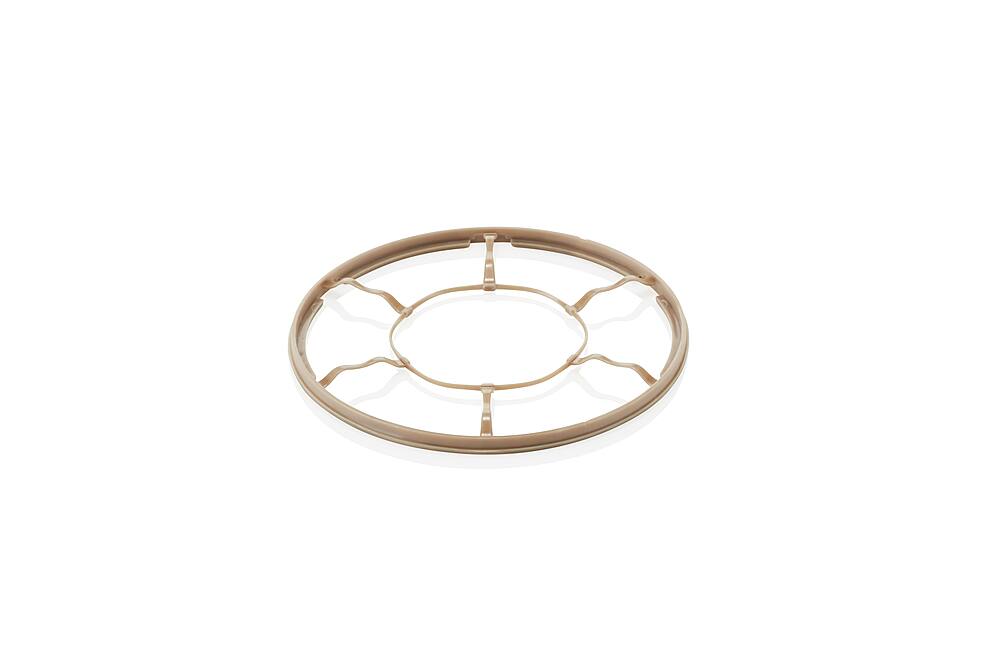

- Biomimetic Suspension: Our all-new Biomimetic Suspension revolutionises midrange cone performance by greatly reducing the unwanted air pressure and coloration that a conventional fabric spider can generate. The result? Midrange transparency you wouldn’t believe possible.

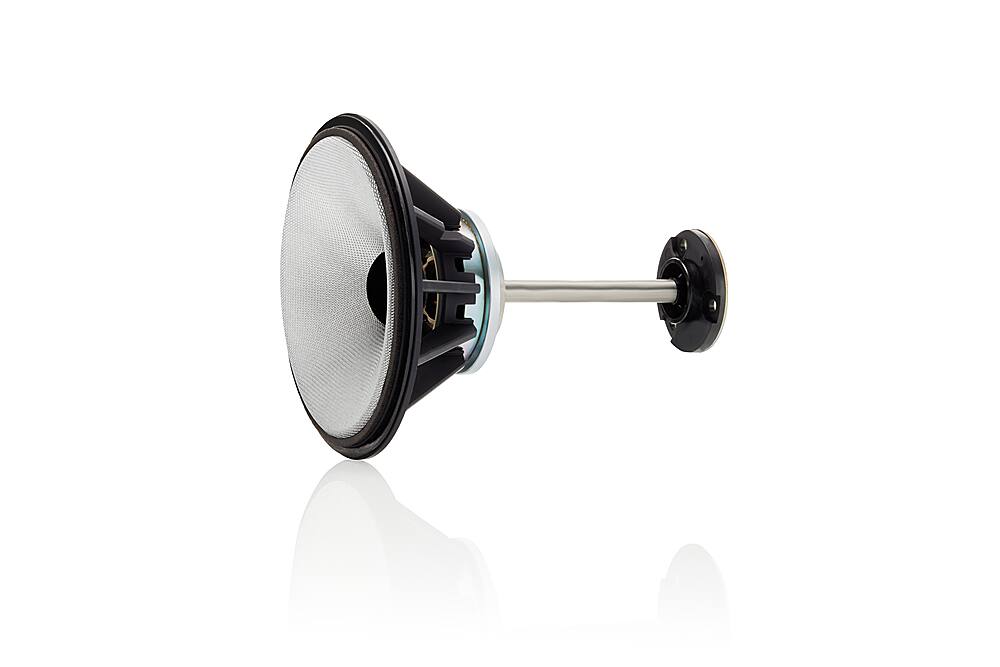

- Decoupled Midrange: Energy produced by bass drivers can travel through the cabinet and degrade midrange performance. Like a shock absorber, we've decoupled the midrange from the cabinet to reduce this distortion and improve clarity.
- Aerofoil Bass: Advanced computer modeling, carbon fiber and a syntactic core are used to produce a cone with maximum stiffness where it’s needed most. This optimised shape means the cone displays pistonic behaviour further up the audible range, producing precise, controlled and utterly lifelike bass.

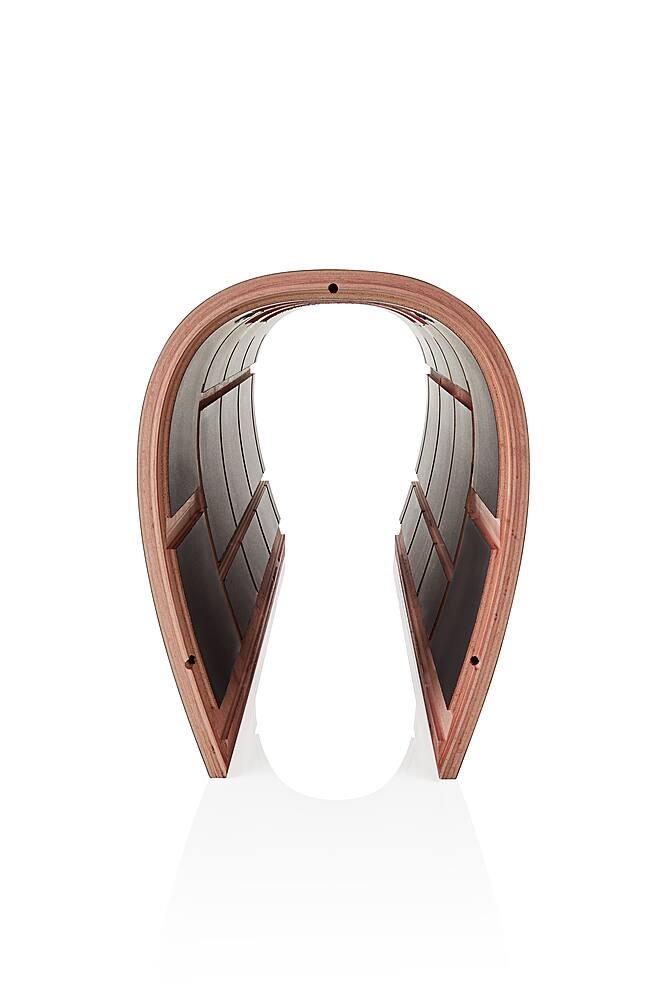

- Reverse Wrap Cabinet: The front and sides of the cabinet are formed in one continuous curve, held together with a spine of solid aluminium. The curved front means less baffling around the drive units so you'll enjoy greater dispersion and less cabinet reflection for a more holographic sound.

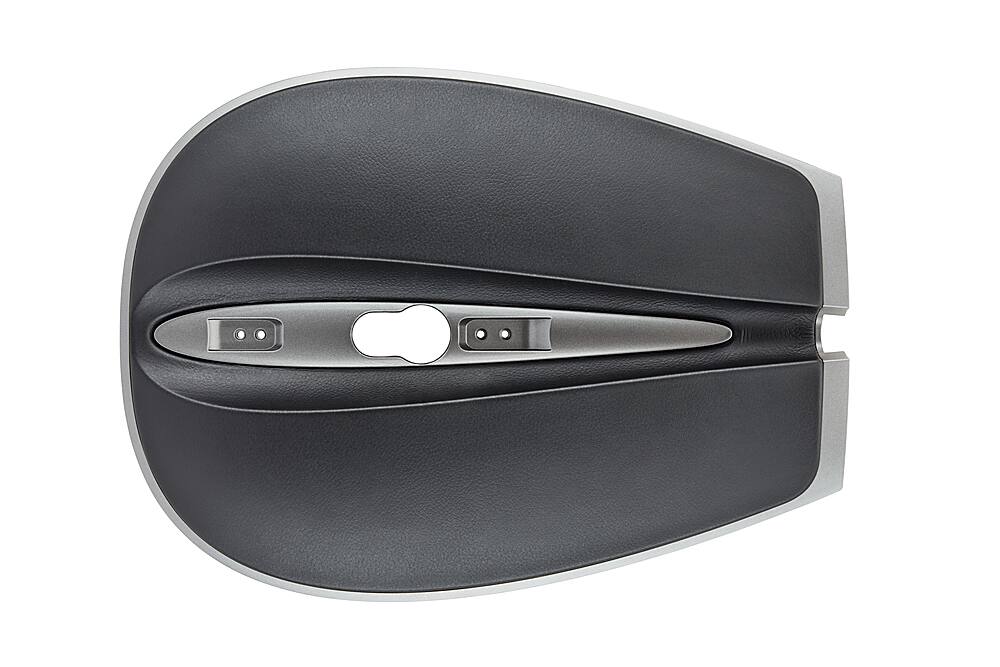

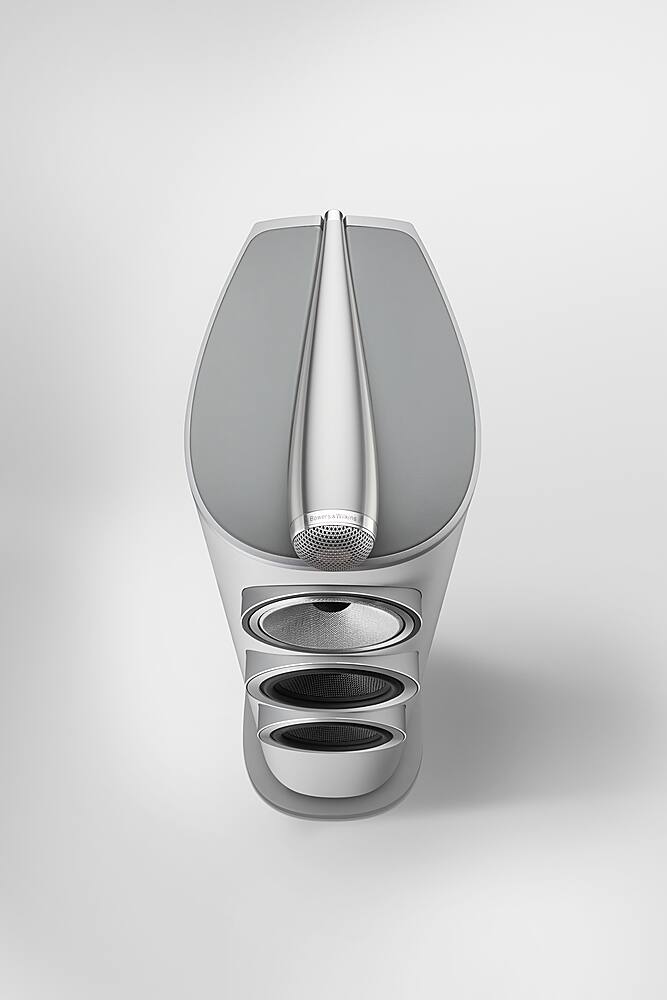

- Aluminium top-plate: The all-new aluminium top section significantly upgrades the mechanical stiffness of the cabinet for reduced resonance and greater clarity.
- Matrix Bracing: Interlocking solid plywood panels with aluminium bracing reinforce loudspeaker cabinet walls at key stress points. This reduces cabinet resonances so you can enjoy all of the fine midrange and bass details in your music and movies.
- Leather by Connolly: The top of the speaker features an aluminium top-plate, covered in all-new Leather by Connolly trim. We use luxurious, full-grain black leather for Gloss Black and Satin Rosenut finishes, and a light grey leather for White and Satin Walnut.
- Magnetic grille: Remains acoustically transparent while protecting the speaker's components.
- Finishes: This model is available in Gloss Black, Rosenut, Satin Walnut and White.
Whats Included
- Grilles for Midrange and Bass drivers
- Bi-Wire Terminal Links

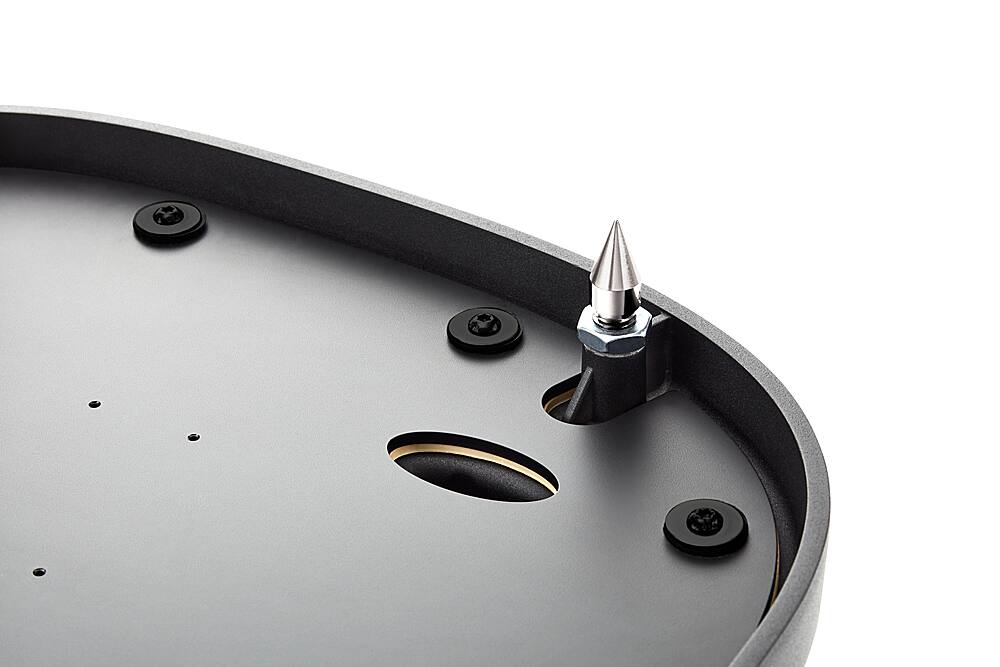

- 8 Speaker Spikes, 8 Rubbert Feet and Locking Nuts
- Metal spike adjustment bar
- Lock Nut Adjustment Tool
- Cleaning cloth
Product Manuals
Q: Does the speaker support wireless multi-room audio?
A: This speaker does not support wireless multi-room audio.
Q: How does the Biomemetic Suspension improve midrange performance?
A: The Biomemetic Suspension dramatically improves midrange performance by reducing distortion behind the drive unit. This groundbreaking innovation replaces the conventional fabric spider.
Q: Why is the Solid Body Tweeter enclosure elongated?
A: The Solid Body Tweeter enclosure has been elongated to increase the air volume behind the diamond tweeter, which improves the openness in high frequencies.
Q: What is the weight of the speaker?
A: The product weight of the speaker is 81.24 pounds.
Q: What is the purpose of the Aluminium Plate in the cabinet?
A: The Aluminium Plate increases cabinet stiffness and reinforces the top of the cabinet.
Q: How many watts per speaker?
A: According to manufacturer specifications, it requires a power amplifier providing between 50 to 200 watts. These are not self-powered speakers.
Q: When will the 804D4 speakers be available?
A: undefined
