MSI - MAG B860 TOMAHAWK WIFI Gaming Desktop Motherboard
Related Item
Specifications
- ChipsetIntel B760Form FactorATXProcessor SocketSocket LGA 1851Wireless Networking StandardWi-Fi 7Number Of Memory Slots4Maximum Memory Supported256 gigabytes
- Key Specs
- Chipset: Intel B760
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5 SDRAM
- General
- Brand: MSI
- Product Name: MAG B860 TOMAHAWK WIFI Gaming Desktop Motherboard
- Compatibility
- Chipset: Intel B760
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1851 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Core Ultra 5 Series 2
- Slot
- Number of M.2 Slots: 3 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 2
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 1 x USB-C, 4 x USB-A, 4 x USB-A 2.0 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 12.00 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 9.60 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 4.1 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5 SDRAM
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4800-9200 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 824142390177
The MAG B860 TOMAHAWK WIFI Gaming Desktop Motherboard is engineered for high-performance gaming and AI applications. It supports Intel Core Ultra Processors (Series 2) on the LGA 1851 socket and accommodates up to 256GB of DDR5 memory, with speeds from 4800 to 9200 MT/s. The motherboard includes 2 PCIe x16 slots and 1 PCIe x1 slot, along with 3 M.2 slots and 4 SATA III ports for extensive storage options. Connectivity is robust, featuring Thunderbolt 4, HDMI, DisplayPort, and multiple USB ports. Additionally, it offers advanced cooling solutions and supports RAID configurations for enhanced performance.
- Processor Support: Compatible with Intel Core Ultra Processors (Series 2) for LGA 1851 socket.
- Memory Capacity: Supports up to 256GB of DDR5 memory, with speeds ranging from 4800 to 9200 MT/s.
- Expansion Slots: Equipped with 2 PCIe x16 slots and 1 PCIe x1 slot for versatile expansion.
- Storage Options: Offers 3 M.2 slots and 4 SATA III ports for flexible storage configurations.

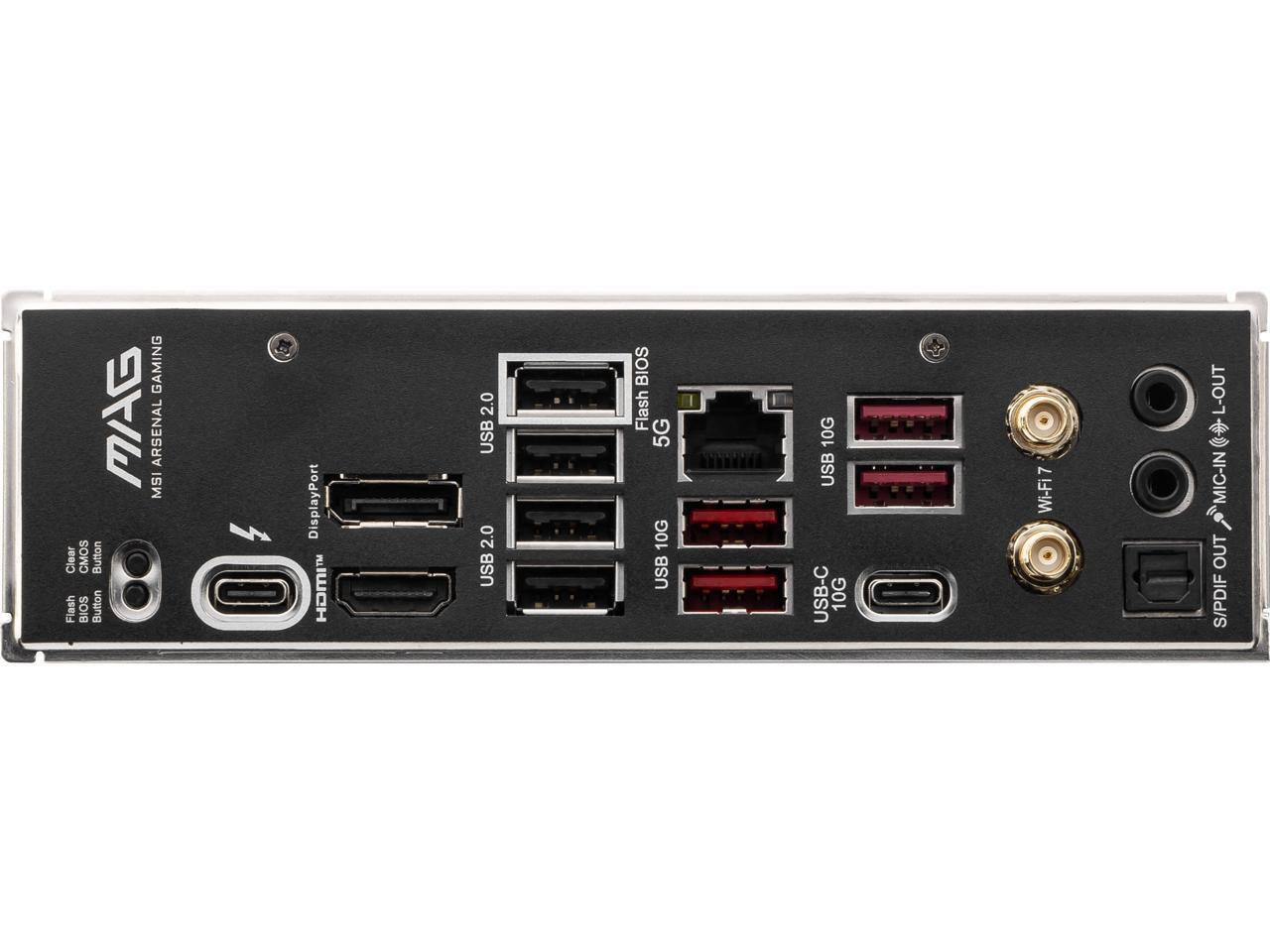

- Connectivity: Features Thunderbolt 4, HDMI, DisplayPort, and USB ports for comprehensive connectivity.
- Processor Support: Compatible with Intel Core Ultra Processors (Series 2) for LGA 1851 socket.
- Memory Capacity: Supports up to 256GB of DDR5 memory, with speeds ranging from 4800 to 9200 MT/s.
- Expansion Slots: Equipped with 2 PCIe x16 slots and 1 PCIe x1 slot for versatile expansion.
- Storage Options: Offers 3 M.2 slots and 4 SATA III ports for flexible storage configurations.
- Connectivity: Features Thunderbolt 4, HDMI, DisplayPort, and USB ports for comprehensive connectivity.
