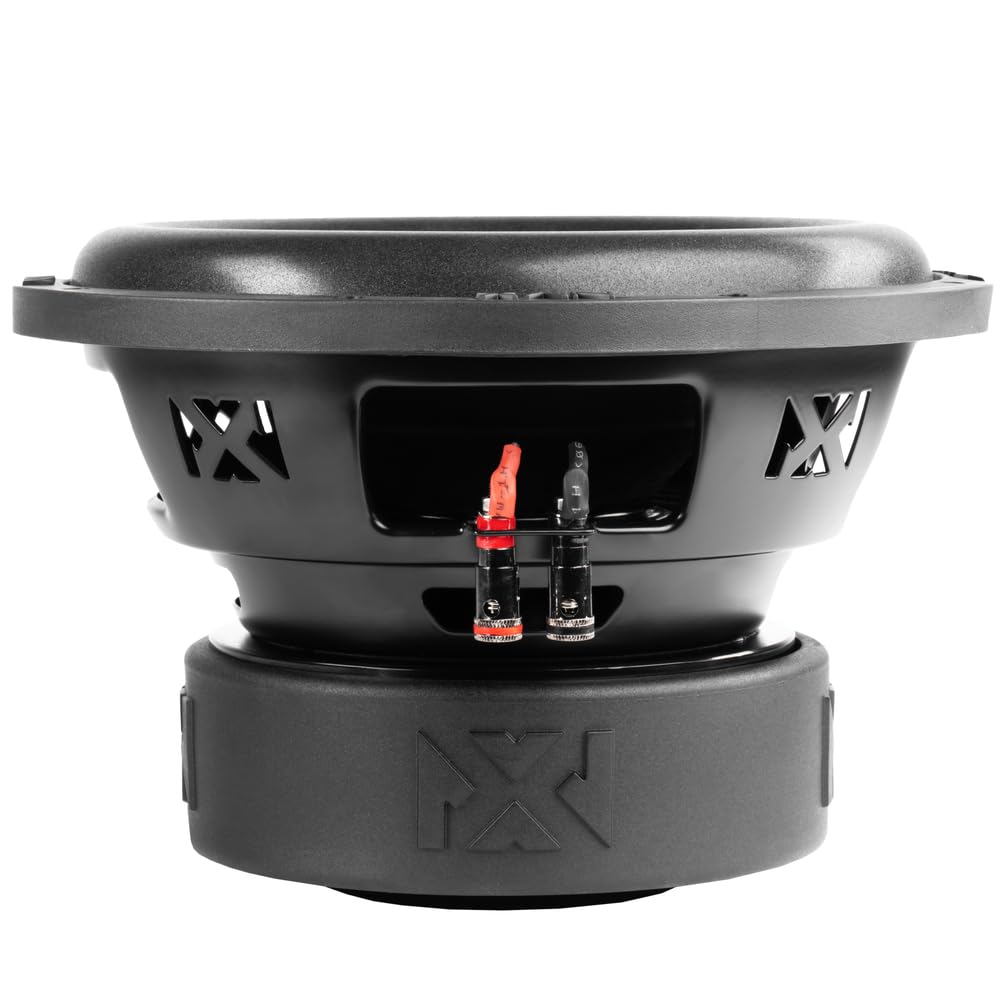

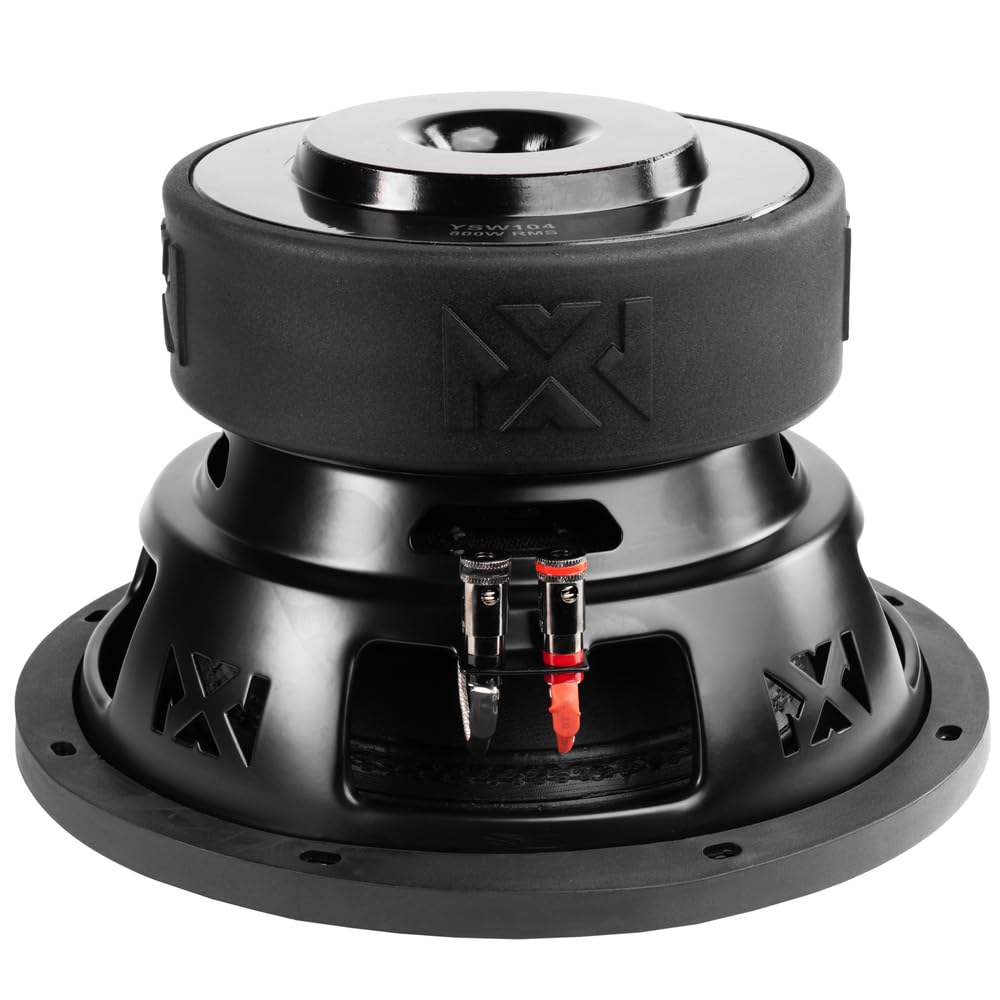

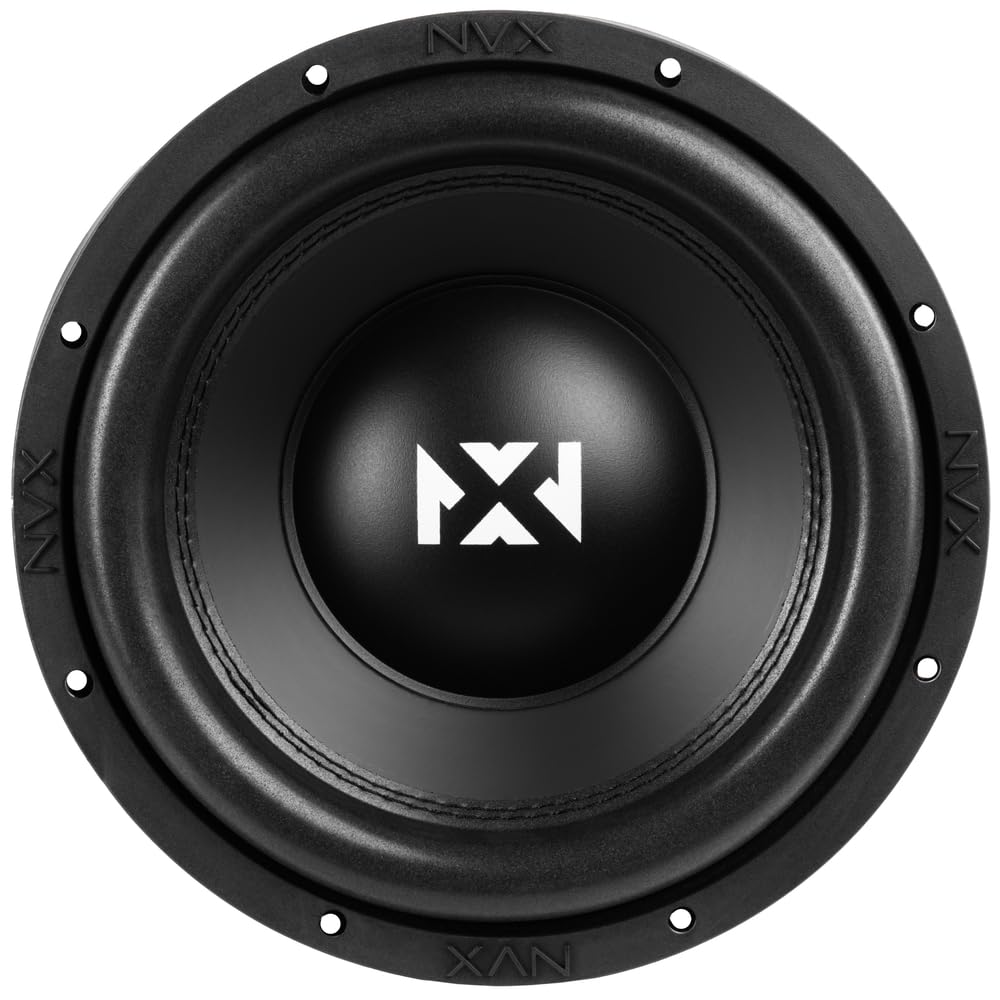

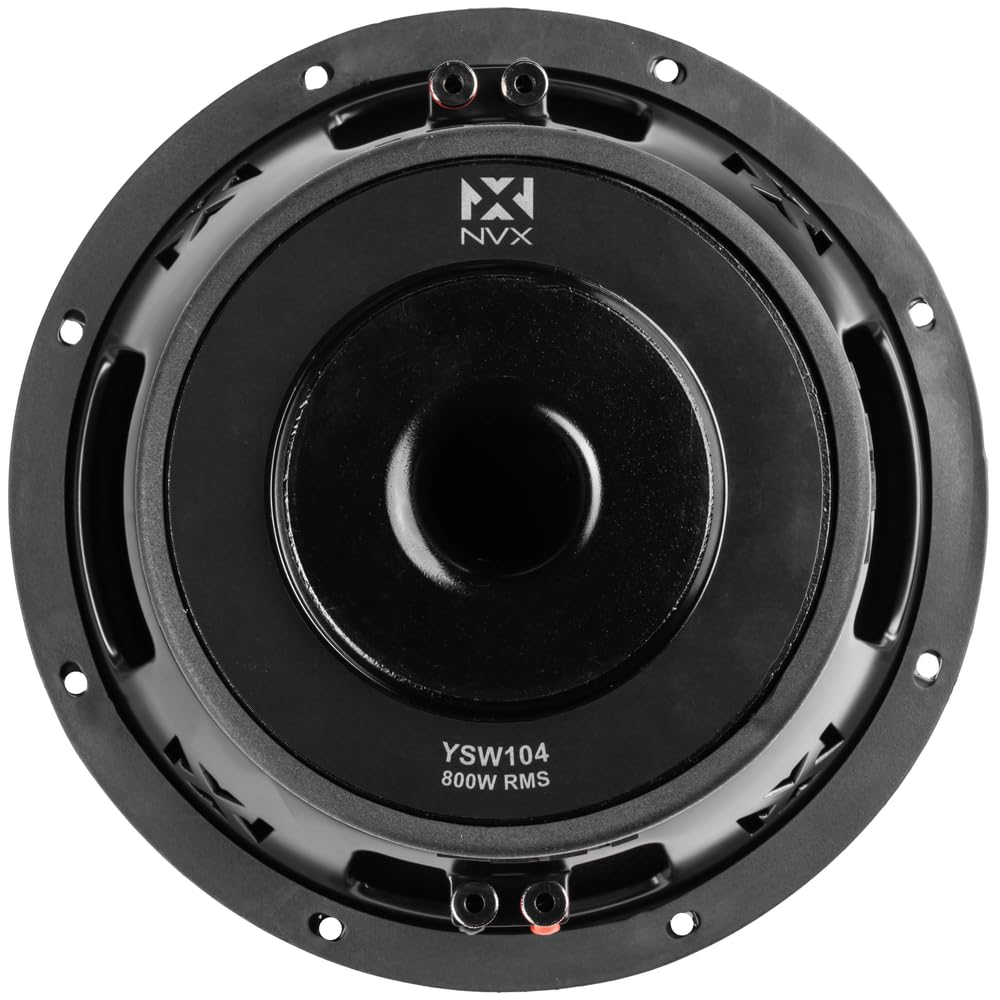

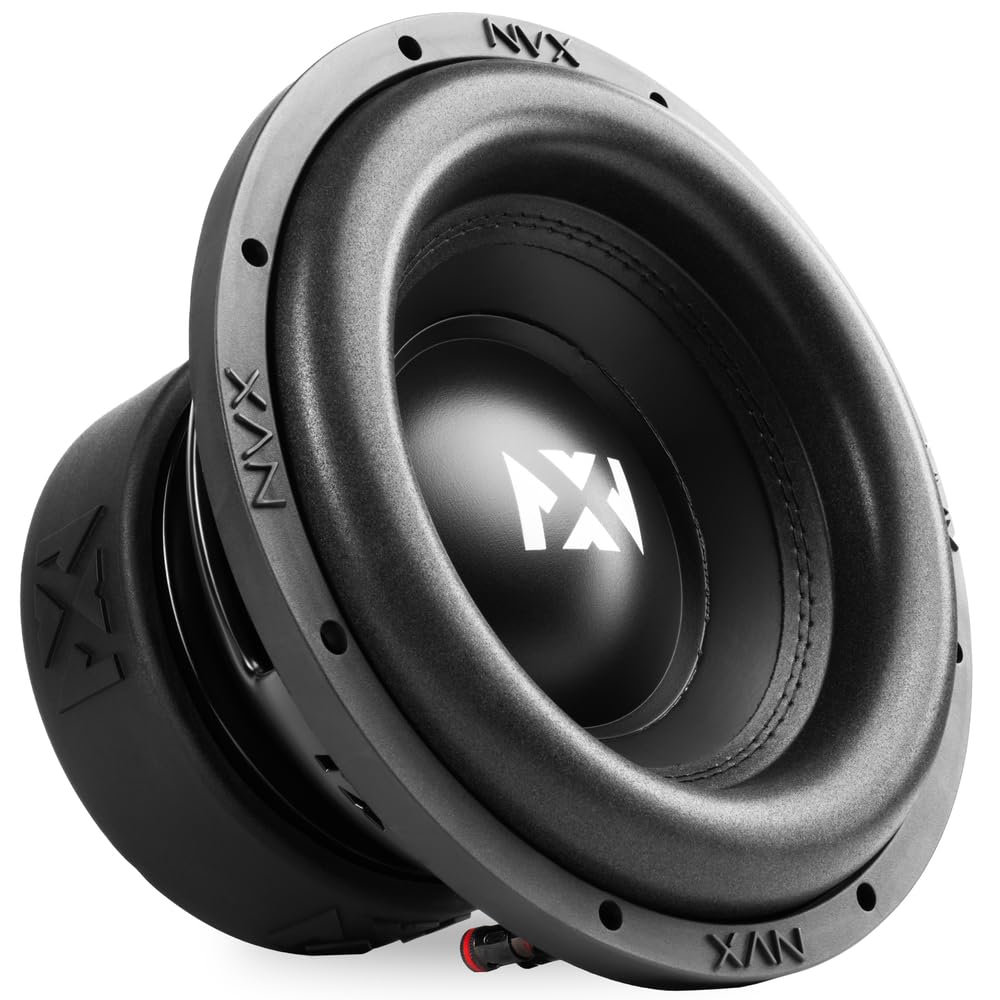

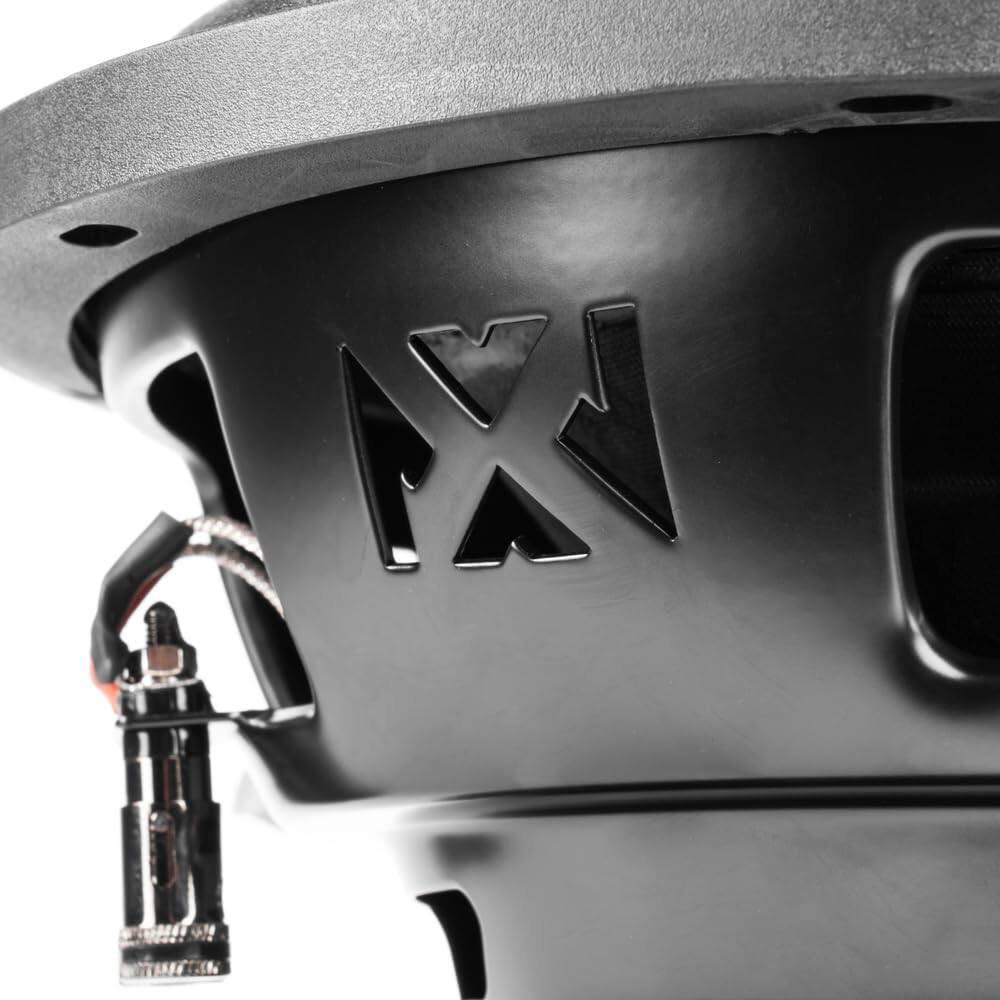

NVX - YSW104 1600W Peak (800W RMS) Y-Series 10in Dual 4-Ohm Car Subwoofer
Woofer Size
10"Specifications
- RMS Power800 wattsPeak Power Handling1600 wattsImpedance4 ohmsWoofer Size10"
- Key Specs
- RMS Power: 800 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 1600 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Woofer Size: 10"
- General
- Brand: NVX
- Model Number: ysw104
- Product Name: YSW104 1600W Peak (800W RMS) Y-Series 10in Dual 4-Ohm Car Subwoofer
- Number of Subwoofers Included: 1
- Audio Power
- RMS Power: 800 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 1600 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Audio
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Features
- Marine: false
- Dimensions
- Woofer Size: 10"
- Product Height: 8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11.61 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11.61 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 19.4 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-year Manufacturer's Warranty
- Warranty - Labor: 1-year Manufacturer's Warranty
- Other
- UPC: 810021845449
Product Details: 10" Dual 4 ohm Y-Series Subwoofer. Power Handling: . Peak: 1600 watts. RMS: 800 watts. 15 mm Xmax. Enhanced Pressed Paper Cone. Custom High-Roll Foam Surround with Black Nylon Stitching. Stamped Steel Vented Basket with NVX Punched Logo. 3. 0" High Temperature Copper Voice coil with Aluminum Former. Progressive Roll Dual-layer Spider with Integrated Tinsel Leads. Optimized High-Velocity Pole Vent. 116 oz. Double Stacked Ferrite Magnet with Protective Rubber boot. Frequency Response: 20 - 200 Hz. Resonance Frequency (Fs): 30. 68 Hz. Sensitivity: 85 dB. Recommended sealed box volume: . 45 cubic feet. Recommended ported box volume: 1. 5 cubic feet. Top-mount depth: 5. 90". Cutout diameter: 8. 93". CTA-2031 Compliant. Authorized Internet Dealer. 1-year Manufacturer's Warranty. Priced Individually. NVX YSW104
- Powerful Performance: Experience deep, punchy bass with the NVX YSW104 10" Dual 4-Ohm Subwoofer, delivering up to 1600W Peak and 800W RMS power for outstanding sound quality.
- Dual 4-Ohm Impedance: Features a Dual 4-Ohm voice coil, offering versatile wiring options for more flexibility in amplifier configurations and system design.
- Rugged Durability: Built with an enhanced pressed paper cone and custom high-roll foam surround reinforced with black nylon stitching, ensuring longevity and superior sound.
- Advanced Engineering: Equipped with a 3.0" high-temperature aluminum voice coil and progressive roll single-layer spider with integrated tinsel leads for high-performance reliability.
- Optimized Cooling: Includes an optimized high-velocity pole vent and stamped steel vented basket to keep the subwoofer cool during extended use, maintaining peak performance.
- Powerful Performance: Experience deep, punchy bass with the NVX YSW104 10" Dual 4-Ohm Subwoofer, delivering up to 1600W Peak and 800W RMS power for outstanding sound quality.
- Dual 4-Ohm Impedance: Features a Dual 4-Ohm voice coil, offering versatile wiring options for more flexibility in amplifier configurations and system design.
- Rugged Durability: Built with an enhanced pressed paper cone and custom high-roll foam surround reinforced with black nylon stitching, ensuring longevity and superior sound.
- Advanced Engineering: Equipped with a 3.0" high-temperature aluminum voice coil and progressive roll single-layer spider with integrated tinsel leads for high-performance reliability.
- Optimized Cooling: Includes an optimized high-velocity pole vent and stamped steel vented basket to keep the subwoofer cool during extended use, maintaining peak performance.
Whats Included
- 1
- 1
Compare similar products
Product Details: 10" Dual 4 ohm Y-Series Subwoofer. Power Handling: . Peak: 1600 watts. RMS: 800 watts. 15 mm Xmax. Enhanced Pressed Paper Cone. Custom High-Roll Foam Surround with Black Nylon Stitching. Stamped Steel Vented Basket with NVX Punched Logo. 3. 0" High Temperature Copper Voice coil with Aluminum Former. Progressive Roll Dual-layer Spider with Integrated Tinsel Leads. Optimized High-Velocity Pole Vent. 116 oz. Double Stacked Ferrite Magnet with Protective Rubber boot. Frequency Response: 20 - 200 Hz. Resonance Frequency (Fs): 30. 68 Hz. Sensitivity: 85 dB. Recommended sealed box volume: . 45 cubic feet. Recommended ported box volume: 1. 5 cubic feet. Top-mount depth: 5. 90". Cutout diameter: 8. 93". CTA-2031 Compliant. Authorized Internet Dealer. 1-year Manufacturer's Warranty. Priced Individually. NVX YSW104
