Orei - 4K 1-In-4-Out USB-C & HDMI™ Video Wall Controller (Audio Extract)-UHD-14VW - Black
FREE shipping to
Related Item
About This Item
- General
- Brand: Orei
- Model Number: UHD-14VW
- Product Name: OREI 4K 1-In-4-Out USB-C & HDMI™ Video Wall Controller (Audio Extract)-UHD-14VW
- Color: Black
- Connectivity
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Dimensions

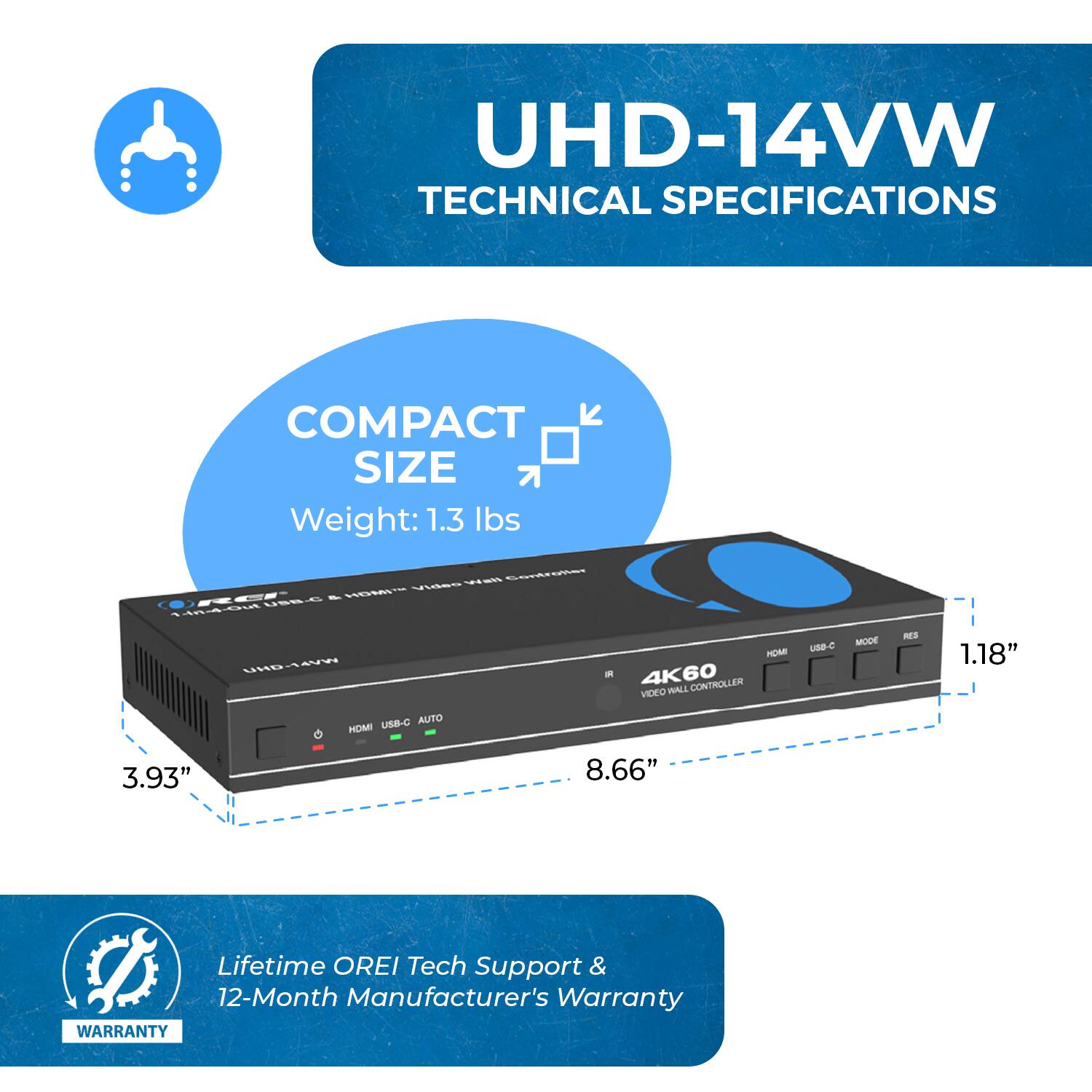

- Product Height: 1.18 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 3.94 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8.66 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 Year Warranty
- Warranty - Labor: None
- Other
- UPC: 850031132795

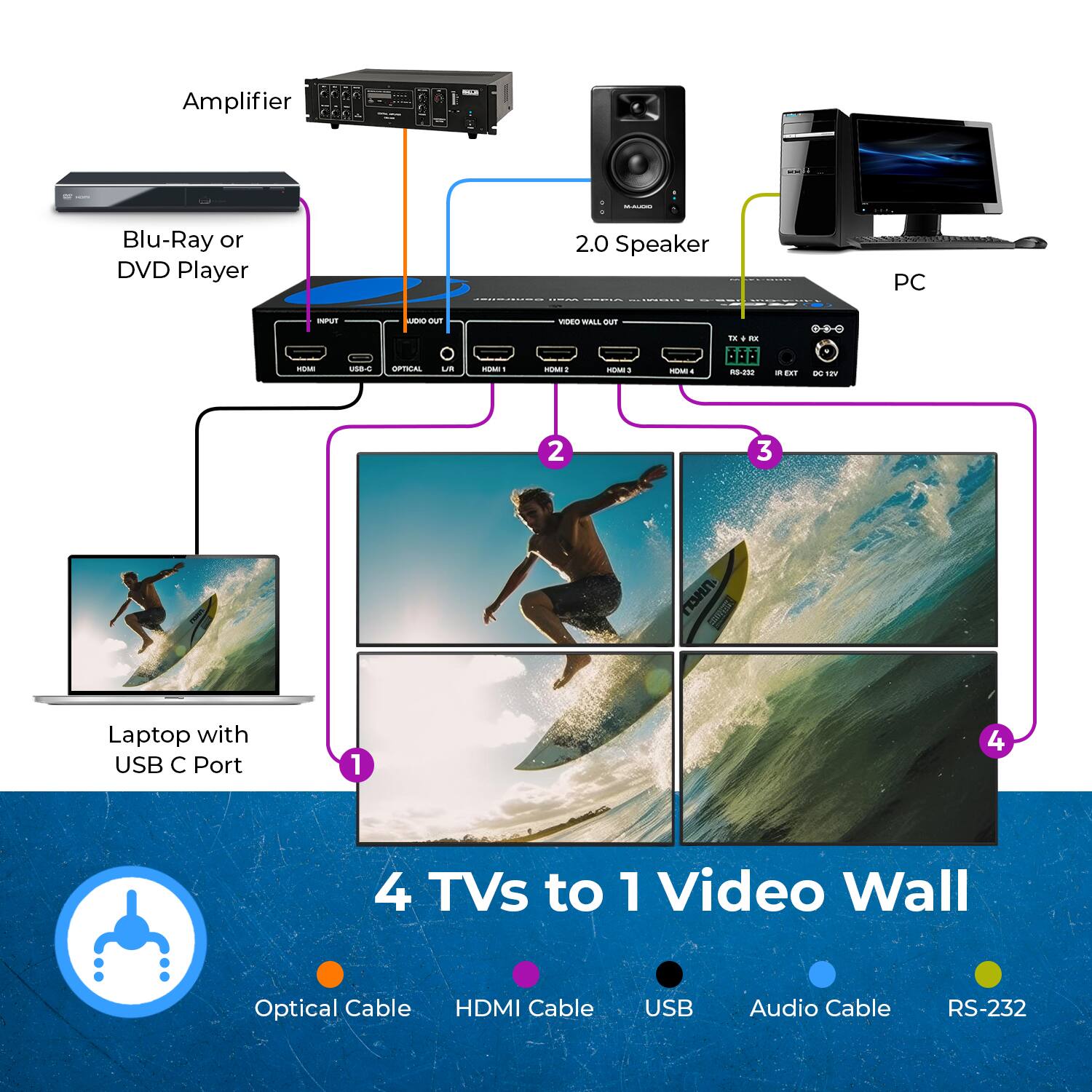

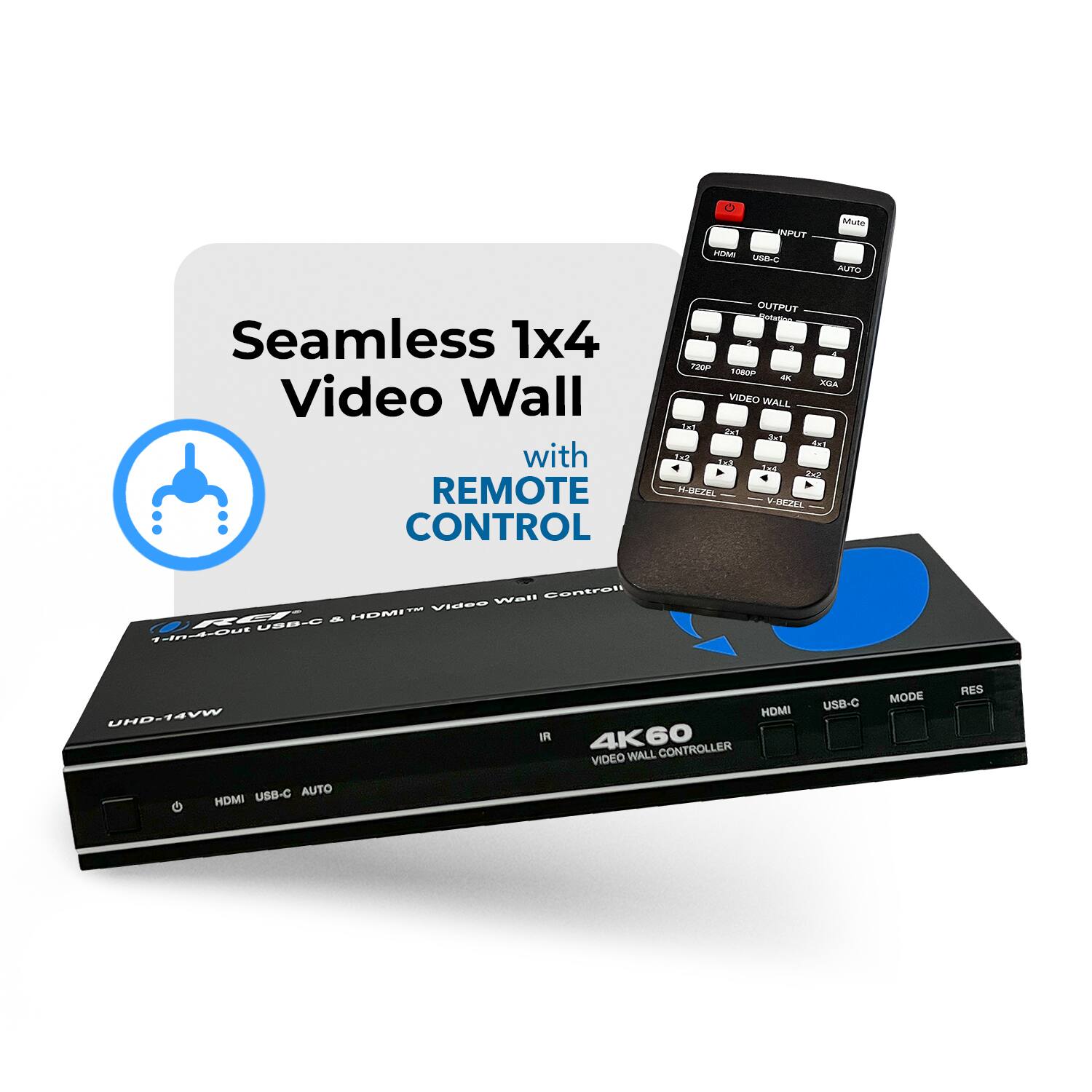

The UHD-14VW 1-In-4-Out Video Wall Controller is designed to take a single input and distribute it across 4 displays. The device features an HDMI and a USB-C input to connect to your media source. It supports resolutions up to 4K@60Hz 4:4:4. The device can take a media source and spread it across 4 displays creating a 2x2 Video wall. The device also features various other video wall modes such as 1x1, 2x1, 3x1, 4x1, 1x2, 1x3, and 1x4. It also includes an Optical and a 3.5MM output for audio extraction. It can be controlled easily via the buttons on the front, the included remote or RS-232 commands.
- UHD-14VW: HDMI 2x2 Video Wall Controller with UBS-C input: Video resolutions up to 4K@60Hz
