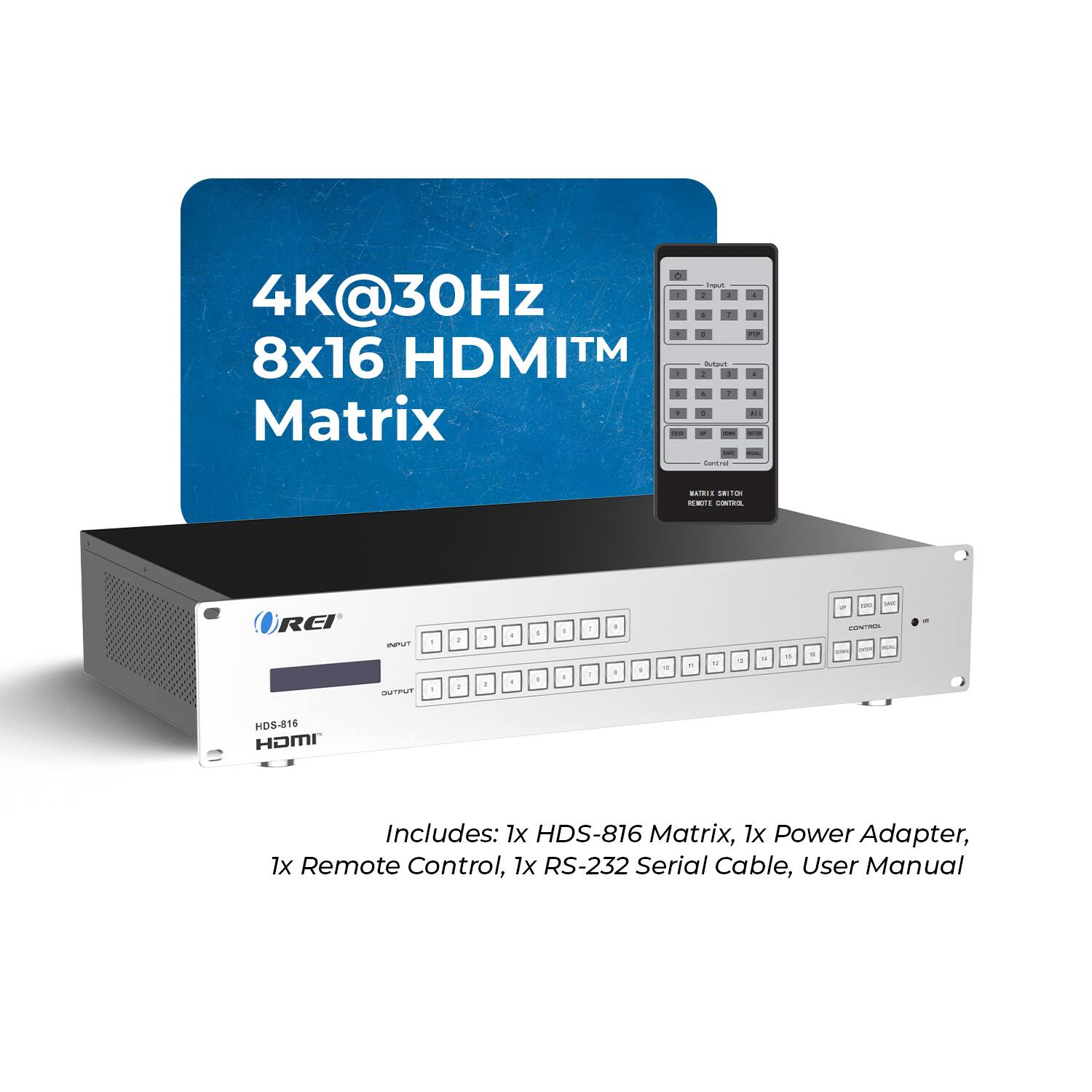

Orei - 4K@30Hz 8x16 HDMI™ Matrix (HDS-816) - Black
FREE shipping to
About This Item
- General
- Brand: Orei
- Model Number: HDS-816
- Product Name: OREI 4K@30Hz 8x16 HDMI™ Matrix (HDS-816)
- Color: Black
- Connectivity
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Dimensions
- Product Height: 3.46 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11.22 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 17.32 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 Year Warranty
- Warranty - Labor: 1 Year Warranty
- Other
- UPC: 810162900694

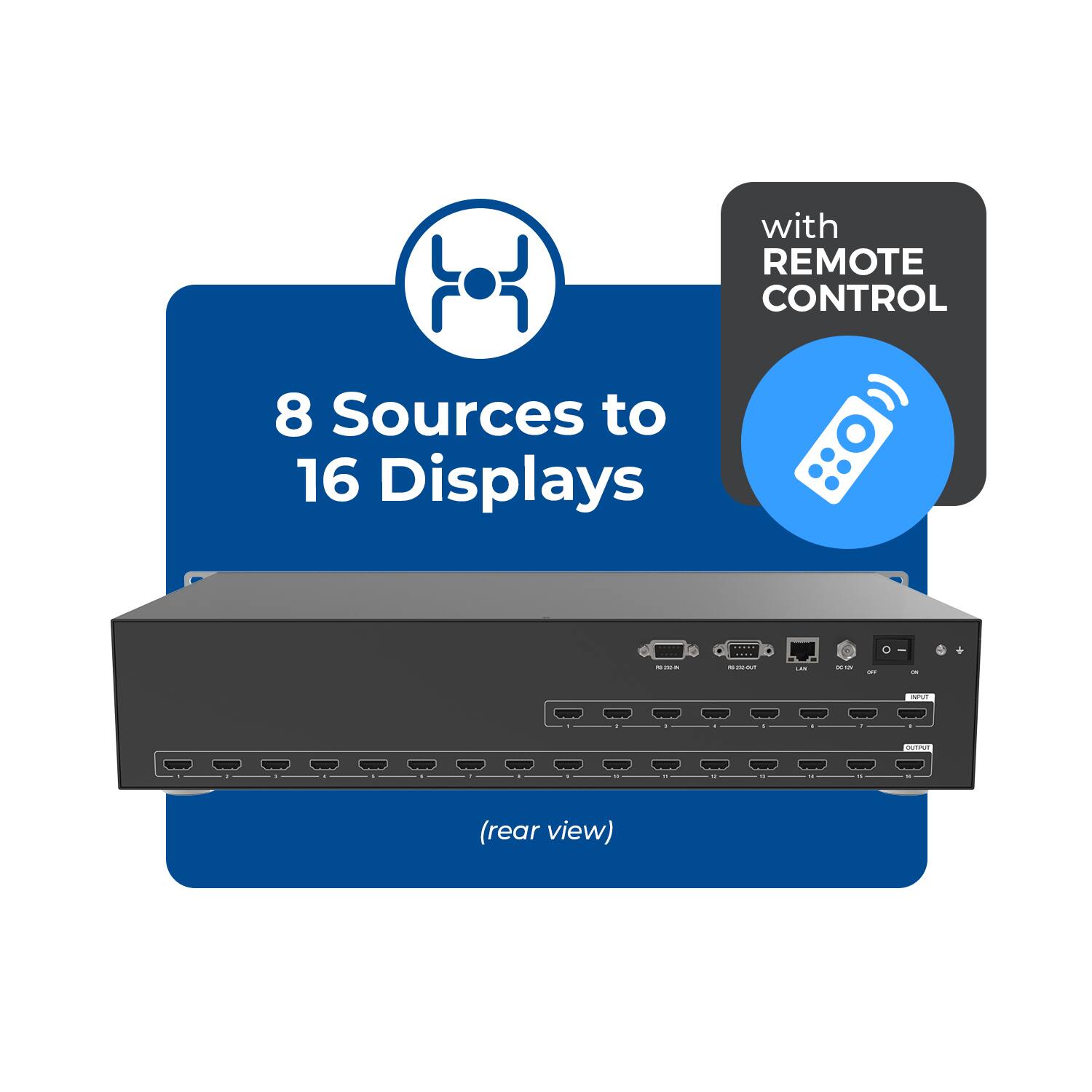

The HDS-816 is a professional-grade 8x16 HDMI™ Matrix Switch designed for flexible signal routing in commercial AV environments. It enables seamless switching between 8 HDMI™ sources across 16 HDMI™ displays, making it ideal for video walls, digital signage, control rooms, and large-scale presentation systems.
- HDMI™ 1.4 and HDCP 2.2 Compliant: Compatible with a broad range of HDMI™ devices and protected content.
- Supports Video Resolutions up to 4K@30Hz: Delivers high-definition video across all outputs.

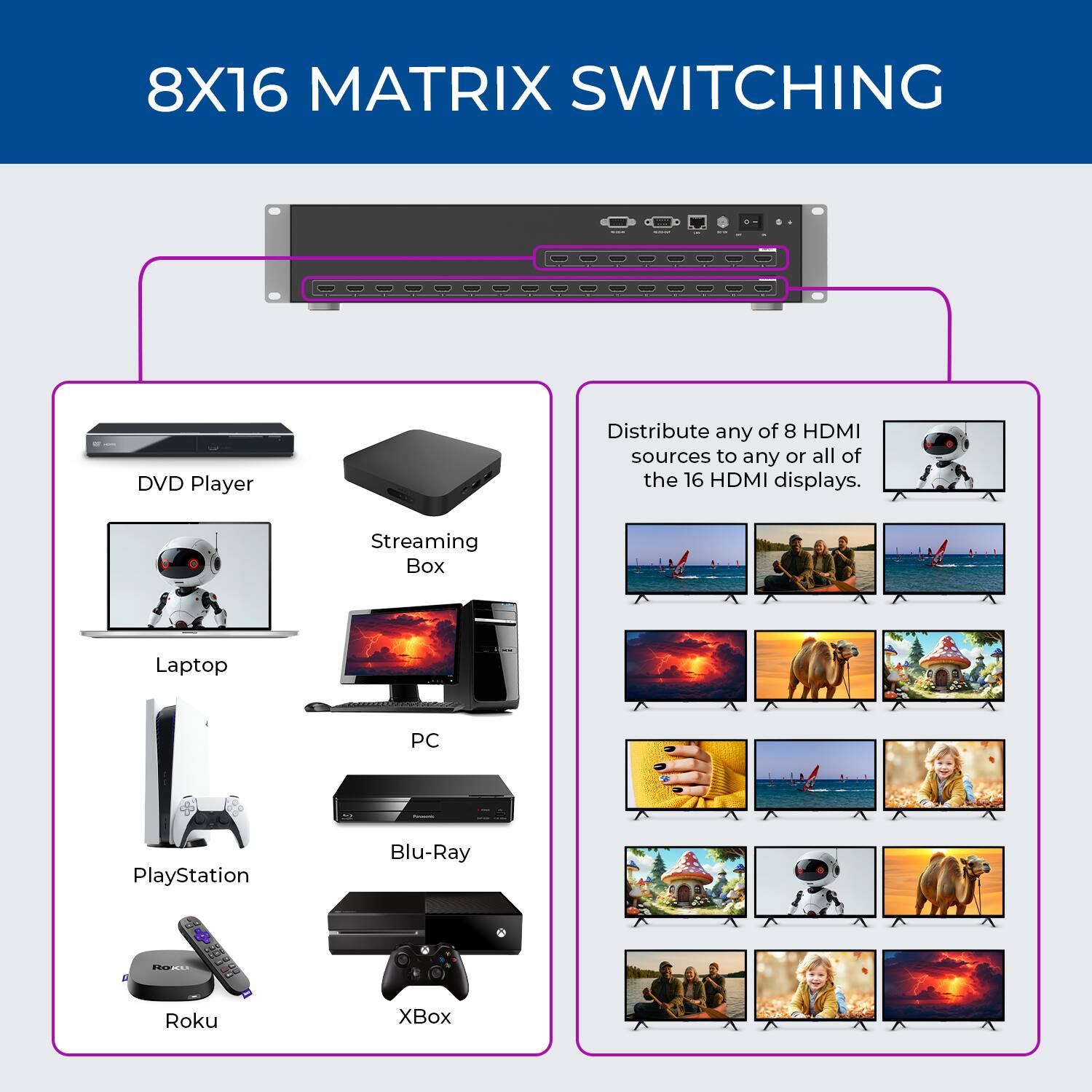

- 10.2Gbps Video Bandwidth: Ensures stable, high-quality AV transmission. 8x16 Matrix Switching – Distribute any of 8 HDMI™ sources to any or all of the 16 HDMI™ displays.
- Audio Format Support: Passes LPCM 2.0/5.1/7.1CH, Dolby Digital, Dolby Digital+, Dolby TrueHD, DTS 5.1, DTS-HD Master Audio, Dolby Atmos, and DTS:X via HDMI™.
- Advanced EDID Management: Allows fine-tuned compatibility settings between sources and displays.
- HDMI™ 1.4 and HDCP 2.2 Compliant: Compatible with a broad range of HDMI™ devices and protected content.
- Supports Video Resolutions up to 4K@30Hz: Delivers high-definition video across all outputs.
- 10.2Gbps Video Bandwidth: Ensures stable, high-quality AV transmission. 8x16 Matrix Switching – Distribute any of 8 HDMI™ sources to any or all of the 16 HDMI™ displays.
- Audio Format Support: Passes LPCM 2.0/5.1/7.1CH, Dolby Digital, Dolby Digital+, Dolby TrueHD, DTS 5.1, DTS-HD Master Audio, Dolby Atmos, and DTS:X via HDMI™.
- Advanced EDID Management: Allows fine-tuned compatibility settings between sources and displays.
Reviews
This product doesn't have any reviews yet.
Compare similar products
The HDS-816 is a professional-grade 8x16 HDMI™ Matrix Switch designed for flexible signal routing in commercial AV environments. It enables seamless switching between 8 HDMI™ sources across 16 HDMI™ displays, making it ideal for video walls, digital signage, control rooms, and large-scale presentation systems.
The JTECH-8KSW41C 4x1 HDMI switch allows you to connect 4 UHD sources devices to 1 display, while giving you the ability to easily switch between one of the other. Use either manual or auto switching mode to easily toggle between your input devices. The switch supports 8K @ 60Hz, 4K @120Hz, and 1080P @ 240Hz resolutions, along with support for HDR and Dolby Vision, allowing you to get immersed within your content. Latest HDMI 2.1 features such as VRR, ALLM, and QFT ensure that you get the full gaming experience.
The UKM-201-2C is a high-performance 8K HDMI KVM Switch that lets you control two computers using one set of peripherals and dual external displays. It supports dual HDMI 8K@60Hz (YUV 4:4:4) with HDR10, HDR10+, Dolby Vision, HLG, 3D at 1080p, and HDCP 2.3. The dual HDMI outputs support Extend Mode (MST) for running different content on two screens. It features 12-bit Deep Color, 48Gbps bandwidth, CEC, and advanced audio including Uncompressed LPCM, and Compressed Dolby TrueHD, and DTS-HD Master Audio over HDMI. Supported resolutions also include 4K@120/144/165Hz, 2K@60/120/144/165Hz, and 1080p@120/144/165/240Hz. With three USB-A 3.0 ports and one USB-C 3.0 device port, it allows fast (5Gbps) sharing of keyboards, mice, SSDs, touchscreens, and other peripherals between both systems. A 3.5mm stereo audio output is included for flexible monitoring with speakers or headsets. Switching between computers is simple via the top button or wired remote, ensuring smooth workflow transitions. Compact and built for advanced multi-display setups, it’s ideal for commercial workstations, creative studios, and high-efficiency home offices. Note: Extended display mode requires two HDMI outputs and MST support. macOS laptops support only SST, so extended displays will not work on Macs

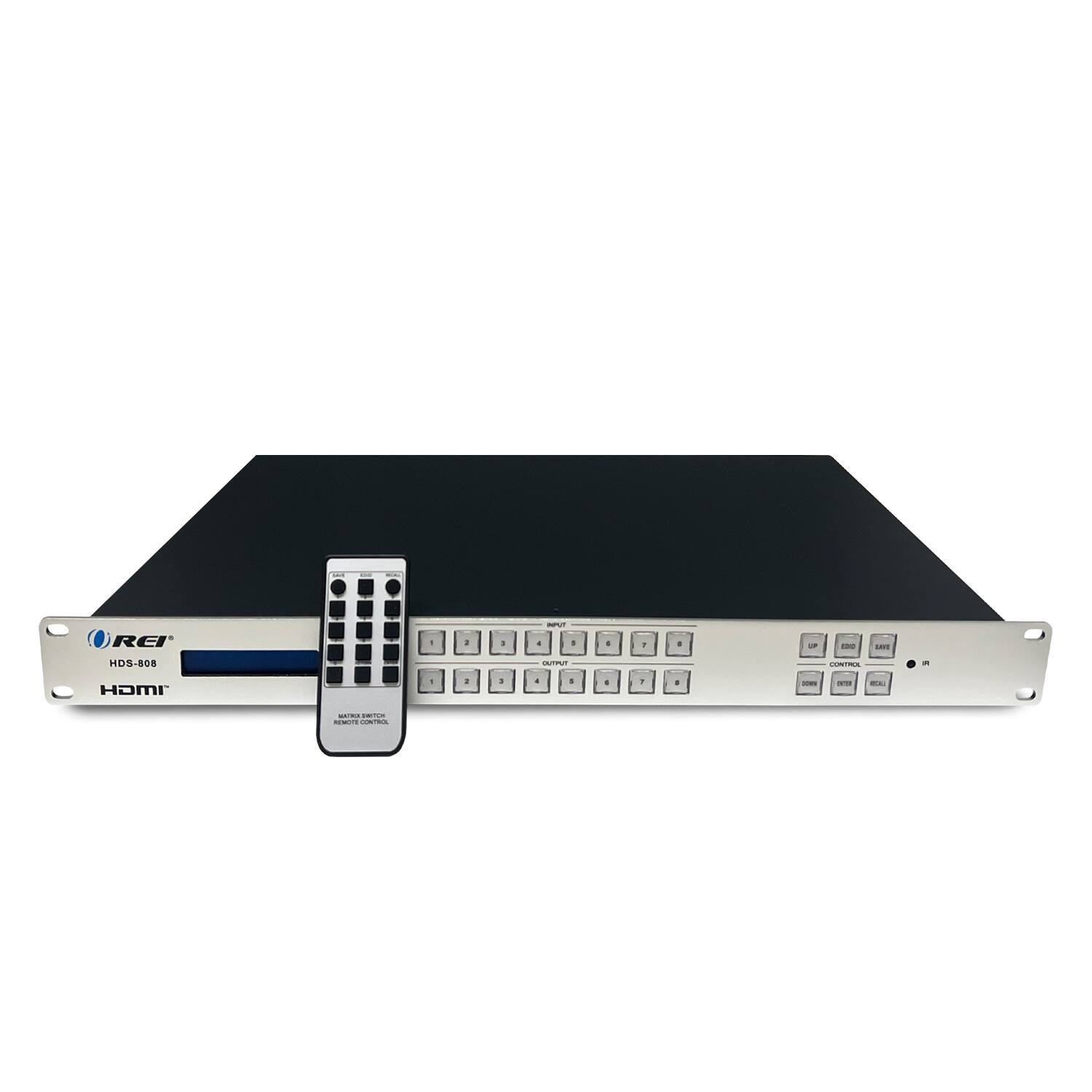

The HDS-808 8x8 HDMI Matrix Switch is a versatile solution for routing video and audio from eight sources to eight displays via HDMI. Compliant with HDMI 1.4 and HDCP 2.2, it supports 10.2 Gbps bandwidth and resolutions up to 4K@30Hz. Each output can downscale from 4K to 1080p as needed. The matrix accommodates various audio formats, including LPCM 2/5.1/7.1CH, Dolby Digital, Dolby Atmos, DTS-HD Master Audio, and DTS: X. It also allows preset saving to save routing configurations and recall them easily whenever needed. The unit is rack-mountable, which makes it perfect for any personal or commercial setup.
