Orei - 4K@60Hz 1x4 HDMI™ Splitter-UHDS-104 - Black
FREE shipping to
About This Item
- General
- Brand: Orei
- Model Number: UHDS-104
- Product Name: 4K@60Hz 1x4 HDMI™ Splitter-UHDS-104
- Color: Black
- Connectivity
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI

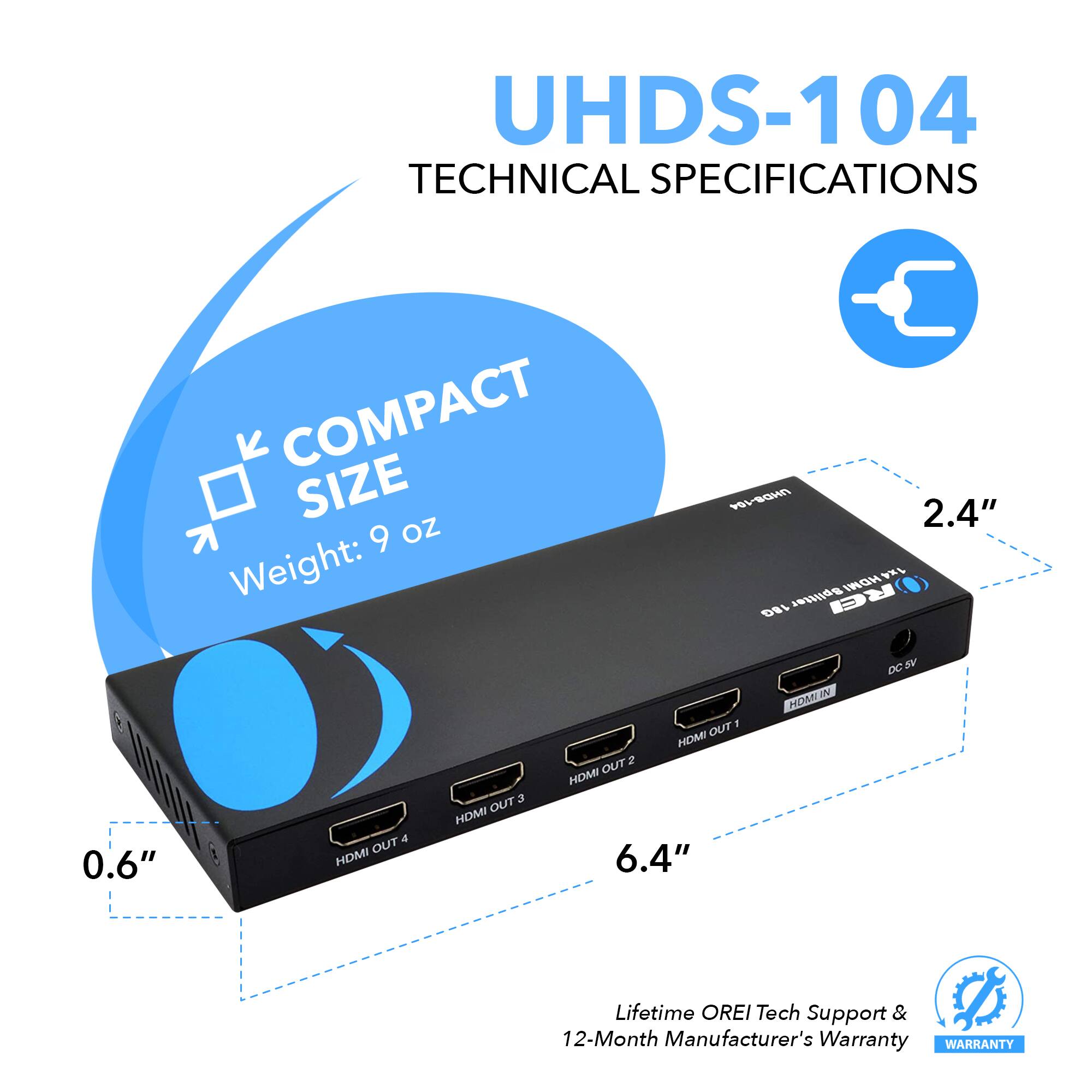

- Dimensions
- Product Height: 0.62 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 2.48 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 6.41 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: None
- Other
- UPC: 854339007762

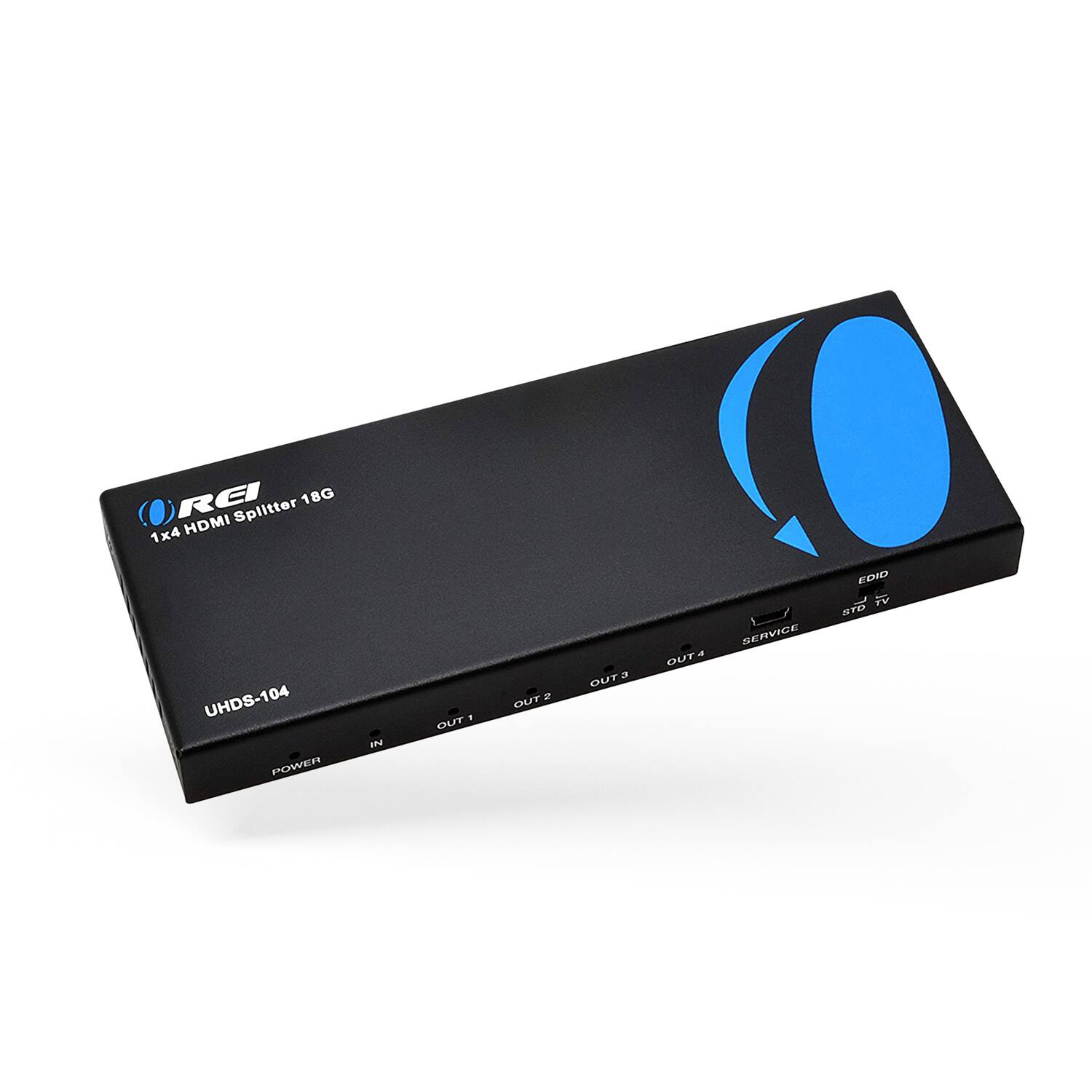

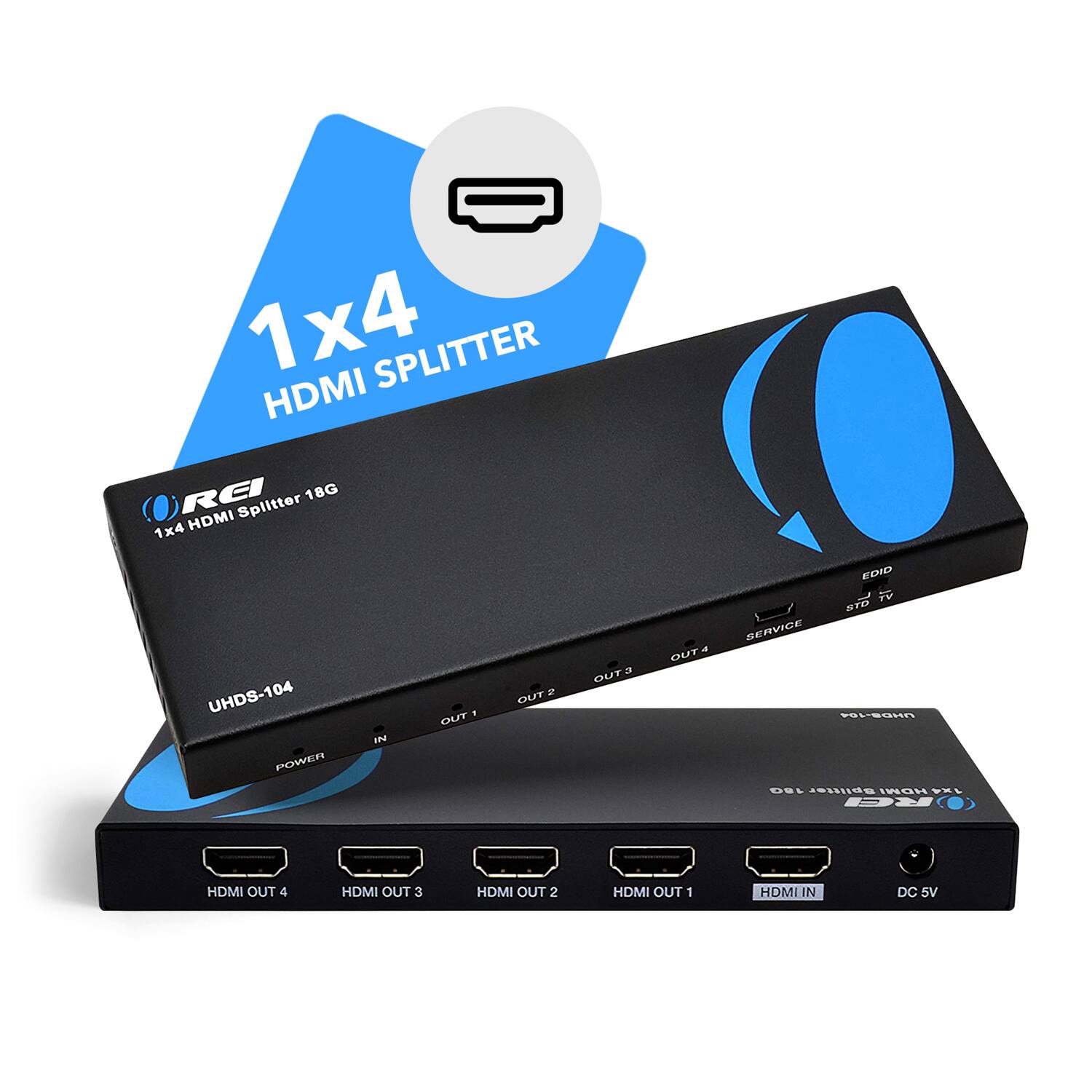

The UHDS-104 HDMI splitter can be used to display media content across 4 displays simultaneously. This splitter is HDMI 2.0b and HDCP 2.2 compliant with a video bandwidth of 18Gbps, and resolutions up to 4K@60Hz YCbCr 4:4:4 and 2k@60Hz. Digital audio formats such as LPCM 7.1, Dolby TrueHD, and DTS-HD Master Audio are supported. It features a toggle switch for EDID management. This HDMI Splitter makes it easy to mirror audio/video content from any media source to 4 displays simultaneously making it the best choice for any commercial or residential setups.
- OREI UHDS-104: 1x4 18Gbps 4K HDMI Splitter: Video resolutions up to 4K@60Hz YCbCr 4:4:4 and 2k@60Hz
