ASRock - B850M Riptide WiFi Micro-ATX Motherboard
FREE shipping to
Intel - Core i7-12700KF Desktop Processor 12 (8P+4E) Cores up to 5.0 GHz Unlocked LGA1700 600 Series Chipset 125W - Grey/Black/Gold$229.99$409.99
Related Item
Specifications
- ChipsetAMD B850Form FactormicroATXProcessor SocketSocket AM5 (LGA 1718)Wireless Networking StandardWi-Fi 7Number Of Memory Slots4Maximum Memory Supported256 gigabytes
- Key Specs
- Chipset: AMD B850
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: ASRock
- Product Name: ASRock B850M Riptide WiFi Micro-ATX Motherboard
- Compatibility
- Chipset: AMD B850
- Chipset Compatibility: AMD
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 3 7000 Series, AMD Ryzen 3 8000 Series, AMD Ryzen 5 9000 Series
- Slot
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 3 x USB-A 3.2, 4 x USB-A 2.0 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 244 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 244 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 3.0 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 8000+ (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 4711581490482

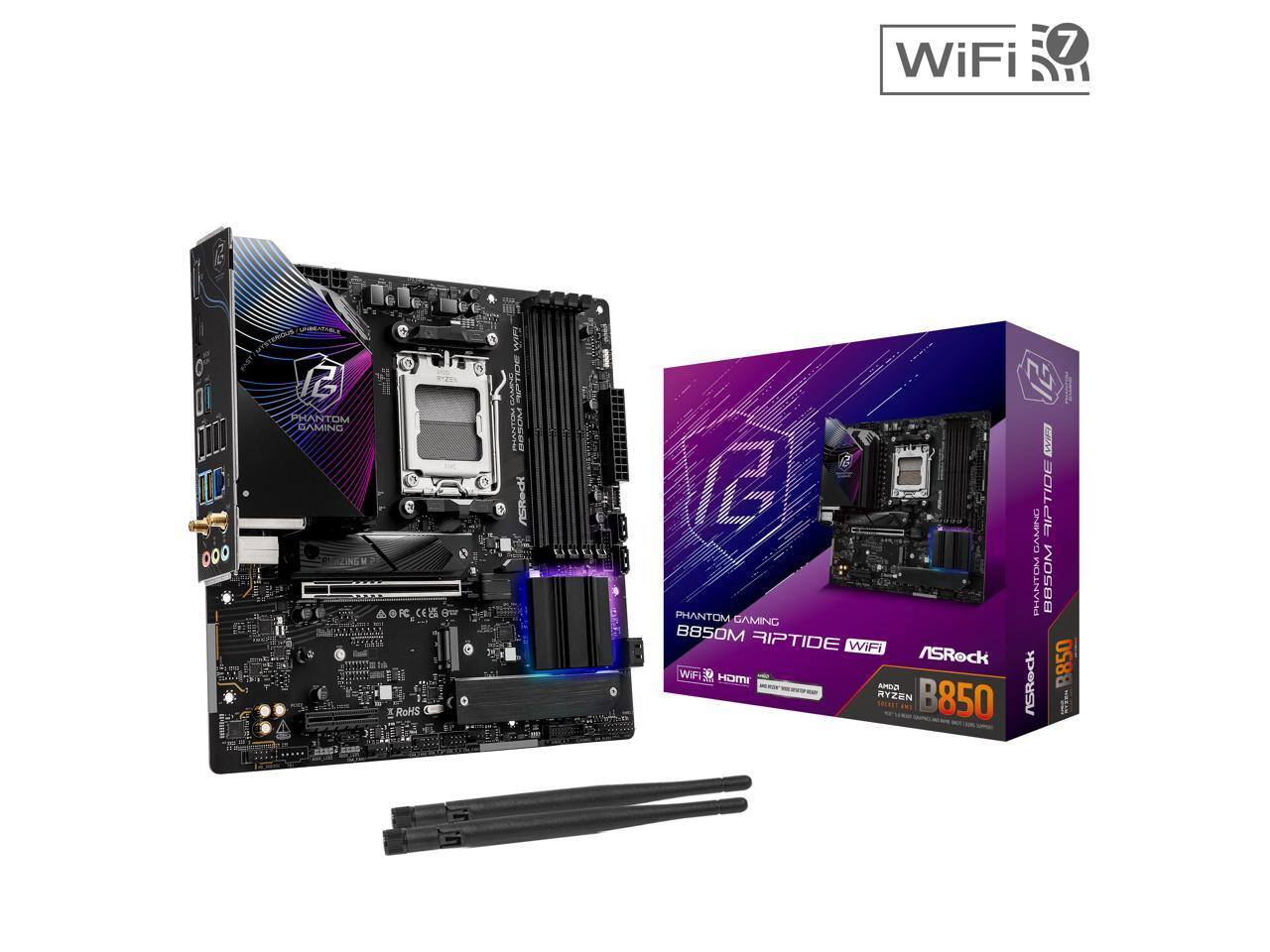

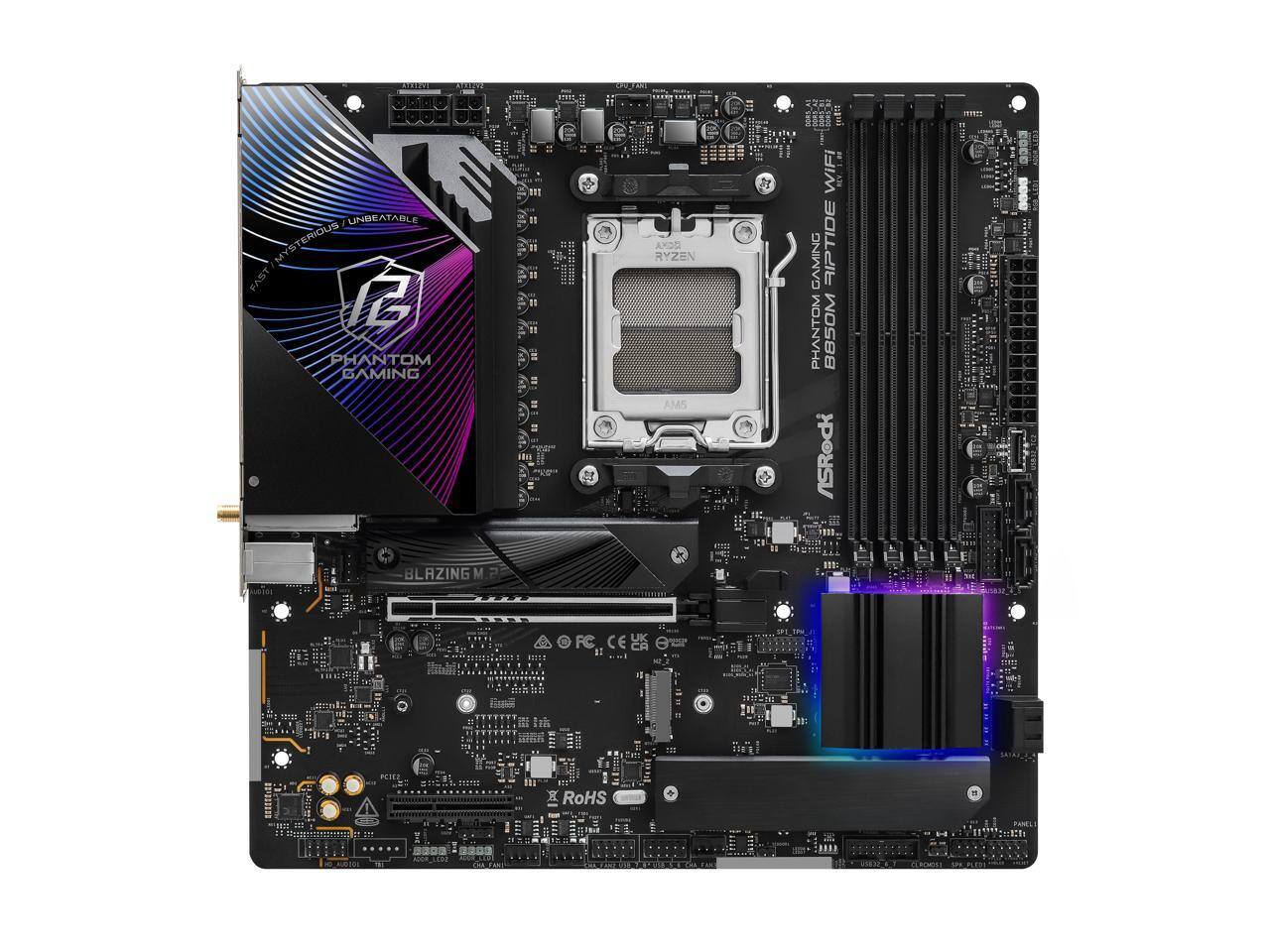

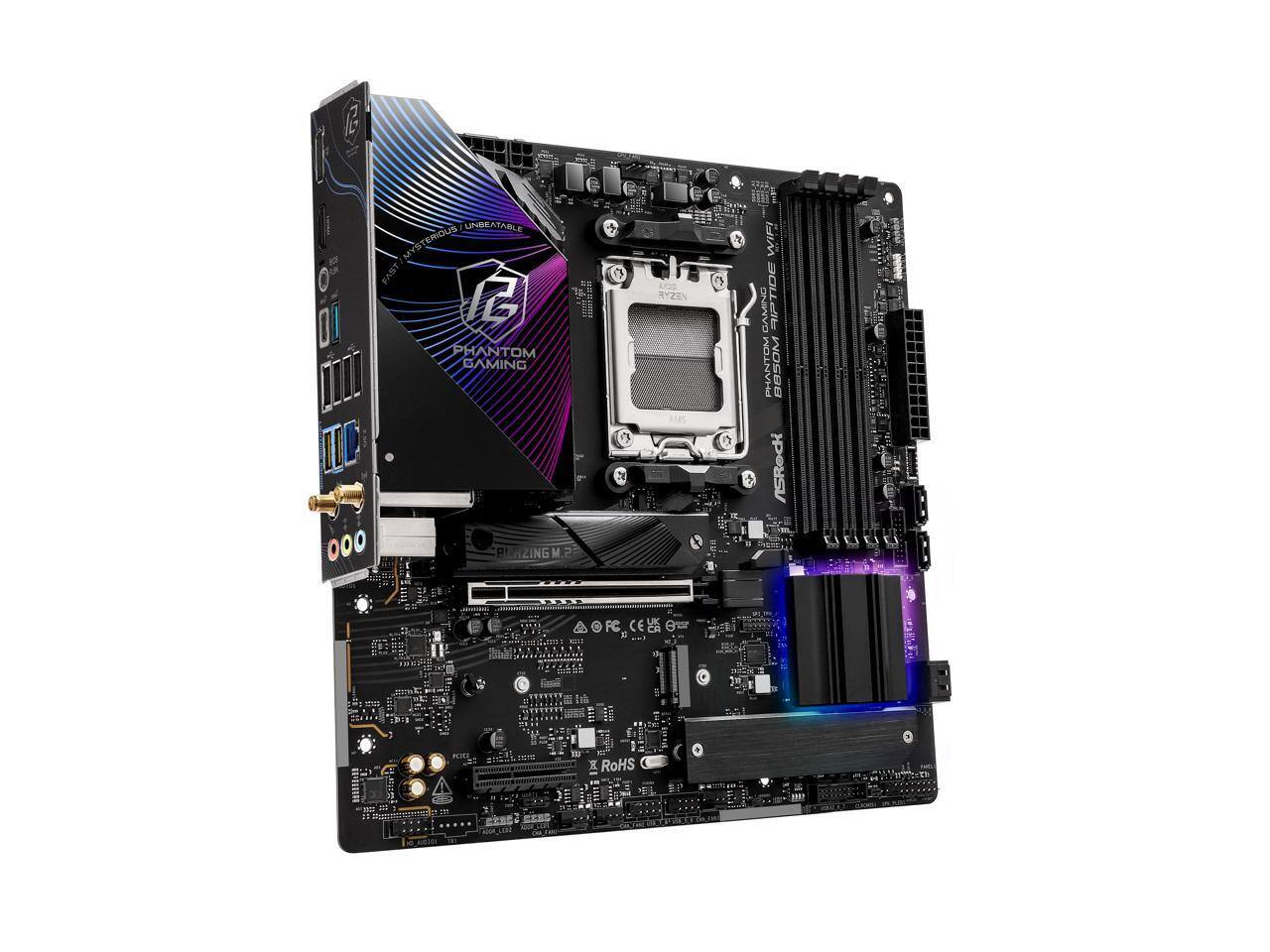

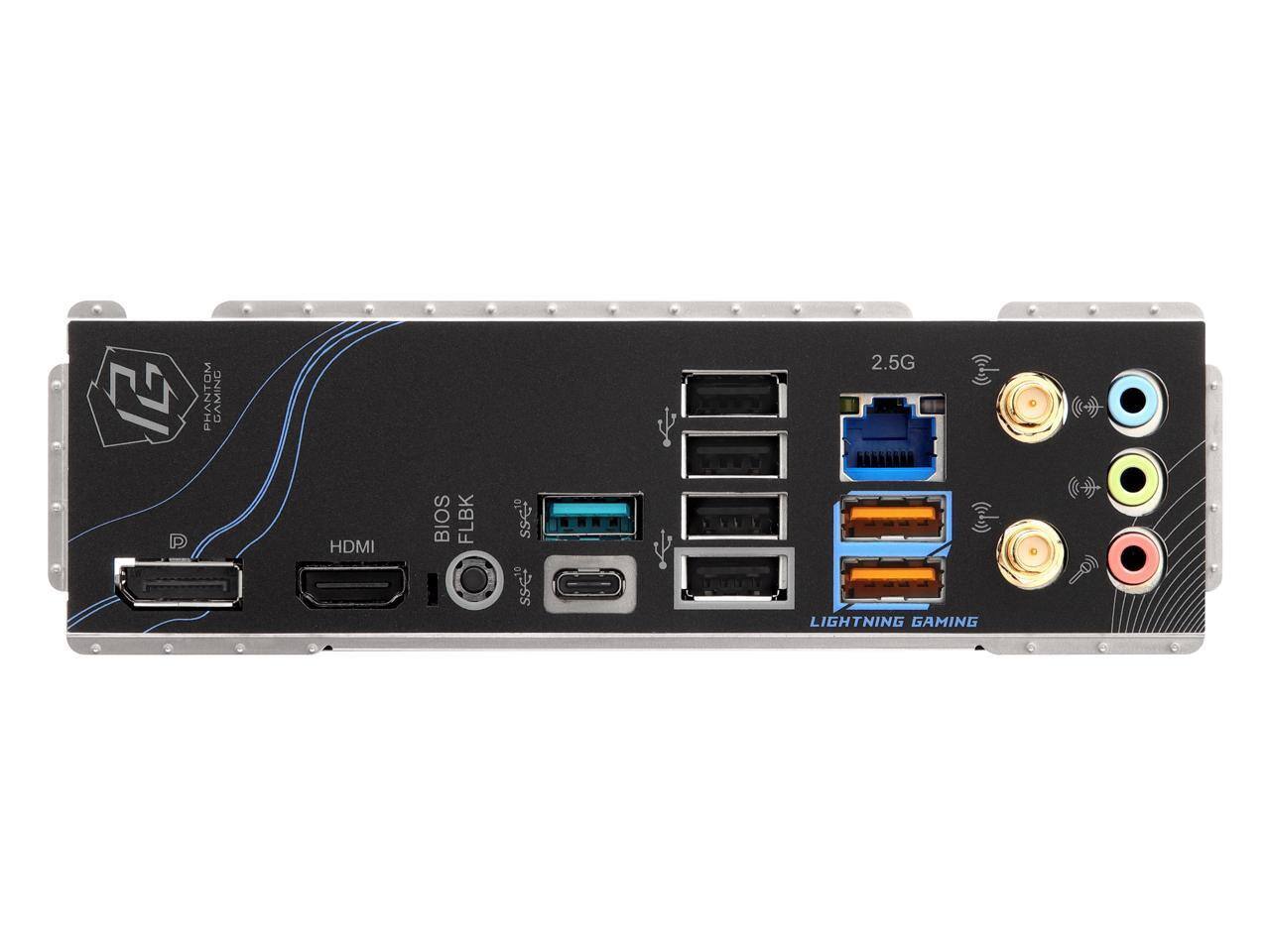

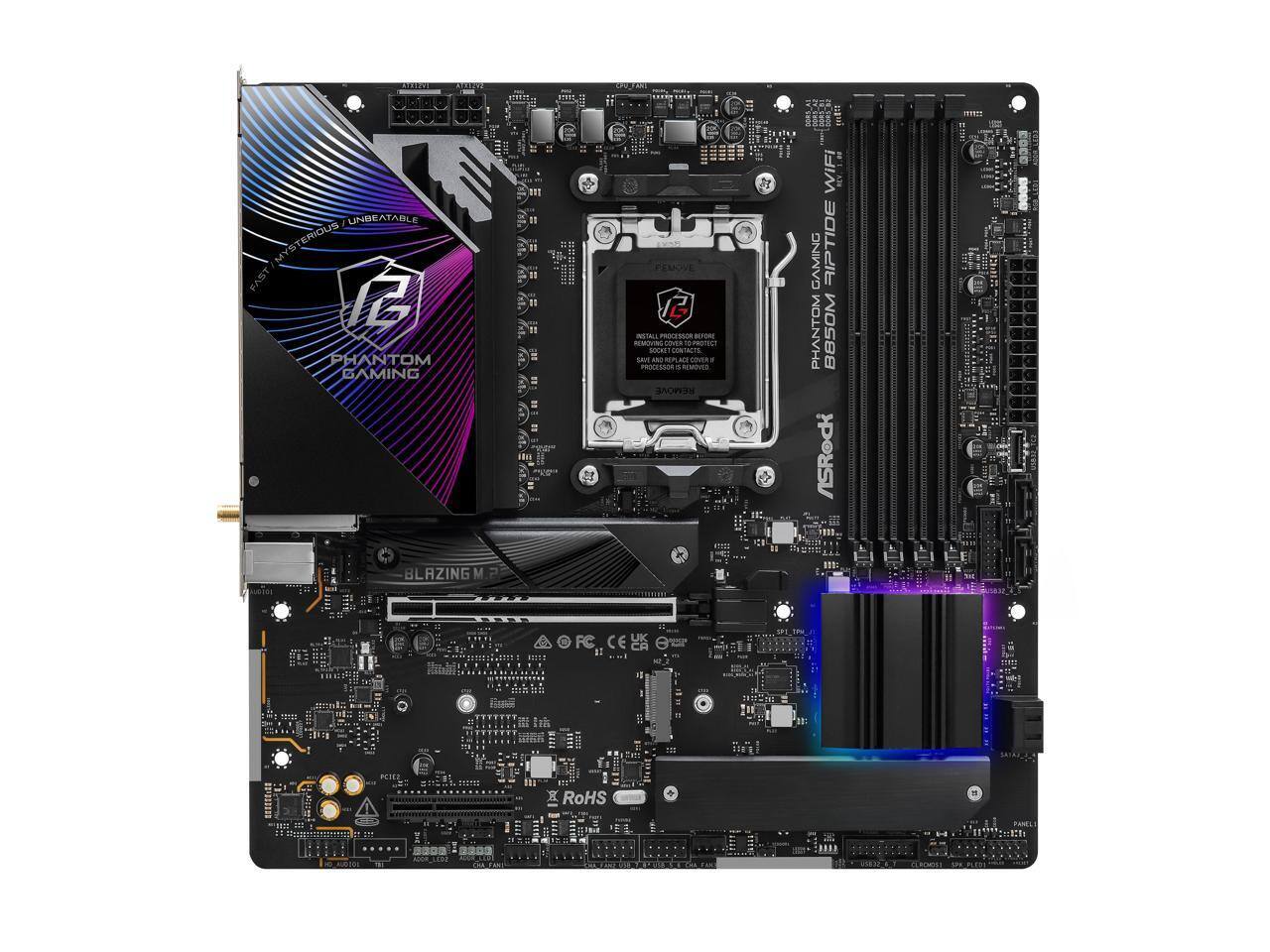

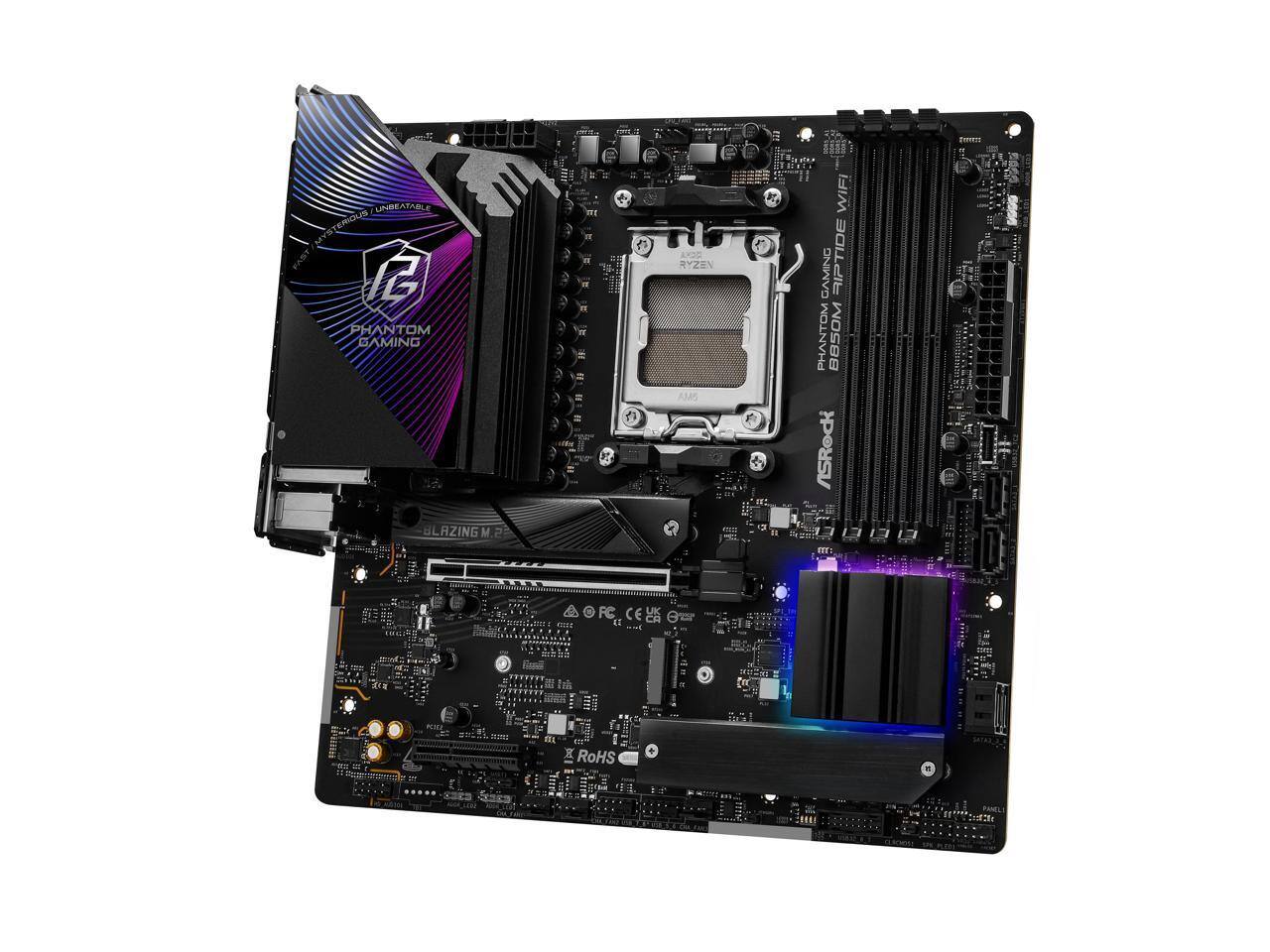

The ASRock B850M Riptide WiFi is a Micro-ATX motherboard designed for AMD's Socket AM5 processors, supporting Ryzen 7000, 8000, and 9000 Series CPUs. It features 4 DDR5 DIMM slots, accommodating up to 256GB of memory with speeds up to 8000+ MHz (OC). The motherboard offers 1 PCIe 5.0 x16 slot and 1 PCIe 4.0 x4 slot for expansion, along with 1 PCIe 5.0 x4 M.2 slot, 1 PCIe 4.0 x2 M.2 slot, and 4 SATA3 ports for storage. Networking is enhanced with Realtek 2.5G LAN, Wi-Fi 7 (802.11be), and Bluetooth 5.4. Additional features include HDMI 2.1 and DisplayPort 1.4 video outputs, 7.1 CH HD Audio with Realtek ALC1220 codec, and a 12+2+1 Phase Power Design with Dr.MOS for stable performance.
- Processor Compatibility: Supports AMD Ryzen 7000, 8000, and 9000 Series processors with Socket AM5.
- Memory Support: Equipped with 4 DDR5 DIMM slots, supporting up to 256GB of memory at speeds up to 8000+ MHz (OC).
- Expansion Slots: Features 1 PCIe 5.0 x16 slot and 1 PCIe 4.0 x4 slot for versatile expansion.
- Storage Options: Includes 1 PCIe 5.0 x4 M.2 slot, 1 PCIe 4.0 x2 M.2 slot, and 4 SATA3 ports for ample storage connectivity.
- Networking Capabilities: Offers Realtek 2.5G LAN, Wi-Fi 7 (802.11be), and Bluetooth 5.4 for high-speed wireless connectivity.
- Processor Compatibility: Supports AMD Ryzen 7000, 8000, and 9000 Series processors with Socket AM5.
- Memory Support: Equipped with 4 DDR5 DIMM slots, supporting up to 256GB of memory at speeds up to 8000+ MHz (OC).
- Expansion Slots: Features 1 PCIe 5.0 x16 slot and 1 PCIe 4.0 x4 slot for versatile expansion.
- Storage Options: Includes 1 PCIe 5.0 x4 M.2 slot, 1 PCIe 4.0 x2 M.2 slot, and 4 SATA3 ports for ample storage connectivity.
- Networking Capabilities: Offers Realtek 2.5G LAN, Wi-Fi 7 (802.11be), and Bluetooth 5.4 for high-speed wireless connectivity.
Compare similar products
The ASRock B850M Riptide WiFi is a Micro-ATX motherboard designed for AMD's Socket AM5 processors, supporting Ryzen 7000, 8000, and 9000 Series CPUs. It features 4 DDR5 DIMM slots, accommodating up to 256GB of memory with speeds up to 8000+ MHz (OC). The motherboard offers 1 PCIe 5.0 x16 slot and 1 PCIe 4.0 x4 slot for expansion, along with 1 PCIe 5.0 x4 M.2 slot, 1 PCIe 4.0 x2 M.2 slot, and 4 SATA3 ports for storage. Networking is enhanced with Realtek 2.5G LAN, Wi-Fi 7 (802.11be), and Bluetooth 5.4. Additional features include HDMI 2.1 and DisplayPort 1.4 video outputs, 7.1 CH HD Audio with Realtek ALC1220 codec, and a 12+2+1 Phase Power Design with Dr.MOS for stable performance.
The B850M GAMING X WIFI6E supports AM5 Processors and features unparalleled performance. GIGABYTE B850 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
The B850M Steel Legend WiFi motherboard is designed for AMD Socket AM5 processors, supporting Ryzen 9000, 8000, and 7000 Series CPUs. It features dual-channel DDR5 memory with 4 DIMM slots, accommodating up to 256GB of unbuffered memory at speeds up to 8000+ MHz (OC). The motherboard includes HDMI 2.1 and DisplayPort 1.4 outputs, both supporting up to 4K resolution at 120Hz. Audio is managed by the Realtek ALC1220 codec, delivering 7.1-channel HD audio with content protection. Networking capabilities include 2.5 Gigabit Ethernet, Wi-Fi 7 (802.11be), and Bluetooth 5.4. Expansion options consist of one PCIe 5.0 x16 slot and one PCIe 4.0 x4 slot. Storage options are extensive, with three M.2 slots (one PCIe 5.0 x4 and two PCIe 4.0 x4) and four SATA3 connectors. The motherboard offers a total of 17 USB ports, including USB 3.2 Gen2 Type-C and Type-A ports. Its Micro ATX form factor measures 9.6 x 9.6 inches (24.4 x 24.4 cm).
Outfit your computer build with a clean, minimalistic aesthetic while enjoying high performance with the white MSI B650M Project Zero AM5 Micro-ATX Motherboard as its foundation. Supporting AMD Ryzen 7000 series processors with the AM5 socket, this compact motherboard moves the power, fan, and other pin headers to the back, where they are hidden from glass side and front panel views with compatible chassis. At the same time, this compact micro-ATX motherboard may be packed with hardware to perform demanding tasks such as playing games at high settings and creating pro quality video content. Up to 128GB of 7600 MHz DDR5 memory in overclocked mode may be installed across four slots. An advanced graphics card can be installed into the PCIe 4.0 x16 slot, and a PCIe 3.0 x1 slot is also available for expansions. This motherboard also supports up to two M.2 NVMe PCIe 4.0 SSDs alongside four SATA III drives. The rear panel features high-speed connectivity, including a 20 Gb/s USB-C Gen 2x2 port and three 10 Gb/s USB-A Gen 2 ports. Built-in Wi-Fi 6E and a 2.5G Ethernet port allow you to connect to compatible networks. Windows 10 or 11 64-bit is required to take advantage of all the motherboard's features.
Specs
Reviews
This product doesn't have any reviews yet.
