Coolgear - 12-Port USB Hub - Compact Design - USB Type-A - Screw Lock Compatible - 5Gbps - Ready to Mount on Surface or DIN Rail - Black
Coolgear - 12-Port USB Hub - Compact Design - USB Type-A - Screw Lock Compatible - 5Gbps - Ready to Mount on Surface or DIN Rail - Black
$6.99 shipping to
Specifications
- Number of USB Port(s)12
- Key Specs
- Number of USB Port(s): 12
- General
- Brand: Coolgear
- Model Number: CG-12PU31HB
- Product Name: 12-Port USB Hub - Compact Design - USB Type-A - Screw Lock Compatible - 5Gbps - Ready to Mount on Surface or DIN Rail
- Color: Black
- Features
- Hub Type: USB hubs (The type of connection, such as Ethernet or USB, used to connect peripheral devices to the hub for shared access.)
- Ports
- Number of USB Port(s): 12
- Port Type(s): USB (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)

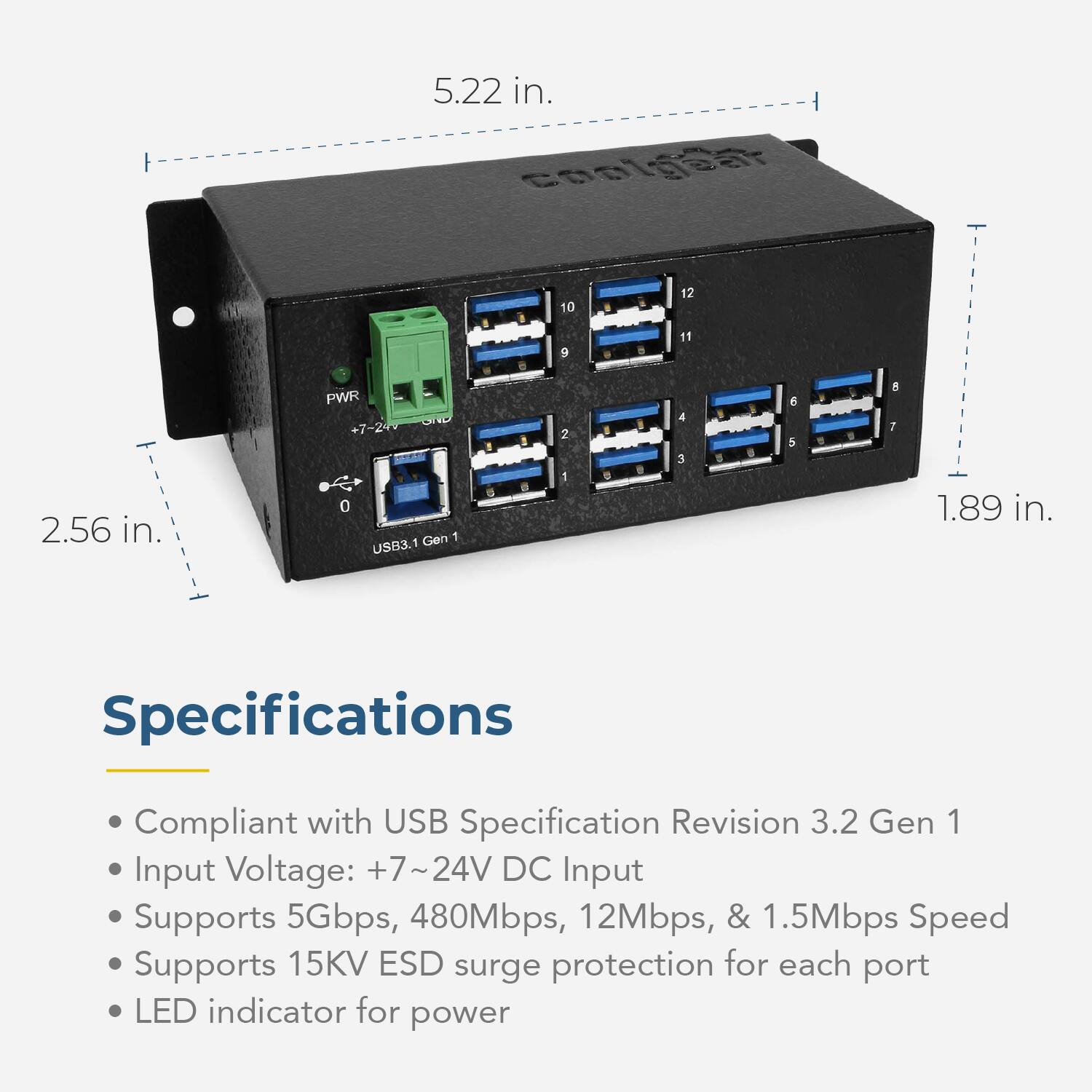

- Dimensions
- Product Height: 1.89 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 5.22 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 2.56 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.81 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 045079159679
The CG-12PU3MGD is a compact 12-port USB 3.2 Gen 1 hub designed to deliver big performance in tight spaces. Each USB-A port supports speeds up to 5Gbps and supplies 1.5A of power, with thermal shutdown protection kicking in at 2A for added safety. Built with a rugged, wall-mountable metal enclosure, it includes DIN rail and horizontal mounting options for secure industrial installations. With 15kV ESD protection per port and support for CDP and DCP charging modes, this self-powered hub (7–24V DC via 2-pin terminal block) ensures safe, stable connectivity for high-demand environments, while maintaining full compatibility with USB 2.0 and 1.1 devices.
- Expand your connections: Instantly add 12 USB 3.2 Gen 1 Type-A ports to your setup - ideal for industrial bench setups where dependable, high-capacity USB connectivity is a must.

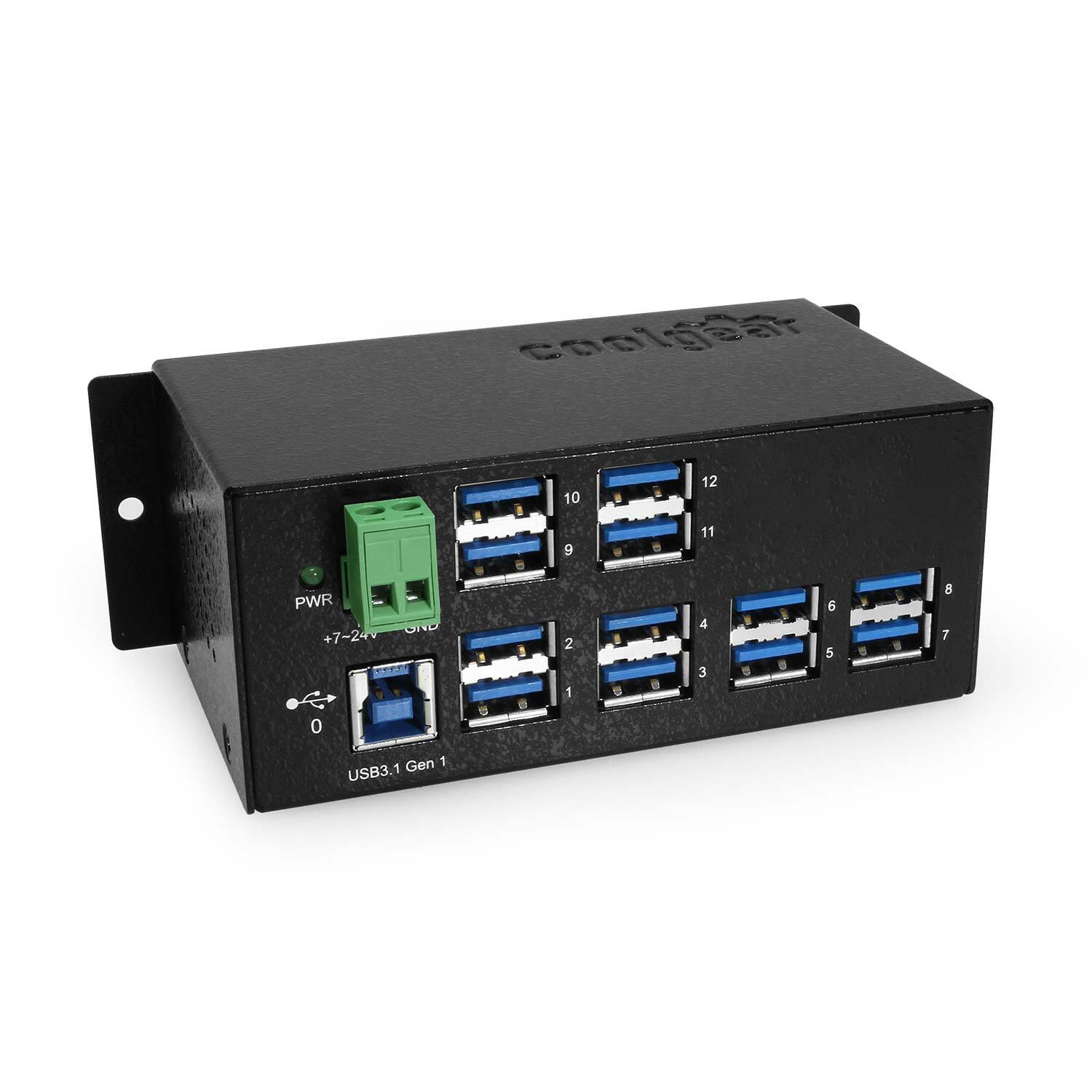

- Smart port layout: Features 12 downstream USB 3.2 Gen 1 Type-A ports for device connections and 1 upstream USB Type-B port to the host.

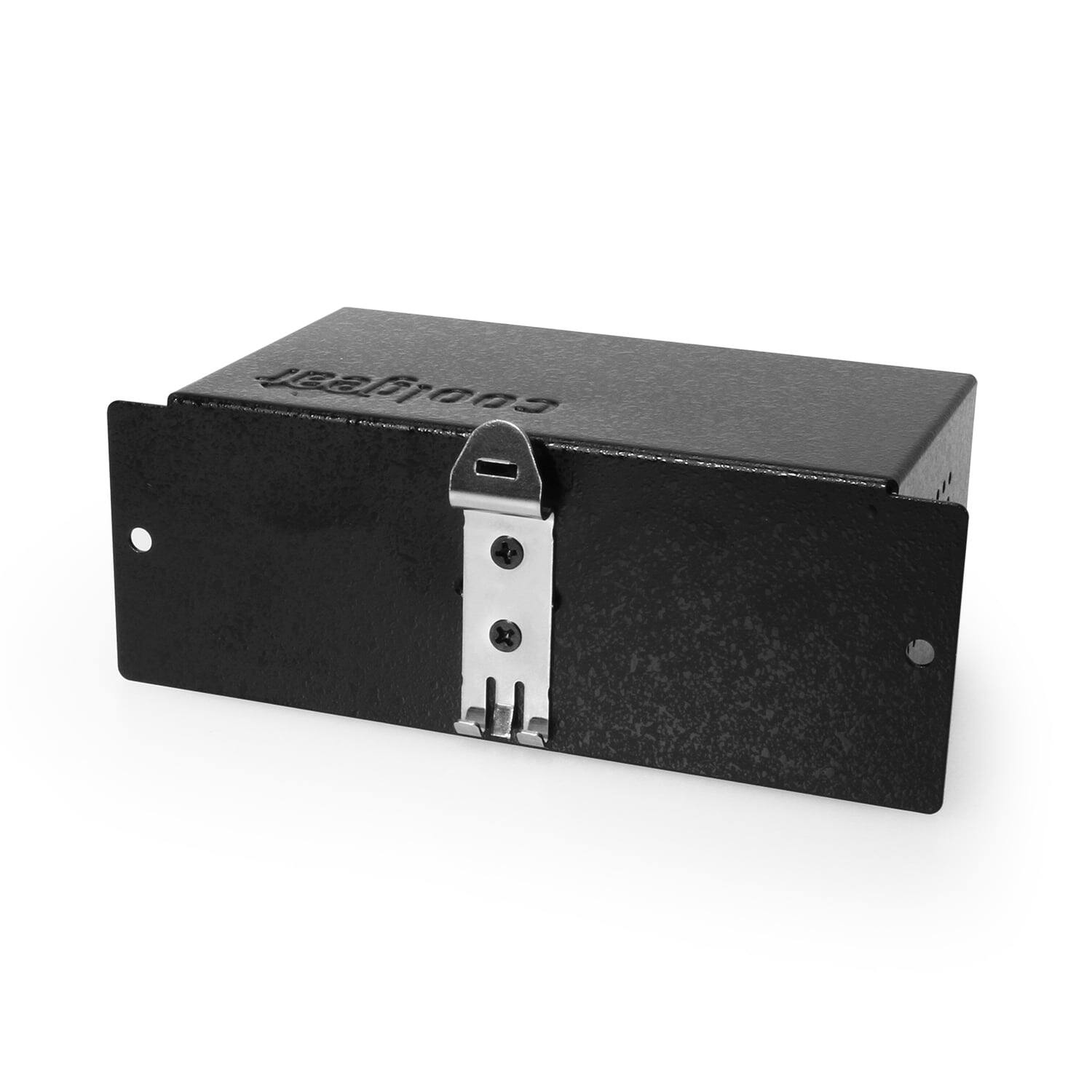

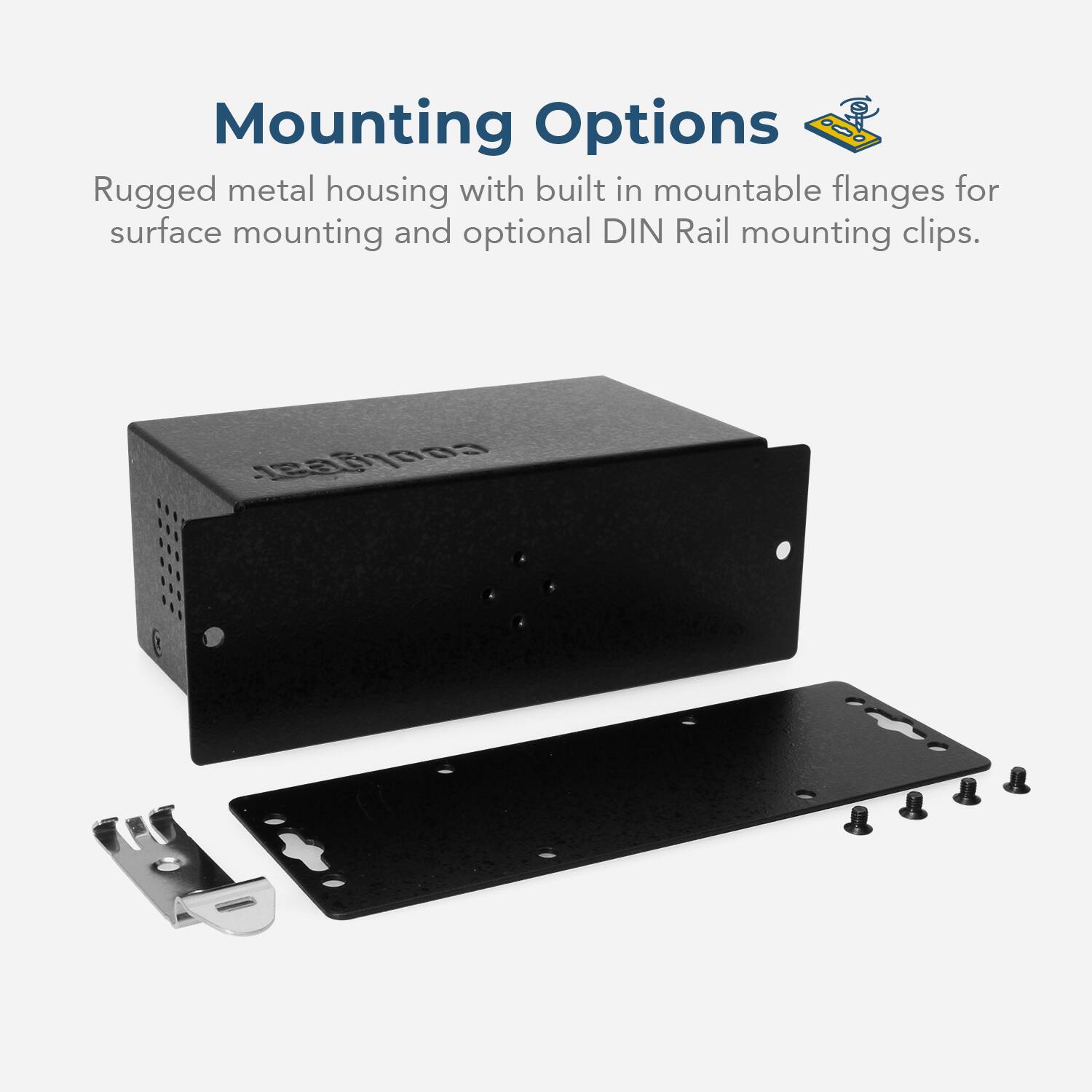

- Flexible mounting options: Rugged metal enclosure is ready for secure installation on a desktop, wall, or DIN rail with included hardware for easy integration into your setup.
- Power and device protection: Accepts 7–24V DC input via 2-pin terminal block, and includes 15kV ESD protection to keep your devices safe and uninterrupted.
- Broad OS compatibility: Works seamlessly with Windows 7 through Windows 11, macOS, and Linux.
- Expand your connections: Instantly add 12 USB 3.2 Gen 1 Type-A ports to your setup - ideal for industrial bench setups where dependable, high-capacity USB connectivity is a must.
- Smart port layout: Features 12 downstream USB 3.2 Gen 1 Type-A ports for device connections and 1 upstream USB Type-B port to the host.
- Flexible mounting options: Rugged metal enclosure is ready for secure installation on a desktop, wall, or DIN rail with included hardware for easy integration into your setup.
- Power and device protection: Accepts 7–24V DC input via 2-pin terminal block, and includes 15kV ESD protection to keep your devices safe and uninterrupted.
- Broad OS compatibility: Works seamlessly with Windows 7 through Windows 11, macOS, and Linux.

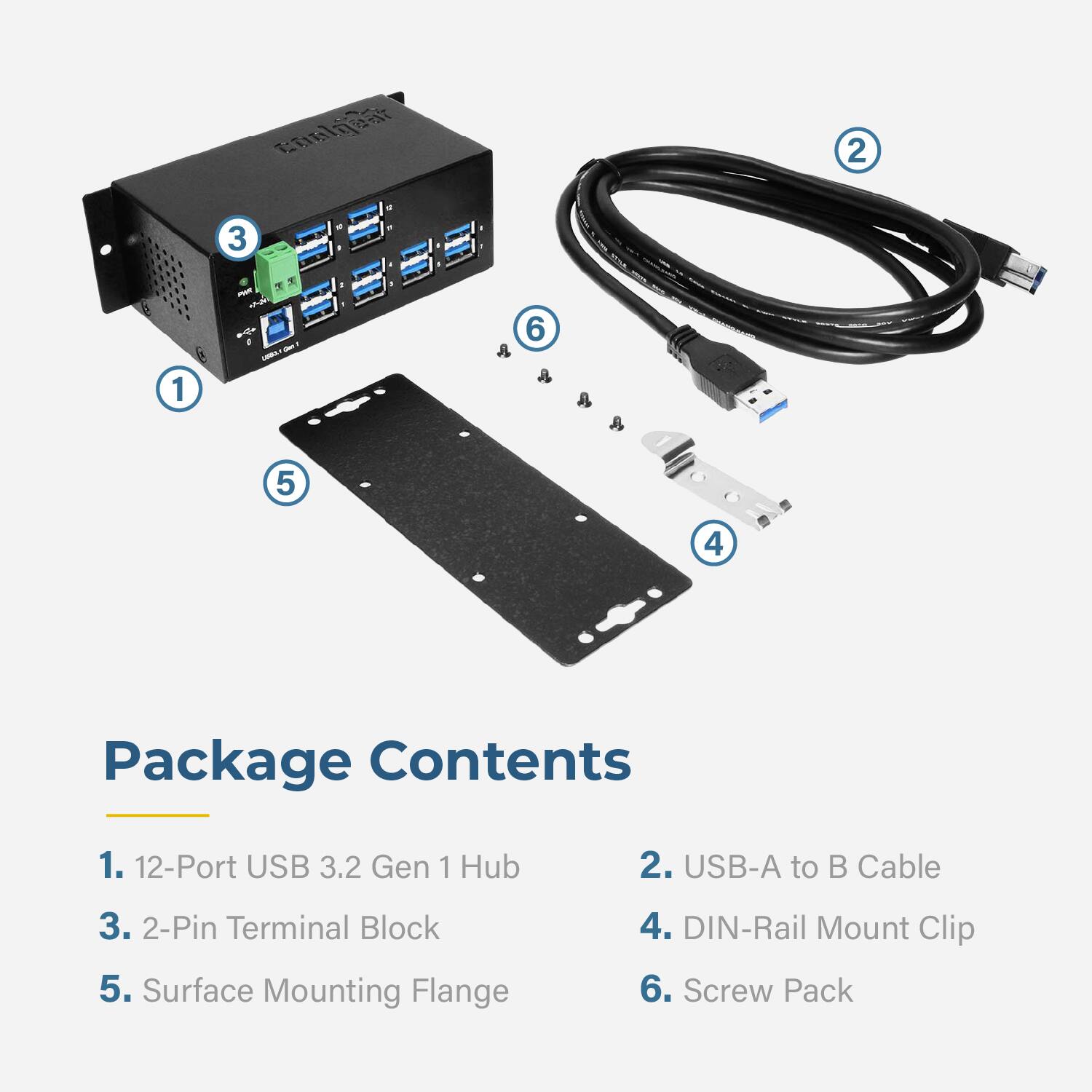

Whats Included
- 12-Port Hub, 6ft USB Type-A to Type-B Cable, 2-Pin Terminal Block, Mounting Kit, Screws
- 12-Port Hub, 6ft USB Type-A to Type-B Cable, 2-Pin Terminal Block, Mounting Kit, Screws
Product Manuals
Compare similar products
The CG-12PU3MGD is a compact 12-port USB 3.2 Gen 1 hub designed to deliver big performance in tight spaces. Each USB-A port supports speeds up to 5Gbps and supplies 1.5A of power, with thermal shutdown protection kicking in at 2A for added safety. Built with a rugged, wall-mountable metal enclosure, it includes DIN rail and horizontal mounting options for secure industrial installations. With 15kV ESD protection per port and support for CDP and DCP charging modes, this self-powered hub (7–24V DC via 2-pin terminal block) ensures safe, stable connectivity for high-demand environments, while maintaining full compatibility with USB 2.0 and 1.1 devices.
