Coolgear - 4-Port USB Hub - USB Type-A - Advanced Port Management - Wide Power Input - Screw Lock & DIN Rail Ready - 5Gbps - LEDs - Black
Coolgear - 4-Port USB Hub - USB Type-A - Advanced Port Management - Wide Power Input - Screw Lock & DIN Rail Ready - 5Gbps - LEDs - Black
$6.99 shipping to
Specifications
- Number of USB Port(s)4
- Key Specs
- Number of USB Port(s): 4
- General
- Brand: Coolgear
- Model Number: CG-4PU3MGD
- Product Name: 4-Port USB Hub - USB Type-A - Advanced Port Management - Wide Power Input - Screw Lock & DIN Rail Ready - 5Gbps - LEDs
- Color: Black
- Features
- Hub Type: USB hubs (The type of connection, such as Ethernet or USB, used to connect peripheral devices to the hub for shared access.)
- Ports
- Number of USB Port(s): 4
- Port Type(s): USB (USB 2.0 connects external drives, gaming controllers, smartphones, MP3 players and other accessories.USB 3.0 transfers data faster than USB 2.0, but only when used with USB 3.0 devices.USB Type-C provides fast speeds and versatile power, featuring connectors with identical ends that plug in upside down or right side up. Adapters allow for video as well as backward compatibility.Thunderbolt provides ultra-high bandwidth for fast data transfer between devices featuring a Thunderbolt or MiniDisplayPort connection.HDMI allows you to connect a projector or display HD media on your HDTV or monitor.Media card slots allow you to transfer photos from your digital camera or camcorder.)
- Dimensions
- Product Height: 1.22 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 6.41 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 2.16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.57 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 045079163096

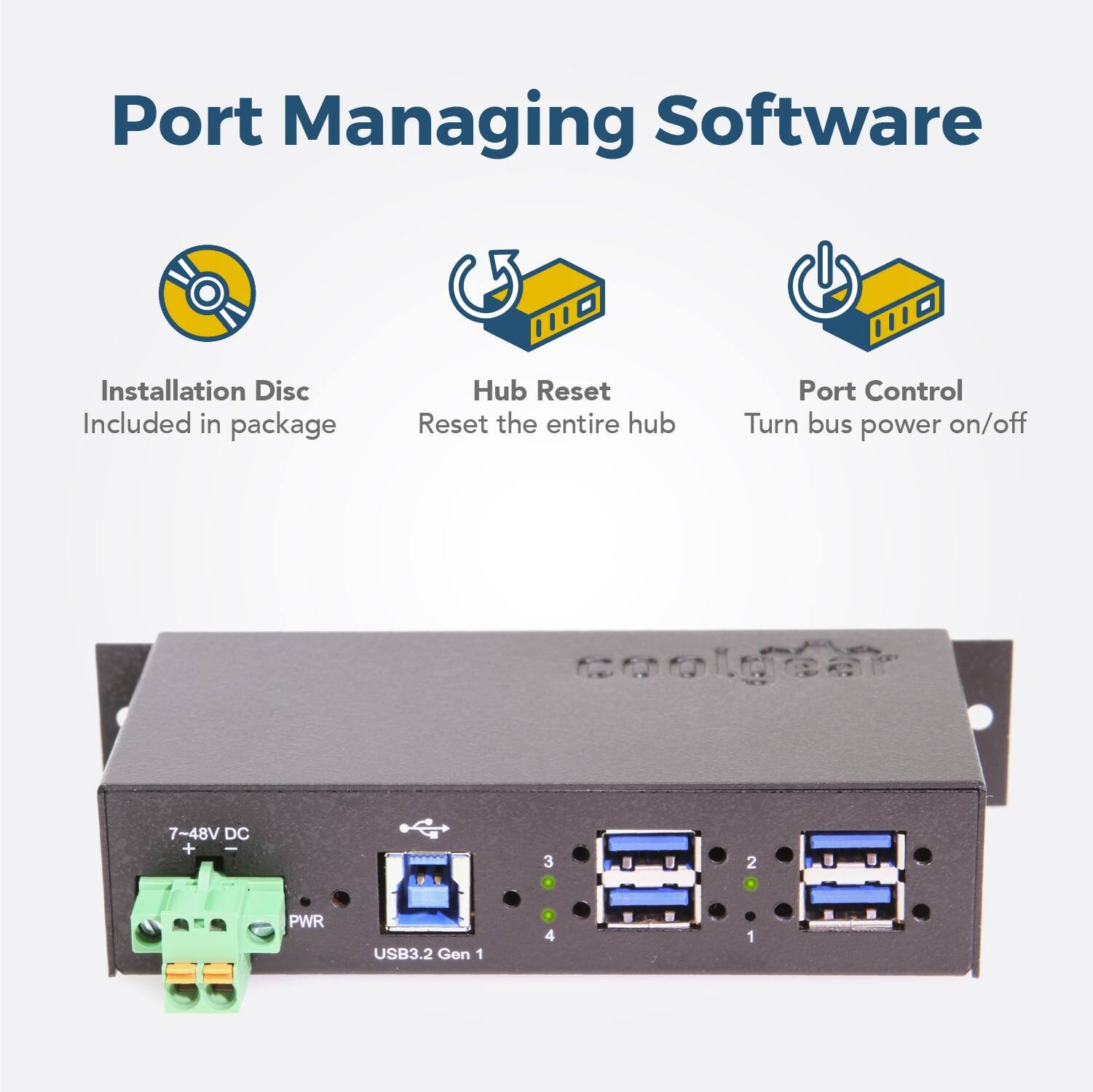

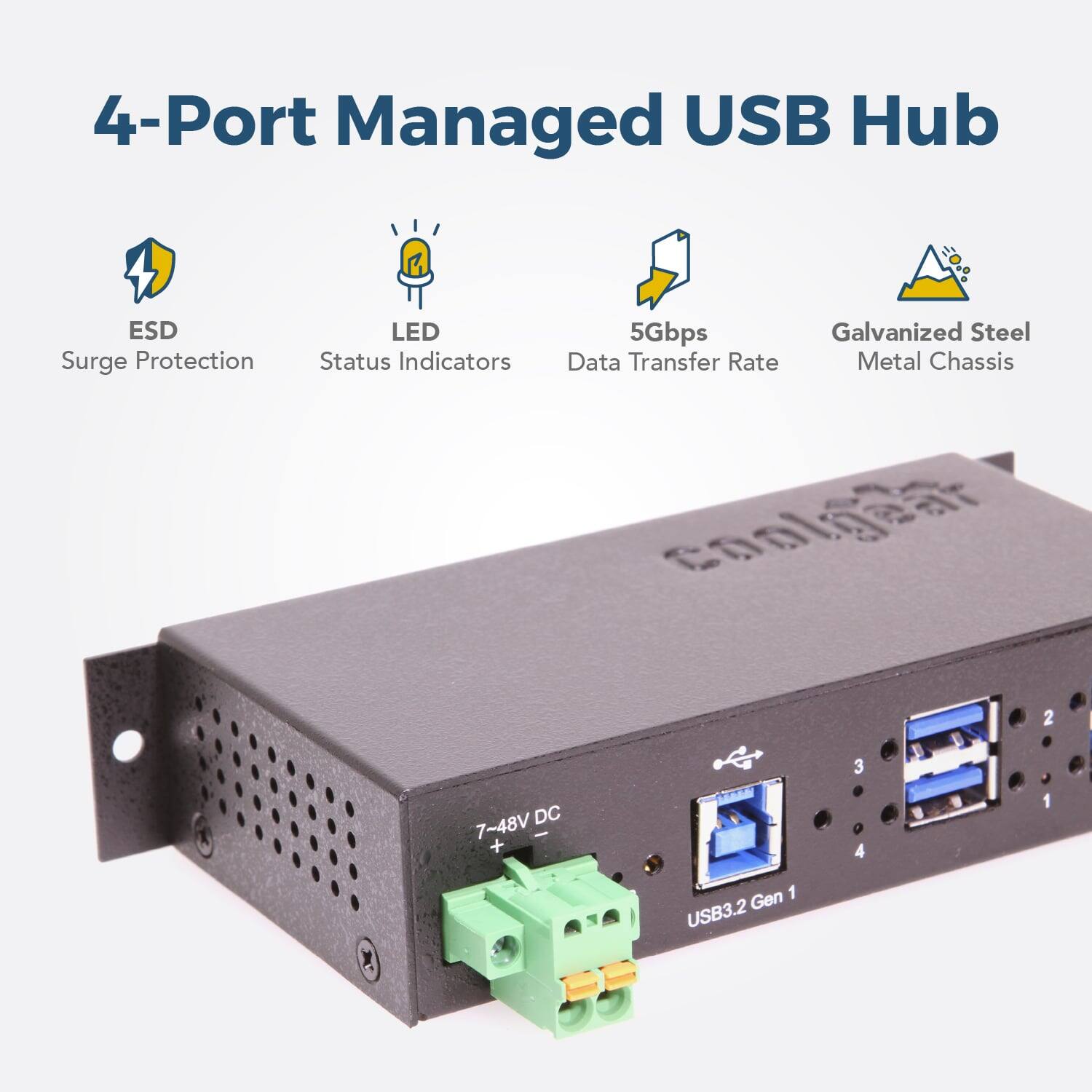

The CG-4PU3MGD is a compact 4-port managed USB 3.2 Gen 1 hub built for industrial reliability and high-speed performance. Each screw-lock port supports data rates up to 5Gbps and delivers 1.5A max power with 15kV ESD protection for safe, stable operation. With a wide 7–48V DC input and options for surface, wall, or DIN rail mounting, it’s designed to fit seamlessly into demanding setups. Includes cross-platform management software which allows users to control each port individually - turning power on or off, resetting devices, and saving custom configurations for automated startup states. It also supports USB Battery Charging v1.2 and vendor-specific fast charging modes like Apple 2.4A and Samsung.
- Expand your connections: Instantly add 4 USB 3.2 Gen 1 Type-A ports to your setup - ideal for rugged industrial installations where dependable, high-capacity USB connectivity is a must.

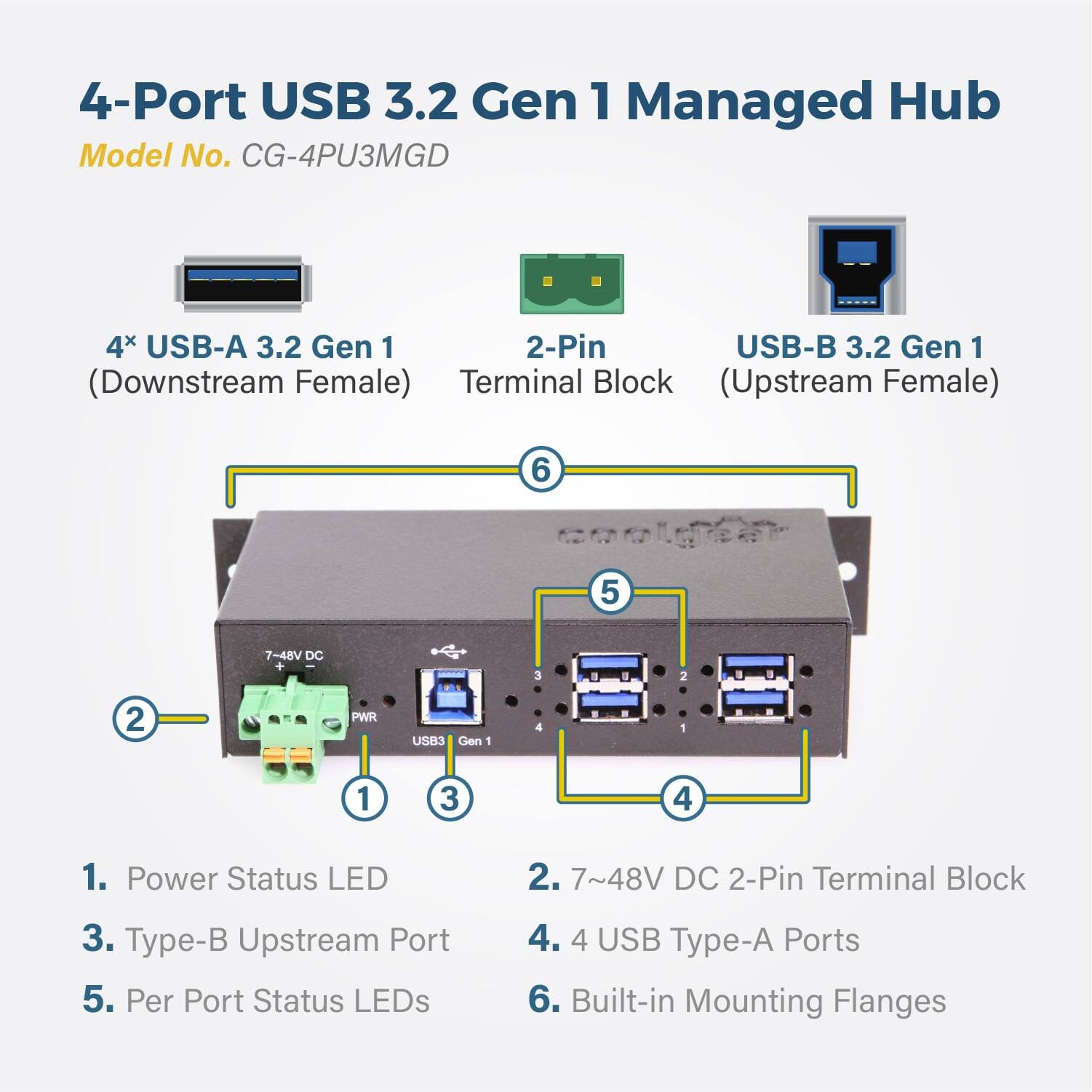

- Smart port layout: Features 4 downstream USB 3.2 Gen 1 Type-A ports for device connections and 1 upstream USB Type-B port to the host. Access advanced port control with included software. All ports support dual screw locks for security to minimize disconnections.

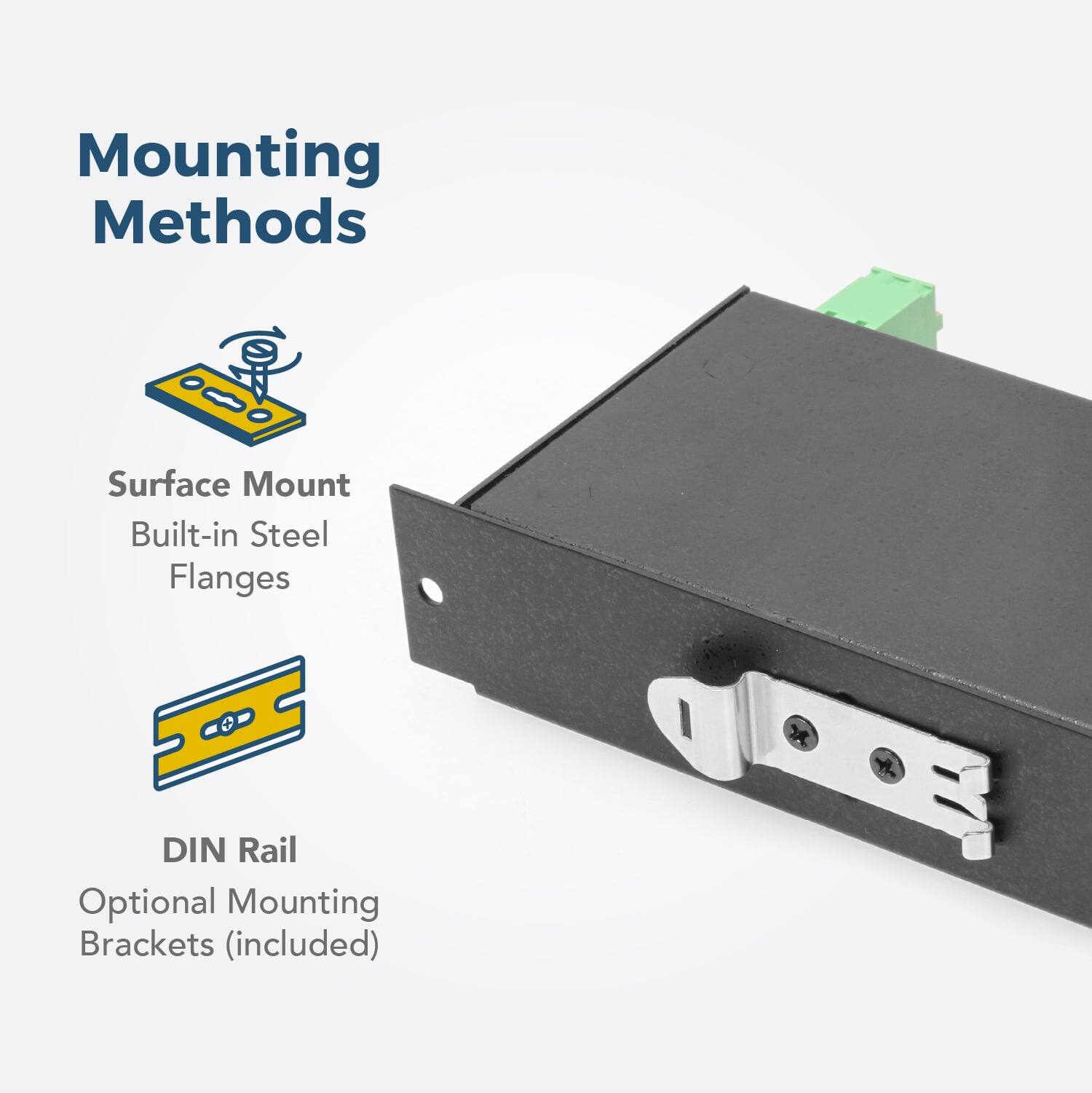

- Flexible mounting options: Rugged metal enclosure is ready for secure installation on a desktop, wall, or DIN rail with included hardware for easy integration into your setup.
- Power and device protection: Accepts wide range 7–48V DC input via 2-pin terminal block, and includes 15kV ESD protection to keep your devices safe and uninterrupted.
- Broad OS compatibility: Works seamlessly with Windows 7 through Windows 11, macOS, and Linux.
Whats Included

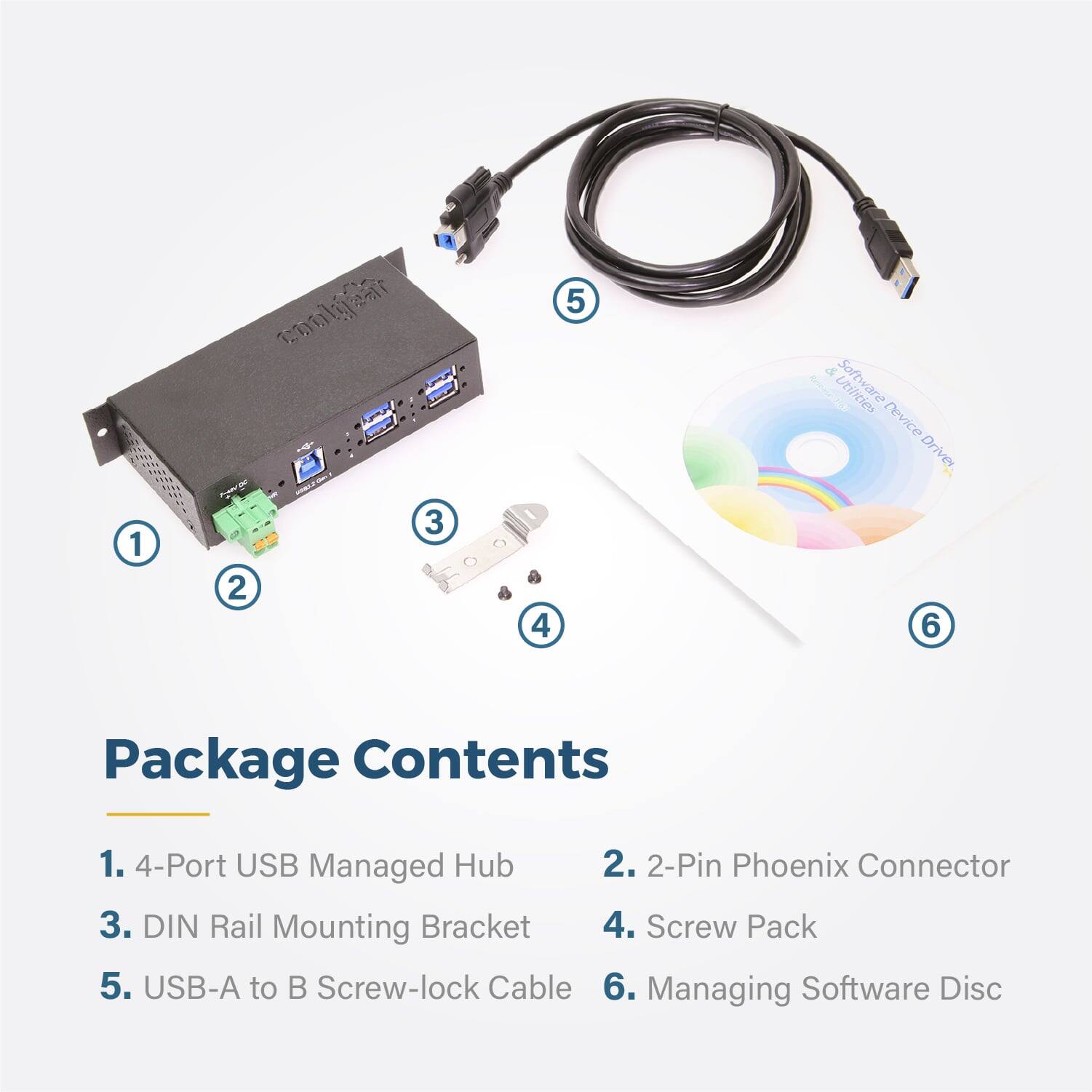

- 4-Port Hub, 5ft USB Type-A to Screw Lock Type-B Cable, 2-Pin Terminal Block, Mounting Kit, Screws
