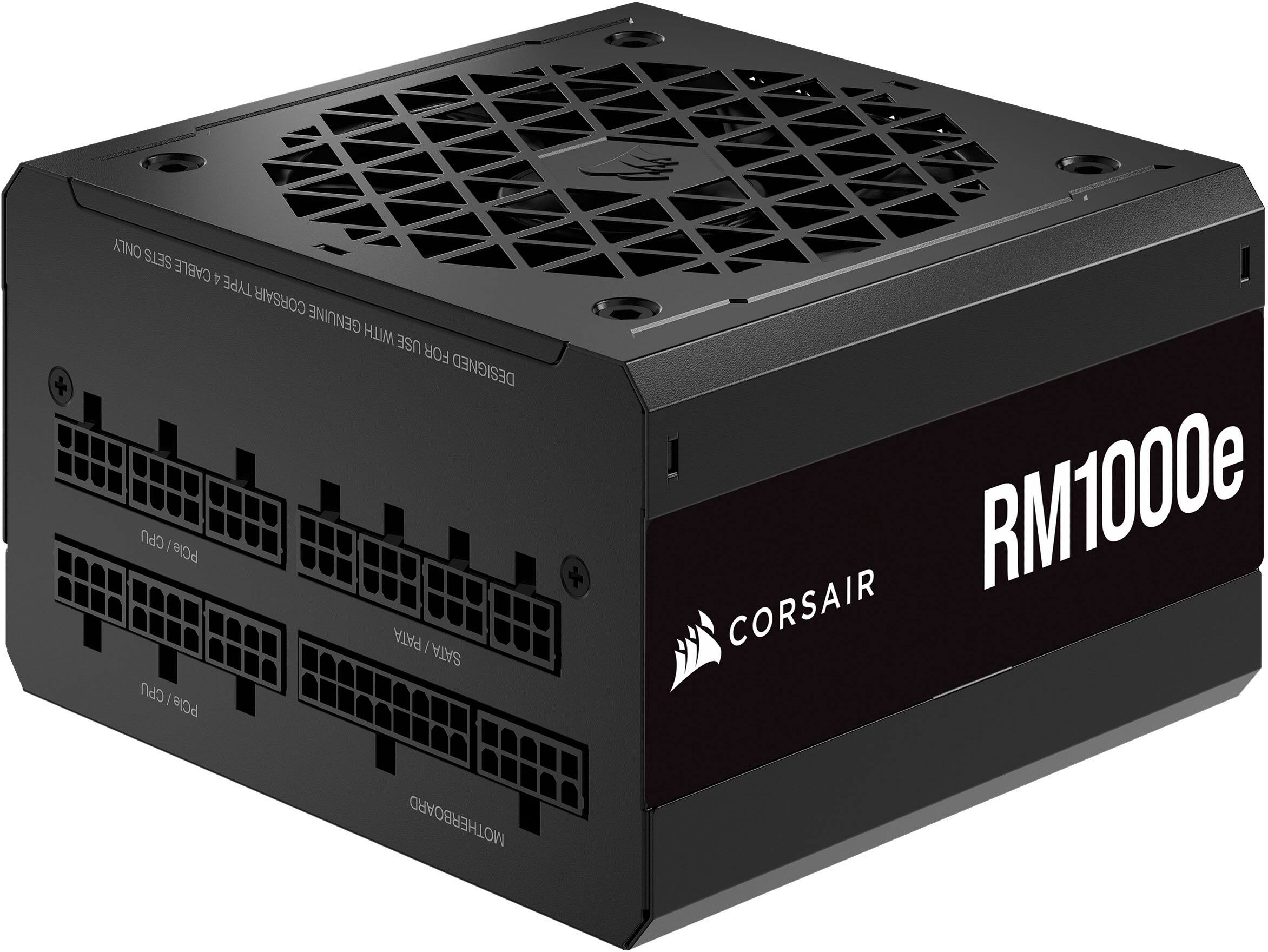

CORSAIR - RMe Series RM1000e 80 PLUS Gold Fully Modular Low-Noise ATX 3.0 and PCIE 5.0 Power Supply PSU - Black
- Key Specs
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: Cybenetics Gold, 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 1x 24-pin ATX (24-pin) Connector. 2x ATX 12V/EPS12V (4+4-pin) Connectors (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 6x PCIe (6+2) Connectors (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 7x SATA Connectors (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 86 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: CORSAIR
- Model Number: CP-9020264-NA
- Product Name: RMe Series RM1000e 80 PLUS Gold Fully Modular Low-Noise ATX 3.0 and PCIE 5.0 Power Supply PSU
- Color: Black
- Power
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: Cybenetics Gold, 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Specification Compliance: ATX 3.0 / EPS12V 2.92
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Cord Length: 5 feet
- Connectivity
- ATX Connector: 1x 24-pin ATX (24-pin) Connector. 2x ATX 12V/EPS12V (4+4-pin) Connectors (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: FALSE (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 6x PCIe (6+2) Connectors (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 7x SATA Connectors (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Dimensions
- Product Height: 150 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 140 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 86 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 58.56 ounces (The out of box weight of the item.)
- Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Fan Type: 120mm Rifle Bearing Fan
- Number of Fans Included: 1
- Features
- Lighting Type: None
- Warranty
- Warranty - Parts: 7 Years
- Warranty - Labor: 7 Years
- Other
- UPC: 840006699811
CORSAIR RMe Series Fully Modular Low-Noise Power Supplies provide quiet, reliable power with 80 PLUS Gold efficiency to your PC. With ATX 3.0 and PCIe 5.0 compliance and an array of PCIe 8-pin power connectors, RMe PSUs have the connections needed to power today’s demanding PC hardware. Industrial-grade, 105°C-rated capacitors deliver superb electrical performance, backed by a seven-year warranty. Wake your computer faster and consume less power with support for the new Modern Standby sleep mode. Fully modular cables make PC builds easy, as you connect only the cables your system requires. With a 140mm-long casing that works with nearly any modern case, the CORSAIR RMe Series is steady power for your system.
- Fully Modular PSU: Reliable and efficient low-noise power supply with fully modular cabling, so you only have to connect the cables your system build needs.
- Intel ATX 3.0 Certified: Compliant with the ATX 3.0 power standard, supporting the PCIe Gen 5 platform and resisting transient power spikes.
- Keeps Quiet: A 120mm rifle bearing fan with a specially calculated fan curve keeps fan noise down, even when operating at full load.
- 105°C-Rated Capacitors: Delivers steady, reliable power and dependable electrical performance.
- Modern Standby Compatible: Extremely fast wake-from-sleep times and better low-load efficiency.
- 80 PLUS Gold-Certified: Steady power output at up to 90% efficiency, and Cybenetics Platinum certified for lower power consumption, less noise, and cooler temperatures.
- Zero RPM Fan Mode: For near-silent operation at lower loads.
- The Right Fit: Compact 140mm-long casing ensures an easy fit in modern enthusiast PC cases.
- Resonant LLC Topology with DC-to-DC Conversion: Provides clean, consistent power and enables use of more energy-efficient sleep states.
- Seven-Year Warranty: Your guarantee of reliable operation for peace of mind through multiple builds.
Whats Included
- 1x 24-pin ATX (24-pin) Connector
- 2x ATX 12V/EPS12V (4+4-pin) Connectors
- 6x PCIe (6+2) Connectors
- 7x SATA Connectors
- 4x PATA Connectors
Q: Are the cables fully modular?
A: The CORSAIR RMe Series power supply cables are fully modular, allowing you to connect only the cables your system needs.
Q: What is the power supply's efficiency rating?
A: The power supply has an 80 PLUS Gold efficiency rating.
Q: What are the dimensions of the power supply?
A: The dimensions of the power supply are 150 millimeters in height, 140 millimeters in width, and 86 millimeters in length.
Q: Does the power supply support the Modern Standby sleep mode?
A: This power supply supports the Modern Standby sleep mode.
Q: How many PCIe connectors does the power supply have?
A: This power supply has six PCIe connectors.
Q: What is the warranty period for the power supply?
A: The power supply comes with a seven-year warranty.
Q: Does this come with a 12vhpwr cable?
A: undefined
Q: are all the cords that can connect to that power supply included?
A: Yes, it had everything I needed for my build
