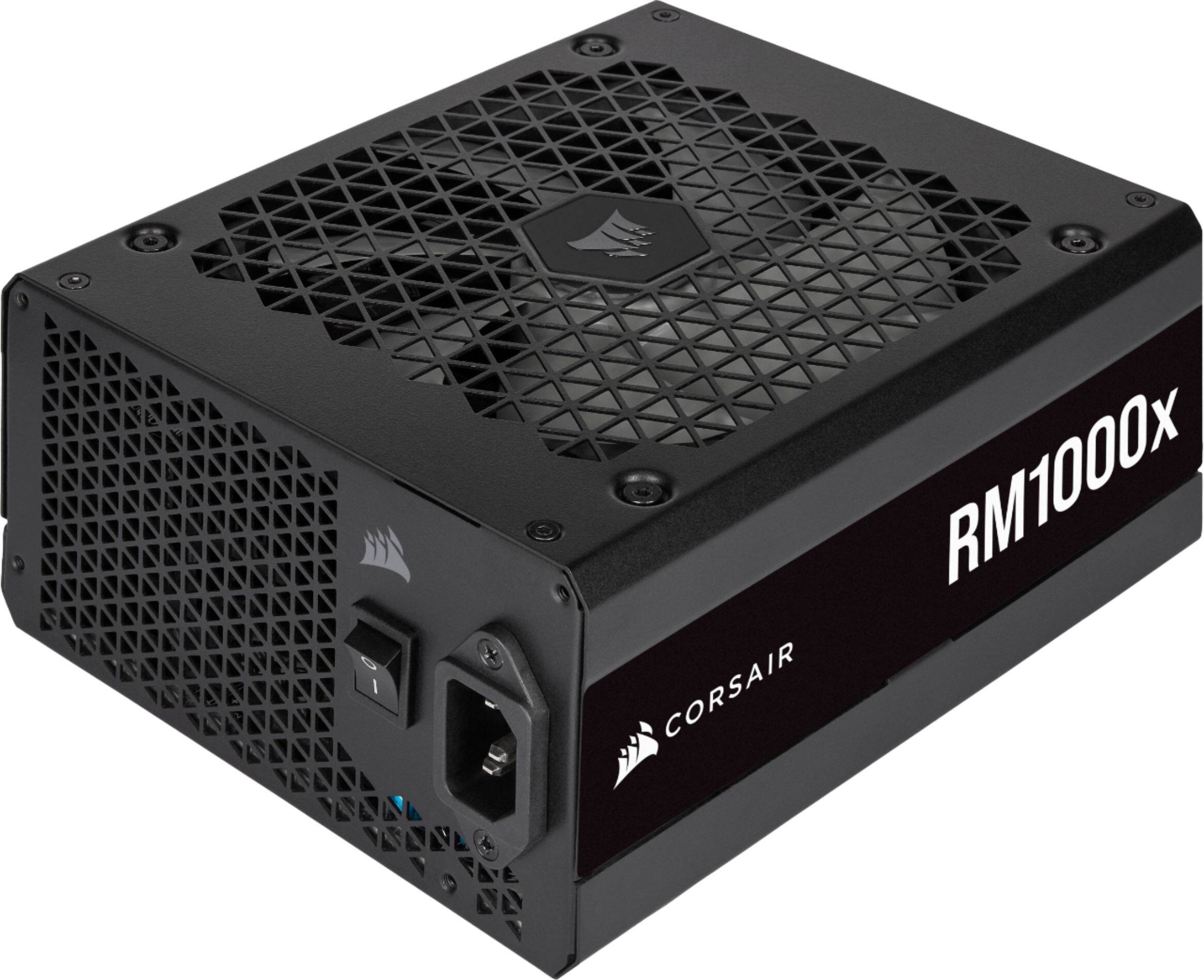

CORSAIR - RMx Series RM1000x 80 PLUS Gold Fully Modular ATX Power Supply - Black

Name: CORSAIR - RMx Series RM1000x 80 PLUS Gold Fully Modular ATX Power Supply - Black
Brand: CORSAIR
SKU: 6459246
Rating: 4.8 (1339 reviews)

Model: CP-9020201-NA

SKU: 6459246

This item is no longer available in new condition. See similar items below

Key Specs
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: Cybenetics Gold, 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 1x 24-pin ATX (24-pin) Connector. 2x ATX 12V/EPS12V (4+4-pin) Connectors (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 6x PCIe (6+2-pin) (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 8 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 14x SATA (Straight) Connectors (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 4.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 150.11 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
General
- Brand: CORSAIR
- Model Number: CP-9020201-NA
- Product Name: RMx Series RM1000x 80 PLUS Gold Fully Modular ATX Power Supply
- Color: Black
Power
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: Cybenetics Gold, 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Specification Compliance: ATX12V v2.4, EPS12V v2.92
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Cord Length: 5 feet
Connectivity
- ATX Connector: 1x 24-pin ATX (24-pin) Connector. 2x ATX 12V/EPS12V (4+4-pin) Connectors (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: FALSE (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 6x PCIe (6+2-pin) (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 8 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 14x SATA (Straight) Connectors (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 4.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
Dimensions
- Product Height: 86.11 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 180.09 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 150.11 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 70.56 ounces (The out of box weight of the item.)
Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Cooling Fan Type: 135mm Magnetic Levitation Fan
- Number of Fans Included: 1
Features
- Lighting Type: None
Warranty
- Warranty - Parts: 10 years
- Warranty - Labor: 10 years
Other
- UPC: 840006603559

CORSAIR RM1000x Series power supplies with EPS12V connectors are built with the highest quality components to deliver 80 PLUS Gold efficient power to your PC. RM1000x PSUs use only Japanese 105°C capacitors, for long life and reliability backed by a ten-year warranty. A 135mm magnetic levitation bearing fan ensures high performance coupled with low noise. Wake your computer faster and consume less power with support for Modern Standby sleep mode. Zero RPM mode ensures virtually silent operation at low and medium loads. Fully modular cables make PC builds and upgrades easy, as you need only connect the cables your system requires. An RM1000x PSU is quiet, efficient and dependable enough to power your high-performance PC for years to come.

Fully Modular: Only connect the cables your system needs, making clean and tidy builds easier.
135mm Magnetic Levitation Fan: Utilizes a magnetic levitation bearing and custom engineered rotors for high performance, low noise, and superior reliability.
EPS12V Connector: For wide compatibility with modern graphics cards and motherboards.
100% All Japanese 105°C Capacitors: Premium internal components ensure unwavering power delivery and long-term reliability.
Modern Standby Compatible: Extremely fast wake-from-sleep times and better low-load efficiency.
80 PLUS Gold Certified: High efficiency operation for lower power consumption, less noise, and cooler temperatures.
Zero RPM Fan Mode: At low and medium loads the cooling fan switches off entirely for near-silent operation.
Resonant LLC Topology with DC-to-DC Conversion: Provides clean, consistent power, reduces coil whine for quieter operation, and enables use of more energy efficient sleep states.
Ten-Year Warranty: Your guarantee of reliable operation that will last across several system builds

Whats Included

RM1000X
Safety leaflet
AC cable
DC cable set
Mounting screws
Cable ties

Q: Does the 2021 version come with the optional 4 pin CPU connector that some of the B550 and X570 boards have for overclocking? The 2015 version of the 1000x nor the 2018 version have them, just checking in to see if this one does

A: Hi Mike, The unit would come with 3x EPS12V connectors for you to use. -Brian

Q: is multi voltage 110v-220v?

A: Hi Matt, The RM1000x supports 100-240V. I've attached an image of the RM1000x' power table. If you have any additional questions, we'd be happy to help: support.corsair.com -Albert

Q: Is the PSU fan suppose to stay spinning? I built my first computer & when I first powered it on, everything was working. PSU fan spinning, GPU fan spinning, CPU Cooling fan spinning. But while I'm in the Bios, the PSU fan stopped spinning.

A: The PSU Fan may stop in the BIOS because there is very little load on the system while viewing the PC BIOS.

Q: I'm building a PC and already have an RTX 3090TI and an AMD Ryzen 7 5800X3D on the way. Will this PSU be enough or should I go for an 1100W or 1200W?

A: Hi Dominic, The RM1000x will provide sufficient wattage and connectors for your RTX 3090 Ti and 5800X3D. If you have any additional questions, we'd be happy to help: support.corsair.com -Albert

Q: What’s the difference in this model and CP-9020094-NA

A: Hi Calvin, Great question! Aside from sporting an updated design, the 2021 RMx features a Magnetic Levitation fan, providing optimal cooling at low noise levels. Zero RPM Fan Mode, premium internal components (100% All Japanese 105°C Capacitors), and 80 Plus Gold certification are still consistent with our previous RMx PSUs! Feel free to let us know if you have any additional questions, we'd be happy to help: support.corsair.com -Albert

Q: Does this work with the RTX 4090?

A: Yes Powers my 4090 with Watts to spare.

Q: I want to upgrade the stock cables from this unit to white, what cables do I need to purchase on the Corsair website? I have a 3090 Founders Edition, do I need some kind of adapter for the pins?

A: Corsairs type 4 cable set. Theres a compatibility page on corsairs site. Just look for "RMx". Theres a basic set and a premium set that comes with extra cables. Either one will work. The power specs on a 3090 FE is listed as x2 8pin connections, so you will be good.

Q: Is this enough Watts to handle a PC with a 4070ti, Ryzen 7 7700x and 32 GB's of ram? Or should I just go to 1200 Watts. Just getting to learn about PC parts.

A: More than enough, Austin, you'll be more than fine! -Art

Customers are saying

Customers express satisfaction with the RMx Series RM1000x power supply's high power output, strong performance in high-performance systems, and quiet operation. Many appreciate its modular design, ease of installation, and the included cabling. While some users note the larger size of the unit, the overall feedback highlights its positive attributes.

This summary was generated by AI based on customer reviews.

Customer Images

The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.

Rated 5 out of 5 stars
The Corsair RM1000x Power Supply My New BestFriend
Rating: ⭐⭐⭐⭐⭐ (5/5) I recently picked up the Corsair RM1000x Power Supply from Best Buy, and I can't help but share my excitement about it. This box of wonders has truly transformed my PC experience, earning it a well-deserved 5-star rating. Sturdy Build That Inspires Confidence: The first thing you'll notice is the solid feel of this power supply. It's like the tank of power supplies, reassuringly sturdy. The quality of the materials used screams durability, and I'm convinced it's built to last. Whisper-Quiet Operation: No more humming or buzzing sounds! The fan in this power supply operates with the finesse of a ninja. Even during intense gaming or demanding tasks, it keeps things whisper-quiet. Finally, a power supply that won't compete with my music or game soundtrack. Reliable Power Flow: My PC has found its power soulmate. The Corsair RM1000x PSU delivers a constant, reliable flow of power. Say goodbye to those annoying glitches or sudden shutdowns. It handles everything I throw at it with ease, making me wonder how I survived without it. Cable Management Made Easy: Let's talk about the cable situation. The modular design is a lifesaver. It's like having a personal cable butler – only use what you need, and keep the rest out of sight. My PC looks sleeker than ever, and I didn't need an engineering degree to set it up. Connectors for Days: Whether you're a gaming enthusiast or a productivity pro, this power supply has your back. The variety of connectors included is like having a universal adapter for your PC components. It's the Swiss Army knife of power supplies. In a nutshell, the Corsair RM1000x Power Supply is a game-changer. It doesn't just power up my PC; it elevates the entire experience. If you're on the hunt for a reliable, quiet, and all-around awesome power supply, look no further. Trust me, your PC will thank you for it! I can't recommend the corsair PSU enough – it's a solid 5-star performer. Thank you Best Buy!
Posted 1 year ago by Leon
Rated 5 out of 5 stars
Amazing power supply, it is long though (180mm)
Best power supply on the market . It is worth every penny because all your other components are attached to it. Paying a little extra for the peace of mind of knowing your psu won’t fry your cpu, motherboard, ram, storage, or gpu is worth the price alone. Yet this power supply Is still great value if you ignore those facts. It is 80 plus gold certified for efficiency and that has been confirmed through Aris at Hardware Busters. He has his own rating system that also gives it cybenetics gold and cybenetics A- for noise which means 25-30 dbA This PSU has all the ports you could ever ask for. It has 8 ports that can accept CPU/PCIE cables. So you can run up to 7 PCIE cables if you also are powering a cpu at the same time. Thats 14 PCIE 6+2 8-Pin connectors as the cords have the extra pigtail connector. It also comes with 3 (three!!!!) 8-pin EPS cables to power your CPU. These are 4+4 design so you can break them in half if you have a motherboard that needs a 4 pin ( some motherboards will have 1 8 pin and 1 4 pin for extra power for example.) Considering 1 8-pin EPS cable can handle over 300 watts its complete overkill, but still nice to have. Regarding included cables; you get 3 8-pin EPS connectors and 3 6+2 PCIE power cables that all have an extra 6+2 connected via pigtails giving you 6+2 connectors on each cable. If you are confused a 6+2 PCIE cable is just an 8 pin cable that can be separated into two sections one being 2 and one being 6. This allows you to break away the 2 part of the cable if you need a 6 pin power connector. You also get a lot of sata cables, a couple moles for compatibility reasons, and a single floppy adapter if you still are powering those. You will have extra modular ports even if you use all the cables. But this allows you to buy more in the future if you want to start a render farm, do AI deep learning, or even cryptocurrency mining, you can power a lot of graphics cards with this device. Lastly the mag lev fan is another big upgrade for the 2021 model. This all but ensures your fan will last the length of the generous 10 year warranty Corsair offers for this unit. I have never even heard it make a noise, electrical nor fan noise. In conclusion, if you see the price and are hesitant just consider this, you are not going to have to upgrade your power supply anytime soon if the next generation of graphics cards are even more power hungry (leaks show they use even more power than ampere.) Also, with the maglev fan and 10 year warranty, this power supply might last you 15 to 20 years of use and be the last power supply you ever have to buy. Lastly because its 1000 watts you are usually going to be operating at peak efficiency. This is because power supplies get their best efficiency at around 50% of their total rated capacity. So this unit will be most efficient at around 500 watts. Because its built for 1000 watts, drawing 600 watts 24/7 wont degrade this PSU like it would a unit designed for 650 watts. The headroom is good for longevity, silence, and efficiency. Just beware of the size. Its 180mm long. The standard ATX spec says a length of 160mm is standard. And many manufactures actually have models shorter than that. EVGA; for example, has many models that are still in the 750-850 watt range, but are 140-150mm in length. But longer length also means bigger fan and better cooling/less noise. Just buy this if you want a power supply you can use for any build and never have to worry about it failing or if it will last you forever. It will.
Posted 4 years ago by Jsteez
Rated 5 out of 5 stars
Lots of power!
I wasn't very aware that my computer was under powered until I installed this beauty. My system started running way better. I would recommend this over some of the smaller models that are closer to the 1,000 watts because it's not much more expensive.
Posted 1 year ago by ls3hitman
