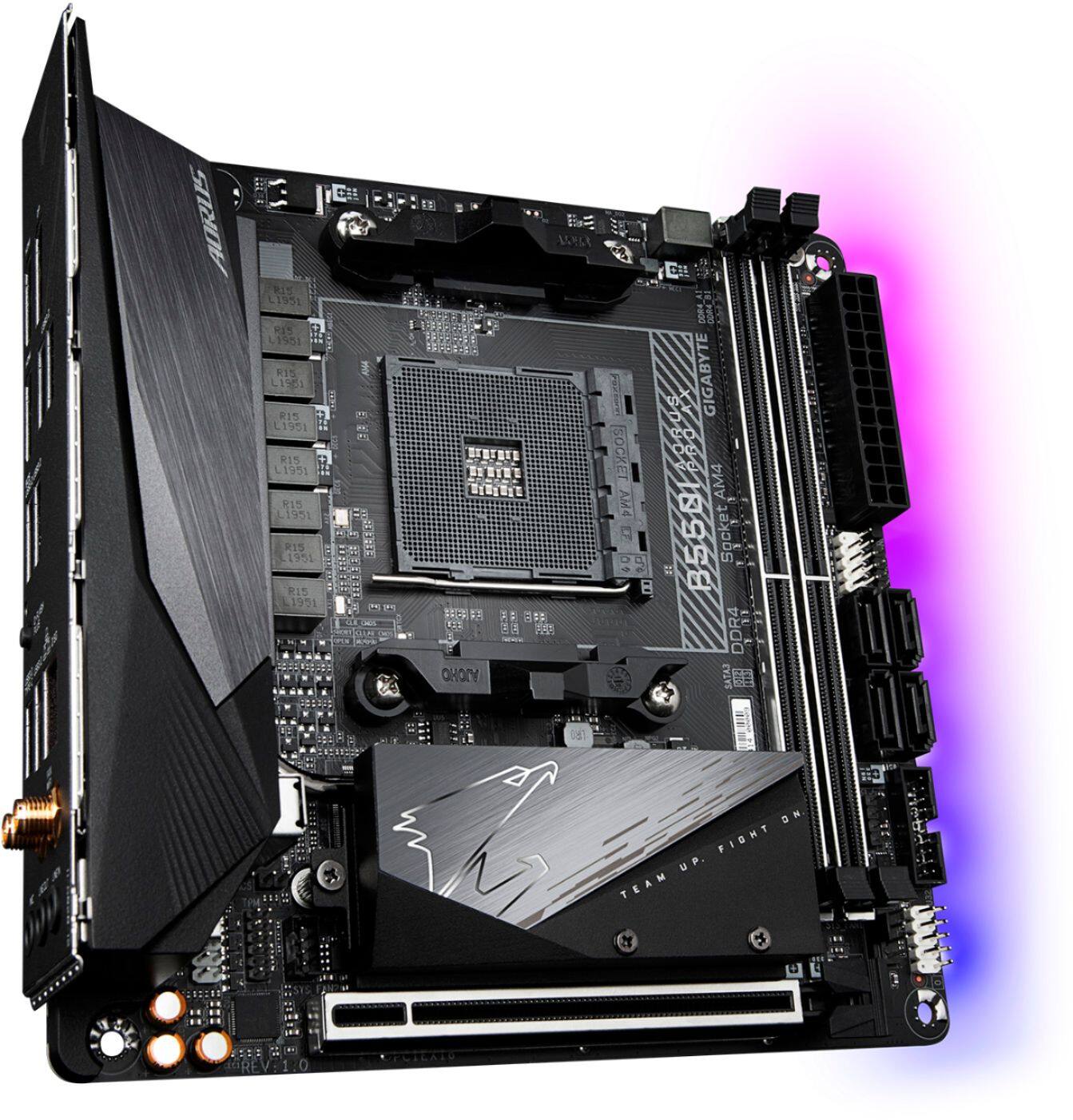

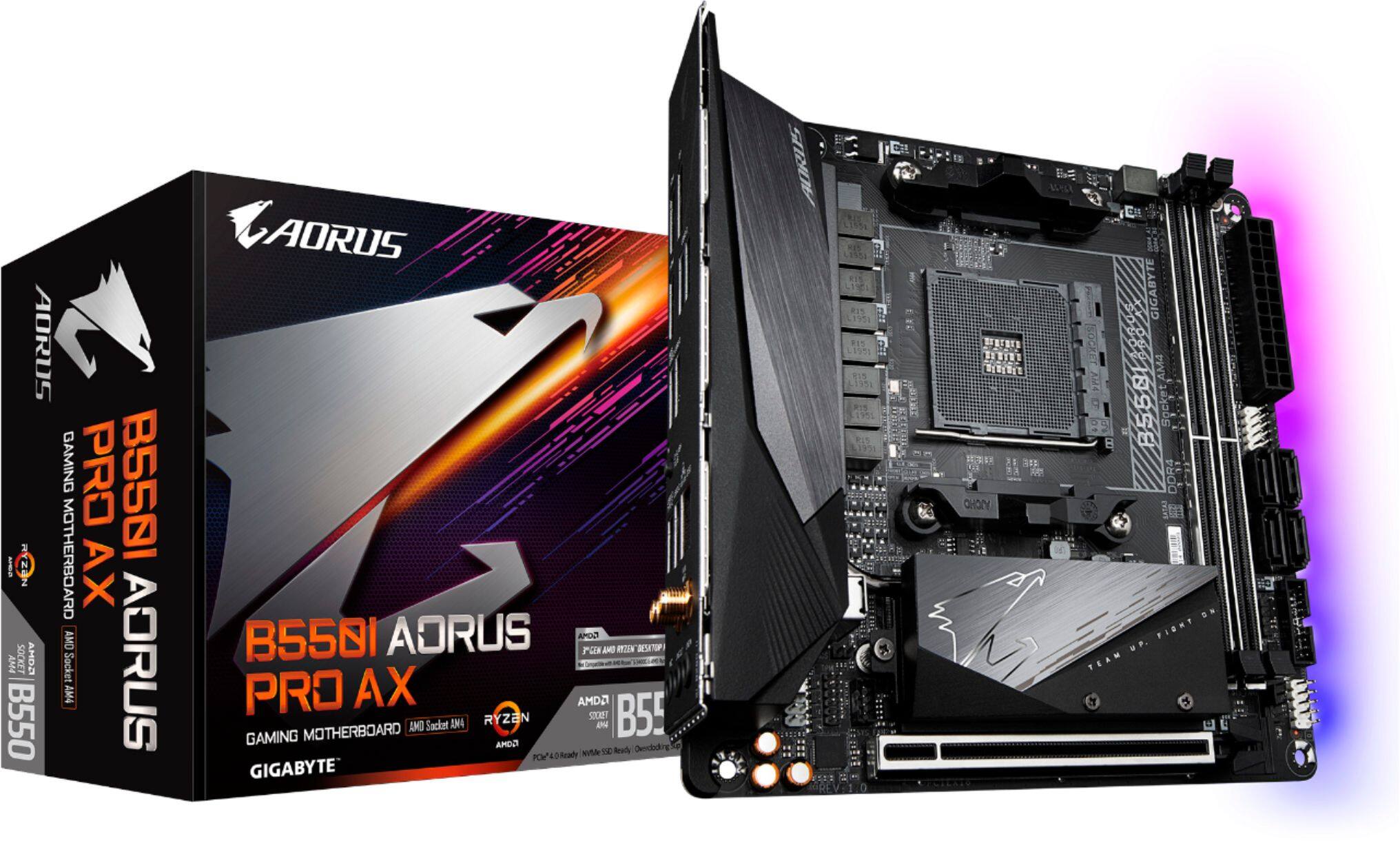

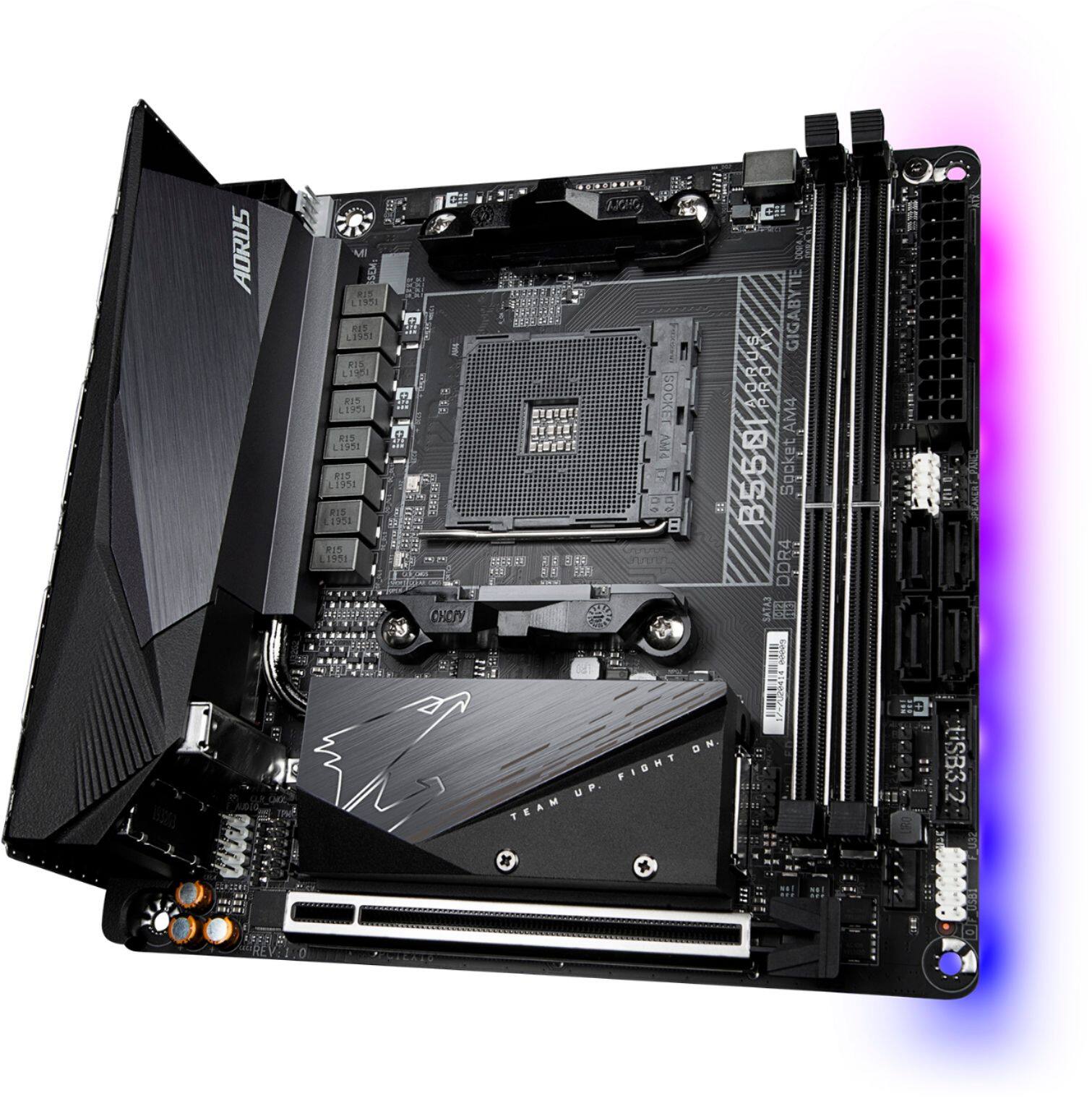

GIGABYTE - B550 I AORUS PRO AX AM4 USB3.1 AMD Motherboard - Small Form Factor - Black
Key Accessories:
- NZXT - F360 RGB Core - 360mm Single-Frame Case Fan Unit with 3 x 120mm RGB Fans and Fluid Dynamic Bearings - White$49.99The price was $69.99
More Buying Options from Marketplace sellers
Specifications
- ChipsetAMD B550Form FactorMini-ITXProcessor SocketSocket LGA 1700Number of PCI-E Slots1Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots2
- Key Specs
- Chipset: AMD B550
- Form Factor: Mini-ITX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 1 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 2
- Maximum Memory Supported: 64 gigabytes
- Memory Type Supported: DDR4
- General
- Brand: GIGABYTE
- Model Number: B550 I AORUS PRO AX
- Product Name: B550 I AORUS PRO AX AM4 USB3.1 AMD Motherboard - Small Form Factor
- Color: Black
- Compatibility
- Chipset: AMD B550
- Chipset Compatibility: AMD
- Form Factor: Mini-ITX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 5 5000 Series, AMD Ryzen 7 5000 Series, AMD Ryzen 9 5000 Series
- Operating System Compatibility: Windows 10, Windows 11 Home
- Slot
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 1 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 1
- Number Of PCI-E x8 Slots: 0
- Number Of PCI-E x4 Slots: 0
- Number Of PCI-E x2 Slots: 0
- Number Of PCI-E x1 Slots: 0
- Number Of Memory Slots: 2
- Connectivity
- Power Connector: 24-pin ATX main power connector, 8-pin ATX 12V power connectors (The configuration of the connector as it connects the motherboard to a power supply unit.)
- SATA Connector: 4x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Fan/Cooling System Connector: 1 x CPU fan header,2 x system fan headers (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports

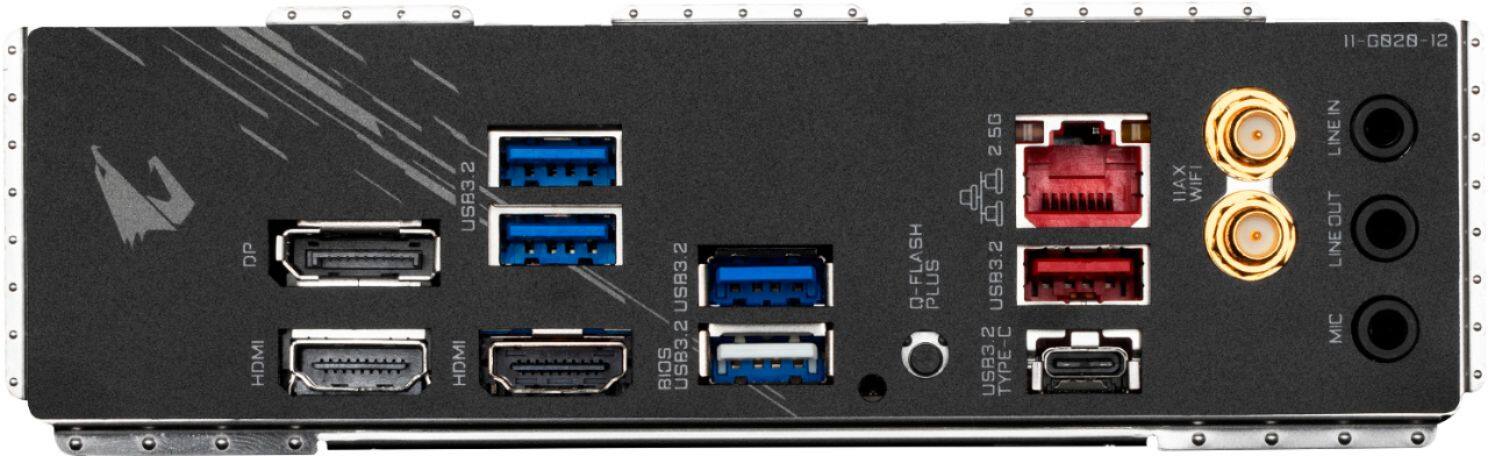

- USB Ports: 5 x USB-A 3.2, 1 x USB-C 3.2, None, None, None (The number and type of USB ports the product has.)
- Thunderbolt Ports: 0 (The number and type of Thunderbolt ports the product has.)
- Audio Ports: 3 x audio jacks
- Number of Audio Channels: 1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 170.18 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 188.98 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 51 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 64 gigabytes
- Memory Type Supported: DDR4
- Memory Format Supported: DIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 240-pin DIMM
- Features
- RAID Support: RAID 0, RAID 01 (RAID 0+1), RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Other
- UPC: 889523022986
B550I AORUS PRO AX is a mini-ITX motherboard perfect for building a small form factor PC for people who demands higher performance but also cares about aesthetics. The compact yet powerful pc delivers amazing performance with the latest CPU, graphic card and blazing fast connectivity. It also equips with comprehensive thermal solution to keep it cool under heavy workload. Performance is not compromised by its size.
- Processor Compatibility: AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ New Generation AMD Ryzen™ with Radeon™ Graphics processors
- Expansion slots: Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
- Graphics: Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- Memory: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Audio: Realtek® ALC1220-VB codec
- VRM: Direct 8 Phases Digital VRM Solution with 90A Smart Power Stage (SPS)
- Operating System: Windows® 10 64-bit
Q: Does this motherboard support a m.2 ssd
A: heck yeah dude, it even has a little heatsink for it so it won't get to spicy during use source: specs and reviews
Q: What bios version are these shipping with?
A: Hi BIZKeT, The MB ships with the latest BIOS from the time of manufacture date. These will have the bios to support Ryzen 5000 series out of the box. Hope this helps! - John
Q: Does this board have built-in WiFi or can it run ethernet only?
A: It does came with a built in wifi card that has an attachable antenna with a magnetic base and 4 different positions so it can be placed really anywhere on the case. I put mine on the back of the case so it can’t actually be seen from the front, although I’m using the Ethernet port, it maybe better on top of some systems depending on where your router is if you’re only using wifi. I hope this helps!
A: 5300 MHz. But I feel like anything over 3600MHz is overkill. I believe the Ryzen processors only officially support up to 3200MHz.
Q: any problem using stock 5600x fan interference wise memory or MB coolers?
A: Hi Dan, Yes this will work just fine with the Stock CPU cooler and most 3rd party coolers. We spaced out the memory so that there should be no interferance except for the biggest of air coolers. Hope this helps! - John
Q: Reading a lot about this board having bluetooth issues, did any of latest bios update fix it?
A: Got the newest bios version F13i from 04/23/2021 and have no issues.
Q: Any idea if this board will be restocked?
A: undefined
