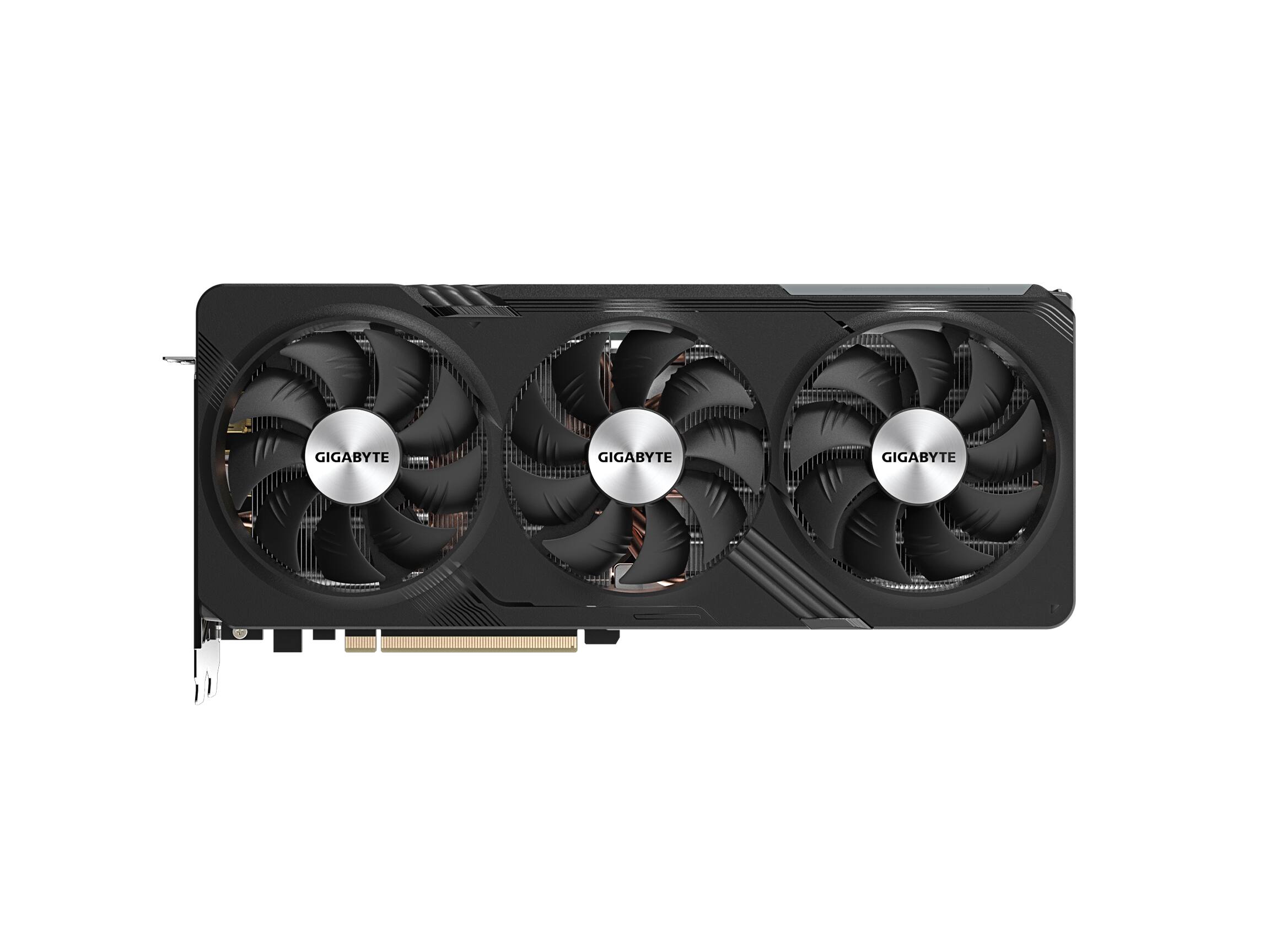

GIGABYTE - Radeon RX 7700XT GAMING OC 12GB GDDR6 PCI Express 4.0 Graphics Card - Black
Model: GV-R77XTGAMING OC-12GD
SKU: 6559399
This item is no longer available in new condition. See similar items below
- Key Specs
- GPU Base Clock Frequency: 2.27 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.59 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 2 x DisplayPort (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 2 x HDMI (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): RIS (Radeon Image Sharpening) (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 12 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 2.7-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 4.0
- Product Height: 56 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 130 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 302 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): AMD Radeon RX 7700 XT (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: GIGABYTE
- Model Number: GV-R77XTGAMING OC-12GD
- Product Name: Radeon RX 7700XT GAMING OC 12GB GDDR6 PCI Express 4.0 Graphics Card
- Color: Black
- GPU Chipset Manufacturer: AMD
- Graphics Processing Unit (GPU): AMD Radeon RX 7700 XT (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2023
- Performance
- GPU Base Clock Frequency: 2.27 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.59 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 2 x DisplayPort (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 2 x HDMI (The number and type of HDMI outputs the product has.)
- Thunderbolt Ports: 0 (The number and type of Thunderbolt ports the product has.)
- Power Connector: 8 pin*2 (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): RIS (Radeon Image Sharpening) (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 12 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 12 gigahertz
- Compatibility
- Slot Size: 2.7-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 4.0
- Operating System Compatibility: Mac, Windows
- Features
- Multi-GPU Support: None
- Power
- Total Graphics Power: 294 watts
- Recommended Power Supply: 700 watts
- Dimensions
- Product Height: 56 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 130 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 302 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 3 pounds (The out of box weight of the item.)
- Other
- UPC: 889523039274
Experience incredible performance, visuals, and efficiency when gaming and streaming with the GIGABYTE Radeon RX 7700 XT GAMING OC 12G, powered by the AMD RDNA 3 architecture. The GIGABYTE Radeon RX 7700 XT GAMING OC 12G delivers an incredible high refresh 1440p gaming & streaming experience
- AMD Radeon RX 7700 XT: Powered by Radeon RX 7700 XT
- Memory: Integrated with 12GB GDDR6 192-bit memory interface
- Cooling: WINDFORCE Cooling System
- Lighting & Additional Features: RGB Fusion, Dual BIOS, Protection metal back plate
- AMD Radeon RX 7700 XT: Powered by Radeon RX 7700 XT
- Memory: Integrated with 12GB GDDR6 192-bit memory interface
- Cooling: WINDFORCE Cooling System
- Lighting & Additional Features: RGB Fusion, Dual BIOS, Protection metal back plate
Whats Included
- Radeon RX 7700XT GAMING OC 12GB GDDR6 PCI Express 4.0 Graphics Card
- Radeon RX 7700XT GAMING OC 12GB GDDR6 PCI Express 4.0 Graphics Card
Q: Will this product be back in stock soon?
A: undefined
Q: Does this graphics card support HDMI 2.1?
A: Yes. It has 2x HDMI 2.1a and 2x DP 2.1 outputs.
