HQRP - 7-Wire Dimming Photocell Receptacle Twist Lock 480V Outdoor Dusk to Dawn Socket UL
HQRP - 7-Wire Dimming Photocell Receptacle Twist Lock 480V Outdoor Dusk to Dawn Socket UL
Related Item
About This Item
- General
- Brand: HQRP
- Model Number: 88466710224265
- Product Name: HQRP 7-Wire Dimming Photocell Receptacle Twist Lock 480V Outdoor Dusk to Dawn Socket UL
- Installation Required: true
- Lighting
- Bulb(s) Included: false
- Features
- Mount Type: Top mount
- Motion Sensing: false
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Power
- Automatic Power Outage Reset: true
- Included
- Number Of Light Fixtures Included: 1
- Dimensions
- Product Height: 1.53 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 2.59 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 200 days
- Other
- UPC: 887774593620
HQRP 7-Wire Dimming Photocell Receptacle provides a heavy-duty twist-lock base for advanced outdoor lighting systems. Rated 480V/15A power contacts and 30V/250mA dimming contacts, ideal for LED flood lights, street lights, and garden lighting. Features 7-position design, 14AWG power and 18AWG signal leads, plus weatherproof silicone gasket. UL Listed for safety and reliability, perfect for commercial and municipal dusk-to-dawn lighting control.

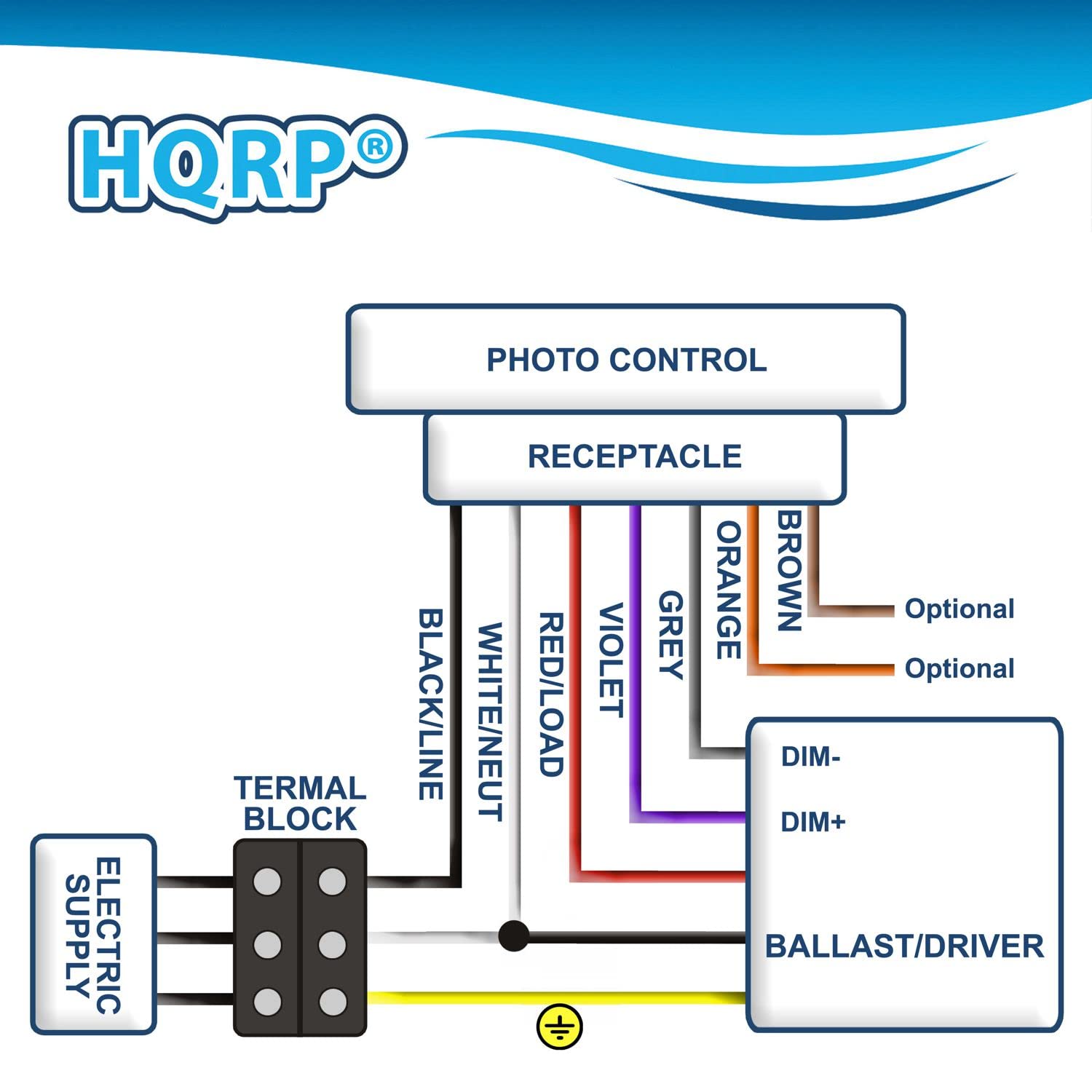

- 7-Wire Dimming Receptacle Design: 7-position socket with 3 power contacts and 4 dimming/signal contacts. Designed for advanced outdoor lighting systems with dimming control, ideal for street lights, garden lights, LED flood lights, and commercial fixtures.
- High Voltage & Current Rating: Power contacts rated up to 480V / 15A. Dimming contacts rated 30V / 250mA. Supports heavy-duty municipal, industrial, and commercial lighting applications requiring reliable dusk-to-dawn and dimming integration.

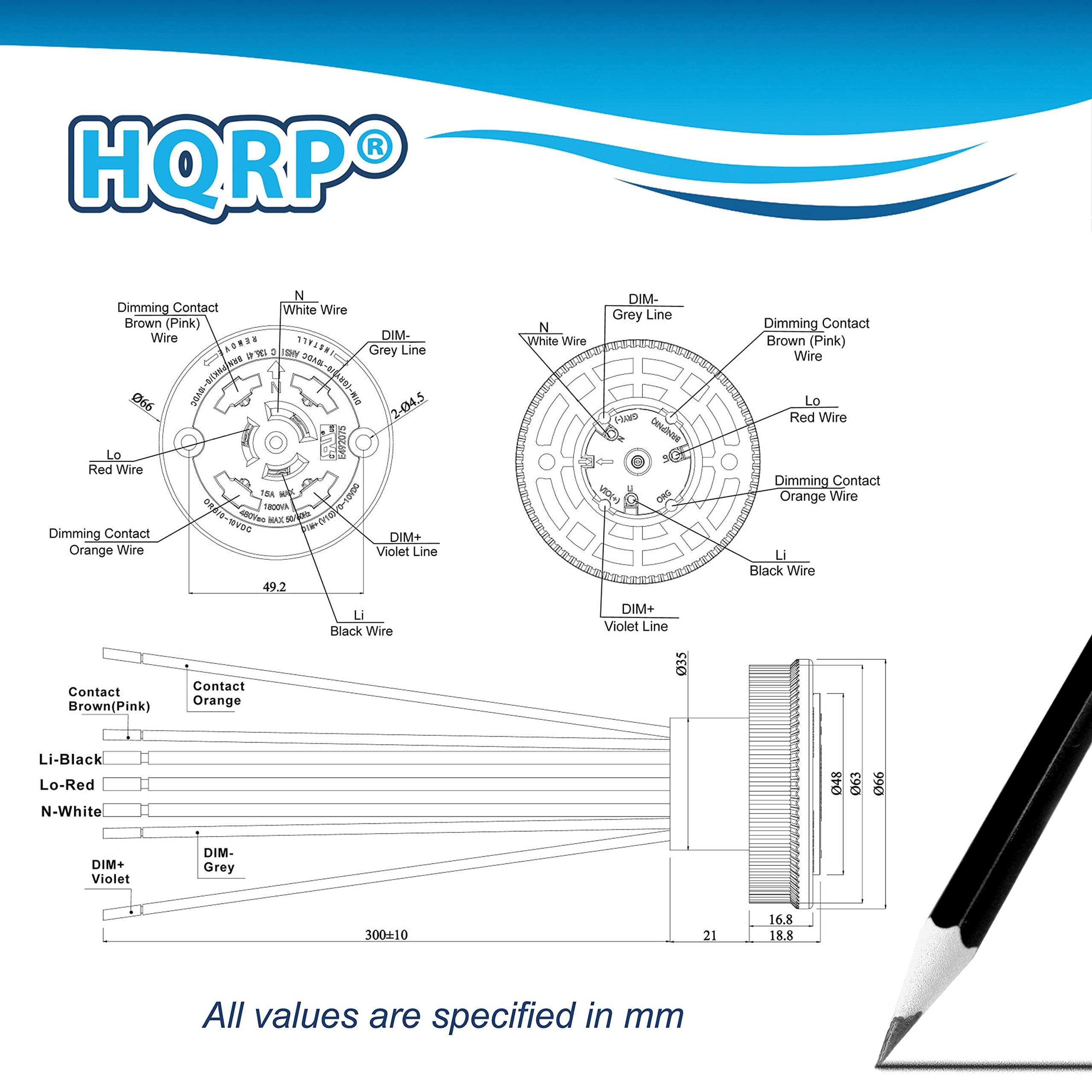

- Twist Lock Easy Installation: Standard twist-lock design allows quick and secure installation. Compatible with most 7-pin photocell sensors. Includes 14AWG power wires and 18AWG signal wires (30cm) for flexible and convenient wiring.
- Weatherproof with Silicone Gasket: Includes durable silicone gasket to create a tight moisture-resistant seal. Protects electrical connections from rain, dust, and outdoor elements, extending system lifespan and reliability.
- UL Listed & Long-Lasting Performance: UL Listed for safety and compliance. Built with high-quality materials for stable electrical connection and dependable outdoor performance. Backed by 200-day limited warranty for added confidence.
