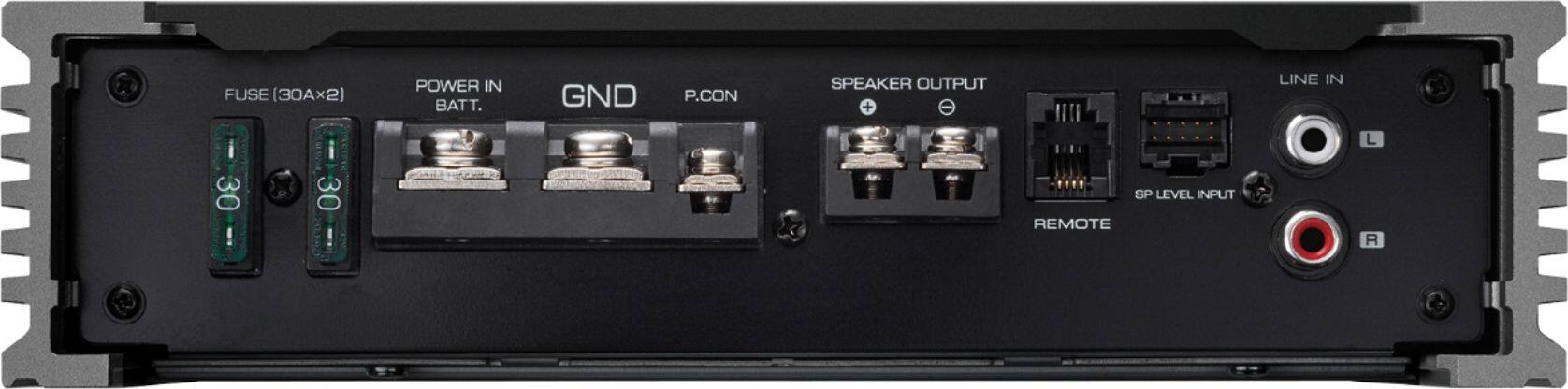

Kenwood - Class D Digital Mono Amplifier with Variable Low-Pass Crossover - Black
- Key Specs
- Continuous Watts x Channel @ Ohms: 300 Watts x 1 @ 4 Ohm
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 1
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Fixed (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- General
- Brand: Kenwood
- Model Number: KAC-511
- Product Name: Class D Digital Mono Amplifier with Variable Low-Pass Crossover
- Color: Black
- Mounting Hardware Included: true
- Audio Power
- Continuous Watts x Channel @ Ohms: 300 Watts x 1 @ 4 Ohm
- Total Power Handling RMS: 300 watts
- Watts Per Channel RMS: 300 watts
- Total Power Handling Maximum: 500 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 1
- Minimum Frequency Response: 20 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 0.2 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Signal-to-Noise Ratio (SNR): 100 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: false (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Fixed (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Remote Control Included: Bass
- Fan Cooled: false
- Input
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Dimensions
- Product Height: 2.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 5.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 3.75 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Compatibility
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 019048226280
Elevate your car audio experience with the Kenwood KAC-511 Class D Digital Mono Amplifier. This amplifier delivers up to 500 watts of RMS power at 2 ohms, providing your subwoofer with the energy it needs to produce rich, deep bass. Designed for efficiency, this Class D amplifier ensures reliable power handling without excessive heat, making it perfect for powering a subwoofer in a compact automotive setup. It features a variable low-pass crossover, allowing you to fine-tune the frequency output between 50Hz and 200Hz to suit your preferences and subwoofer capabilities. With a sleek, compact design that makes installation easy, the KAC-511 is ideal for tight spaces without sacrificing performance. A 100dB signal-to-noise ratio ensures that your audio remains crisp and clear, free from distortion, while the included remote bass control lets you adjust the bass level from your seat. Whether you're upgrading your sound system or replacing an older amp, the Kenwood KAC-511 offers high-quality performance at an excellent value.
- 500W total power: RMS rating of 500W x 1 @ 2 ohms, for robust audio.
- Variable low-pass-filter crossover: Lets you easily adjust the audio frequency from 50Hz to 200Hz for flexible sonic customization.
- 4 ohms impedance: Conducts power evenly to keep the speaker at an appropriate level.
- 100dB signal-to-noise ratio: Offers crisp audio.
- Class D circuitry: Ensures reliable power handling.
- 500W total power: RMS rating of 500W x 1 @ 2 ohms, for robust audio.
- Variable low-pass-filter crossover: Lets you easily adjust the audio frequency from 50Hz to 200Hz for flexible sonic customization.
- 4 ohms impedance: Conducts power evenly to keep the speaker at an appropriate level.
- 100dB signal-to-noise ratio: Offers crisp audio.
- Class D circuitry: Ensures reliable power handling.
Whats Included
- Kenwood KAC-511
- Remote bass control
- Kenwood KAC-511
- Remote bass control
Product Manuals
Q: What is the impedance of this amplifier?
A: This amplifier has an impedance of 4 ohms.
Q: What type of circuitry does this amplifier use?
A: This amplifier uses Class D circuitry for reliable power handling.
Q: Does this amplifier have a variable low-pass crossover?
A: Yes, it features a variable low-pass crossover, allowing you to adjust the audio frequency from 50Hz to 200Hz.
Q: How much power does this Kenwood amplifier deliver?
A: This amplifier delivers a total power of 500 watts.
Q: What is the signal-to-noise ratio of this amplifier?
A: This amplifier has a signal-to-noise ratio of 100 decibels, ensuring clear audio.
Q: Is 8AWG wiring recommended for this amp?
A: I ran 4ga as it can draw up to 60a of current, and most CCA 8ga is only good for 40a of current. The amp runs flawlessly with 4ga, but might not get enough current running 8ga unLess you run a premium ofc 8ga- a few companies make an 8ga that can run 60a.
Q: Does this amp have an available remote?
A: Has a bass control knob wired to amp. Easy to control level of bass
Q: Can this amp be ran either 2ohms or 4
A: This amp can run to a 2ohm subwoofer. I got it powering some MTX terminators and the amp is able to do 500 watts at 2 ohms to the subwoofer.
