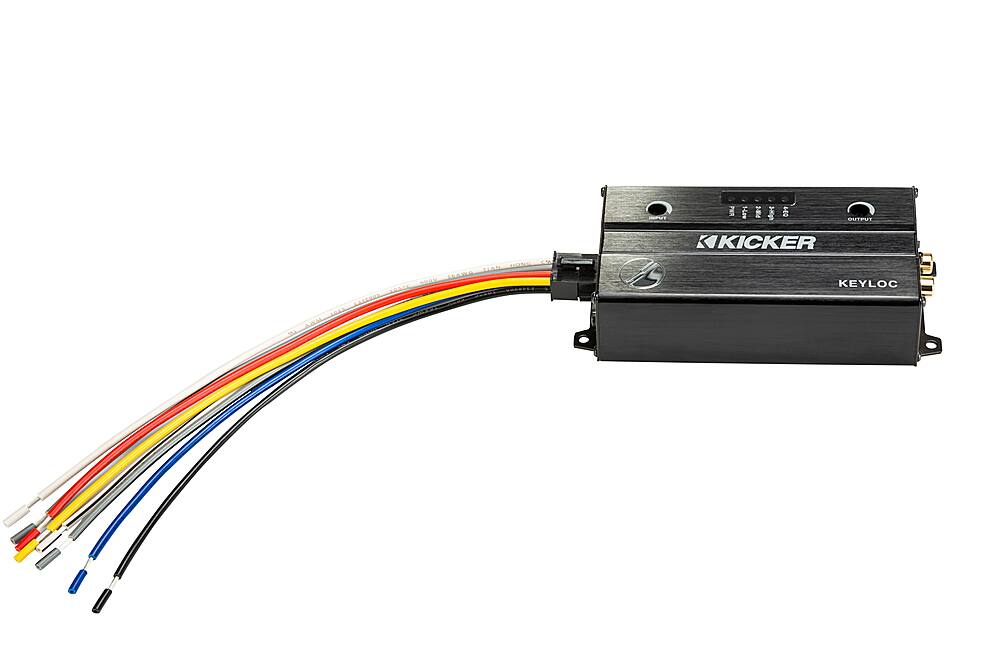

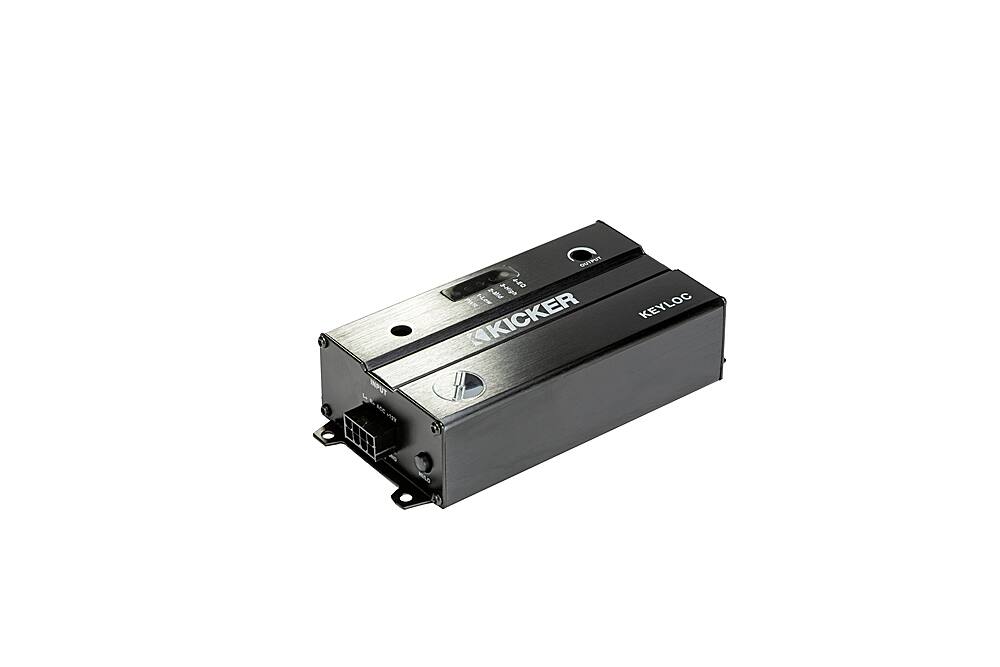

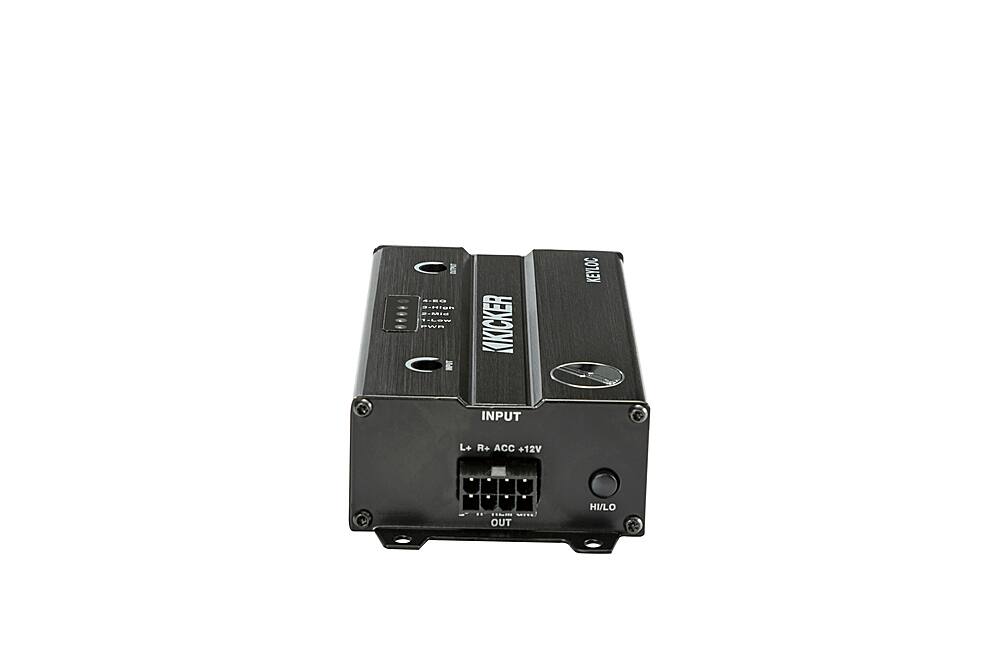

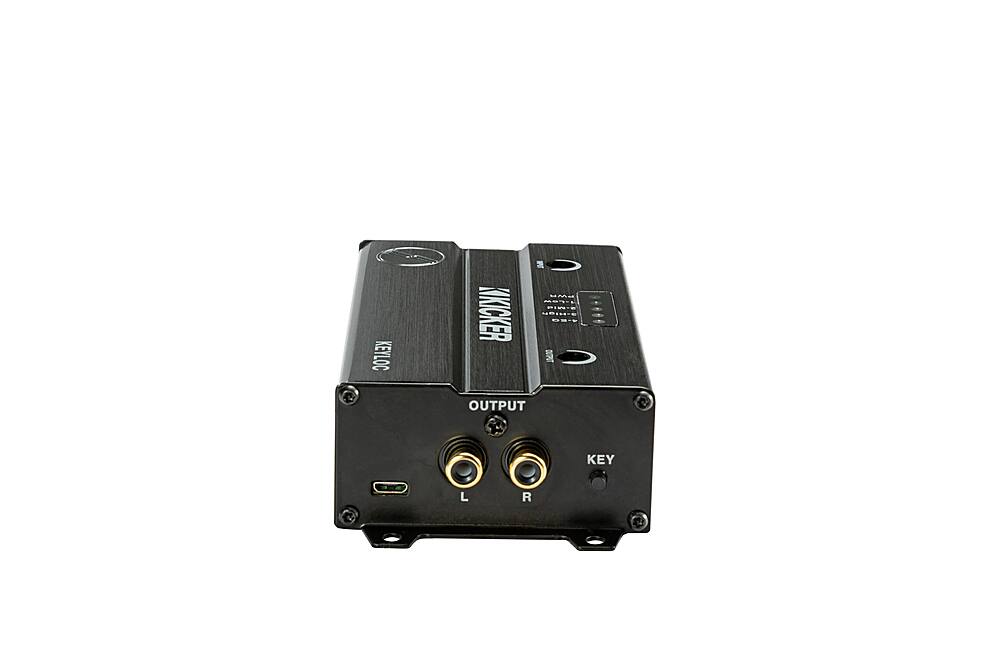

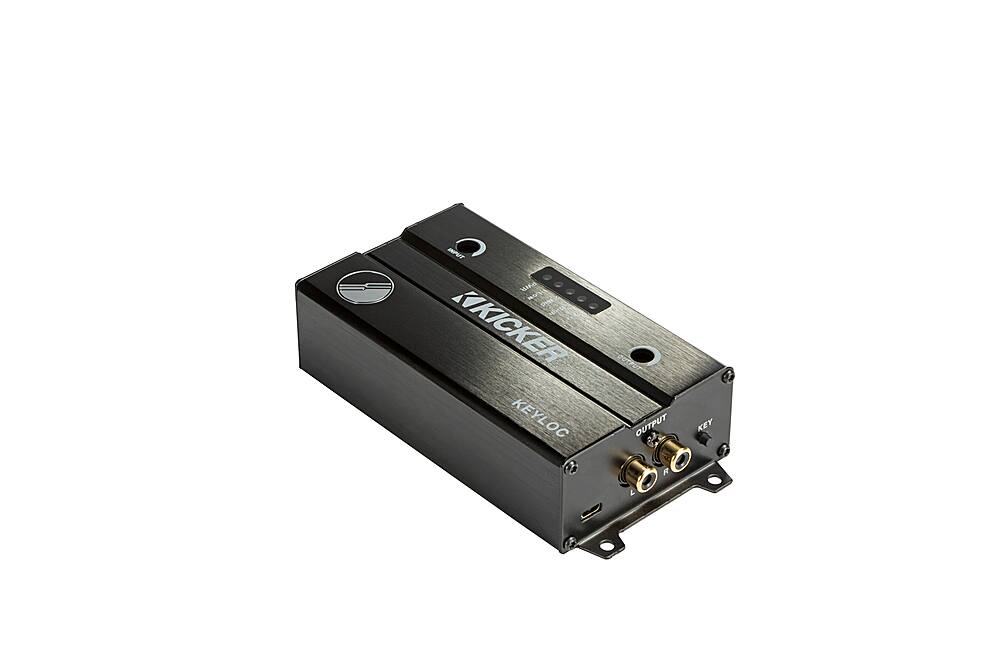

KICKER - DSP-Powered 2-Channel Line Output Converter - Black
- General
- Brand: KICKER
- Model Number: KEYLOC
- Product Name: DSP-Powered 2-Channel Line Output Converter
- Color: Black
- Compatibility
- Product Compatibility: Amplifier
- Product Type: Line output converter
- Dimensions
- Product Height: 1.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 5.5 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 2.8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.6 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 713034088585
The Kicker KEYLOC is a 2-channel line-out converter with DSP processing that can detect, analyze, and correct the audio from your factory system, when adding aftermarket amplifiers. The KEYLOC's patent-pending KEY algorithm automatically detects and analyzes crossovers, EQ, time delay, and any all-pass filters present. It will then correct these various audio treatments, for the smoothest frequency response possible, and level-matches the left and right audio channels, giving you a clean, uncolored audio signal for your aftermarket amplifiers
- Automatic turn-on: The KEYLOC senses DC offset on the speaker-level inputs, between 2.5V and 6V, to automatically power on. A Remote In wire can be used if the connected headunit features a turn-on output.
- Frequency response correction: Smoothest frequency response on the 2 input channels via EQ correction, with Q's ranging from 0.5 - 10 with up to ±12dB of boost or cut.
- Factory time delay defeat: Ranges from .06mS - 10mS, with .06mS accuracy
- All-pass filter defeat: The KEYLOC can correct up to 3 all-pass filters on one channel. The all-pass filters can even have a Q ranging from 0.5-3.5, as long as they're not interacting with other all-pass filters.
- Passive frequency detection: The KEYLOC's default status is in Passive Frequency Detection mode which can detect what band of frequencies are available on each of the speaker input channels.
Product Manuals
Q: Can the output level of the converter be adjusted?
A: The output level of the converter can be adjusted.
Q: How does the converter analyze and correct audio from a factory system?
A: The Kicker KEYLOC uses a patent-pending KEY algorithm to automatically detect and analyze aspects of your factory system like crossovers and EQ. It then corrects these audio treatments to provide the smoothest frequency response possible.
Q: What is the maximum power handling of the converter?
A: The maximum power handling of the converter is 400 watts.
Q: What are the dimensions of the converter?
A: The product is 1.5 inches high, 2.8 inches wide, and 5.5 inches long.
Q: What is the warranty period for the converter?
A: The manufacturer's warranty for parts on the DSP-Powered 2-Channel Line Output Converter is 2 years.
A: It worked for mine. I have a 2022 Raptor and this unit worked wayyyy better than the LC2i Pro
