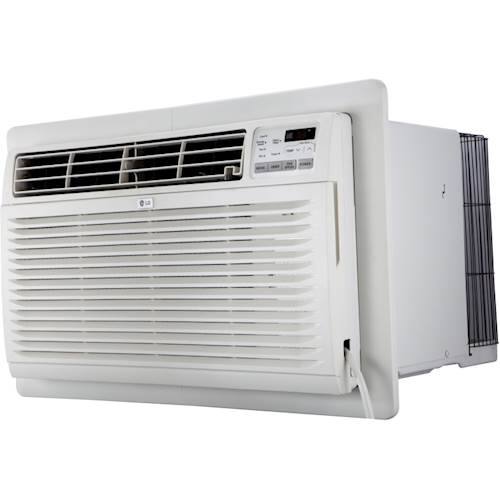

LG - 10,000 BTU 440 Sq. Ft. 230V Through-the-Wall Air Conditioner with 11,200 BTU Supplemental Heat - White
- Key Specs
- Recommended Room Size: 440 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 9800 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- Number of Cool Settings: 3
- Number of Fan Speeds: 2
- Airflow Rate: 285 cubic feet per minute
- Remote Control: true
- Integrated Heater: true
- Sleep Mode: false (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Energy Efficiency Ratio: 9.8 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Combined Energy Efficiency Ratio (CEER): 10.7 (The standard used to measure energy efficiency in window and room air conditioners by the Department of Energy (DOE) as of June of 2014. CEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) in standby mode and while the unit is operating. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Air Conditioner Type: Wall
- General
- Brand: LG
- Model Number: LT1037HNR
- Product Name: 10,000 BTU 440 Sq. Ft. 230V Through-the-Wall Air Conditioner with 11,200 BTU Supplemental Heat
- Color: White
- Air Conditioner Type: Wall
- Dimensions
- Cut-Out Height: 15.56 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 25.93 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 16.75 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Product Height: 14.4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 24 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 20.1 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 78 pounds (The out of box weight of the item.)
- Cord Length: 48 inches
- BTU Rating
- Recommended Room Size: 440 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 9800 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- BTU Heat Rating: 11200 british thermal units (The number of BTUs (British Thermal Units) per hour the unit produces to heat the air, also known as heating capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to heat. The recommended capacity depends on several factors such as climate and level of insulation, but generally ranges from 30-60 BTUs per square foot.)
- Features
- Number of Cool Settings: 3
- Number of Fan Speeds: 2
- Airflow Rate: 285 cubic feet per minute
- Maximum Noise Level: 56 decibels adjusted
- Air Discharge: Top
- Air Direction/Circulation: 4-way
- Remote Control: true
- Control Type: Touchpad
- Integrated Heater: true
- Filter Indicator Light(s): true
- Filter Type: Washable
- Sleep Mode: false (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Power
- Energy Efficiency Ratio: 9.8 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Combined Energy Efficiency Ratio (CEER): 10.7 (The standard used to measure energy efficiency in window and room air conditioners by the Department of Energy (DOE) as of June of 2014. CEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) in standby mode and while the unit is operating. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Voltage Requirement: 230
- Amperage: 15.3 amperes (Strength of electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): ETL Listed, UL Listed, CSA Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Included
- Sleeve Included: true
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 048231382274
Control your environment with this 10,000 BTU LG air conditioner. Its 230V motor provides two cooling speeds along with supplemental heating, and its four-way air deflection system covers areas of up to 440 sq. ft. This through-the-wall LG air conditioner has a 24-hour timer that lets you preset operating hours.
- Energy Saver function: The fan stops when the compressor stops cooling. Approximately every 3 minutes the fan will turn on and check the room air temperature if cooling is needed.
- Up to 440 sq. ft. cooling capacity: Allows you to keep a medium-sized room cool.
- Remote control included: Change settings, monitor performance.
- Washable filter: Enables simple maintenance.
- Clean Filter LED indicator: Lights up to notify you that your filter needs to be cleaned. The LED (light) will illuminate after 250 hours of operation.
- Auto Restart function: Provides protection for the device in the event of a power failure.
- 24-hour timer: For preset operation and reduced energy consumption.
- 2 cooling, heating settings and 2 fan-only speeds: Keep cold air moving at the speed of your choice for custom comfort.
- 4-way air direction: Distributes cool air to most room areas and help eliminates hot spots.
- Digital display: Lets you easily monitor current settings for added visibility.
- 54 Dba: Allows you to enjoy the benefits of clean, fresh air without noisy operational sounds.
- Energy Saver function: The fan stops when the compressor stops cooling. Approximately every 3 minutes the fan will turn on and check the room air temperature if cooling is needed.
- Up to 440 sq. ft. cooling capacity: Allows you to keep a medium-sized room cool.
- Remote control included: Change settings, monitor performance.
- Washable filter: Enables simple maintenance.
- Clean Filter LED indicator: Lights up to notify you that your filter needs to be cleaned. The LED (light) will illuminate after 250 hours of operation.
- Auto Restart function: Provides protection for the device in the event of a power failure.
- 24-hour timer: For preset operation and reduced energy consumption.
- 2 cooling, heating settings and 2 fan-only speeds: Keep cold air moving at the speed of your choice for custom comfort.
- 4-way air direction: Distributes cool air to most room areas and help eliminates hot spots.
- Digital display: Lets you easily monitor current settings for added visibility.
- 54 Dba: Allows you to enjoy the benefits of clean, fresh air without noisy operational sounds.
Whats Included
- LG 10,000 BTU Through-the-Wall Air Conditioner and 11,200 BTU Heater
- Remote control
- LG 10,000 BTU Through-the-Wall Air Conditioner and 11,200 BTU Heater
- Remote control
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: what is the voltage and is this a heat pump?
A: The LG 10,000 BTU 230v Through-the-Wall Air Conditioner with Heat, Model # LT1037HNR has to be plugged into a standard 250 V, 3-wire grounding outlet rated at 20 Amps. It does not use a heat pump...^IFV
Q: Does this require a wall sleeve? If it does, how much is it?
A: Thank you for reaching us regarding LG Air Conditioner. Yes, the LG LT1037HNR air conditioner requires a wall sleeve for installation. kindly coordinate with the dealer where you'll buy your LG appliance. In your case, on BestBuy. ^Cris
Q: Could this unit be used to heat a small greenhouse?
A: The LG 440 Sq. Ft. 10,000 BTU 230V Through-the-Wall Air Conditioner and 440 Sq. Ft. Heater - White, Model # LT1037HNR should not be used for special purposes such as heating a small greenhouse, cooling pets, foods, precision equipment, or objects of art...^IFV
A: Regrettably, the LG - 10,000 BTU Through-the-Wall Air Conditioner and 11,200 BTU Heater - White, Model # LT1037HNR is not available without the heating. Its W x H x D dimensions are: 24" x 14 13/32" x 20 3/32". This unit will only fit into specific sleeves from other manufacture provided the sleeves are in good structural condition and have a rear grille in the back of the sleeve that the unit can be secured to. The owner's manual has a list of the sleeves from other manufacturers that may or may not need to have their louvers redirected for this unit to fit. You can contact Best Buys Geek Squad to inquire if they offer installation services for this type of air conditioner. Call 1-888-BEST BUY (1-888-237-8289)...^IFV
Q: Does this unit require a 220v outlet and, second, does it require a pipe to handle condensation?
A: It does require a 220 outlet. Mine didn't require a pile because I used the existing setup from my previous unit.
Q: What power receptacle does this require -- Standard 110 or 220?
A: The LG 10,000 BTU 230v Through-the-Wall Air Conditioner with Heat, Model # LT1037HNR has to be plugged into its own dedicated standard 250 V, 3-wire grounding receptacle rated at 20 Amps, 250 VAC protected by a 20 Amp time delay fuse or a 20 Amp circuit breaker. In North America, the terms 220V, 230V, and 240V all refer to the same system voltage level. The reason for the receptacle being rated at 250 V is because for or a time in the early days of electrification, most residential distribution voltage standards were 110/220V. In the late 20s, design standards for equipment mfrs, like NEMA, came into being. Then in the 30s with the REA (a Depression era government program to provide electricity to farms and rural areas) it was bumped to 120/240V and made a national standard. So NEMA, having to now adjust their design standards to match, anticipated the distribution voltage standard possibly increasing again and they settled on 125/250V as a design standard so that they would not have to change again for a long time...^Ivan
Q: Does this unit come with a slide our chassis or sleeve?
A: The specifications states "Yes" that a sleeve is included. However, that was not the case with me. The box doesn't look to be designed to contain the sleeve. So I don't think it was a packing oversight at the manufacturer. You're going to have to buy one.
Q: What is the NEMA configuration of the plug?
A: Please reach out to our support team on Facebook at @LGUSSupport and use #VOC in your first message to our social media support team. Please be sure to provide your name, phone number, address, email, model/serial numbers, and date of purchase and we will be happy to assist you. There are policies and procedures in place to ensure resolutions are consistent and fair. I am confident that we will work to provide an agreeable resolution.^Venette
