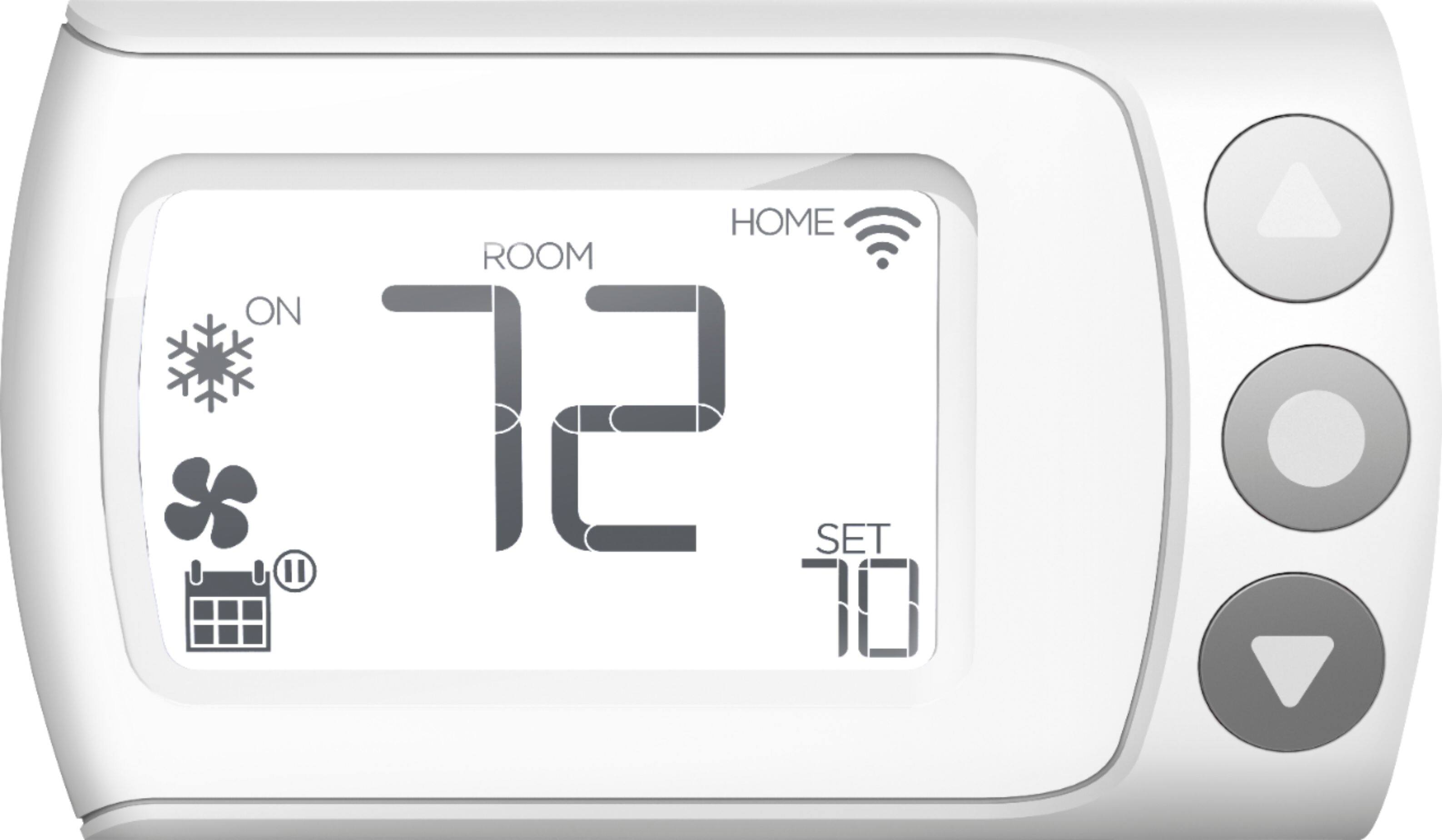

LUX - Smart Programmable Wi-Fi Thermostat - White

Name: LUX - Smart Programmable Wi-Fi Thermostat - White
Brand: LUX
SKU: 6391851
Rating: 3.9 (100 reviews)

Model: CS1-WH1-004

SKU: 6391851

This item is no longer available in new condition. See similar items below

Key Specs
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Touch Screen: false (Touch-screen devices make navigating more intuitive. Using a touch-screen display, you can do things such as tap to select, hold and drag to move items, swipe to scroll, and pinch to zoom.)
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
General
- Brand: LUX
- Model Number: CS1-WH1-004
- Product Name: Smart Programmable Wi-Fi Thermostat
- Color: White
Dimensions
- Product Height: 3.25 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 5.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 1.34 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.52 pounds (The out of box weight of the item.)
Power
- Wire Configuration: C-wire, 4-Wire
- Power Source: Hard wired
- Wire Terminals: Y (cooling), G (fan operation), RC (cooling power), W (heating), W2 (heating stage 2), C (common 24v power), RH (heating power) (The available connections on the device for wiring other devices to it. These are often abbreviated or coded due to the space available on the device.)
- Voltage Type: Low voltage (The kind of voltage used by the device.)
Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Compatible Product(s): Air conditioners, Boilers, Furnaces, Heat pumps
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Operating System Compatibility: Android, Apple iOS
- Works With: Amazon Alexa, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
Features
- Touch Screen: false (Touch-screen devices make navigating more intuitive. Using a touch-screen display, you can do things such as tap to select, hold and drag to move items, swipe to scroll, and pinch to zoom.)
- Remote Sensor Capable: false (Indicates whether the thermostat is compatible with remote sensors. This capability allows for the connection of multiple sensors in order to collect temperature data from several locations in a zone for an overall assessment of the temperature needs.)
Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
Other
- UPC: 021079180332

Control your home’s heating and cooling system remotely with this LUX Wi-Fi thermostat. The Android and iOS companion app supports geofencing, smart scheduling and personalization settings for efficiency, and compatibility with Google Assistant and Amazon Alexa offers convenient voice control. This LUX Wi-Fi thermostat works with electric, gas, oil and forced-air systems for versatility.

Extensive compatibility: Designed for use with most heating and cooling system types, including forced air, gas, oil, electric furnaces up to 2H/1C, and heat pump systems with or without aux/emergency heat.
Connects to your existing home network: Convenient Wi-Fi capabilities offer a secure and reliable connection.
Control temperature from anywhere: Download the app from iTunes or Google Play, and adjust your thermostat from your smartphone, tablet, or laptop, even when you're miles away.
Alerts provide peace of mind: You will be alerted about room temperature, offline, or filter replacement.
Money-saving programs: Features advanced energy-saving algorithms that consider thousands of data points.
Works with Google Assistant and Amazon Alexa: You can enjoy benefits of a smarter home.
App compatible: Control temperature in your house with the LUX app from anywhere.
Extensive compatibility: Designed for use with most heating and cooling system types, including forced air, gas, oil, electric furnaces up to 2H/1C, and heat pump systems with or without aux/emergency heat.
Connects to your existing home network: Convenient Wi-Fi capabilities offer a secure and reliable connection.
Control temperature from anywhere: Download the app from iTunes or Google Play, and adjust your thermostat from your smartphone, tablet, or laptop, even when you're miles away.
Alerts provide peace of mind: You will be alerted about room temperature, offline, or filter replacement.
Money-saving programs: Features advanced energy-saving algorithms that consider thousands of data points.
Works with Google Assistant and Amazon Alexa: You can enjoy benefits of a smarter home.
App compatible: Control temperature in your house with the LUX app from anywhere.

Whats Included

LUX Smart Programmable Wi-Fi Thermostat
Mounting hardware
Owner's manual
LUX Smart Programmable Wi-Fi Thermostat
Mounting hardware
Owner's manual

Product Manuals

Q: my old one using only has two wire-connections, W and G. Can I use this LUX Smart wifi Thermostat to replace my old one?

A: No you can not use this with a two wire set up. I bought it in December and found out it was not compatible with my two wire set up. I called the tech support to verify. Now I’m stuck with it because I lost my receipt. Lol

Q: Will this thermostat work with propane gas furnace?

A: It works with electric and natural gas furnances.

Q: Will this thermostat work with only a two wire system (Heat only system)?

A: It tells you on the back of the product box on what systems are compatible. Plus great customer service.

Q: Will this thermostat automatically switch from AC to heat as necessary?

A: Yes

Q: Will this work with 4 wires?

A: All connection method compatibility options are on the back of box plus great customer service for any additional questions

Q: What is the lowest temperature setting?

A: 50 degrees

Q: Will this t-stat work on a mili-volt floor heater?

A: undefined

Q: What is the temperature swing. I made the mistake of buying a Honeywell "total comfort" thermostat. It should be renamed totally annoying. It has 1/2 a degree of temp swing so if you set it on 70, and the temp is 69.5 it kicks the heat back on?

A: undefined

Customers are saying

Customers are impressed with the Smart Programmable Wi-Fi Thermostat's ease of use and simple installation. Many appreciate its convenient smart features, enabling control from anywhere. Positive feedback highlights the straightforward setup process. The product is praised for its user-friendly design.

This summary was generated by AI based on customer reviews.

Customer Images

The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.

Rated 5 out of 5 stars
No C wire required
I bought two of these units so when I bought them I realized it required a C wire not so much. I called tech support they told me that if you don't have a C wire they can walk me through how to rearrange my thermostat wires on my furnace they gave me easy to do instructions and Bam I have a wireless thermostat two of them with the techniques followed from their tech support. I called an electrician to install a C wire some time ago. They wanted a fortune cuz of going through the wall and nonsense like that these two simple units save me a buttload of money. The application I use for Lux it's very simple to use I'm able to control it from work or wherever I love it. Thank You LUX and tech support.
Posted 3 years ago by HarryBosch
Rated 4 out of 5 stars
Good Value Wifi Thermostat
I like that this thermostat offers WIFI control in a package that is traditional and familiar, but also clean and modern. My biggest issue is that some of the settings and features are not covered well in the included documentation. Pros - WIFI connection and control via app work well - Basic functions and controls are intuitive and work well - Large backlit display - Setting up and managing a basic schedule from the app was no issue - Usage data available via app is useful for comparing run time and temperature settings - Offers app based geofencing for location aware home and away modes - Connected to Alexa with no issue - voice control works for changing temperature, but is limited (tip: you have to enable the Lux Products skill to allow Alexa to find your thermostat) - Installation was straight forward and a small screw driver to tighten the terminal wires is included (make sure you turn off the power and label the wires or take a picture before removing your old thermostat) Things to Consider - No battery option - you must have a C-wire or purchase a separate power kit - Two features I found really useful in my old thermostat are missing: no humidity sensor and no service reminders based on run time (the only reminder available is for the air filter based on days) - No touch screen and only 3 physical buttons means a lot of clicking to change some settings locally - Some features are not well documented, requiring a visit to the FAQ or a bit of internet searching (see below) - Auto heat/cool mode only works properly when running a schedule, it blocks temperature changes from the app with no warning that this command is not available (you must switch modes first via the app then change the temp), temperature changes at the thermostat cause strange behavior in Auto (the heat and A/C constanly toggle) until you return to the schedule - again no warning, it has no awarness of outside temperature and it is recommended not to use it if it is colder than 50F outside to prevent A/C damage. - Many settings (reminders, calibration, heat/cool temperature limits, run time delay, temperature swing, display) cannot be changed via the app and are a bit cryptic due to the limited display/instructions. The basic functions of this thermostat work well and are easy to use. I did have a few minor issues, but it offers a lot of value and is a good choice if you like the design.
Posted 4 years ago by MGoose
Rated 3 out of 5 stars
Great Features, Disappointing Design
---- Summary ---- Pros: - Simple to install - Universally compatible with different systems - Really does help save energy/money - Voice controllable with Google Assistant or Amazon Alexa - Can know when you’re home/away and adjust accordingly - Controllable from anywhere via mobile app - Alerts for filter changes and dangerous temperature warnings - Customizable temperature scheduling Cons: - Design seems outdated compared to others on market - Lightweight plastic and loud clicking buttons make it feel cheap - Mobile app is very basic, not elegantly designed ---- Review ---- Installation: Included in the box are the thermostat, power wire (for installation without a C-wire), mounting screws, wall anchors, wire labels, wall plate, and mini screwdriver. This was my first time installing a thermostat, and I was pleasantly surprised by how easy the process was. After turning off the circuit breaker to my heating/cooling system, I removed the faceplate from my existing thermostat, labeled the wires with the cleverly included wire labels, and removed it from the wall. After that, I attached the LUX thermostat’s base to the wall and the wires to their matching terminals then snapped the thermostat to its base and proceeded with the setup process. My system has a C-wire, so I can’t speak to the installation process using the power wire, which looks a little more complex. Nonetheless, you don’t have to have a C-wire to install this LUX thermostat. The part that took me the longest was drilling holes and covering up the previous ones because I preferred not to use the included wall plate that’s quite large. Depending on the size difference between your existing thermostat and the LUX thermostat, and whether you prefer to use the wall plate or not, the time it takes to install will vary, but I like that there are just a few steps clearly defined in the installation manual. I didn’t experience any hiccups during installation. Design: I’m disappointed with the design and quality of this LUX smart thermostat. Put simply, it looks and feels cheap, which is not what I’d expect from a smart thermostat. The pictures look nice online, but it gives off a different vibe in person. Even something as simple as the buttons are offputting to me due to a loud click noise upon pressing them. Though it’s on the low end of the smart thermostat price range, there are similarly priced ones with better build quality and a modern look. This thermostat looks outdated and seems to be mostly made of lightweight plastic. Though a thermostat doesn’t need to durable or be a beautiful art piece on your wall, it just seems that there wasn’t much thought put into the design of this LUX thermostat, and that’s a shame because the features of it contend with alternatives on the market. Features & Mobile App: Where this LUX thermostat stacks up with the competition is features. I like the “geofencing” feature that switches the system to energy-saving mode when you’re not home and the ability to set temperature schedules in the mobile app. Both of these features help save energy and money. Additionally, I appreciate the ability to change the temperature from anywhere via the app, as well as the Amazon Alexa and Google Assistant support. These add convenience to changing the temperature. In my case, I use Google Assistant and it works great. Alerts are a feature I haven’t tested (and hopefully will never have to), but having alerts gives me peace of mind because they can warn you of dangerous freezing or heat conditions. Filter change reminders are a nice feature to have as well. When it comes to features, there’s really not much more I could ask for in a smart thermostat. However, like the thermostat’s design, the app could use some work. It was pretty easy to set up, and I haven’t experienced any glitches, but it’s very basic and not an elegant user interface. That aside, I think this LUX thermostat provides plenty of helpful features that add convenience to my life and help me save energy. Verdict: I really wanted to like this thermostat more than I do. It has all the features I look for in a smart thermostat, like scheduling, controlling from anywhere, Google Assistant and Amazon Alexa support, and home/away awareness. Additionally, I was relieved to find that the installation process was simple. What makes this thermostat difficult to recommend is the lackluster design. If it’s appealing to you, I’d say this is a good smart thermostat that’s worth your consideration. I understand that design preferences vary from person to person. I just think some of the other similarly priced smart thermostats on the market have the same features but much more premium, modern looks. With that in mind, I can only give this thermostat a three-star, “average” rating.
Posted 4 years ago by Kelby
