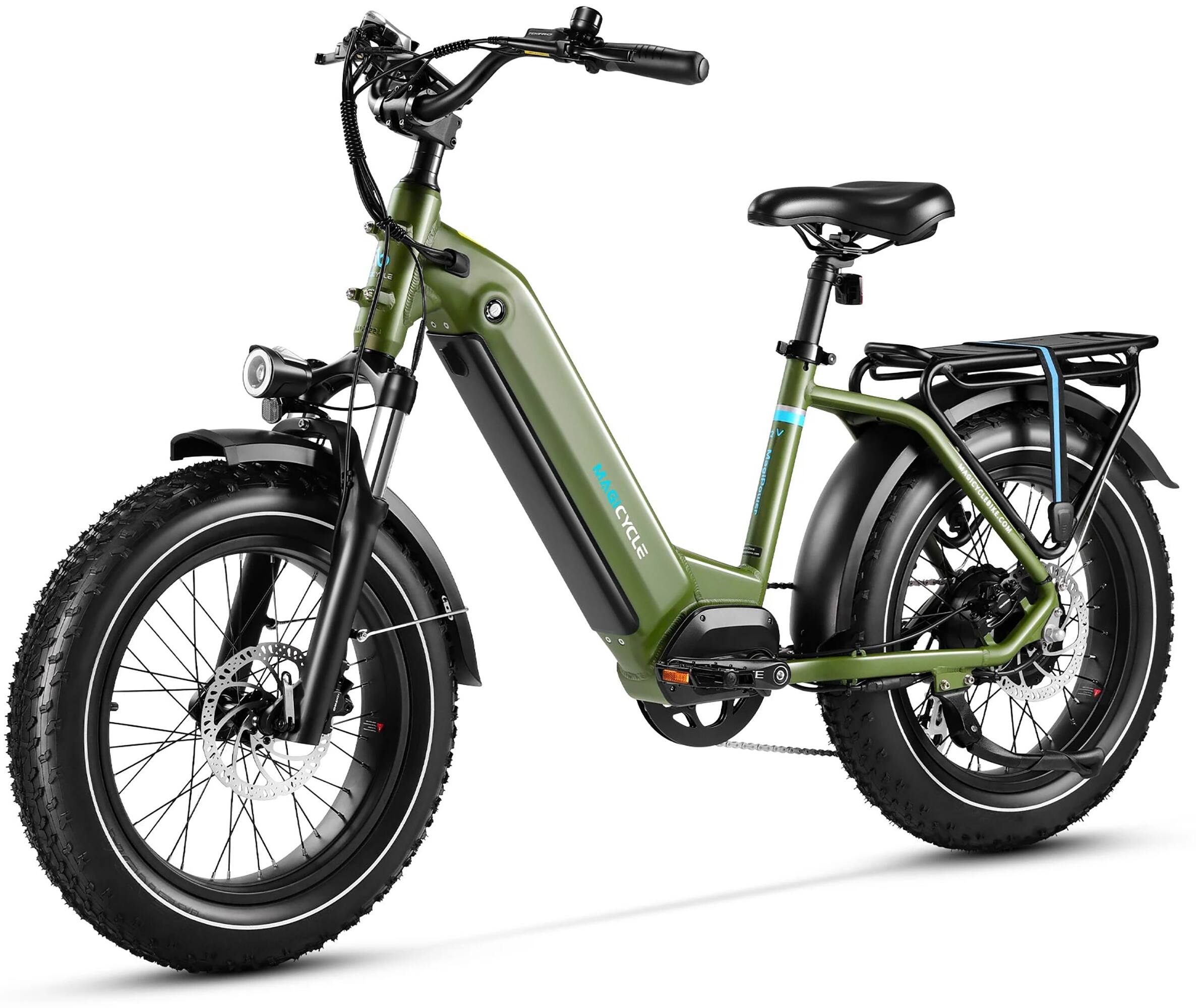

Name: Magicycle - Ocelot Pro Electric Bike 750W/Peak 1500W Motor w/ 100 mi Max Operating Range & 28 mph Max Speed Shimano 7 Speed - Army Green
Brand: Magicycle
SKU: 6612055
Rating: 1 (1 reviews)

Key Specs
- Color: Army Green
- Product Weight: 73 pounds (The out of box weight of the item.)
- Maximum Operating Range: 100 miles
- Maximum Speed: 28 miles per hour
- Motor Power (Nominal): 750 watts (Also known as rated power, this is the maximum power a motor can produce without damaging itself under normal working conditions for an extended period of time.)
- Throttle Control Mechanism: Pedal assist
- Electric Bike Classification: Class 3 (Refers to the out of the box classification of the electric bike prior to any additional modifications. The three-tiered classification system is used to define and regulate the operation of the vehicle based on its speed capabilities. The use of these vehicles varies from state to state so it is important to check your local regulations prior to operating. Class 1: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 20 miles per hour. Class 2: Bicycle equipped with a throttle-actuated motor that ceases to assist when the e-bike reaches 20 miles per hour. Class 3: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 28 miles per hour.)
General
- Brand: Magicycle
- Model Number: 1231924
- Product Name: Ocelot Pro Electric Bike 750W/Peak 1500W Motor w/ 100 mi Max Operating Range & 28 mph Max Speed Shimano 7 Speed
- Color: Army Green
- Electric Bike Classification: Class 3 (Refers to the out of the box classification of the electric bike prior to any additional modifications. The three-tiered classification system is used to define and regulate the operation of the vehicle based on its speed capabilities. The use of these vehicles varies from state to state so it is important to check your local regulations prior to operating. Class 1: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 20 miles per hour. Class 2: Bicycle equipped with a throttle-actuated motor that ceases to assist when the e-bike reaches 20 miles per hour. Class 3: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 28 miles per hour.)
- Bicycle Type: Adults bike
- Bike Style: Electric bikes
- Recommended Terrain: Gravel, Hardpacked trails, Off-road trails, Paved roadways and trails
- Assembly Required: Partial
Dimensions
- Product Width: 9.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Height: 42.52 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 69.92 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 73 pounds (The out of box weight of the item.)
- Maximum Weight Capacity: 450 pounds (The maximum load that can be supported by the product.)
- Recommended Maximum User Height: 74 inches
- Recommended Minimum User Height: 58 inches
- Maximum Seat Height: 35.83 inches
- Minimum Seat Height: 29.71 inches
Display
- Display Type: LCD
Performance
- Maximum Operating Range: 100 miles
- Maximum Speed: 28 miles per hour
- Motor Power (Nominal): 750 watts (Also known as rated power, this is the maximum power a motor can produce without damaging itself under normal working conditions for an extended period of time.)
- Number of Speed Settings: 7
Power
- Throttle Control Mechanism: Pedal assist
- Electric Bike Motor Type: Rear hub motor
- Batteries Included: true (Indicates whether the product comes with the required batteries for its operation.)
- Removable Battery: true
- Battery Charge Time: 4 hours (Battery charge time will vary depending on the product configuration, product model, applications loaded on the product, power management setting of the product and the product features used by the customer. Charging time will likely decrease with time and usage of the battery.)
- Battery Chemistry: Lithium-ion
- Battery Amperage: 20 ampere hours
- Battery Voltage: 52 volts
- On/Off Switch: true
- Battery Indicator Light: true
- Rear-Rack Mounted Battery: false
Certifications Listings & Approvals
- Meets And Exceeds All UL Safety Standards: Not Applicable (Indicates that the product, as stated by the manufacturer, is required to, or has met and surpassed the standards established by Underwriter Laboratories (UL) for ensuring quality and safety.)
- Ingress Protection (IP) Rating: 6 (A 4 to 6 character code classifying a product's degree of protection against intrusion of solid particles and liquids as well as impact. Each number in the IP Code denotes a level of protection, determined through testing and published by the International Electrotechnical Commission (IEC). The first digit represents the degree of protection against solid foreign objects or particles and the second digit represents the degree of protection against water ingress.)
Features
- Passenger Ready: true
- Integrated Lights Included: Headlight (Indicates the types of active lighting integrated into the product that actively generates light from a bulb instead of reflecting light from another source.)
- Padded Seat: true
- Adjustable Seat(s): true
- Adjustable Handlebar(s): true
- Kickstand: true
- Rear Rack: true
- Fenders: true
Design
- Bicycle Frame Design: Step-through (Step-through frames, also known as open-frame or low-step bicycles, have a lower curved horizontal top tube which allow the rider to step through the frame when mounting and dismounting. Step-over frames, also known as diamond frames, have a horizontal top tube that connects to the seat tube and down tube to form a triangle. Riders must step over the frame when mounting and dismounting this style of bicycle.)
- Frame Material(s): 20" 6061 Aluminum Frame
- Derailleur: true
- Alloy Rims: true
Brakes
- Brake Style: Hydraulic disc
- Rear Brakes: true
Tires
- Suspension Type: Front
- Wheel Diameter: 20 inches
- Wheel Thickness: 4 inches
Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
Other
- UPC: 730637727901

Designed for people of various heights, the Ocelot Pro can fit everyone with an adjustable seat. All of you guys can find the best riding position on the Ocelot Pro. The responsive hydraulic disc brakes provide the smoothest braking experience you've ever had. Equipped with a 52V 20Ah battery, the Ocelot Pro offers a range of 100 miles. Let's have the best long trips on this long-range e-bike.

1500W 100Nm Motor: With the 750W/1500W peak power output, you can reach your potential and push your limit. Embrace the true happiness and fun that comes from the power.
Personalized Speed Adjustment: You can effortlessly adjust the power levels from 0-7, tailored to your riding needs in any condition. Plus, customize the speed ratio for each level from 1% to 100% to your liking. *Note: Adjusting to higher percentages may cause vigorous acceleration. Ensure balanced riding during swift starts.
52V 20Ah Battery: The 52V 20Ah battery system leads to improved efficiency, a longer range and an extended battery life. No worries about battery fire with the BMS built inside.
Hydraulic Disc Brakes: Stay safe wherever you go with hydraulic disc brakes. Get the amazing and responsive braking power at the flick of your fingers. You will be confident on every ride.
Color LCD Display: IPX6 grade water-resistant and premium components, the display is designed to be seen clearly even when exposed to sunlight, rain, or any other conditions. Get the real-time data on it. Come and customize your rides with it, a variety of functions are waiting for you to explore.
Puncture Resistant Fat Tires: The premium tires feature reflective sidewall striping and a dual tread compound for extended tread life and reliable grip in wet or loose conditions. Whether riding on concrete, gravel paths, or forest roads, these tires provide a secure and confident ride wherever your journey takes you.
Zoom Hydraulic Front Fork: The front fork efficiently absorbs shocks and vibrations during off-road rides. Equipped with lockable and adjustable features, it effortlessly tackles any terrain, alleviating riding fatigue and ensuring smooth journeys.
Brake Light: Be seen and safe with the brake light. Activate it with a gentle pull of the brake lever.

Whats Included

Ocelot Pro Electric Bike
E-bike Manual Guide
Repair Tool Kit
Battery, Charger, Front & Tail Light, Display, Front & Rear Fenders, Rear Rack, Front & Rear Reflectors, Bell, Bike Kickstand, Left & Right Pedals

Q: What is the battery charge time?

A: The battery charge time is 4 hours.

Q: What is the maximum weight capacity?

A: The maximum weight capacity is 450 pounds.

Q: What is the minimum user height requirement?

A: The minimum user height requirement for this electric bike is 58 inches.

Q: Are the handlebars adjustable?

A: The handlebars on the Ocelot Pro Electric Bike are adjustable.

Q: Can the bike be used on gravel terrain?

A: This bike is designed for gravel terrain.

Q: Does the bike have a throttle control mechanism?

A: The bike has a pedal assist throttle control mechanism.
